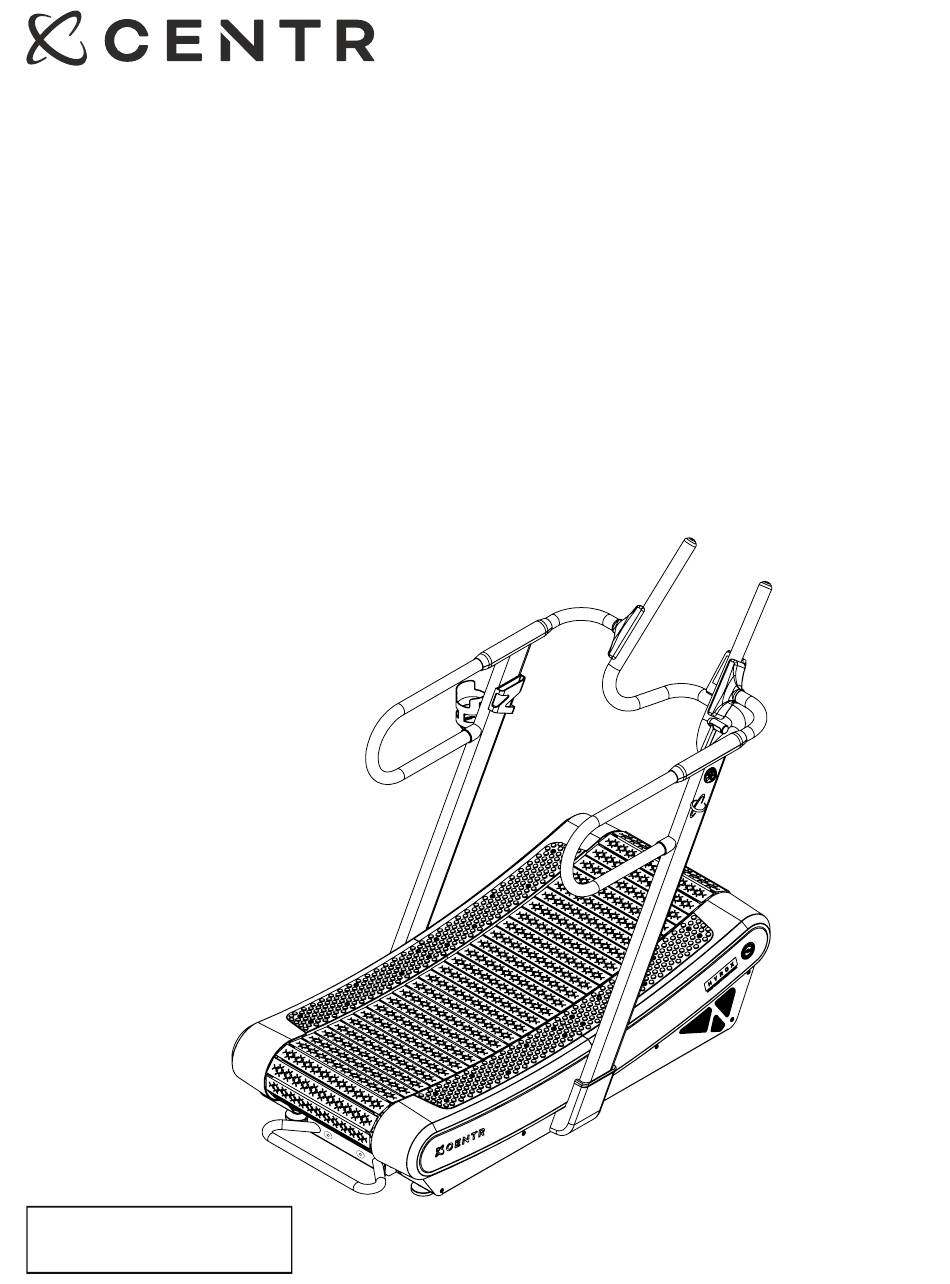

- Page 1 Model: NMT.2 ITM. / ART: USER MANUAL CENTR HYROX PERFORM TREAD IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Record Serial Number Here MADE IN CHINA 80382-EN-V2025-03-07...
-
Page 3: Product Warranty
WELCOME Welcome to Centr and thanks for your purchase. We're happy to have you. Please inspect your product and contact us right away if anything is missing or damaged. Your equipment also comes with access to Centr's digital membership, unlocking tools that will fuel your active lifestyle and well-being. -
Page 5: Table Of Contents
TABLE OF CONTENTS PRODUCT WARRANTY..................3 IMPORTANT SAFETY INSTRUCTIONS............6 WARNING AND SERIAL NUMBER LABELS..........9 USE OF RESISTANCE LEVER................10 HARDWARE PACK.....................12 ASSEMBLY......................14 FEATURE OVERVIEW..................21 CONSOLE OPERATION...................22 MAINTENANCE AND CARE................27 ADJUSTING THE RUNNING BELT...............28 80382-EN-V2025-03-07 Pg. 5... -
Page 6: Important Safety Instructions
Never Insert Objects Into Any Openings In This Treadmill. If An Object Has Been Dropped In The Treadmill Try To Carefully Retrieve It. If The Item Cannot Be Reached, Contact Centr Customer Service. To Carefully Retrieve It. If The Item Cannot Be Reached, Contact Centr Customer Service. - Page 7 Over The Age Of 35 Or Persons With Pre-Existing Health Problems. Read All Instructions Before Using Any Fitness Equipment. Centr, Llc. Does Not Assume Any Responsibility For Personal Injury Or Property Damage Sustained By Or Through The Use Of This Product.
-
Page 9: Warning And Serial Number Labels
2024-11-06 cture according to MFG-001 specification, d by CENTR Engineering. WARNING AND SERIAL NUMBER LABELS 80292-V2024-11-06 Manufacture according to MFG-001 specification, supplied by CENTR Engineering. The possibility of serious injuries or death may occur if caution is not used. Ensure... -
Page 10: Space Requirements
SPACE REQUIREMENTS This treadmill requires a minimum amount of floor space to safely operate. Keep a minimum open area of 2 m (78 in) behind the treadmill, and 0.6m (24 in) on both sides. Total Surface Area of the treadmill is 20261 cm² 0.6 m 24 in 0.3 m... - Page 11 80382-EN-V2025-03-07 Pg. 11...
-
Page 12: Hardware Pack
HARDWARE PACK (NOT TO SCALE) HARDWARE STEP 1 STEP 2 2 X SCREW, M10 X 15 STEP 4 4 X SCREW, M10 X 50 STEP 3 2 X SCREW, M3 X 5 4 X BOLT, M8 X 25 4 X SPRING WASHER, 8.1 4 X WAVE WASHER, 8 STEP 5 STEP 6... - Page 13 159 mm HARDWARE 1 x PHILLIPS SCREWDRIVER (A) 114 m 80382-EN-V2025-03-07 Pg. 13...
-
Page 14: Assembly
ASSEMBLY WARNING IT IS RECOMMENDED TO HAVE AT LEAST 2 PEOPLE FOR UNBOXING AND ASSEMBLING THE TREADMILL. STEP 1: Remove the cables (23, 24) near the lower end of the Right Upright (19), and connect it to the cables (21, 22) coming out of the Base Frame Assembly (20). Then, attach the right upright followed by the left upright to the base frame assembly using a 6mm Hex Key (D), but do not fully tighten the hardware at this stage. - Page 15 STEP 2: Using a 6mm Hex Key (D), attach the following hardware through the uprights to the Base Frame Assembly (20). HARDWARE REQUIRED 2 X SCREW, M10 X 15 80382-EN-V2025-03-07 Pg. 15...
- Page 16 Step 3: Pull one Cable Connector (13) from the Front Handrail (12) and another Cable Connector (14) from Console (15). Route the cables through the Front Handrail (12) and connect the cables. Push the cables into the front handrail without cutting or crimping them. Attach the Console (15) to the front handrail using the hardware and put the Back Cover (16) to cover the bracket.
- Page 17 Warning Recommended to have at least 2 people for this step. Step 4: Gently pull the Cable Connectors (17, 18) from the Front Handrail Assembly (12) and the Right Upright (19). With support, connect the cables and push them inside the right upright. Slide the front handrail assembly between the uprights, carefully push the cables inside the Right Upright (19), and secure the assembly to the uprights by fastening the hardware mentioned below.
- Page 18 Step 5 Slide the Junction Cover (11) to the Front Handrail Assembly (12), and attach it using the hardware mentioned below. NOTE: Follow same steps to attach the junction cover on other rail. (11) (12) HARDWARE REQUIRED 4 X SCREW, M4 X 16 Pg.
- Page 19 Step 6: Attach the Upright Covers (7) to both the uprights, attach the Cell Phone Holder (8), and the Bottle Holder (9) by sliding it into the grooves on the left upright. NOTE: Follow same steps to attach the upright cover on the other rail.
- Page 20 Step 7: Slide the Handle Assembly (6) into the rear of the base frame assembly and secure it with the indicated hardware. HARDWARE REQUIRED 2 X SCREW, M10 X 20 2 X FLAT WASHER, 10.5 2 X SPRING WASHER, 10.2 Pg.
-
Page 21: Feature Overview
FEATURE OVERVIEW DISPLAY CONSOLE PHONE HOLDER CUP HOLDER HAND RAILS RUNNING DECK RESISTANCE ARM TRANSPORT WHEELS TRANSPORT SIDE PLATFORM HANDLE 80382-EN-V2025-03-07 Pg. 21... -
Page 22: Before You Begin
BEFORE YOU BEGIN This treadmill is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. WARNING Before using this treadmill, all users must read, understand, and carefully follow all warnings, instructions, and procedures on the treadmill and in this user manual. The user is required to perform a complete visual inspection, and test of the features and functions of the assembled treadmill prior to use. - Page 23 DISPLAY INTERFACE OPERATION Motion data display indicator Bluetooth app connection Battery level display Program goal achieved” indicator Speed rpm indicator Speed & motion programming Training tracking light/tracker. There are 44 cells in Motion total, each cell program represents 10 rpm pattern Exercise time &...
- Page 24 DETAILS OF DISPLAY PATTERN APP BLUETOOTH CONNECTION TARGET AND ACTUAL When no light is flashing, it means INDICATOR that the bluetooth system is off. When flashing, it indicates in the bluetooth device search. According to the usage mode, the movement When always bright, it means device data in different modes: connected.
- Page 25 NOTE: Console will come to standby 1 minute after coming to a hault. If the pause detects rpm greater than 25 during motion, it returns to the screen before pressing pause. The screen will go to sleep 2 mins after coming to stop. Switch average and Start, pause and Select program and...
-
Page 26: Engineering Mode
WIRELESS HEART RATE MONITORING DISPLAY WHEN STARTING THE EXERCISE PROGRAM AND STARTING THE EXERCISE, WEAR THE STANDARD HEART RATE BAND (5.3K HEART RATE BAND, SUCH AS PLA WIRELESS HEART RATE BAND, ETC.), AND THE ELECTRONIC METER CAN DETECT AND DISPLAY THE HEART RATE VALUE. -
Page 27: Maintenance And Care
MAINTENANCE AND CARE WARNING The safe operation of the machine can only be maintained when the equipment is regularly examined for damage and wear. It is the sole responsibility of the user/owner to ensure that regular maintenance and inspections for damage and wear are performed. Special attention should be given to components which are most susceptible to wear. -
Page 28: Adjusting The Running Belt
ADJUSTING THE RUNNING BELT The running belt is properly adjusted at the factory but may loosen or change over time. It is important to properly adjust the running belt so it has the right tension and doesn’t slip or feels loose when in motion. RUNNING BELT TENSION To check the running belt tension, lift the running belt at the center from the deck, it should lift about 2-3 inches off the running platform. - Page 29 centr.com...
