Summary of Contents for CENTR INSPIRE T7

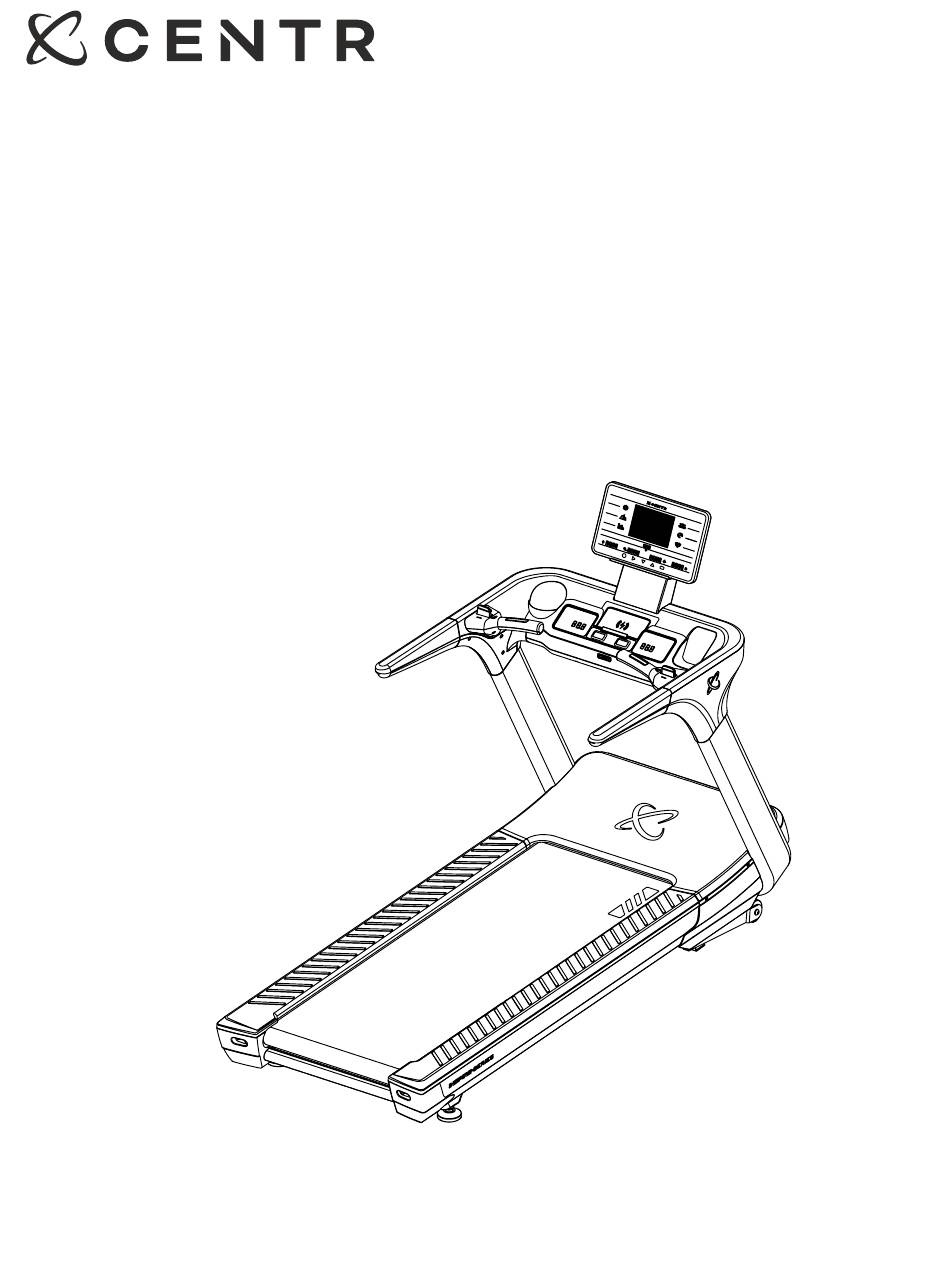

- Page 1 Models: T7B-110.1 T7B-220.1 SERVICE MANUAL CENTR INSPIRE SERIES T7 & T7S IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Manual to be used for Unit Serial Number Range: Starting S/N: T7B-110.1-9-24-09-000001 MADE IN CHINA Starting S/N: T7B-220.1-9-24-10-000001 80399-EN-V2025-03-03...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS..................4 PARTS DIAGRAMS........................5-6 PARTS LIST.............................7 ELECTRICAL WIRING DIAGRAM (110V MACHINES)............8 ELECTRICAL PARTS LIST (110V MACHINES).................9 ELECTRICAL WIRING DIAGRAM (220V MACHINES)............10 ELECTRICAL PARTS LIST (220V MACHINES)...............11 80399-EN-V2025-03-03 Pg. 3... -
Page 4: Important Safety Instructions
6. 6. If replacement parts are necessary, use only genuine Centr replacement parts and hardware. Failure to If replacement parts are necessary, use only genuine Centr replacement parts and hardware. Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and will void the warranty. -
Page 5: Parts Diagrams
HARDW HARDWARE STEP 2 STEP 2 STEP 3 STEP 3 2X Screw, 4.2X10 (20) 2X Screw, 4.2X10 (20) 4X Bolt, M8X15 (17) 4X Bolt, M8X15 (17) 2X Bolt, M8X15 (18) 2X Bolt, M8X15 (18) 6X Bolt, M10X25 (14) 6X Bolt, M10X25 (14) 4X Washer, 8 (19) 4X Washer, 8 (19) 2X Washer, 8 (19) - Page 6 105286 105283 105282 105284 105285 105281 105259 105294 105278 105260 105291 105292 105296 105295 105291 105293 105264 105297 105265 105262 Pg. 6 80399-EN-V2025-03-03...
-
Page 7: Parts List
PART NUMBER DESCRIPTION QTY. 80319 HARDWARE CARD, CENTR T7 103206 WASHER, RAIL MOUNT 103304 ASSY, TM LUBRICATION, 30mL BOTTLE & NOZZLE 104993 BELT, MICRO-V, 220J8 105224 ASSY, BASE FRAME 105225 WHEEL, FRONT TRANSPORT 105226 BUMPER, BASE FRAME 105228 BELT, RUNNING... -
Page 8: Electrical Wiring Diagram (110V Machines)
ELECTRICAL WIRING DIAGRAM TOUCH OR LED (FOR 110V MACHINES) 105310 DISPLAY DISPLAY MAST (ETHERNET: TOUCH DISPLAY ONLY) CONSOLE BASE UPRIGHT 105311 105305 105306 105304 105307 105304 105304 105304 105308 VIEW FROM FRONT SIDE 105312 105309 CONSOLE PCBA 105316 103277 105615 105313 105314 105314... -
Page 9: Electrical Parts List (110V Machines)
ELECTRICAL PARTS LIST (FOR 110V MACHINES) PART NUMBER DESCRIPTION QTY. 103153 WIRE, GROUND, GREEN-YELLOW, 16AWG, 600mm 103156 WIRE, BROWN, 14AWG, 100mm 103174 RECEPTACLE, POWER, C14, 16A 103216 CORD, POWER, TYPE B 103259 FILTER, YB35D5-15A-Q 103272 WIRE, BLUE, 14AWG, 150mm 103276 PCBA, BT 103277 CABLE, BT, 200mm... -
Page 10: Electrical Wiring Diagram (220V Machines)
ELECTRICAL WIRING DIAGRAM TOUCH OR LED (FOR 220V MACHINES) 105310 DISPLAY DISPLAY MAST (ETHERNET: TOUCH DISPLAY ONLY) CONSOLE BASE UPRIGHT 105311 105305 105306 105304 105307 105304 105304 105304 105308 VIEW FROM FRONT SIDE 105312 105309 CONSOLE PCBA 105316 103277 105313 105314 105314 105615... -
Page 11: Electrical Parts List (220V Machines)
ELECTRICAL PARTS LIST (FOR 220V MACHINES) PART NUMBER DESCRIPTION QTY. 103153 WIRE, GROUND, GREEN-YELLOW, 16AWG, 600mm 103156 WIRE, BROWN, 14AWG, 100mm 103172 SWITCH, POWER ON/OFF, 16A 103173 FUSE, OVERLOAD PROTECTOR, 12A 103174 RECEPTACLE, POWER, C14, 16A 103259 FILTER, YB35D5-15A-Q 103272 WIRE, BLUE, 14AWG, 150mm 103276 PCBA, BT... - Page 12 centr.com...
