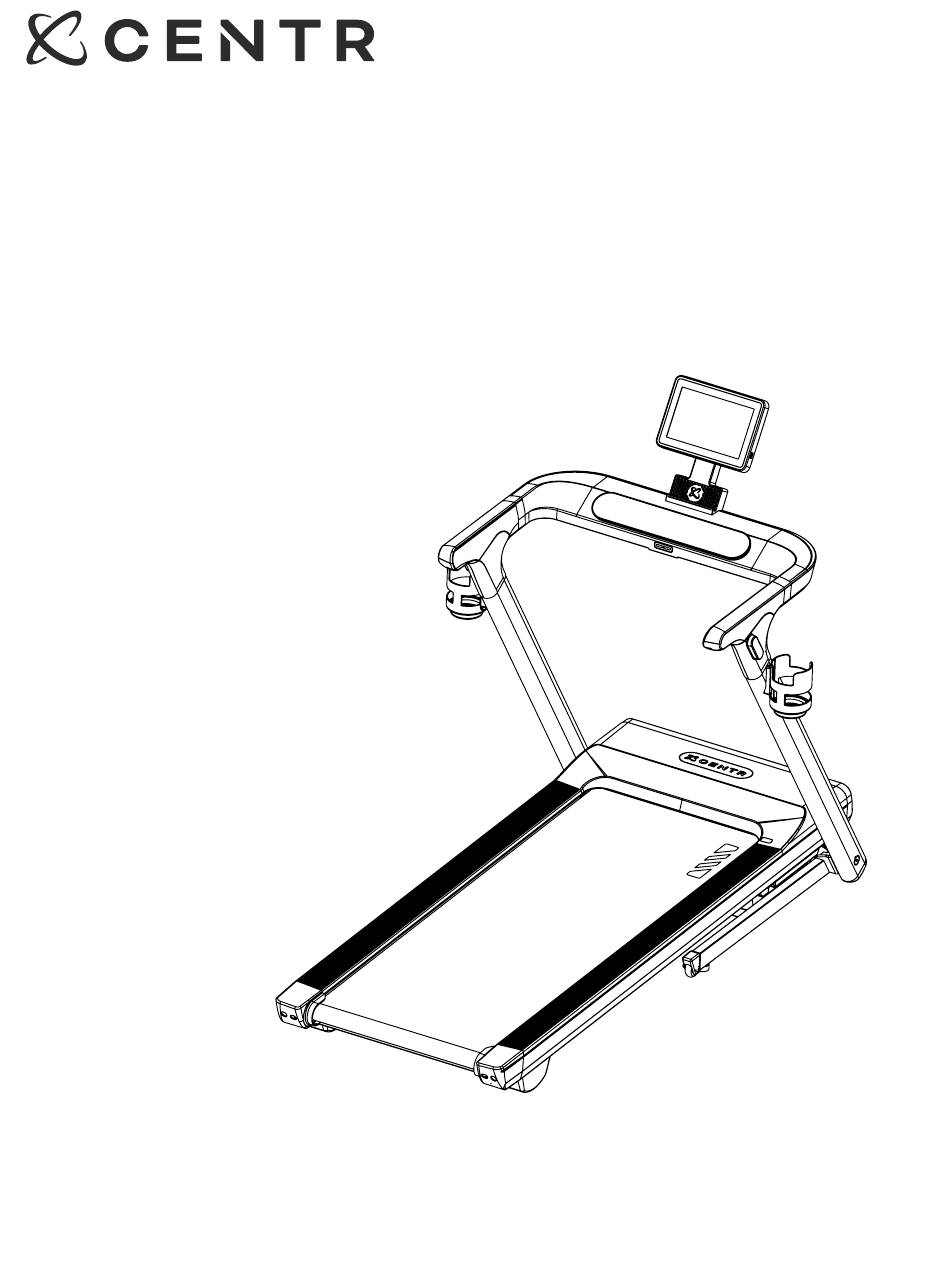

- Page 1 Models: T3S-110.2 T3S-220.2 SERVICE MANUAL CENTR RUNR-S IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Manual to be used for Unit Serial Number Range: Starting S/N: T3S-110.2-9-24-08-000001 MADE IN CHINA Starting S/N: T3S-220.2-9-24-09-000001 80366-EN-V2024-10-14...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS..................4 PARTS DIAGRAMS........................5-6 PARTS LIST.............................7 ELECTRICAL WIRING DIAGRAM (110V MACHINES)............8 ELECTRICAL PARTS LIST (110V MACHINES).................9 ELECTRICAL WIRING DIAGRAM (220V MACHINES)............10 ELECTRICAL PARTS LIST (220V MACHINES)...............11 80366-EN-V2024-10-14 Pg. 3... -
Page 4: Important Safety Instructions
6. 6. If replacement parts are necessary, use only genuine Centr replacement parts and hardware. Failure to If replacement parts are necessary, use only genuine Centr replacement parts and hardware. Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and will void the warranty. -
Page 5: Parts Diagrams
104866 104724 103304 104745 104748 104724 104734 104723 104758 104738 104702 104761 104737 104760 103165 103199 104730 103175 103202 103167 104764 104819 (110V) 104721 (220V) 103163 103176 103283 103283 103282 103206 104757 103168 103162 103166 104880 104038 104847 104437 104846 104818 103209 103159... - Page 6 104870 103185 103186 103182 103181 104868 104907 104872 104507 Pg. 6 80366-EN-V2024-10-14...
-
Page 7: Parts List
COVER, TOOL-LESS UPRIGHT, OUTER, LH 104748 COVER, TOOL-LESS UPRIGHT, INNER, LH 104757 ASSY, SIDE RAIL COVER, RH 104758 ASSY, MOTOR COVER, CENTR 104760 HANDLE, ADJ CLAMPING, M10 X 1.5 104761 HANDLE, ADJ CLAMPING, M8 X 1.25 104764 ASSY, SIDE RAIL COVER, LH... -
Page 8: Electrical Wiring Diagram (110V Machines)
ELECTRICAL WIRING DIAGRAM (FOR 110V MACHINES) 105182 105183 104991 CONSOLE CONTROL BOARD CONNECTION AT BACK OF TOUCH SCREEN MOUNT ARM 104986 TOUCH SCREEN 103277 103276 BT BOARD 104503 SAFETY KEY ASSY 103149 103150 CONNECTION AT TOP OF RH 103147 UPRIGHT FERRITE CAGE 103274... -
Page 9: Electrical Parts List (110V Machines)
ELECTRICAL PARTS LIST (FOR 110V MACHINES) PART NUMBER DESCRIPTION QTY. 103147 FERRITE CORE 103149 CABLE, COMM, UPRIGHT-CONSOLE, 700mm 103150 CABLE, DATA, LCB-UPRIGHT 103153 WIRE, GROUND, GREEN-YELLOW, 16AWG, 600mm 103156 WIRE, BROWN, 14AWG, 100mm 103170 MOTOR, RUNNING BELT, 1.5HP 103171 MOTOR, INCLINE LIFT, 1/15HP, 110V 103172 SWITCH, POWER ON/OFF, 16A 103173... -
Page 10: Electrical Wiring Diagram (220V Machines)
ELECTRICAL WIRING DIAGRAM (FOR 220V MACHINES) 105182 104991 105183 CONSOLE CONTROL BOARD CONNECTION AT BACK OF TOUCH SCREEN MOUNT ARM 104986 TOUCH SCREEN 103277 103276 BT BOARD 104503 SAFETY KEY ASSY 103149 103150 CONNECTION AT TOP OF RH UPRIGHT 103147 FERRITE CAGE ON BOARD... -
Page 11: Electrical Parts List (220V Machines)
ELECTRICAL PARTS LIST (FOR 220V MACHINES) PART NUMBER DESCRIPTION QTY. 103147 FERRITE CORE 103149 CABLE, COMM, UPRIGHT-CONSOLE, 700mm 103150 CABLE, DATA, LCB-UPRIGHT 103153 WIRE, GROUND, GREEN-YELLOW, 16AWG, 600mm 103156 WIRE, BROWN, 14AWG, 100mm 103170 MOTOR, RUNNING BELT, 1.5HP 103172 SWITCH, POWER ON/OFF, 16A 103174 RECEPTACLE, POWER, C14, 16A 103259... - Page 12 centr.com...
