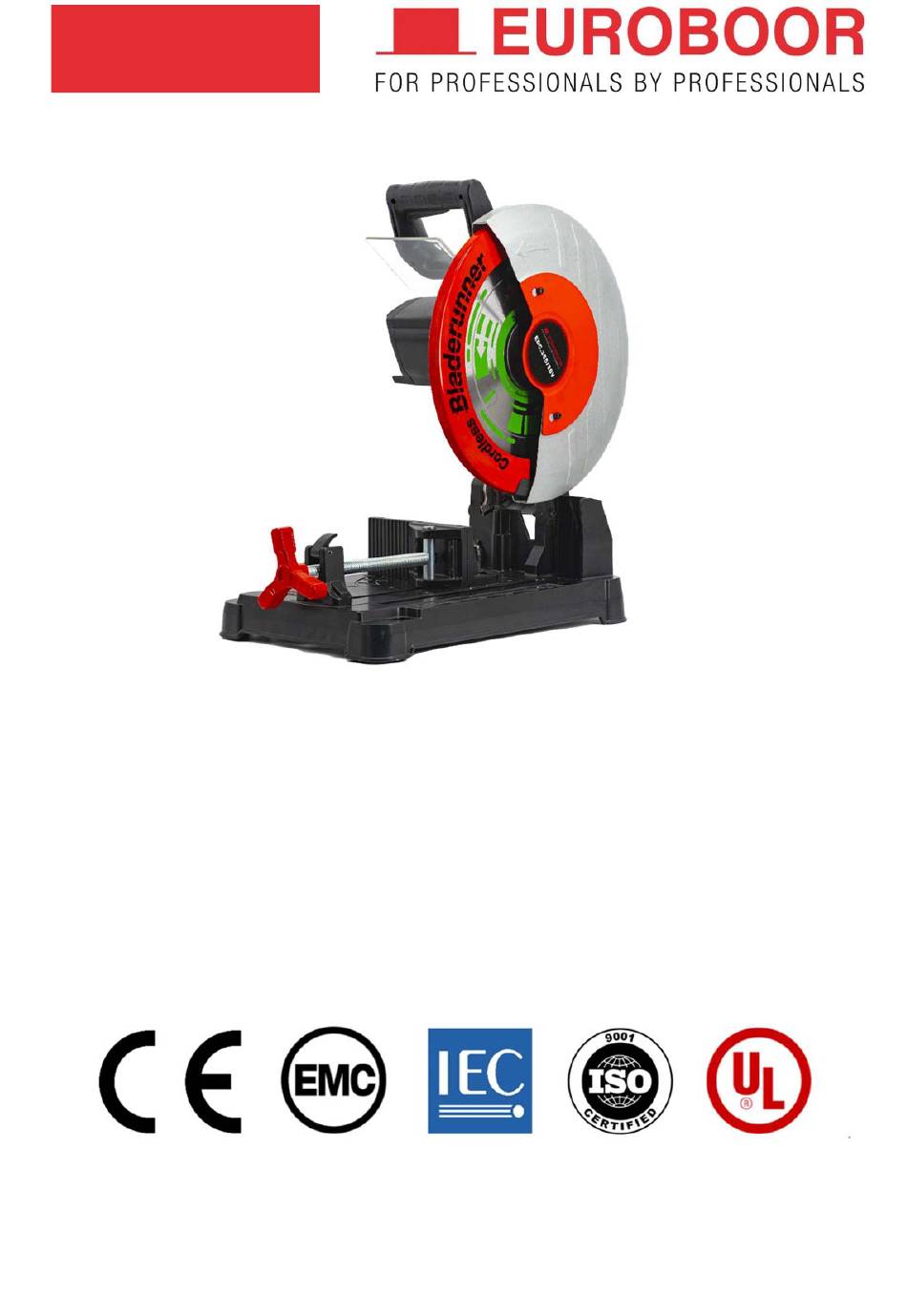

- Page 1 User manual V 1.0EN | Dec 2023 Battery Operated Dry Cut-off Saw EDC.355/36V...
- Page 2 Congratulations on purchasing this premium magnetic drilling machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier. Which has led us to become a major player in the industrial world, with our own factory and several offices worldwide. All because we have always listened to our customers and to the demands from the market. Our vision is focused on developing innovative portable tools that add value for our customers and facilitate them in their daily work. We never lose sight of sustainability, time savings and cost savings. Enjoy your new machine! Before operating your new magnetic drilling machine, please first read all instructions. You find the instructions in this manual and on the warning label on your machine. With proper use, care and maintenance your machine will provide you with years of premium drilling performance. TO REDUCE THE RISK OF INJURY USER MUST READ AND UNDERSTAND ALL INSTRUCTIONS To view all our offices and their contact information please visit: www.euroboor.com The original manual has been produced in the English language. If any discrepancies should occur in translations, reference must be made to the original version for clarification. ...
-
Page 3: Table Of Contents
EDC.355/36V Table of contents Safety ................................ 4 General safety instructions ......................... 4 Specific safety information for battery operated dry cutoff saw .............. 6 Description .............................. 8 Intended use .............................. 8 Description and features .......................... 8 Box contents .............................. 9 Serial number .............................. 9 Technical data ............................ 1 0 Symbols .............................. 1 1 Environmental ............................ 1 2 Preparation & adjustment ........................ 1 3 Assembly .............................. 1 3 Prior to use .............................. ... -
Page 4: Safety
Safety 1.1 General safety instructions Do not use this power tool before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using this power tool, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury. Please also observe the relevant national industrial safety regulations. Nonobservance of the safety instructions can lead to an electric shock, burns and/or severe injuries. This manual should be kept for later user and enclosed with the power tool, should it be passed on or sold. The term ”power tool” and “machine” in this user manual refers to your ACpowered (corded) power tool or batterypowered (cordless) power tool. Work area safety 1. Keep your work area clean and well lit. Cluttered and dark work areas increase the chance of accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. The power tool may create sparks which could ignite the dust or fumes;... - Page 5 WARNING: Wear ear and eye protection when using this power tool. Power tool use and care 1. Do not force the power tool.Use the correct power tool for your application.The correct power tool will do the job better and safer at the rate for which it was designed. tool before 2. Disconnect the plug from the power source and/or the battery pack from the power making any adjustments,changing accessories,or storing power tools.Such preventive safty measures reduce the risk of starting the power tool accidently. 3. Use clamps or other practical solutions to secure and support the workpiece to a stable platform. 4. Do not use the power tool when the switch does not turn it on or off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. 5. Keep cutting tools sharp and clean.Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. 6. Store your power tool out of reach for children and other untrained persons. Power tool are dangerous in the hands of untrained users. 7. Maintain your Power tool with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to break and are easier to control. 8. Check for misalignment of moving parts, breakage of parts and any other condition that may affect the operation. If you detect damage have the power tool serviced before use. Many accidents are caused by poorly maintained tools. 9. Only use accessories that are recommended by EUROBOOR for your power tool model. Accessories that are suitable for one power tool may become hazardous when used on another one.
-
Page 6: Specific Safety Information For Battery Operated Dry Cutoff Saw
6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. 7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service 1. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in risk of injury; 2. When servicing a tool, use only identical replacement parts. Follow instructions in t he maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury; battery 3. EUROBOOR offers Armature kits containing official EUROBOOR spare parts suitable for your operated dry cutoff saw 1.2 Specific safety information for battery operated dry cutoff saw • Keep yourself and bystanders away from the plane of the saw blade when cutting work. • Avoid touching the metal debris that is automatically ejected when the working procedure is finished. Contact with the debris when it is hot can cause personal injuries. • Always use the saw blade and accessories that are recommended by euroboor.The rated speed of saw blade must be at least equal to the Max speed marked on the cutoff saw. • Never apply blade lubricant to a running blade.Applying lubricant could cause your hand to move into the blade resulting in serious injury. • Never place hand in the blade area when the battery pack is intalled.inadvertent blade activation may result in serious injury. • Always use the saw blade flanges recommened by euroboor.Proper diameter flanges support the saw ... - Page 7 • Inspect blade for cracks or other damage prior to operation.A cracked or damaged blade can come apart and pieces can be thrown at high speeds,causing serious injury. • During work,you must tightly hold the handle of cutoff saw and ensure you stand firmly.you should hold the handle with your hands. • Turn off the cutoff saw and allow the blade to come to a complete stop before cleaning the blade area,removing debris ,servicing or adjusting tool. A moving blade can cause serious injury. Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: Impairment of hearing; Risk of personal injury from flying particles; Risk of burns due to accessories becoming hot during operation; Risk of personal injury due to prolonged use. Always try to reduce these risks as much as possible. ...
-
Page 8: Description
Description 2.1 Intended use This EUROBOOR EDC.355/36V is a battery operated dry cutoff saw for cutting various types of ferrous and nonferrous metals. The machine is designed to fit a 355 mm (14") blade.. For cutting, the machine can be adjusted from 0° to 45° corners. Also the depth can be adjusted using the depthadjustment screw. WARNING: The machine should not be converted or modified, e.g. for any other form of use, other than as specified in these operating instructions. Warranty will be voided and the user shall be liable for damages and accidents due to incorrect use. 2.2 Description and features ⑫ ① ⑦ ② ⑬ ⑪ ⑨ ③ ⑯ ⑩ ④ ⑥ ⑮ ⑤ ⑭ ⑧ [image 21] 1. Operating handle 9. Spindle cover 2. Hand protective shield 10. Vice handle 3. Retractable blade cover 11. Engine cover/air intake ... -
Page 9: Box Contents
2.3 Box contents 1x Machine EDC.355/36V 1x Instruction manual 1x Hexagon key M6 1x Hexagon key M10 2x 18V/5Ah battery pack (optional) 2x 18V/9Ah battery pack (optional) 1x 18V battery charger (optional) Note: When unpacking, make sure the parts listed above are included. If missing or broken, please contact distributors as soon as possible. 2.4 Serial number The serial number is mentioned on the machine three times: engraved on the frame, engraved on the magnet and on the serial no. sticker on the motor housing. Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and EUROBOOR to validate and identify the machine. For example: 1002003001 breaks down to: ... -
Page 10: Technical Data
2.5 Technical data (Without battery) -
Page 11: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be sure to read the documentation in this user Read documentation manual and specifically the “General safety instructions” and ‘’Specific safety information’’ Wear ear protection Use ear protection during operation Wear eye protection Use eye protection during operation Indoor use only To identify electrical equipment designed for indoor use Double Insulation An insulation comprising both basic insulation and supplementary insulation Danger/warning/caution Read and apply the information in the adjacent text! European conformity Conformity with EEA machine regulations Product with basic insulation and exposed (touchable) conductive parts additionally Class of protection I connected to the protective earth conductor Able to function acceptably in its electromagnetic Electromagnetic Compatibility environment International Electrotechnical Conformity with international electrotechnical Commission safety standards Certified in accordance with ISO9001:2015 ISO9001 quality management system Certified by Underwriters Laboratories (UL), a recognized laboratory for safety testing approved UL ... -
Page 12: Environmental
Symbol Term, meaning Explanation lbs Pound Unit of measure for the mass V Volt Unit of measure for the electric voltage A Ampere Unit of measure for the electric current intensity W Watt Unit of measure for the output rpm Revolutions per minute Unit of measure for the revolutions 2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or at the retailer when you purchase a new product. ... -
Page 13: Preparation & Adjustment
An accidental startup can cause injury. The EUROBOOR EDC.355/36V machine comes preassembled, but without blade attached. Fitting the blade to the machine is necessary before operating the machine. Please refer to “3.3 fitting the blade” for instructions on how to fit the blade. Further to this it is advised to check the machine is complete and all standard accessories are included before proceeding in any way. NOTE:The EDC.355/36V machine has 3 mounting holes on the Alu base,with suitable bolts,the machine can be securely fixed on the workbench or other supporting structure. 3.2 Prior to use Prior to any use, check the machine and all of its components for damage and check that all moving parts are in perfect working order and do not jam. All parts must be correctly installed and must fulfill all conditions necessary to ensure perfect operation ... -
Page 14: Setting Cutting Angle
[image 31] [image 32] [image 33] [image 34] 3.4 Setting cutting angle The EUROBOOR EDC.355/36V has the capability to make cuts from 0° to 45° angles. Be sure that the correct angle is set before you start working with the machine. For setting the correct angle, follow below steps and refer to the image below: 1. Loosen the 'angle lock screw' using the angle lock lever. By turning the angle lock lever {1) counter clockwise the screw will be loosened. By lifting the angle lock lever slightly and moving it back clockwise, the screw can be loosened even further. 2. After loosening the 'angle lock screw' tilt up the 'angle lock pin' {2), turn it a quarter which locks the pin in the raised position. 3. The cutting angle can be adjusted by moving the fence to the desired position (3). Use the angle indication engraved in the base for your reference. 4. After setting the plate in the desired position, have the 'angle lock pin' (4) fall back in place, and tighten the 'angle lock screw' by turning the angle lock lever (5) clockwise. [image 35]... -
Page 15: Clamping The Workpiece
3.5 Clamping the workpiece When the correct angle is chosen for the workpiece, be sure to tighten the workpiece properly. The workpiece must be tightened before cutting to avoid possible movement and pinching of the workpiece as the cut nears completion. For clamping the workpiece, follow below steps: 1. After setting the correct cutting angle. Unlock the 'quick lock and release lever' {1) by tilting it backwards, and pull back the vice jaw from the plate {2). 2. Place the workpiece between the rear fence and front vice jaw. 3. Push the front vice jaw against the workpiece (3). 4. When the vice jaw is against the workpiece, Put the 'quick lock and release lever' (4) back in its original position. Tighten the workpiece by turning the vice handle clockwise (5). [image 36] Note: For releasing the workpiece from a pressured position, first turn the vice handle counterclockwise to remove pressure from the workpiece. Then unlock the 'quick lock and release lever' and pull back from the workpiece. -
Page 16: Adjusting The Fence Positioning
3.7 Adjusting the fence positioning. The fence can be positioned in two different positions. The position 1 is suitable for workpieces of maximum 150 mm, position 2 is suitable for workpieces of up to 180mm. Note: make sure the workpiece is centred with the sawblade. For bigger workpieces, the positioning of the fence should be in position 2. Changing between these positions can be done in the following steps: 1. Fully loosen all screws that lock the fence. 2. After all screws are loosened completely, pull out and lock the "angle lock pin". 3. The fence can be replaced in the other position now. 4. When placed in the new position, fully tighten all screws again and lock the "angle lock pin". [image 38] 3.8 Installing and removing the battery pack ... -
Page 17: Using The Machine
Using the machine Warning:Before making a cut,always check all the accessories are properly mounted and all adjustments to the machine have been done. Do not start the motor when the cutting edge of saw blade is contact with the workpiece. 1. Secure the workpiece firmly to avoid movement and vibration. 2. Porperly adjust the fence angle. 3. With the cutting head in the upper position,switch on the motor by depressing the trigger switch and allow the motor to run at full speed. 4. Slowly lower the cutting head on to the workpiece and cut through firmly.Do not force the machine or put too pressure as this will not improve the cutting performance,only shorten the lifetime of the blade and increase wear on the machine. 5. Reduce the pressure when the saw blade begin to exit the workpiece. 6. When the workpiece is finished, release the onoff trigger and allow the cutting head to return its upper position. 7. Wait for the blade to come to a complete stop before collecting the workpiece or making any adjustments to the machine. Battery pack and charger 5.1 Battery pack Lithiumion batteries deliver fade free power for their entire run time. Lithiumion tools will not gradually lose power due to decreasing battery charge. Instead, power from the battery pack will drop from full to zero once the full charge has been drained from the battery. Once this happens, re charging of the battery is required. It is not necessary to drain the battery pack completely before recharging. Read all instructions. Failure to follow all instructions listed below may result in, fire and/or injury. Remove the battery pack before any adjustments, conversions or servicing are performed. Before fitting the battery pack, make sure that the machine is switched off. Do not open the battery packs Do not place the battery pack or cells on or near fires, heaters, other high temperature locations, or apply heat to the battery. Do not pierce the battery with any sharp objects, strike the battery with a hammer, tools, or heavy objects, step on the battery pack, or otherwise damage the outer casing. Do not subject the battery pack to strong impacts or shocks. Do not expose the battery to water or any other type of liquid, or allow the battery to get wet. Do not leave the battery in direct sunlight, and avoid storing spare battery packs inside cars in extreme ... -
Page 18: Battery Protection Features
Do not use the Battery Pack if the Battery Pack casing is broken or if a Battery Pack emits an unusual odor, smoke, or excessive heat or leaks any substance. Avoid contact with any substance seeping from the Battery Pack. The cells within the Battery Packs contain toxic substances. Do not attempt to open Battery Packs. Do not insert any object into the Battery Packs or use any device to pry at the Battery Pack casing. If you insert an object into any of the Battery Packs’ ports or openings you could suffer electric shock, injury, burns, or cause a fire. Attempting to open the Battery Pack casing will damage the casing and could release toxic and harmful substances, and will render the pack unusable. If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately As with all rechargeable batteries, do not charge near flammable materials. Do not disassemble or modify the battery pack . The battery contains safety and protection devices which, if damaged, may cause the battery to generate heat, rupture or ignition. Any modification may damage the battery pack or cells and will invalidate any warranty claim. If you happen to get any electrolyte from the cells on your skin, wash thoroughly with soap and water. If in your eyes, do not rub. Rinse thoroughly with water and seek medical Obey your local regulations relating to disposal of battery 5.2 BATTERY PROTECTION FEATURES EUROBOOR 18V lithiumion batteries are designed with features that protect the lithiumion cells and maximize battery life. During some applications, the battery electronics may signal the battery to shut down, and cause the tool to stop running. To reset the battery and tool, release switch trigger first,and then press on trigger to restart the machine.If fail to reset the battery and tool by applying above steps, the battery pack is depleted. NOTE: To prevent further shut down of the battery, avoid forcing the tool. -
Page 19: Battery Capacity Indicator
5.3 BATTERY CAPACITY INDICATOR By pressing the check button on the battery pack ,the user can check the remaining battery capacity by observing the indicator light. CAPACITY INDICATOR LIGHT . CHECK BUTTON [image 51] Depending on the status of indicator light, the remaining capacity of battery can be read easily by the user: [image 52] Note: Depending on the ambient temperature, the indication may differ slightly from the real battery capacity. 19 ... -
Page 20: Battery Charger
This appliance is not intended for use by person(including children) with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction. Chlidren should be supervised to ensure that they do not play with the appliance. Once the power cord damage,do not change it yourself,return it to euroboor dealer or ask a qualified person for help. WARNING: Do not charge nonrechargeable batteries. Battery charging Note:This battery charger is for charging Euroboorbattery pack. Never use it for other purposes or for other manufacturer’s batteries. Charging iindicator t 1. Plug he charger into the proper AC source,the green charging indicator will light up and blink repeatedly. 2. Insert the battery pack into the charger until you hear a slight”click”, the music comes out and the red charging indicator... -
Page 21: Maintenance
Note:The battery is equipped with an NTC temperature control which allows charging to be only available within a temperature range of 5℃(41F)40℃(104F).A long battery service life will be achieved in this manner. 6. Maintenance Your EUROBOOR battery opertated cutoff saw has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, make sure the machine is off and remove the battery pack from the machine before installing and removing accessories, adjusting or changing set ups or when making repairs. Just as every cutoff saw machine with moving parts, your EUROBOOR EDC.355/36V machine also needs regular maintenance service. A few recommendations follow : Visually check the machine for damage The machine must be checked before operating for any signs of damage that will affect the operation of the machine. if the machine appears to be damaged it should not be used. Failure to do so may cause injury. Cleaning Clean all dirt, dust, metal chips and burrs of your cutoff saw; Blow dirt and dust out of the m housing with dry air as often as dirt is seen collecting in and around the ... -
Page 22: Trouble Shooting
WARNING: Since accessories, other than those offered by EUROBOOR, have not been tested with this machine, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only EUROBOOR recommended accessories should be used with this machine. -
Page 23: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views 23 ... -
Page 24: Sparepart Lists
52 EDC.355/36V.0052 Circlip φ48mm 1 108 EDC.355/36v 0108 Nut M8 1 Flange(rear) 53 EDC.355/36V.0053 1 109 EDC.355/36v 0109 Screw M8x50mm 1 (optional) 54 EDC.355/36V.0054 Saw blade(optional) 1 110 018.2002 Battery pack 5Ah 2 (optional) 55 EDC.355/36v 0055 Flange(front) 1 111 018.2003 Battery pack 9Ah 2 EDC.355/36v 0056 56 Flange(top) 1 24 ... -
Page 25: Warranty And Service
Warranty and service Warranty Euroboor B.V. warrants this magnetic drilling machine to be free of material defects and workmanship errors under normal use for a period of 12 months after date of purchase. This 12 month period can be extended to 24 months in total by registering the product on our website: https://euroboor.com/support/register/. Serial number: Date of purchase: Don’t forget to register your machine at: https://euroboor.com/support/register/ [ only when registered you benefit from extended warranty ] Service To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or, if no longer existent, the distributor of EUROBOOR products in your country. 25 ...
