Summary of Contents for Euroboor EDC.135

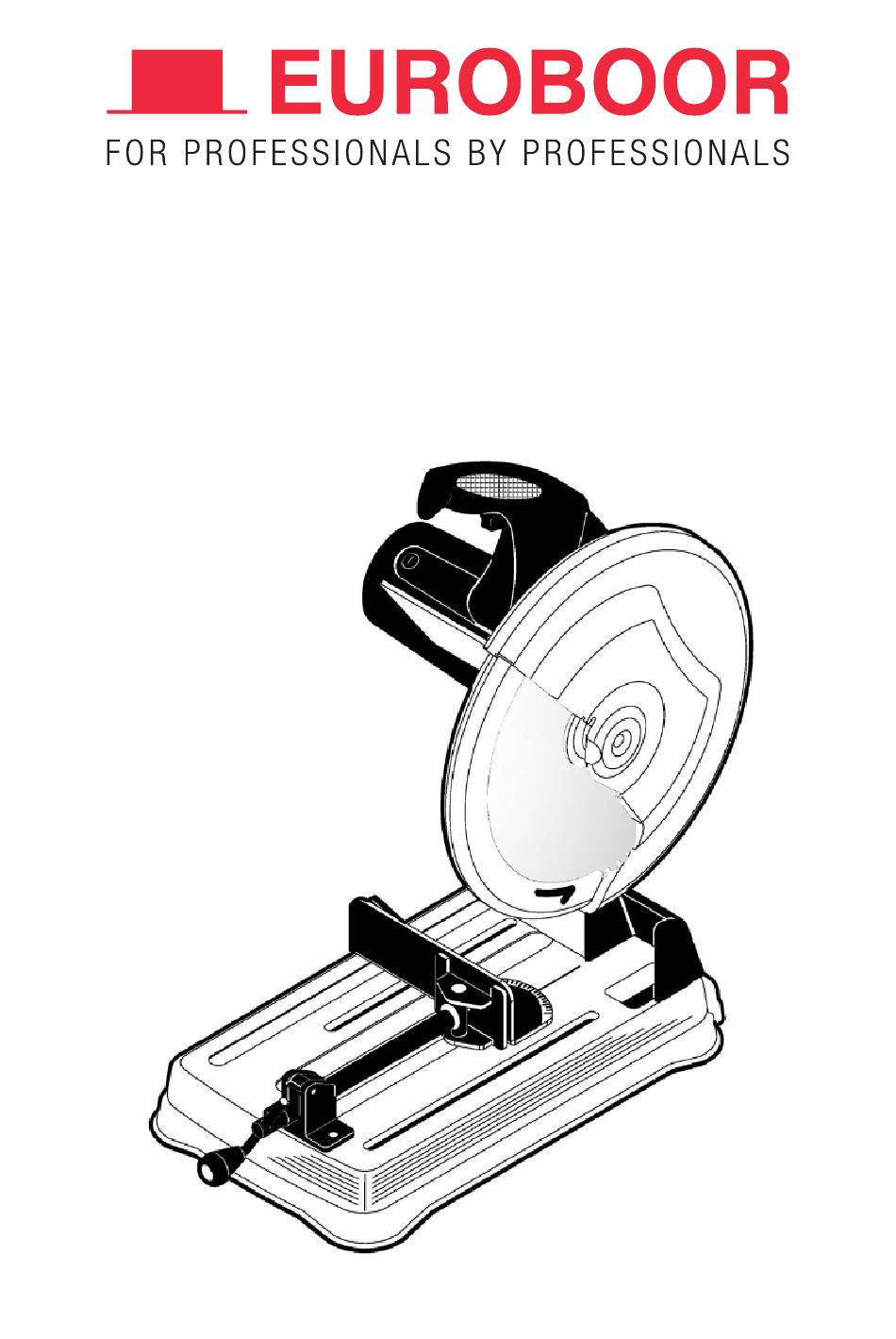

  • Page 1 Manual EDC.135 Sawing Machine...
  • Page 2: Table Of Contents

    Table of contents SECTION PAGE SECTION PAGE Changing The Blade---------------------------------------------8 Safety Rules ----------------------------------------------------- 2 Safety Instructions For Basic Operation--------------------9 Warning: Failure to follow these rules may result Before Using The Metal –Cutting Saw----------------------9 in serious personal injury--------------------------2 Before Each Use-------------------------------------------------9 Additional Safety Rules for Metal Cutting Whenever Saw Is Running-----------------------------------10 Saws ----------------------------------------------------------------3...
  • Page 3: Additional Safety Rules For Metal Cutting Saws

    23. NEVER LEAVE TOOL RUNNING UNATTENDED. 26. WARNING: The dust generated by certain products POWER OFF. Don’t leave tool until it comes to a complete can be injurious to your health. Always operate machinery stop. in well- ventilated areas and provide for proper dust 24.
  • Page 4: Motor Specifications And Electrical Requirements

    Motor Specifications and Electrical Requirements Power Supply and Motor Specifications Power Connections The AC motor used in this saw is a universal. A separate electrical circuit should be used for your tools. Nonreversible type having the following specifications: This circuit should not be less #12 wire and should be protected with a 20 Amp fuse.
  • Page 5: Motor Safety Protection

    Motor Specifications and Electrical Requirements Motor Safety Protection Important: To avoid motor damage, this motor should be 4. Fuses may “blow” or circuit breakers may trip blown out or vacuumed frequently to keep dust from frequently if: interfering with normal motor ventilation. a: Motor is Overloaded-Overloading can occur if you 1.
  • Page 6: Unpacking And Checking Contents

    Unpacking and Checking Contents Carry Handle Unpacking WARNING: To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a power source outlet during unpacking and assembly. This cord must remain unplugged whenever you are working on the saw. Your saw is shipped complete in one box WARNING: Although compact, this saw is heavy.
  • Page 7: Getting To Know Your Saw

    Getting to Know Your Saw 1. Warning Label- Please read the warning label before use as shown Fig. 5. 2. Chain- For easy carrying and storage, the Metal-Cutting saw can be clamped in the down position by means of the hold down chain. To move the cutting head to the up position, simply unhook the chain from the handle housing as shown Fig.
  • Page 8: Alignment (Adjustments)

    Alignment(Adjustments) WARNING: Cut material can be thrown. Eyes can be permanently damaged. Wear your safety goggles. Down stop Down stop Adjustment: The down stop as shown Fig. 8 should be adjusted so that maximum cutting capacity is maintained and so that the cut off blade does not hit the saw base or the surface, which the tool is mounted to.
  • Page 9: Safety Instructions For Basic Operation

    Safety Instructions for Basic Saw Operations Before Using Metal Cutting Saw To avoid injury from jams, slips or thrown pieces 。Use Only Recommended Accessories. (See "Accessory" section within.) Consult this Owner's manual for WARNING: To avoid mistakes could cause serious, recommended accessories.
  • Page 10: Whenever Saw Is Running

    Dress for safety. Whenever Saw Is Running: 。Do not wear loose clothing, gloves, neckties or jewelry Warning: Don't allow familiarity (gained from (rings, wrist watches) They can get caught and draw you frequent use of your Metal-Cutting saw) cause a into moving parts.
  • Page 11: Basic Saw Operation

    Basic Saw Operations General Cutting Instructions WARNING: Always securely fix the material to be cut by using the vise. WARNING: Always wear safety glasses and protective gloves when operating the Metal-Cutting saw. WARNING: Always disconnect the tool from power source before making any adjustment. Familiarize yourself with the following functions of the Metal-Cutting saw before connecting it to a power source and using it.
  • Page 12: The Quick Vise

    Adjusting the Stationary Vise Clamping the workpiece can be accomplished quickly and easily as shown Fig.15. : 1.Lift thread-nut(A) 2. Pull out screw handle (C) far enough to allow workpiece (D) to be placed in vise opening against rear vise jaw (E) as shown. NOTE: It is not necessary to thread screw handle (C) when the thread-nut (A) is in the raised position.
  • Page 13: Basic Saw Operations

    Basic Saw Operations (continued) Workpiece clamping Positions work in vise so that if jam occurs. The blade shall not tend to move the workpiece in the vise. Clamp it securely. Angle bar should be clamped in position as shown Fig.19. Fig.19 Generally the saw cut most efficiently if the blade is cutting the thinnest section at any time as shown Fig.20.
  • Page 14: Brush Inspection And Replacement

    Brush Inspection and Replacement CAUTION: Before Inspecting Brushes, Dis-connected The Machine From The Power Source. Brush life varies. It depends on the load on the motor. Check the brushes after a new set of brushes has been installed. After the first check, examine them after about 10 hours of use until such time that replacement is necessary.
  • Page 15 Troubleshooting Guide Motor Problem Probable Case Suggested Corrective Action Motor does not start 1.Fuse -15amp time delay fuse, or circuit breaker. 2.Brushes worn -See “Maintenance” section 3.Other -Check power supply for proper voltage and 4.Low voltage Correct as needed Brush sparking when switch 1.Normal automatic brake working -None released.
  • Page 16 The Hand-Arm Vibration Level of 51306 Metal cutting saw No Load Acceleration When the vibration total value does not exceed 2,5 m/s² a 1.28 at handle Uncertainty K=   Load Acceleration Vibration emission value a 2.33 at handle Uncertainty K=  ...
