Summary of Contents for Euroboor EBS.500

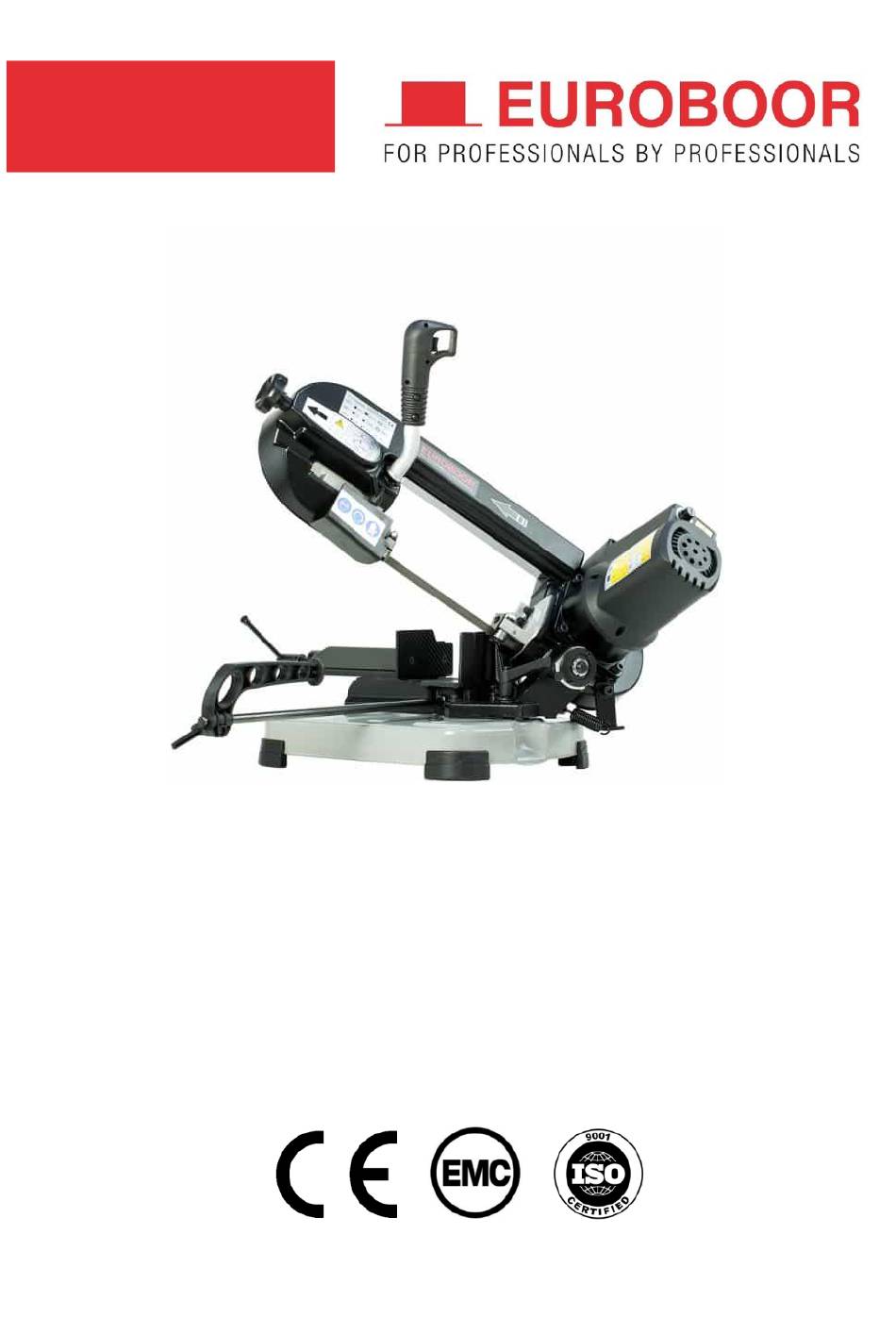

- Page 1 Operators manual V 1.2 EN | February 2022 Electric Band Saw Machine EBS.500...
- Page 2 Congratulations on the purchase of your EUROBOOR EBS.500 Band Saw Machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier. Which has led us to become a major player in the industrial world, with our own factory and several offices worldwide.
-
Page 3: Table Of Contents
Table of contents 1. Safety ........................... 4 1.1 General safety instructions ....................4 1.2 Specific safety information ....................9 2. Description ......................... 11 2.1 Intended use ........................11 2.3 Box contents ........................13 2.4 Serial number ......................... 13 2.5 Technical data......................... 14 2.6 Symbols .......................... -
Page 4: Safety
1. Safety 1.1 General safety instructions WARNING: When using the Electric Band Saw Machine, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. READ AND UNDERSTAND ALL SAFETY INFORMATION AND INSTRUCTIONS. - Page 5 WORK AREA SAFETY 1. Keep your work area clean and well lit. Cluttered benches and dark areas increase the chance of accidents; 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 6 PERSONAL SAFETY WARNING: Wear ear and eye protection when using this power tool. 1. Stay alert, watch what you are doing and use common sense when using a power tool. Do not use machine when tired or under the influence of drugs, alcohol, or medication.
- Page 7 Use of the power tool for operations different from those intended could result in a hazardous situation. 9. Use only accessories that are recommended by EUROBOOR for your power tool. Accessories that may be suitable for one machine, may become hazardous when used on another power tool.
- Page 8 RESIDUAL RISKS In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. • Impairment of hearing • Risk of personal injury from flying particles • Risk of burns due to accessories becoming hot during operation •...
-
Page 9: Specific Safety Information
Always check if the saw band can run freely before you start working with the machine. Have the Electric Band Saw Machine serviced by qualified repair personnel at your EUROBOOR dealer, if the saw band cannot run freely or vibrates heavily. - Page 10 Safety warnings 1. Do not operate your band saw machine until it is completely assembled and installed according to the instruction. 2. Do not operate your band saw machine when bolts, screws and clamps are missing or not fully tightened.
-
Page 11: Description

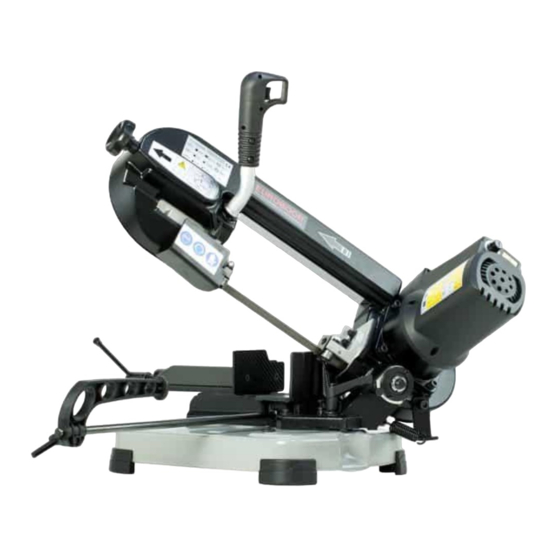

125 mm (5″). Our portable band saw has an adjustable vice, cutting angle and sawing speed. The EBS.500 metal cutting band saw benefits from a double motor protection, a speed regulator and an anti-reset safety function for a longer lifespan of the saw. - Page 12 2.2 Description and features [Image 2-1] Refer to [Image 2-1 ] for the following features of the machine EBS.500. 1. Handle with on/off trigger switch 8. Speed adjustment knob 2. Saw band tension screw 9. Motor housing 3. Saw band guidance 10.
-
Page 13: Box Contents
2.3 Box contents Note: When unpacking, make sure the parts listed below are included. If missing or broken, please contact your EUROBOOR distributor as soon as possible. 1x Machine EBS.500 1x Instruction manual 1x Distance set bracket - 1 Rod... -
Page 14: Technical Data
2.5 Technical data EBS.500 Metric Imperial Voltage 230 V 120 V Motor power 1010 W 3.6 A Frequency 50 – 60 Hz Cutting speed 30 – 80 m/min 100 – 265 ft/min Saw band dimension 13 x 0.65 x 1440 mm... -
Page 15: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be absolutely sure to read the enclosed documentation Read documentation such as the Instruction Manual and the General Safety Instructions Wear ear protection Use ear protection during operation Wear eye protection Use eye-protection during operation... -
Page 16: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 17: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly The EUROBOOR EBS.500 band saw machine comes without the distance set bracket and machine feet fitted. Fitting these to the machine is necessary before operating the machine. Please refer to below for fitting instructions. Further to this it is advised to check the machine is complete and all standard accessories are included before proceeding in any way. -
Page 18: Prior To Use
3.1.2 Fitting the distance set bracket The distance set bracket is a very useful tool for sawing multiple pieces on the same length. This tool is, however, not fitted to the machine as it arrives. For fitting this tool, follow below... - Page 19 The machine electronics have been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating label. EUROBOOR EBS.500 is designed in class I (Grounded). Earth grounding of the machine is required. If the power supply cord is damaged, it must be replaced by a specially prepared cord available through the EUROBOOR service organisation.
-
Page 20: Replacing The Saw Band
3.3 Replacing the saw band The saw band is subject to wear. As a result, the saw band needs to be replaced sometimes. Replacing the saw band can be done by following the steps below. WARNING: Before undertaking any type of preparation or adjustment, make sure the machine is switched off and the power supply is disconnected. -
Page 21: Using The Machine
4. Using the machine 4.1 Turning the machine On / Off The EBS.500 is equipped with both a power switch and an On-/Off trigger switch. By using the power switch, the machine can be turned on into stand-by mode. After that the machine can be controlled by using the on-/off trigger switch. -
Page 22: Adjusting The Machine Speed
4.2 Adjusting the machine speed The EBS.500 is equipped with variable cutting speed. The machine speed can be adjusted from minimal 30 m/min (100 ft/min) to 80 m/min (265 ft/min). This adjustment can be made by turning the machine speed knob, which is on the motor housing. -
Page 23: Clamping The Workpiece
2. After loosening the ‘Angle lock screw” de machine’s arm can be moved left or right, adjusting the cutting angle. 3. Once the correct angle has been chosen, tighten the ‘Angle lock screw’ by turning it opposite to step 1. -
Page 24: Adjusting The Blade Guidance
4.5 Adjusting the blade guidance For the machine to make high quality cuts it is important that the saw band is stable and not vibrating too much. To avoid vibrations of the saw band, the machine is equipped with an adjustable blade guidance system. -
Page 25: Adjusting The Depth Of Cut
4.7 Adjusting the depth of cut The maximum depth of cut can be adjusted by turning depth adjustment screw (counter-) clockwise. Setting a correct depth of cut prevents the machine from touching the base, but also can be used to stop cutting at a certain depth. -
Page 26: Maintenance
5. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn off and disconnect the machine from the power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 27 Repair, modification and inspection of EUROBOOR EBS.500 must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
-
Page 28: Troubleshooting
Machine vibrates or shakes Saw band damaged Saw band not straight Saw band not fitted properly Saw band not tightened properly Machine misaligned When a problem that occurs cannot be solved using the scheme above, please refer to your EUROBOOR dealer. -
Page 29: Exploded View & Partslist
7. Exploded view & Partslist 7.1 Exploded view... - Page 30 www.euroboor.com...
-
Page 31: Spare Parts List
7.2 Spare parts list Art.nr. Description 500.0002 220v Complete Motor with Gear 500.0002 110v Complete Motor with Gear 500.0003 Screw Cap 8*25 500.0004 Spring Washer M8 Not available Washer 500.0007 Motor Fly wheel Not available Washer M6 Not available Screw 500.0009... - Page 32 500.0051 Handle wheel Not available Washer Not available Washer 500.0054 Vice Not available Screw Not available Screw 56-59 500.0056 Acme screw set 500.0060 Fence base 500.0061 Locking Seat Not available Screw 62(1) Not available Washer 500.0063 Screw Cap 8*16...
-
Page 33: Warranty And Service
To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of EUROBOOR products in your country. -
Page 34: Certifications
9. Certifications 9.1 CE declaration of conformity EUROBOOR BV declares that the following appliance complies with the appropriate basic safety and health requirements of the EC guidelines based on its design and type, as brought into circulation by EUROBOOR BV.
