Summary of Contents for Euroboor EHC.230/4

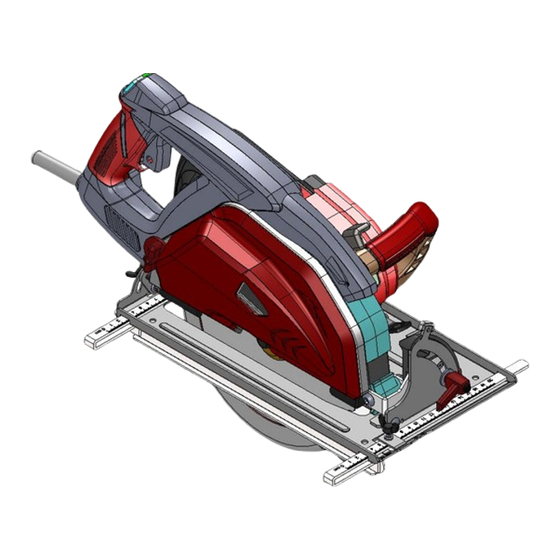

- Page 1 230mm(9") METAL CUTTING SAW INSTRUCTION MANUAL Double Insulation Original instruction...
-
Page 2: Table Of Contents
TABLE OF CONTENT Safety rule---------------------------------------------------------------------------------------------------------------------2 Additional safety rules for metal cutting saw-----------------------------------------------------------------6 Assembly and Adjustment instruction-------------------------------------------------------------------------------7 Installing a New Saw Blade----------------------------------------------------------------------------------------------8 Usage for bevel-------------------------------------------------------------------------------------------------------------10 Laser---------------------------------------------------------------------------------------------------------------------------10 How to LED light-----------------------------------------------------------------------------------------------------------11 Cutting Depth Adjustment----------------------------------------------------------------------------------------------12 Operation--------------------------------------------------------------------------------------------------------------------12 The Guide ruler-------------------------------------------------------------------------------------------------------13 Chip Removal---------------------------------------------------------------------------------------------------------------14 Replacing Carbon Brushes---------------------------------------------------------------------------------------------15 Maintenance and Servicing-------------------------------------------------------------------------------------------15 Troubleshooting-----------------------------------------------------------------------------------------------------------16 Specifications---------------------------------------------------------------------------------------------------------------16... - Page 3 any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Page 4 storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Page 5 ⚫ When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator. ⚫ If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the metal causing the blade to climb out of the kerf and jump back toward the operator.
-
Page 6: Additional Safety Rules For Metal Cutting Saw
bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. Additional Safety Instructions ⚫ Caution! The dust collect cover is very hot when cutting or after cutting. -
Page 7: Assembly And Adjustment Instruction
minimum limitation with the 3. Danger: The hand must depart from the sawing area when tool works. No touch blade when blade is rotating, no put the work-piece in, either. No take the process-work-piece sawed by hand when blade is still rotating. Caution: The blade will slide a period of time after turning off the Switch. 4. -
Page 8: Installing A New Saw Blade
Installing a New Saw Blade WARNING: To prevent an accident or personal injury, always turn off the trigger switch and disconnect the power plug from the receptacle before removing or installing a blade. Only use blades designed for metal cutting saw. Not to use any abrasive wheels Fitting of alternative purpose or different sizes blades could void the warranty. - Page 9 5. Put on the new blade, flange and arbor screw in proper order. Use the open wrench to hold the flange and use the Hex wrench to fix the arbor screw by clockwise direction. Ref. fig 5. Note: Put the blade in right direction, The arrow on blade must be same direction as arbor turn.
-
Page 10: Usage For Bevel
Usage for bevel Release the lock lever "A", and the wing nut "B" Then to change the bevel plate angle from 0∘to 45∘ Fix the lock lever "A" and wing nut "B" as fig.7. WARNING : please be sure to disconnect the power plug. Fig7 LASER The method for laser usage. -
Page 11: How To Led Light
ALIGNING THE LASER GUIDE LINE DANGER: Laser radiation. Avoid direct eye contact with light source WARNING: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposures. When you adjust the laser please don’t tune on switch. -
Page 12: Cutting Depth Adjustment
CUTTING DEPTH ADJUSTMENT 1. Pull up & loosen the Lock Lever (A) first Fig.15. 2. Lift the back of the saw away from the base plate until the approximate depth is achieved. 3. Ensure the Lock Lever (A) Fig.16 is tightened securely after the depth adjustment is made. To adjust the lock made. -
Page 13: The Guide Ruler
DIRECTION OF SAWING Please align the right side’s cut in front Of base with a level cutting line of workpiece For longitudinal sawing. OVERLOAD PROTECTION Under extreme overload, the current consumption may considerably exceed the permissible nominal value. In this case, overload protection prevents the motor from burning out. -
Page 14: Chip Removal
position of the blade by checking the Blade Set-in through on the base plate. Beware: Beware of the kickback at the instant the running blade touches the workpiece. CHIP REMOVAL GLASS WINDOW The chip fly can be observed via a glass window. When the chips is about half full, remove the guard by loosening the two bolts. -
Page 15: Replacing Carbon Brushes
REPLACING CARBON BRUSHES ► Caution: Must turn off the switch and disconnect plug from power supply before checking. REPLACE CARBON BRUSHES To replace and check regularly the carbon brush, it must be replaced when worn down to 6 mm closest to the spring. -
Page 16: Troubleshooting
TROUBLESHOTTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION • Metal cutting saw will not • No supply of power. • Check that power is available at • Brushes worn or sticking start. source. • Switch is faulty. • Disconnect power, open brush caps •... -
Page 17: Manufacturer
Please read the instructions carefully before starting the machine. Wear ear protectors! Always wear goggles when using the machine. Always keep hands away from the path of the saw blade. Always disconnect the plug from the socket before carrying out any work on the machine. Never expose tool to rain.
