Summary of Contents for Euroboor EDC.355

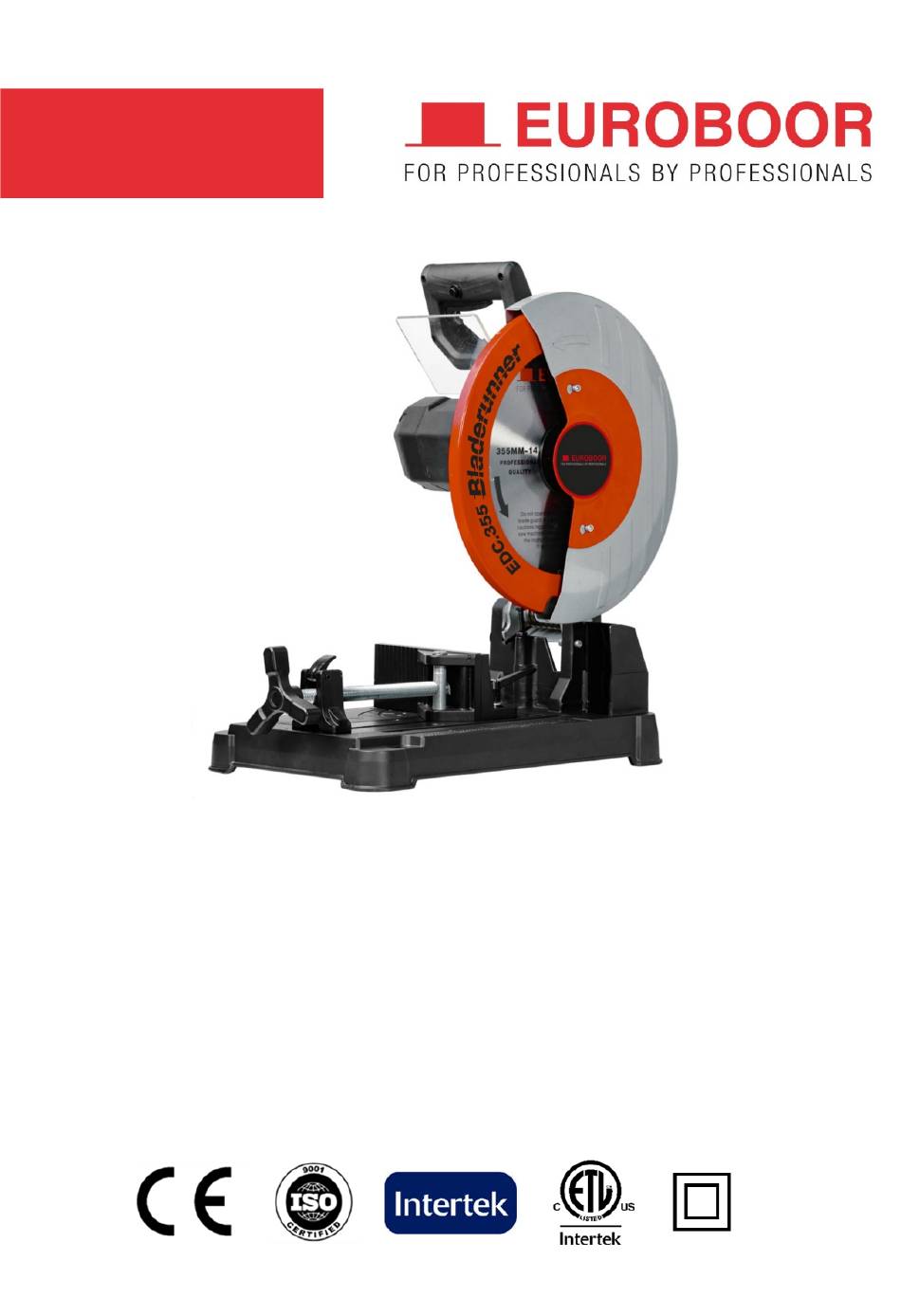

- Page 1 Operators manual V 1.0 | EN | April 2022 Dry Cut-Off Metal Saw " / 355 mm EDC.355...
- Page 2 Congratulations on the purchase of your EUROBOOR EDC.355 Dry Cut-Off Metal Saw. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier. Which has led us to become a major player in the industrial world, with our own factory and several offices worldwide.
-
Page 3: Table Of Contents
Table of contents Table of contents ......................3 1. Safety ........................... 4 1.1 General safety instructions ....................4 1.2 Specific safety information ....................8 2. Description ......................... 10 2.1 intended use ........................10 2.2 Description and features ....................11 2.3 Box contents ........................ -
Page 4: Safety
1. Safety 1.1 General safety instructions WARNING: When using the Dry Cut-Off Metal Saw, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. READ AND UNDERSTAND ALL SAFETY INFORMATION AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 5 WORK AREA SAFETY 1. Keep your work area clean and well lit. Cluttered benches and dark areas increase the chance of accidents; 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 6 PERSONAL SAFETY WARNING: Wear ear and eye protection when using this power tool. 1. Stay alert, watch what you are doing and use common sense when using a power tool. Do not use machine while tired or under the influence of drugs, alcohol, or medication.
- Page 7 Use of the power tool for operations different from those intended could result in a hazardous situation. 9. Use only accessories that are recommended by EUROBOOR for your power tool. Accessories that may be suitable for one machine, may become hazardous when used on another power tool.
-
Page 8: Specific Safety Information
Have the Dry Cut-Off Metal Saw serviced by qualified repair personnel at your EUROBOOR dealer, if the blade cannot run freely or vibrates heavily. c. Check the blade for cracks or other damage before operation. Do not use blade when it is damaged or deformed. - Page 9 Safety warnings 1. Do not operate your metal cutting saw until it is completely assembled and installed according to the instruction. 2. Do not operate your metal cutting saw when bolts, screws and clamps are missing or not fully tightened.
-
Page 10: Description

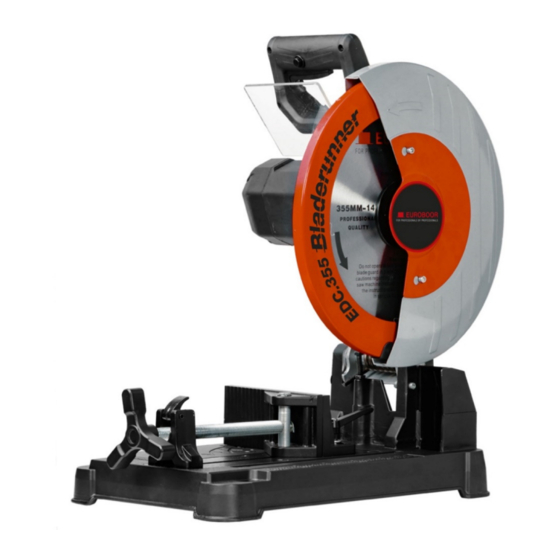

2. Description 2.1 intended use This EUROBOOR EDC.355 Dry Cut-Off Metal Saw is an electrically driven machine for cutting various types of ferrous and non-ferrous metals. The machine is designed to fit a 355 mm (14") blade. The speed of the machine is 1,450 RPM, with soft-start. The machine has an extra safety button to prevent accidental starts. -
Page 11: Description And Features
2.2 Description and features [Image 2-1] Refer to [Image 2-1 ] for the following features of the machine EDC.355. 1. Safety button 9. Aluminium base with size indication 2. On- / off trigger 10. Engine cover / air intake 3. -
Page 12: Box Contents
2.3 Box contents Note: When unpacking, make sure the parts listed below are included. If missing or broken, please contact distributors as soon as possible. 1x Machine EDC.355 1x Instruction manual 1x Hexagon key M6 1x Hexagon key M10 2x Spare carbon brushes 2.4 Serial number... -
Page 13: Technical Data
2.5 Technical data EDC.355 Metric Imperial Folded dimensions (L x W x H) 530 x 350 x 420 mm 20 7/8 x 13 3/4 x 16 9/16" Unfolded dimensions (L x W x H) 620 x 350 x 630 mm 24 7/16 x 13 3/4 x 24 13/16"... -
Page 14: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be absolutely sure to read the enclosed documentation Read documentation such as the Instruction Manual and the General Safety Instructions Wear ear protection Use ear protection during operation Wear eye protection Use eye-protection during operation... -
Page 15: Environmental
Symbol Term, meaning Explanation Kilogram Unit of measure for the mass Pound Unit of measure for the mass Volt Unit of measure for the electric voltage Ampere Unit of measure for the electric current intensity Watt Unit of measure for the output... -
Page 16: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly The EUROBOOR EDC.355 machine comes pre-assembled, but without blade attached. Fitting the blade to the machine is necessary before operating the machine. Please refer to “3.3 fitting the blade” for instructions on how to fit the blade. Further to this it is advised to check the machine is complete and all standard accessories are included before proceeding in any way. - Page 17 EUROBOOR EDC.355 is designed in class II (double isolated). Earth grounding is not required. If the power supply cord is damaged, it must be replaced by a specially prepared cord available through the EUROBOOR service organisation.
-
Page 18: Fitting The Blade
3.3 Fitting the blade WARNING: Before undertaking any type of preparation or adjustment, make sure the machine is switched off and the power supply is disconnected. 1. Remove the spindle cover by loosening the two bolts using the M6 hexagon key. -
Page 19: Replacing The Blade
5. Lower the retractable blade cover and put the front-flange and small flange back into place. 6. Tighten the spindle bolt using the M10 hexagon key. Make sure the spindle is locked using the spindle lock while tightening the spindle bolt. - Page 20 3. When the spindle bolt is loosened: remove the small flange and the front-flange from the driveshaft. Note: Keep the back-flange in place 4. Raise the retractable blade cover and take out the current blade. WARNING: Be careful for sharp edges.
-
Page 21: Setting Cutting Angle
3.5 Setting cutting angle The EUROBOOR EDC.355 has the capability to make cuts from 0° to 45° angles. Be sure that the correct angle is set before you start working with the machine. For setting the correct angle, follow below steps and refer to the image below: 1. -
Page 22: Clamping The Workpiece
3.6 Clamping the workpiece When the correct angle is chosen for the workpiece, be sure to tighten the workpiece properly. The workpiece must be tightened before cutting to avoid possible movement and pinching of the workpiece as the cut nears completion. - Page 23 3.6.1 Adjusting the plate positioning. Note: make sure the workpiece is centred with the sawblade. For bigger workpieces, the positioning of the plate should be in position 2. The plate can be positioned in two different positions. The position 1 is suitable for workpieces of maximum 150 mm, position 2 is suitable for workpieces of up to 180mm.
-
Page 24: Adjusting Cutting Depth
3.7 Adjusting cutting depth The maximum depth of cutting can be adjusted by turning the depth adjustment bolt clockwise or counter clockwise. When depth is set to the right value, this bolt prevents the blade to touch the surface under the base. -
Page 25: Using The Machine
5. Check if the blade runs freely and is not vibrating. If the blade cannot run freely or is vibrating heavily, stop immediately and refer to your EUROBOOR dealer. 6. Slowly lower the blade onto the workpiece and cut through firmly. Do not force the machine or put too much pressure as this will only shorten the lifetime of the blade and increase wear on the machine. -
Page 26: Restart Mid-Cut
4.2 Restart mid-cut If the machine is stopped during cutting, release the trigger and remove the blade from the workpiece. When in fully raised position, start the machine again and slowly lower the blade on the workpiece. The work can now be resumed. Do not force the machine, this will increase wear on the blade and machine. -
Page 27: Maintenance
5. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn off and disconnect the machine from the power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 28 Repair, modification and inspection of EUROBOOR EDC.355 must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
-
Page 29: Troubleshooting
Not the correct blade for the application Machine vibrates or shakes Sawblade damaged Sawblade not straight Sawblade not fitted properly Sawblade not tightened properly Machine misaligned When a problem that occurs cannot be solved using the scheme above, please refer to your EUROBOOR dealer. -
Page 30: Exploded View & Partslist
7. Exploded view & Partslist 7.1 Exploded view... - Page 31 www.euroboor.com...
-
Page 32: Spare Parts List
7.2 Spare parts list No. Code Description Status Qty EDC355.0001 Screw ST4x14mm EDC355.0002 Back motor cover EDC355.0003 Motor housing EDC355.0004 Screw set M6x30 EDC355.0005 Carbon brush holder EDC355.0006A Carbon brush set 220/230V EDC355.0006B Carbon brush set 110/120V EDC355.0007 Carbon brush cover EDC355.0008A... - Page 33 No. Code Description Status Qty 37 EDC355.0037 Gear shaft 38 EDC355.0038 Bolt 5x10mm 39 EDC355.0039 Middle gear 40 EDC355.0040 Bearing 609 41 EDC355.0041 Big gear 42 EDC355.0042 Bearing 6203 43 EDC355.0043 Cross screw 4x10mm 44 EDC355.0044 Spring washer M4 45 EDC355.0045...
- Page 34 No. Code Description Status Qty 80 EDC355.0080 Dust guard 81 EDC355.0081 Clamp 82 EDC355.0082 Circlip 15 83 EDC355.0083 84 EDC355.0084 Washer 85 EDC355.0085 Spring pin 3.5x16 86 EDC355.0086 Pressure rod 87 EDC355.0087 Quick lock and release lever 88 EDC355.0088 Shaft 89 EDC355.0089...
-
Page 35: Warranty And Service
To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of EUROBOOR products in your country. -
Page 36: Certifications
9.1 CE declaration of conformity EUROBOOR BV declares that the following appliance complies with the appropriate basic safety and health requirements of the EC guidelines based on its design and type, as brought into circulation by EUROBOOR BV. Designation/function Dry cut-off metal sawing machine... -
Page 37: Intertek Proof Of Certification
SH12110495-001 Certified product: Cutting off grinder Model: EDC.355 Fulfilled standard(s) Stationary and Fixed Electric Tools UL987: Seventh Ed., Rev. June 4, 2010; Bench Tools CAN/CSA-C22.2 No.71.2-08 August 1, 2010 The standard(s) listed here reflect the status at the time of release of this certificate.
