McIntosh MA6600 Connection Diagrams

Input and control connection diagram

Hide thumbs Also See for MA6600:

Download this manual See also: Programming Manual, Owner's Manual

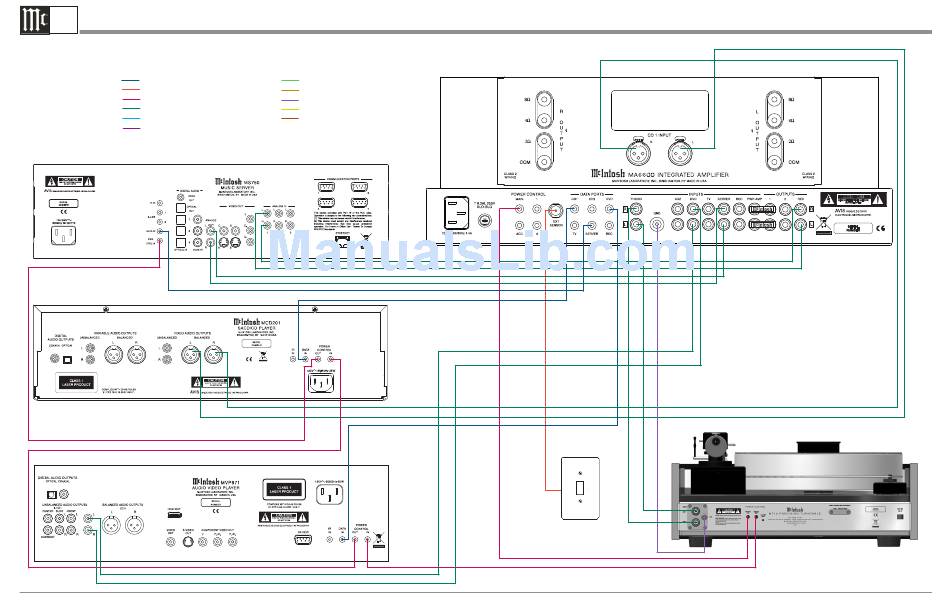

MA6600 Integrated Amplifier Input and Control Connection Diagram

Note: Refer to the MA6600 Owner's Manual page 8 for additional connection information.

Connection Legend:

Data Cable*-

Digital Signal Cable -

Sensor/Keypad Cable -

RS232 Cable -

Power Control Cable* -

Ground Wire -

Audio Signal Cable -

AC Power Cords -

Video Signal Cable -

Loudspeaker Cable -

RF Signal Cable -

2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

McIntosh Music Server

McIntosh SACD/CD Player

McIntosh Audio/Video Player
