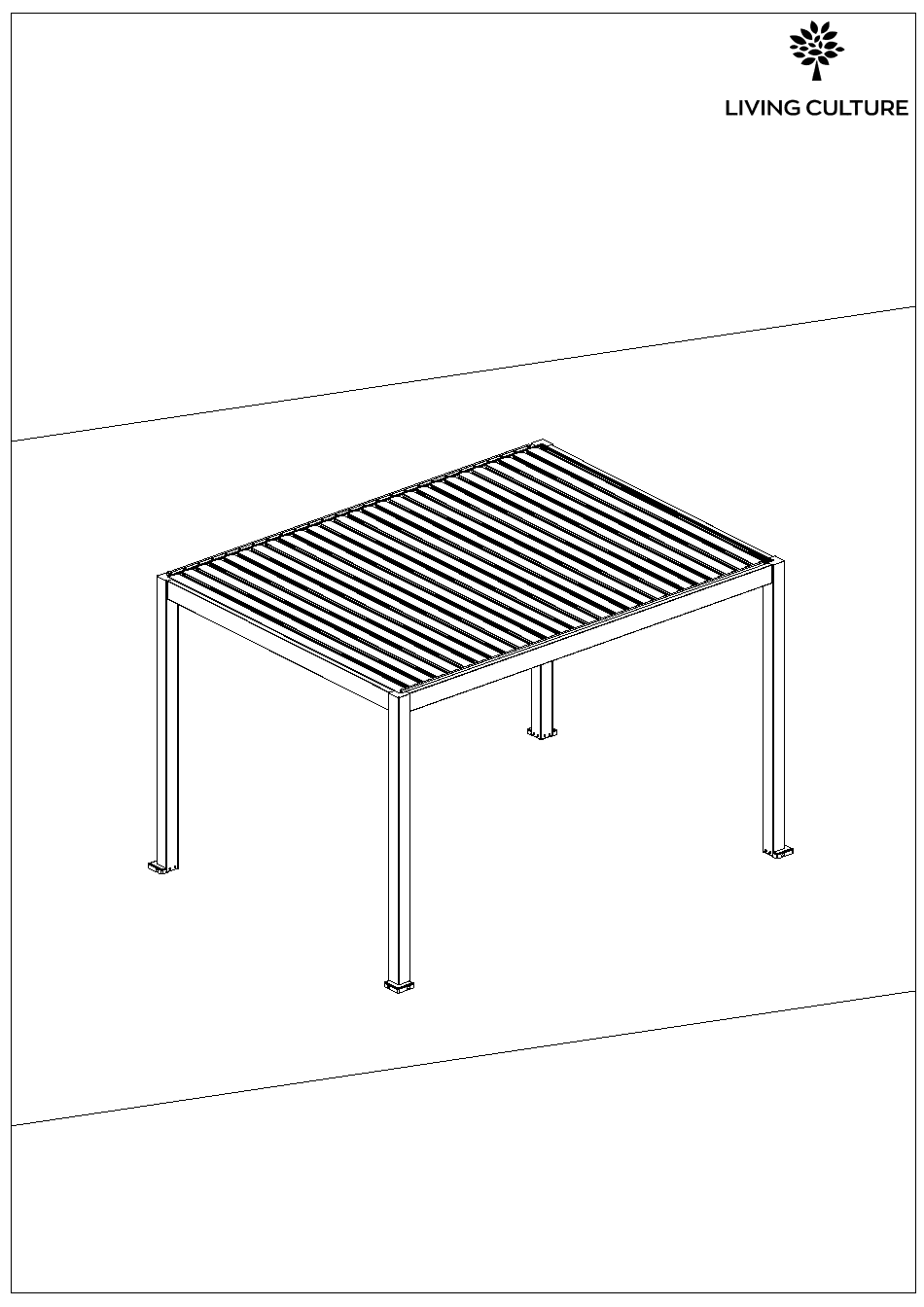

- Page 1 CASPIAN MOTORISED FREESTANDING LOUVRE ROOF SIZE 3*3 3*4 INSTALLATION INSTRUCTION...
- Page 2 <1/18> Before you start to install product ,please read below notes: 1.This is a general version manual .Please make sure that you review original design when place an order and read this manual several times before start to assemble the pergola .These installation steps can be referred to in this manual ,However ,other specific details such as motor position ,drainage direction etc.
- Page 3 <2/18> Please refer to the2D view drawing of the product before installing it, and then follow the installation steps in this installation manual Components photo code name section name section photo code post driven louver post louver connection post gutter post flashing beam&...
- Page 4 <3/18> Hardware code remarks photo name base plate base plate cover post top cover driven louver cap(right) 4-11 louver pivot caps gutter conrner insert bar economical transformer packed (single led light (dual colors) in the post remote control hex wrench (5mm) 15-1 short hex wrench (5mm) 15-2...
-
Page 5: What You Need
<4/18> What you need drill screwdriver bit electrical drill hammer marker tape measure hammer 17mm wrench gradienter helmet ladder*3 INSTALLATION Step One: Assemble the post and base plate(A1 is pergola cable position) 1.1 Insert the base into the bottom of the post and fix it with screws. Note: Need to connect ！... - Page 6 <5/18> 2.5、 Assemble the remaining beams and gutters B1 and B3 2.6、Connect with LED lights strip in the same manner. Step Three :Adjust the position of the pergola and secure the posts firmly onto the floor. Note ： ！ 1.Ensure the post at correct position, and stand 90 degree with floor.
- Page 7 <6/18> Step Four: Install the louvers (motorized louvers and commonly louvers). 4.1 Take out the driven louvre from the package 4-11 24-2 4.2 Screw the end cap of driven louver as picture 4.3、How to figure out the pergola louvers installation direction 4.3-1、The first method: You could confirm the direction of commpnly louvers and driven louver C1 base on the CAD drawing 3940 2940...
- Page 8 <7/18> Step five: Install the connection bar and connect with driven louvre and motor 5.1、Install the connection bar: Fasten the 5.2、Fasten the driven louvre with motor connection bar with louvres from inside view Take apart the pre-installed screws at the motor accessory 27-1 Fasten the driven...
- Page 9 <8/18> 6.5、How to pair the remote to the transformer pair button 6.5-1、Press and hold this buttonuntil the indicate indicate light light starts to flash. open Stop 6.5-2、 pess and hold the STOP button close until the indicate light stop flashing Light on-off ON/OFF Light switch...
- Page 10 <9/18> Step eight: Check the product functions 8.1、Ensure the pergola has been connected to the leakage protection switch. 8.2、Check the power supply of the pergola 8.3、Check the function of the remote 8.4、Check whether the motor is running normally 8.5、Check the LED light 8.6、Check other equipments...
- Page 11 <10/18> WALL-MOUNTED TYPE INSTALLATION INSTRUCTION What you need ∅ 1 4mm drill bit 17mm wrench Hardware Picture Name Code gutter decotation casing gutter decoration casing（R） SUS hex bolt (M8* 14 ) 17-1 M8 washer 19-1 M10 washer 19-2 wood screw M10*100 31-1 expansion plug (M14*75) 31-2...
- Page 12 <11/18> Step one: Fix the wall mounted beam on the wall 1. 2、Mark the position of the holes by aligning 1.1、Take use of gradienter to mark the wall with the holes on the gutter. You should drill the mounted beam height and position holes in local to ensure its accurate for your house 32-1 31-2...
- Page 13 <12/18> Step 2: Assemble the pergola frame 2.1、Combine two post with beam & gutter and lift it up 15-2 15-1 2.2、 Install the beam&gutter B1 and B3 ,and install the gutter decoration casing 2.2-1、Insert the beam into the post groove 2.2-2、Take apart these two screws first 2.2-3、Combine the beam &...
- Page 14 <13/18> Follow the privous Step 3,4,5,6,7,8 There are two steps different and should be focus on: -1、When you settle the louvres (vertical to wall direction), you should install the pivot caps each three louvre are installed. 21-1 fasten the louvre pivot caps by screws -2、The connection bar on the wall side cannot be installed from the side because it is blocked by the wall.
- Page 15 <14/18> Step One :Clik open TUYA app 1. Prepare a public wifi for the pergola Tip: 2. Open the phone bluetooth and TUYA app it needs 2.4GHz wifi 4586.59 2. Search door window 3. enter the wifi 1、Open tuya app 5.
- Page 16 <15/18> TUYA APP When you connect to tuya app successfully ,you can share the account to your family members authorize Tips: 1.The owner's phone (A) connect to pergola ，he can operate the pergola by his phone A. 2.The the other family members also download TUYA app and singn in.The account for logging into the app should be linked to a mobile phone number or accessed using a mobile phone number.
- Page 17 <16/18> problem solutions 1.Verify if the cables are connected correctly. 2.Check if the pergola has an available voltage of 110V or 220V. The motor 3.Confirm if the remote has been programmed to match the control system. and lights 4.Check if the remote battery is working. do not work 5.Verify if the control system has power output.
- Page 18 <17/18> Caring for Your Pergola Maintaining the original appearance of your pergola requires cleaning the surface annually. The thermosetting powder coating on the product's surface is susceptible to: 1.Physical abrasion, hard impacts, extrusion, and exposure to chemicals, including alkaline and acidic solvents. 2.Natural elements like wind, rain, snow, and prolonged exposure to sunlight.
- Page 19 <18/18> Dear customer I would like to take the opportunity to thank you for your patronage and purchasing our products .I assure you have purchased the perfect louvre pergola for you.Our team hopes you love our louvre pergola and share happy time with your family members and friends .
