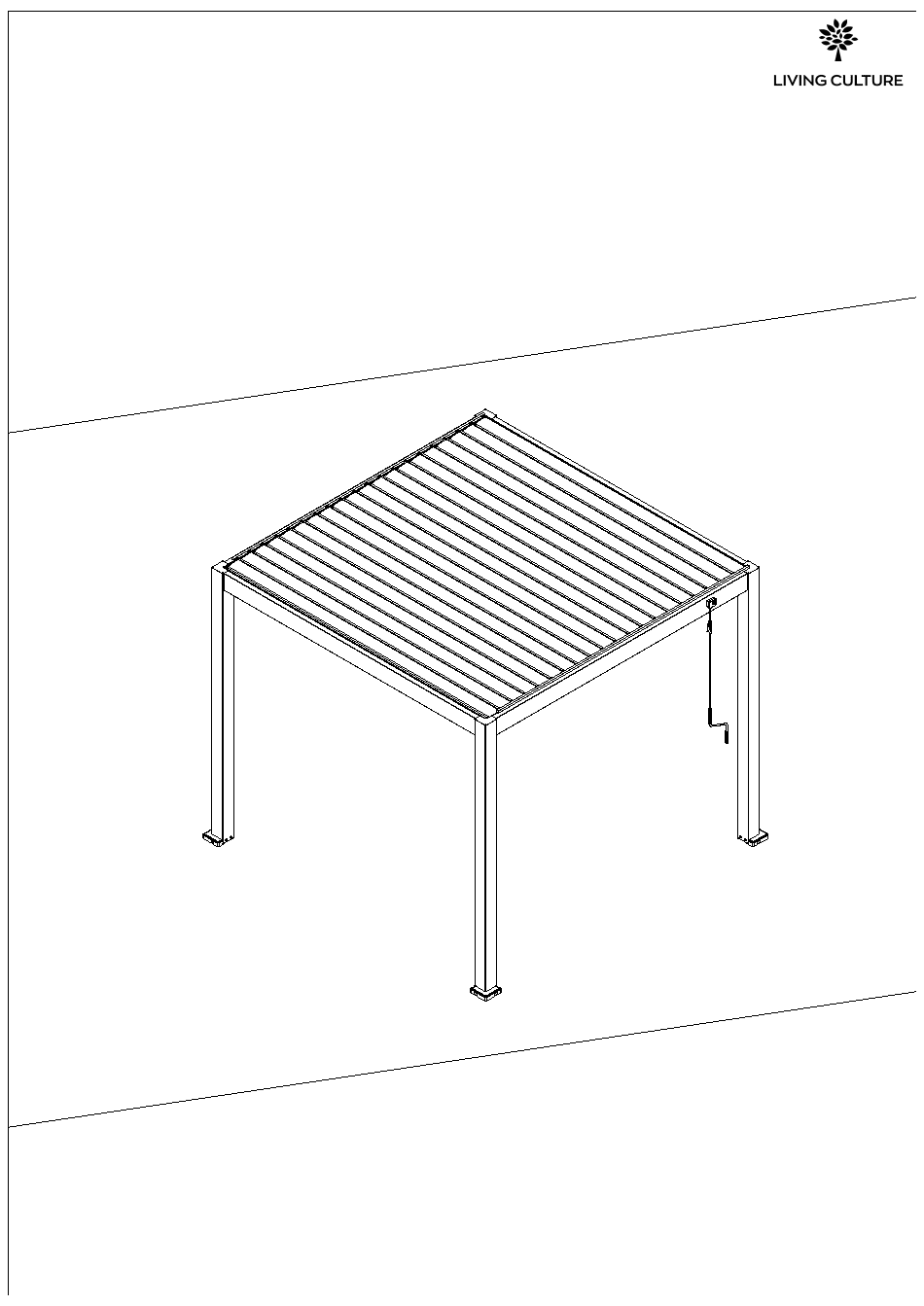

- Page 1 ATLANTIC MANUAL FREESTANDING LOUVRE ROOF INSTALLATION INSTRUCTION...
- Page 2 <1/10> STATEMENTS Please read the following carefully before installing ： 1.This is a general version manual .make sure that you review the design when placing an order and read this manual several times before you start to assemble pergola ,this installation steps can be referred to in this manual ,However ,other specific details such as motor position ,drainage direction ect.
- Page 3 <2/10> Components B-2 E-2 B-1 E-1 code name section photo code name section photo driven post louver post louver connection post beam post flashing beam beam& flashing gutter beam beam& flashing gutter beam beam& flashing gutter beam& gutter...
- Page 4 <3/10> Hardware code name photo code name photo foot plate short hex wrench (5mm) foot plate cover operation ring SUS hex bolt (M8*14) S/S 304 screw 5*18 M8 wahser Note: The silicone sealant and installation M10*100 SUS hex tools are not offered , You should expansion bolt purchase them in local .
-
Page 5: What You Need
<4/10> What you need dill screwdriver 4mm hex impact drill、 iron hammer marker wrench 12mm drill bit*1 piece ∅ rubber hammer tape measure gradienter helmet ladders 16mm hand wrench Assemble Step one :Assemble the posts and footplates 1.1、Insert the footplates into the posts and screw them Step two:Assemble the B1 and B3 with posts ,to be a U shape frame 2.1、Assemble the U shape frame on the floor.insert the... - Page 6 <5/10> 2.5、Assembel the remaining beam gutter Step three：Adjust the pergola position 3.1、Adjust the pergola frame postion （distance、parallel、vertical、height） 1.ensure the post is vertical to the floor , 0 angel 2.double check the pergola frame position becasue the pergola ma move during installation 3.5、Stuff the expansion 3.2、Double check the pergola 3.4、drill holes diameter...
- Page 7 <6/10> Step four Settle the louvers 4.1 Find out the two pieces of driven louver without louver cap 4.2、Screw the cap on the driven louver 4.3、Check the drawing and figure out the driven louvers location 1 mm 1 mm 1 mm 1 mm 1 mm 1 mm...
- Page 8 <7/10> Step five :Install the connection bar ! Tip： 5.1、Install the connection bar The connection bar must be outside edge of pergola Screw the connection bar from inside as picture Fasten them once ive e fe e evi e e i e i i...
- Page 9 <8/10> Step Six : Install the corner connection bar,beam flashing and L shap post end cover 6.1、Insert the corner conneciton bar you could open the louvers when you install the flashing 6.2 Take use of rubber hammerto knock the flashing into the groove E-1/2/3/4 B-1/2/3/4...
-
Page 10: Maintenance And Repair
<9/10> Maintenance and repair Take care of your pergola. The surface of the product must be cleaned once a year to maintain its original appearance The surface coating layer of the product, thermosetting powder, is sensitive to the following substances: 1. - Page 11 <10/10> Letter of thanks Dear customer I would like to take the opportunity to thank you for your patronage and purchasing our products .I assure you have purchased the perfect louvre pergola for you.Our team hopes you love our louvre pergola and share happy time with your family members and friends .
