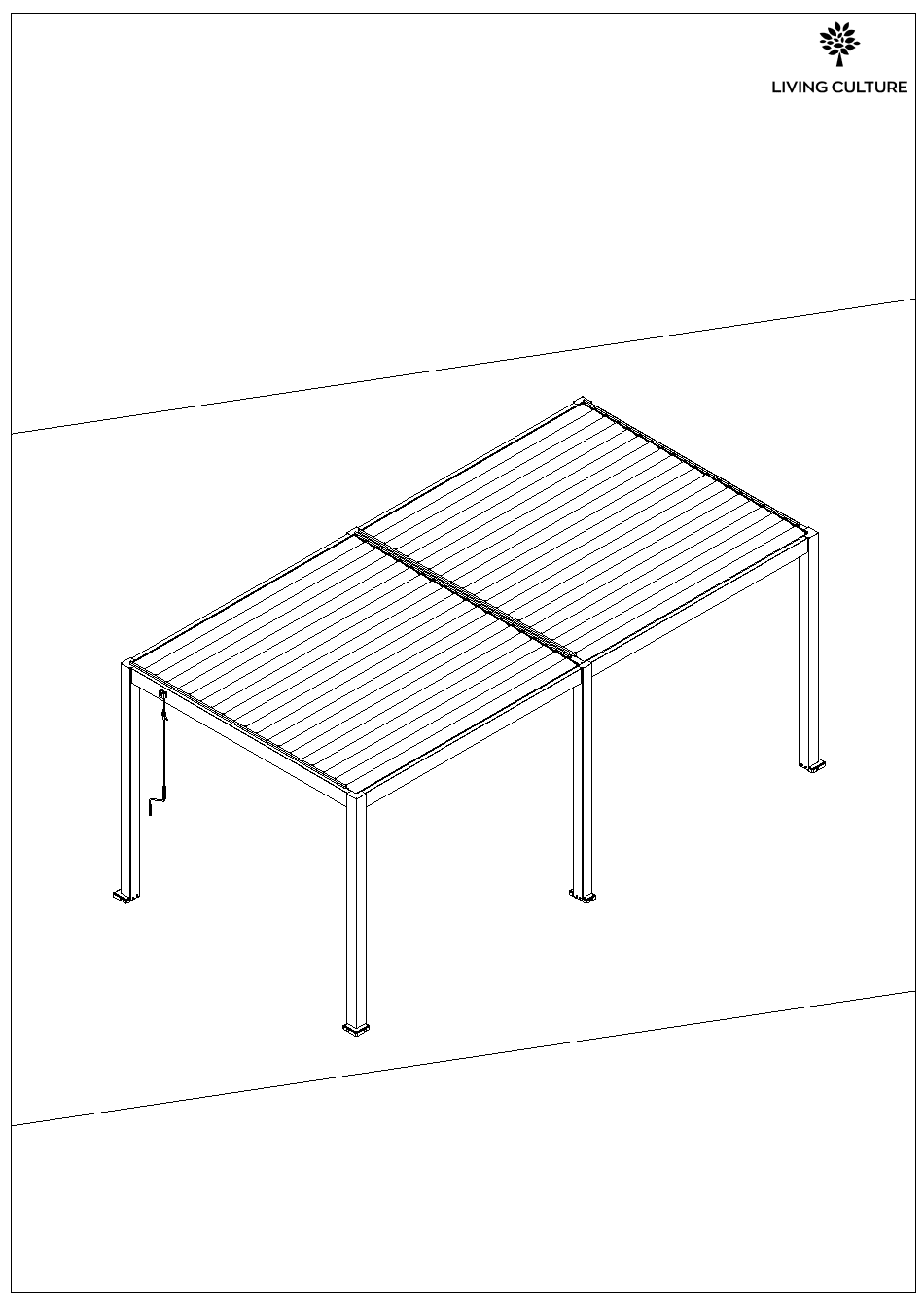

- Page 1 CASPIAN MANUAL FREESTANDING LOUVRE ROOF (SPLIT INTO TWO BAYS) INSTALLATION INSTRUCTION...
- Page 2 <1/24> Please read the following carefully before installation: 1. This is a general version of the installation manual. Please make sure to review the design drawings when placing your order and read this manual several times before beginning to assemble the louver pergola. The installation steps can be referred to this manual, but other specific details, such as motor position, drainage direction, etc., should be based on the design drawings of the order placed.
- Page 3 <2/24> Please refer to the2D view drawing of the product before installing it, and then follow the installation steps in this installation manual Components B4-1 E4-1 B4-2 E4-2 E2-2 B2-2 B2-1 E2-1 code name section photo code name section photo driven post louver left...
- Page 4 <3/24> Hardware remarks code photo name base plate base plate(divided post) base plate cover base plate cover post top cover post top cover(divided post) louver pivot cap gutter corner insert bar divided gutter decoration cover（left） divided gutter decoration cover（right） packed transformer/control system (single led light) in the remote control...
-
Page 5: What You Need
<4/24> What you need 4mm hex bit ∅ rubber hammer drill screwdriver bit electrical drill 12mm drill bit iron hammer marker 17mm spanner ladder helmet tape measure gradienter INSTALLATION Step one:Assemble the base plate with post.A1 A2 are the pergola cable position 1.1、Insert the base plate into the bottom of the post and fix it with screws. - Page 6 <5/24> Step two: Assemble the pergola frame 2.1、Assemble the beam B1 with the posts on the floor Notice： you should assemble it on a soft cover to protech the profile from scratching 15-1 Notice： 1.Double check the post 15-2 position ,A1 A2 2.It needs people to hold the pergola frame 2.2、Get the pergola frame stand up,assemble the beam&gutter B4-2...
- Page 7 <6/24> 2.3、Please assemble first half pergola frame (bay) to get the pergola frame freestanding reduce worker labour B2-1 2.4、Referring to the previous installation steps to install the right side beam&gutter B4-1 don't fasten the middle part beam until the whole frame is finished B2-2...
- Page 8 <7/24> Step three：Adjust the pergola postion 3.1、adjust the position 3.2、it needs one people to 3.3、connect the post with beam （diagonal、parallal、height） pinch and force to reduce by using self tapping screw the gap by hand ,the other person tighten the screws 21-2 3.4、Install the divided beam &gutter 3.4-1、Apply silicone sealant on...
- Page 9 <8/24> 16-1 3.13、stuff the expansion bolt 3.10、install the gutter casing 3.11、mark a singn on the floor 3.12、drill holes into the floor 3.14、verify the pergola 3.15、Fasten the bolts 3.16、 completed size and postion Step four：Install the louvers and connection bar 4.1、Find out the two pieces of driven louver C1R C1L without louver cap 24-2 distingush its orientation right...
- Page 10 <9/24> 4.4、Could identify the driven louvre position and open direction as below （Do not fasten the louvre pivot cap until settle all the louvres） The louvres with "C1L" label Hand crank device "C1L" Label Notice： keep the louver in correct orientation when you install the louvers 4.5、Install the remaining commonly...
- Page 11 <10/24> 4.7、Install the remaining half pergoa frame louver roof 4.8、Install the louvers in the second half of ,youshould put the driven louver C1R into the holder as the bay, and screw the louver pivot cap in previous installtion guide place after each louver is securely settled. "C1R"...
- Page 12 <11/24> 4.11、Connect the hand crank drive mechanism arm with the hand crank headstock shaft， Secure with chamfered screws。 4.11-1、loosen the screws and washer on the mechanism arm take out the screw and washer 4.11-2、Assemble the manual mechanical arm (accessory) screw back the previous screws and washers 23-3 11-1...
- Page 13 <12/24> Step five：install the transformer(if your pergola doesn't have led light then skip this step ) 5.1、 Insert the transformer into the post A1 A2 and link to local voltage cable input B4-1 B4-2 B2-2 B2-1 5.2、 Insert the transformer into the post 控制器...
- Page 14 <13/24> Step six：input power to inspect the led light function(if the pergola doesn't have led light then ignore) 6.1、how to pair a remote to the transformer 6.1-1、Press and hold the button unitl the indicate light starts quickly blinking pair button indicate light 6.2、...
- Page 15 <14/24> 7.4 Insert the middle beam flasing 13-1 7.5 Screw the beam&gutter flashing。 22-1 7.7 Install the hand crank head cover 7.6 install the base plate covers post the hand crank head cover onto the machine head and secure it directly with secrew 12-1 25-5 silicone sealant...
- Page 16 <15/24> Step eight: Check the product functions 8.1 Ensure the pergola has been connected to the leakage protection switch. 8.2 Verify the power supply of the pergola 8.3 Verify the function of the remote 8.4 Verify the LED light function 8.5 Check other equipments...
- Page 17 <16/24> Step One :Clik open TUYA app 1. Prepare a public wifi for the pergola Tip: 2. Open the phone bluetooth and TUYA app it needs 2.4GHz wifi 4586.59 2. Search door window 3. enter the wifi password 5. click confirm 1、Open tuya app (WIFI) in the catagory and click add device...
- Page 18 <17/24> TUYA APP When you connect to tuya app successfully ,you can share the account to your family members authorize Tips: 1.The owner's phone (A) connect to pergola ，he can operate the pergola by his phone A. 2.The the other family members also download TUYA app and singn in.The account for logging into the app should be linked to a mobile phone number or accessed using a mobile phone number.
- Page 19 <18/24> WALL-MOUNTED TYPE INSTALLATION INSTRUCTION B4-1 B4-2 B2-2 B2-1 What you need 1 4 mm drill bit 17mm wrench Hardware photo code name divided gutter decoration cover（left） divided gutter decoration cover（right） SUS hex screw (M8*14) 17-1 M8 gaskets 19-1 M10 washer 19-2 31-1 wood screw M10*100...
- Page 20 <19/24> Step one: Fix the wall mounted beam B4-1 B4-2 on the wall B4-1 B4-2 1.1 、Take use of gradienter to mark the wall 1.2、Mark the position of the holes by aligning mounted beam height and position with the holes on the gutter. You should drill the holes in local to ensure its accurate for your house B4-1 B4-2...
- Page 21 <20/24> Step 2: Assemble the pergola frame 2.1、Install the gutter connected to the wall mounted gutter 2.1-1、Install the beam into the post groove 2.1-2、Fasten the screw again 2.1-3、 Combine the beam & gutter with junction 15-1 17-1 15-2 19-1 ！ Notice：...
- Page 22 <21/24> Follow the previous step 2,3,4,5,6,7,8 There are two special points shoud be noticed： -1.Put the driven louvre and led light cable into position -2.Install the beam flashing （Note：The beam flashing for the wall-side cannot be installed from the side due to obstruction by the wall.
- Page 23 <22/24> problem solutions 1.Check if the cables is correct 2.Check if the voltage for pergola is available The led lights 3.Check if the remote learn to pair to the control system. do not work 4.Check if the remote is working or not. 5.Check if the control system has power output or not.
- Page 24 <23/24> Caring for your pergola The surface of the product must be cleaned once a year to maintain its original appearance. The thermosetting powder coating on the product's surface is sensitive to the following: 1. Physical abrasion, hard impacts, extrusion, and chemicals, including alkaline and acidic solvents.
- Page 25 <24/24> Dear Customer, I would like to take the opportunity to thank you for your patronage and purchasing our products .I assure you have purchased the perfect louvre pergola for you.Our team hopes you love our louvre pergola and share happytime with your family members and friends . We are a customer-centric company .
