Summary of Contents for MAKEiD D50

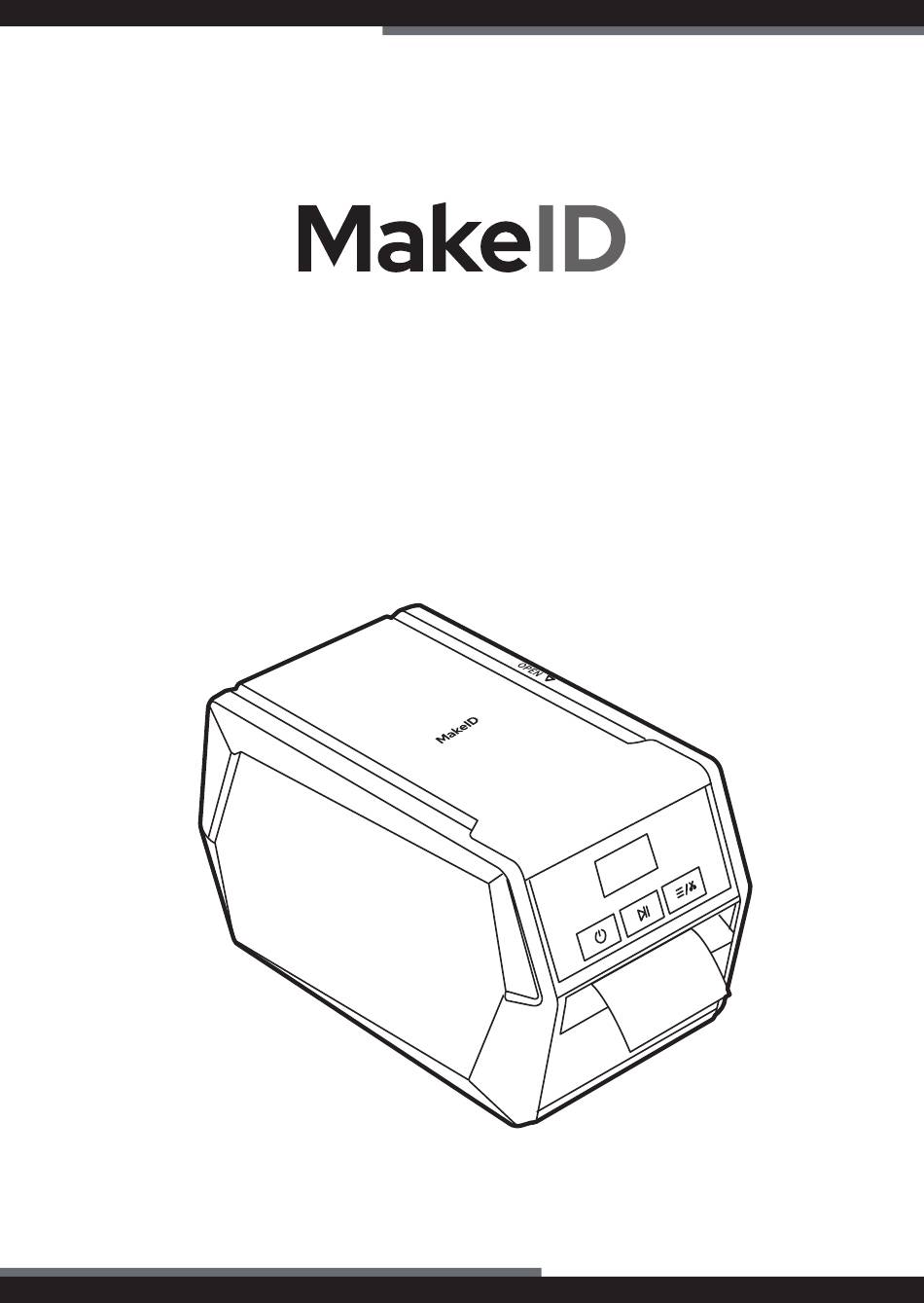

- Page 1 D50 Label Printer User Manual...
-
Page 2: Packaging List
Packaging List Label printer Power adapter Data/power cable Integrated Label Type-C Adapter User manual &Ribbon Cartridge... -
Page 3: Major Components
Major Components Power button Display screen Cutter/Set button Printhead unit Feed/Pause button Label exit Label cartridge Compartment cover Reset button USB port... - Page 4 Label Cartridge Installation & Replacement Please follow the 1→ 2→ 3→ 4 sequences to install or replace the integrated label & ribbon cartridge. Open the compartment cover. Remove the cartridge. Close the compartment Place the new one into the cover. compartment and press to the innermost .
- Page 5 Label Printing - Print through APP Scan to get APP Enter APP Connect Bluetooth/Wifi Get printing templates...
- Page 6 Edit the contents Print Label Printing - Print through PC Connect to the PC Download the editing software and drive (which can be downloaded from www.makeid.com/en/support.html...
- Page 7 Install the drive Open the Software (restart the PC if the installation fails, and run uninstallation before reinstall it) Edit the text Print out the label...
-
Page 8: Printer Operation
Printer Operation How to Set the Printer? Long press the “ ” for 3 seconds to power on the printer with an indication tone. Under normal conditions, the printer screen displays the main page, but if any abnormality occurs, it will be prompted on the screen. - Page 9 When the printer is on, long press the for 3 seconds to power off the printer with an indication tone. In the Ready page, ①Click on the , one die-cut label will move forward automatically , or a certain distance for continuous labels; ②Click on the , the printer will cut off...
- Page 10 Indication tone When the printer status changes, the indication tone will be prompted through the beeper. You can turn on or off the tone in the setting. Tone in the system default is on. WiFi Turn on or off the Wifi. Wifi in the system default is on.
- Page 11 Automatic power off time Automatic power off time setting if no further operation on the printer. Cutter setting Cutter operation mode setting. The mode includes Cut by Each Label (cut every one label printing), Cut by Complete Task (cut every printing task), and Cutter Turn off. Language setting Display Chinese or English language by setting the languages.
-
Page 12: How To Use The Printer
Positioning mode setting Positioning mode includes two modes: normal mode and accurate mode. When in accurate mode, every time the cover is put back on, one label will automatically feed to guarantee an accurate printing position, while in normal mode, no label will feed which may cause the first printing off... -
Page 13: Malfunction Indication
Malfunction Indication When the printer malfunctions, an abnormal status notice will be prompted on the printer screen and the PC/APP, please refer to the following methods for appropriate troubleshooting. If you still can not solve the problem, please contact the agent or manu- facturer. -
Page 14: Maintenance And Repair
Maintenance and Repair Printhead cleaning Printhead should be cleaned when any of the following condi- tions happens: ①Blurry printing; ②Blurry vertical column in printed labels; ③Each time one consumable cartridge used up; Please follow the steps below to clean the printhead: ①Power off... -
Page 15: Printer Parameter
Quick Charge 2.0 Rated input 9V/2A Dimension 173mm*96mm*96mm Weight 1030g Working environment 0℃~+40℃, 20%~90%RH (frost free) Storage environment -20℃~+60℃, 5%~93%RH (frost free) Editing software MakeID Pro Mobile APP & MakeID Connect Desktop Software Consumable type Integrated label & ribbon cartridge... -
Page 16: Safety Notice
Safety Notice Please read the following notices with attention before using the printer. Safety Warning Warning: The printhead is a heat-generating component. Do not touch the printhead and its surrounding compo- nents during and just after printing. Warning: To avoid damage to the printhead by static electricity, do not touch the printhead surface and connec- tion plugin. - Page 17 If you need further information about the product, please contact the agent or Chongqing Pinsheng through the email assistance at xly.support@makeid.com. No chapter or section of this manual could be reproduced or transmitted in any form, or by any means without the written...
- Page 18 Copyright This manual was printed in 2024, and its copyright belongs to Chongqing Pinsheng Technology Co., Ltd. Printed in China Version 1.0 Trademark is the registered trademark used by Chongqing Pinsheng Technology Co.,Ltd. WARNING： Injury to persons, and/or damage to the printer may occur if you fail to comply with the warning.
- Page 19 FCC COMPLIANCE STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’...
- Page 20 图纸资料 D50使用指南海外M-2 图 号 尺寸(mm) 105mm*148mm 尺寸公差(mm) ±0.1mm 比 例 WEWIN 300A (PANTONE BLACK C ) 色 号 思源黑体 字 体 材 质 备 注 张阳 制 图 审 核 日 期 2024.9.26 会签栏 此页不印刷...
