COX LawnBOSS A16517H Owner's/Operator's Manual

Hydrostatic drive
Hide thumbs

Advertisement

Table of Contents

CS4H15B32-15.5hp Briggs and Stratton 805mm (32") Cut
CS4H15B38-15.5hp Briggs and Stratton 805mm (38") Cut
CS4H17B32-17.5hp Briggs and Stratton 805mm (32") Cut
CS4H17B38-17.5hp Briggs and Stratton 805mm (38") Cut
CS4H15B32AU-LB AU 15.5hp Briggs and Stratton 805mm (32") Cut
CS4H17B32AU-LB AU 17.5hp Briggs and Stratton 805mm (32") Cut
DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN THIS MANUAL ARE FOLLOWED
NOTE: Bring this Manual when Service & or Warranty work is required.
RIDE-ON MOWER
OWNER/OPERATORS MANUAL
Model A16517H
Hydrostatic Drive
READ THIS MANUAL BEFORE OPERATING MACHINE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LawnBOSS A16517H and is the answer not in the manual?

Questions and answers

Related Manuals for COX LawnBOSS A16517H

Summary of Contents for COX LawnBOSS A16517H

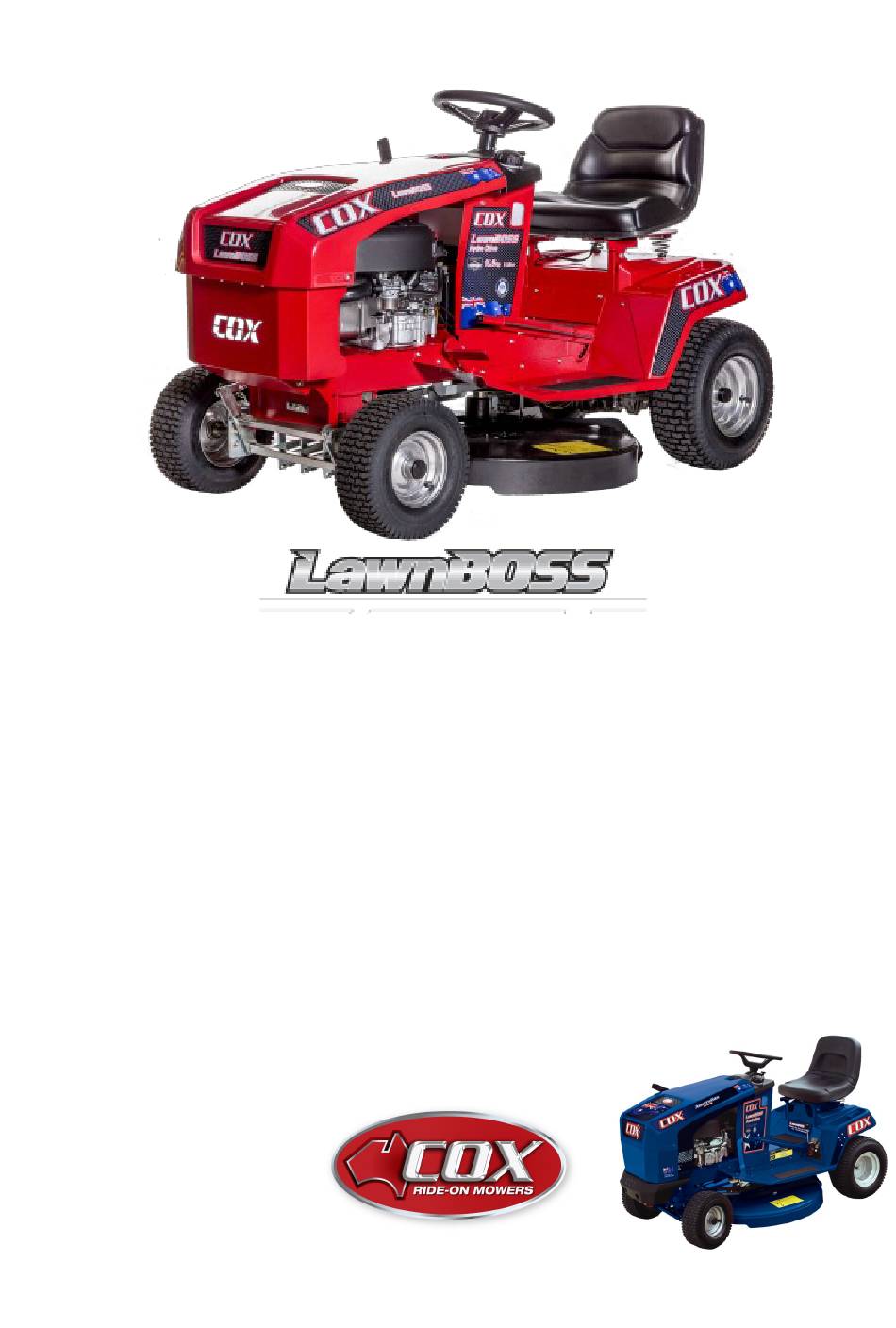

  • Page 1 RIDE-ON MOWER OWNER/OPERATORS MANUAL Model A16517H Hydrostatic Drive CS4H15B32-15.5hp Briggs and Stratton 805mm (32”) Cut CS4H15B38-15.5hp Briggs and Stratton 805mm (38”) Cut CS4H17B32-17.5hp Briggs and Stratton 805mm (32”) Cut CS4H17B38-17.5hp Briggs and Stratton 805mm (38”) Cut CS4H15B32AU-LB AU 15.5hp Briggs and Stratton 805mm (32”) Cut CS4H17B32AU-LB AU 17.5hp Briggs and Stratton 805mm (32”) Cut READ THIS MANUAL BEFORE OPERATING MACHINE DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS IN THIS MANUAL ARE FOLLOWED...

  • Page 2: Owner's Information

    OWNERS INFORMATION MACHINE CODE NO:__________________________ SERIAL NO:_______________________ Located on label inside transmission housing B&S ENGINE MODEL NO:______________TYPE____________ CODE_______________ HONDA ENGINE TYPE NO:____________________SERIAL NO____________________ Located on engine refer Engine Owners Manual DATE OF PURCHASE:__________________________________ ISSUED TO: OWNERS NAME: ADDRESS: STATE: TOWN/CITY: ISSUED BY: AUTHORISED DEALER/ DISTRIBUTOR:...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • Read, understand, & follow all instructions in the • Check all nuts, bolts, and screws often; always be Owner/Operators manual. sure the mower is in safe operating condition. • Know the controls and how to stop the engine quick- •...

  • Page 4: Engine Oil

    A16517H PRE-DELIVERY INSTRUCTIONS INTRODUCTION: the hole in the steering shaft and use a hammer and suitable punch to drive the DP10 The purpose of this procedure is to ensure the roll pin in, through the hole in the steering dealer/distributor has made the necessary shaft cover into the steering wheel and shaft.
  • Page 5 ITEM PART NUMBER DESCRIPTION A165064S Cover, Transmission, Hydro A165064F Cover, Transmission, LB AU NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6, Znpl SH0820M Screw, Hex, M 8x 20, Pc8.8, Znpl W051218 Washer, Flat, Bright, 5/16"X3/4"X18g Sub-Assy, Seat SH0825M Screw, Hex, M 8x 25, Pc8.8, Znpl A163060 Spring, Compression, Conical, Seat, Heavy W05M202...

  • Page 6: Starting Machine

    RECOMMENDED FUEL the ground speed, less movement from the neutral position Unleaded fuel is recommended by all manufacturers of results in less ground speed, use this feature especially in engines fitted to Cox products. heavier conditions. SAFETY MICRO SWITCHES MANOEUVRING:...

  • Page 7: Maintenance Instructions

    1 – 2 turns then retest. We are proud that you have purchased a Cox product and urge you to follow these instructions to obtain the maximum life for your machine. If in doubt check with your supplier.

  • Page 8: Maintenance Schedule

    MAINTENANCE SCHEDULE Check engine oil level, adjust if required Check for loose fasteners, tighten if required Check engine air cleaner foam pre-cleaner, service if required Lubricate stub axles Check engine rotating screen/finger guard, clean if required Check mowing attachment cutter blades, bolts, nuts, disc/s, Check operation of safety switches, service if required housing, and guards for wear or damage, replace if required Check foot brake operation...
  • Page 9 Change engine oil if operating under heavy load or high ambient Check mowing attachment cutter blades, bolts, nuts, disc/s, housing , temperature and guards for wear or damage, replace if required Check engine air cleaner foam pre-cleaner, service if required * Check for loose fasteners, tighten if required Check engine rotating screen/finger guard, clean if required * Check battery condition, service if required...
  • Page 10 Replace engine oil filter Lubricate stub axles Change engine oil Check steering chain and sprockets for wear, adjust if required Check engine spark plug, clean, adjust, or replace if required Check mowing attachment cutter blades, bolts, nuts, disc/s, housing, If fitted clean engine exhaust spark arrestor and guards for wear or damage, replace if required Check engine air cleaner foam pre-cleaner , service if required * Check belts for wear or damage, replace if required...
  • Page 11 Owners Manual for Model A16517H rev 1 1 March 2024 Page 11...
  • Page 12 EXPLODED VIEW: A16517H BODY- SEAT, COVERS & MUDGUARD Owners Manual for Model A16517H rev 1 1 March 2024 Page 12...
  • Page 13 PARTS LIST: A16517H BODY- SEAT, COVERS & MUDGUARD ITEM PART NUMBER DESCRIPTION A163012 Mudguard, Rear, Red A165412 Mudguard, Rear, Blue LB AU A165070S Cover, Rear NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6 SH0512C Screw, Hex, Unc, 5/16"X3/4", Gr5 W051218 Washer, Flat, Bright, 5/16"X3/4"X18g A163060 Spring, Compression, Conical...
  • Page 14 EXPLODED VIEW: A16517H SEAT & STEERING WHEEL Owners Manual for Model A16517H rev 1 1 March 2024 Page 14...
  • Page 15 PARTS LIST: A16517H SEAT & STEERING WHEEL ITEM PART NUMBER DESCRIPTION SW1316D Wheel, Steering A140205 Wheel, Steering NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6, Znpl SH0825M Screw, Hex W051218 Washer, Flat, Bright, 5/16"X3/4"X18g, Znpl A163060 Spring, Compression, Conical, Seat, Heavy A168231 Cap, Spring, Seat W030820...
  • Page 16 EXPLODED VIEW: A16517H BONNET Owners Manual for Model A16517H rev 1 1 March 2024 Page 16...
  • Page 17 Grill, Bonnet, Black A163046T Stay, Rear A165244T Baffle, Air, Hot, Bonnet, B&S A179241S Nose, Bonnet, Cox, Redrip A165470F Nose, Bonnet, Angled, LB AU BHSSM6X12 Screw, Button, Hex Soc, M 6x 12, Pc10.9, Znpl BHSSM6X16 Screw, Button, Hex Soc, M 6x 16, Pc10.9, Znpl...
  • Page 18 EXPLODED VIEW: A16517H STEERING COMPONENTS (SW1316D STR WHEEL) Owners Manual for Model A16517H rev 1 1 March 2024 Page 18...
  • Page 19 EXPLODED VIEW: A16517H STEERING COMPONENTS (SW1316D STR WHEEL) ITEM PART NUMBER DESCRIPTION 13012 Bush, Flanged, Nylon AM017C1 Steering Shaft Bush With Collar A163028Z Shaft, Steering, Lower Circlip, Ext, "E"Type W092016 Washer, Flat, Bright, 9/16" X 1+1/4" X 16g 89100 Fastener, Pushon, Round 89097 Steering Shaft Yoke AM25399J...
  • Page 20 EXPLODED VIEW: A16517H STEERING COMPONENTS (A140205 STR WHEEL) Owners Manual for Model A16517H rev 1 1 March 2024 Page 20...
  • Page 21 PARTS LIST: A16517H STEERING COMPONENTS (A140205 STR WHEEL) ITEM PART NUMBER DESCRIPTION 13242 Pin, Pivot, Front Axle(Plated) A116060 Cap, Hub, 38id, Black AM021 Spacer 90003B Axle, Front A163032Z Idler, Steering, 415m-27x143, Sman4000, Znpl SK09 Circlip AM255 Steering Idler Shaft Mtg Brkt B0624F Bolt, Hex, Unf, 3/8"X1- 1/2", Gr5, Znpl B0850M...
  • Page 22 EXPLODED VIEW: A16517H BODY- CONSOLE Owners Manual for Model A16517H rev 1 1 March 2024 Page 22...
  • Page 23 PARTS LIST: A16517H BODY- CONSOLE ITEM PART NUMBER DESCRIPTION 80037 Grommet 96114 Strap, Bonnet, Bunji Loop A163016 Dash, Console, Black A163034T19A Bracket, Tank, Fuel A163020 Tank, Fuel, 5.5l A163072T Bracket, Clamp, Battery Sub-Assy, Wheel, Steer, 13", 3/4"Taper -Round A165070S Cover, Rear Battery, Supercharge, Mfu1, 340cca PR04M4.8 Rivet, Blind, Truss, Mon, 4.0x 8.4, 73ms 5-3...
  • Page 24 EXPLODED VIEW: A16517H BRIGGS & STRATTON ENGINE ANCILLARY 1 March 2024 Owners Manual for Model A16517H rev 1 Page 24...
  • Page 25 PARTS LIST: A16517H BRIGGS & STRATTON ENGINE ANCILLARY ITEM PART NUMBER DESCRIPTION A108101 Pulley, Engine, 25.4ks6.35, A102.2/B112 A108109S17D Plate, Base, Engine, W=266 A108113 Spacer, Pulley, Engine, L=28 A116207Z Plate, Mounting, Engine, Left A116208Z Plate, Mounting, Engine, Right A163038 Control, Speed, Engine L=670 B0840M Bolt, Hex, M8x40, Pc8 Engine...
  • Page 26 Owners Manual for Model A16517H rev 1 1 March 2024 Page 26...
  • Page 27 PARTS LIST: A16517H B&S Electrical Components Schematic ITEM PART NUMBER DESCRIPTION Engine, B&S AM16512F Switch, Seat SP1PNCSM Switch, Plunger SKIT132 Switch, Plunger , Inc Cover BUY LOCALLY Battery, Automotive, 12V, CMFU1, 9PL, 240CCA 13125 Switch, Key A120872Z Washer A120870 Bezel, Switch AM015 Pair, Key, Ignition SH0616M...
  • Page 28 EXPLODED VIEW: A16517H DRIVE PTO COMPONENTS Owners Manual for Model A16517H rev 1 1 March 2024 Page 28...
  • Page 29 PARTS LIST: A16517H DRIVE PTO COMPONENTS ITEM PART NUMBER DESCRIPTION A139024 Pulley, PTO, Socket, Cushion BB305513NS Bearing, Ball A139031 Sleeve, Spacer, Bearing A139025 Fan, Transaxle SPM4X12 Screw, Pan W04MN Washer, Flat WSM4X1.2X1.2 Washer, Lock, Spring A139026T Mount, PTO, Vented A139026F Mount, PTO, Vented, Blue LB AU A139028Z Retainer, Recessed, Bearing...
  • Page 30 EXPLODED VIEW: A16517H DRIVE COMPONENTS Owners Manual for Model A16517H rev 1 1 March 2024 Page 30...
  • Page 31 ITEM PART NUMBER DESCRIPTION 14038 Knob, Spherical, 28 Dia, Bsw, 5/16", Black 14126 Key, 4.76x 4.76x 63.5 14157 Fastener, Push On, Round, Hd, 5/16", Znpl 89052 Control Rod, Drive, Znpl 90293 Boss, Idler, 12dia, 16high, Znpl 90294 Boss, Idler, 12dia, 3high, Znpl 96051 Rod, Select Free Wheel, Znpl A108101...
  • Page 32 EXPLODED VIEW: A16517H CUTTER CONTROL COMPONENTS Owners Manual for Model A16517H rev 1 1 March 2024 Page 32...
  • Page 33 PARTS LIST: A16517H CUTTER CONTROL COMPONENTS ITEM PART NUMBER DESCRIPTION NM8NT Nut, Hex, Nyloc, Thin, M 8, Pc6, Znpl NM6NT Nut, Hex, Nyloc, Thin, M 6, Pc6, Znpl W05M202 Washer, Flat, Bright, 5/16"X3/4"X14g A139105Z Link, Drop, Disengagement, Cutter AM369 Bush KIT235 Kit, Link, Drag Inc Bushes AM230...
  • Page 34 Owners Manual for Model A16517H rev 1 1 March 2024 Page 34...
  • Page 35 AM034H0 Cutter Head Brake Adj Brkt (Plated) AM035 Spring, Compression, Cutter Brake AM07604A Disc, Cutter, 410 Pcd AM259 Deflector, Cox Logo B0620C Bolt, Hex, Unc, 3/8"X1-1/4", Gr5, Znpl KIT253 Kit, Head, 25, Cutter, 805(32"), Lawnboss 14&15 A100068 Kit, Sub-Assy, Spindle, Flanged, 25, Lawnboss...
  • Page 36 EXPLODED VIEW: 960mm (38”) MOWING ATTACHMENT Owners Manual for Model A16517H rev 1 1 March 2024 Page 36...
  • Page 37 NHM14 Nut, Hex, M14, Pc5 B1480M Bolt, Hex, M14x 80, Pc8.8 W092016 Washer, Flat, Bright, 9/16" X 1+1/4" X 16G AM259 Deflector, Cox Logo A100003 Spring, Torsion, Deflector AM274 Fastener, Pushon, Round, 1/4" AM034H0 Cutter Head Brake Adj Brkt AM035...
  • Page 38 EXPLODED VIEW: 960mm (38”) MOWING ATT SPINDLE COMPONENTS Owners Manual for Model A16517H rev 1 1 March 2024 Page 38...
  • Page 39 PARTS LIST: 960mm (38”) MOWING ATT SPINDLE COMPONENTS ITEM PART NUMBER DESCRIPTION A152103T Frame, Reinforce A152005B Housing, Bearing, Flange, Short BB205215NS Bearing, Ball A152011T Spacer, Disc, Cutter A152013T Disc, Cutter BHSSM10X30 Screw, Button, Hex Soc, M10x 30, Pc10.9 NM10NT Nut, Hex, Nyloc, Thin, M10, Pc6 SKIT41N Pair, Blade+Bolt+Washer+Nut, Airflow Blade Bolt &...
  • Page 40 70 Landseer Street Acacia Ridge Qld 4110 Australia PH 07 3323 2222 FAX 07 3344 6233 Web Site Address: www.coxmowers.com.au Email: sales@coxmowers.com.au...
