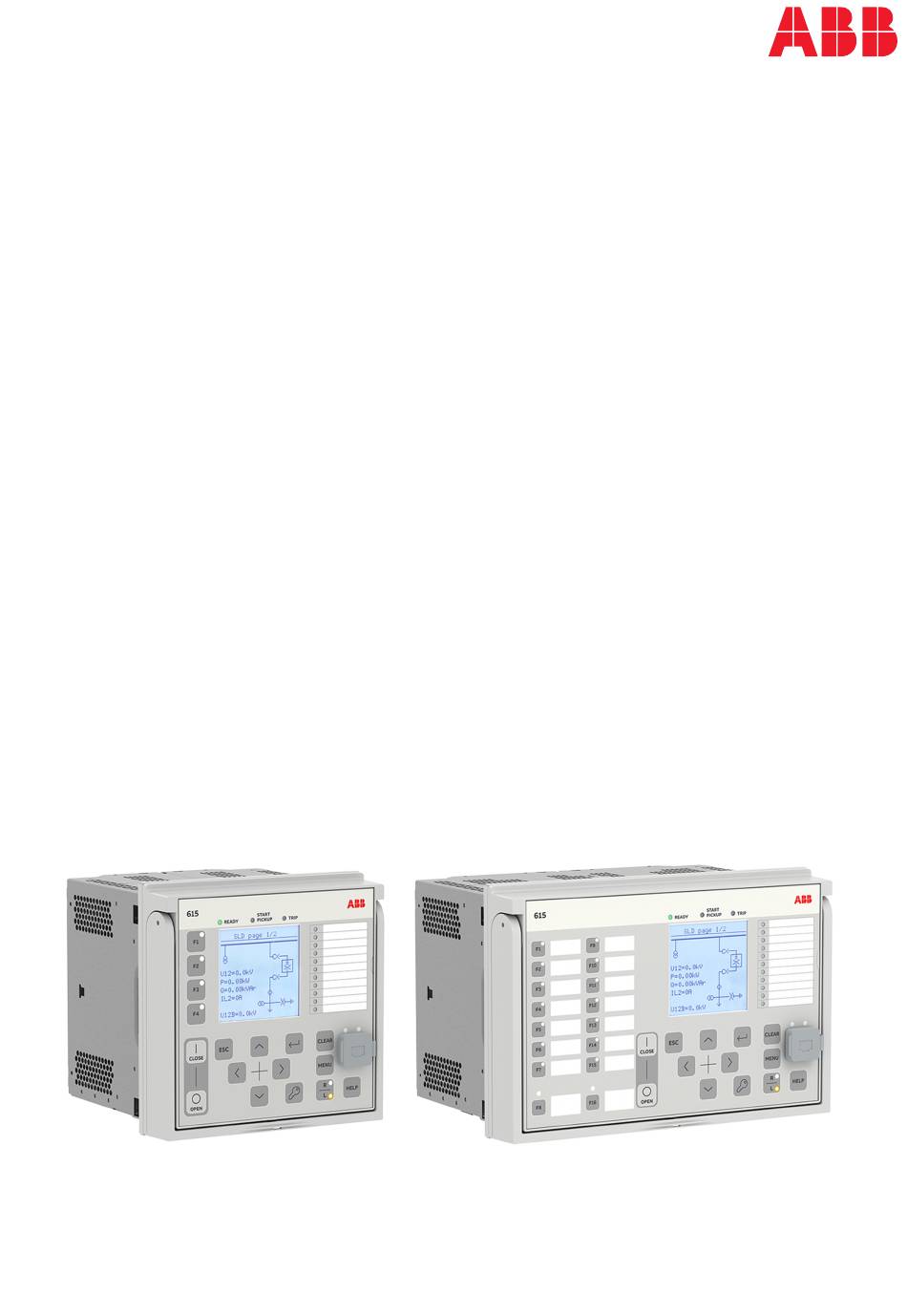

RELION
PROTECTION AND CONTROL
REX615
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RELION REX615 and is the answer not in the manual?

Questions and answers

Related Manuals for ABB RELION REX615

Summary of Contents for ABB RELION REX615

  • Page 1 — ® RELION PROTECTION AND CONTROL REX615 Installation Manual...
  • Page 3 Document ID: 2NGA001864 Issued: 2024-04-05 Revision: A Product version: 1 © Copyright 2024 ABB. All rights reserved...
  • Page 4 Copyright ABB is the owner of the copyright in this document. This document or any parts thereof must not be reproduced or copied without the written permission from ABB and the contents thereof must not be used to any unauthorized purpose.
  • Page 5 Other than under explicit contractual commitments, in no event shall ABB be responsible or liable for any loss or damage resulting from the use of this manual or the application of the equipment.
  • Page 6 Conformity This product complies with following directive and regulations. Directives of the European parliament and of the council: • Electromagnetic compatibility (EMC) Directive 2014/30/EU • Low-voltage Directive 2014/35/EU • RoHS Directive 2011/65/EU • RoHS Directive (EU) 2015/863 amending Annex II UK legislations: •...

  • Page 7: Safety Information

    Safety information Dangerous voltages can occur on the connectors, even though the auxiliary voltage has been disconnected. Non-observance can result in death, personal injury or substantial property damage. Only a competent electrician is allowed to carry out the electrical installation. National and local electrical safety regulations must always be followed.

  • Page 8: Table Of Contents

    Contents Contents Introduction....................11 This manual............................. 11 Intended audience..........................11 Product documentation........................12 1.3.1 Product documentation set....................12 1.3.2 Document revision history....................12 1.3.3 Related documentation......................12 Symbols and conventions........................12 1.4.1 Symbols........................... 13 1.4.2 Document conventions......................13 Environmental aspects................15 Sustainable development........................15 Disposal of a device ..........................
  • Page 9 Contents 4.4.5 Rack mounting protection relay ..................38 4.4.6 Wall mounting protection relay..................43 4.4.7 Rack mounting protection relay and test switch RTXP into 19” equipment frame ..........................50 4.4.8 Rack mounting protection relay into combiflex 19" equipment frame (Type RHGT 19" 4U variant C) ....................52 4.4.9 Replacing a Strömberg SP_J40 series relay by a standard size REX615 ....
  • Page 10 Contents Technical data..................97 Case and HMI display variants......................97 7.1.1 Front side of the protection relay..................97 7.1.2 Rear side of the protection relay ..................99 Dimensions............................101 Degree of protection of the protection relay................104 Accessories and ordering data............105 Glossary....................

  • Page 11: Introduction

    2NGA001864 A Introduction Introduction This manual The installation manual contains instructions on how to install the protection relay. The manual provides procedures for mechanical and electrical installation. The chapters are organized in the chronological order in which the relay should be installed.

  • Page 12: Product Documentation

    Document revision history Document revision/date Product release History A/2024-04-05 PCL1 First release www.abb.com/ Download the latest documents from the ABB Web site medium-voltage 1.3.3 Related documentation www.abb.com/ Download the latest documents from the ABB Web site medium-voltage REX615 Installation Manual...

  • Page 13: Symbols And Conventions

    2NGA001864 A Introduction Symbols and conventions 1.4.1 Symbols The electrical warning icon indicates the presence of a hazard which could result in electrical shock. The warning icon indicates the presence of a hazard which could result in personal injury. The caution icon indicates important information or warning related to the concept discussed in the text.
  • Page 14 Introduction 2NGA001864 A When the function starts, the START output is set to TRUE. • This document assumes that the parameter setting visibility is "Advanced". • Values of quantities are expressed with a number and an SI unit. The corresponding imperial units may be given in parentheses. •...

  • Page 15: Environmental Aspects

    2NGA001864 A Environmental aspects Environmental aspects Sustainable development Sustainability has been taken into account from the beginning of the product design including the pro-environmental manufacturing process, long life time, operation reliability and disposing of the device. The choice of materials and suppliers has been made according to the EU RoHS directive (2011/65/EU) and EU RoHS Directive (2015/863/EU).

  • Page 16: Unpacking, Inspecting And Storing

    Unpacking, inspecting and storing 2NGA001864 A Unpacking, inspecting and storing Removing transport packaging Protection relays require careful handling. Examine the delivered products to ensure that they have not been damaged during the transport. Remove the transport packaging carefully without force. Attach the protective film (supplied with the protection relay) on the top side of the unit for the installation phase.

  • Page 17: Inspecting Product And Delivery Items

    Returning a product damaged in transportation If damage has occurred during transportation, appropriate actions must be taken against the latest carrier. Inform the nearest ABB office or representative. ABB should be notified immediately if there are any discrepancies in relation to the delivery documents. Storing If the protection relay is stored before installation, it must be done in the original transport packaging in a dry and dust free place.

  • Page 18: Mounting

    Mounting 2NGA001864 A Mounting Housing REX615 is available with two different housings sizes, standard and wide. The wide version offers more module slots for binary I/O, RTD/mA and analogue inputs compared to standard version. Otherwise, the mechanical construction is the same in both versions.

  • Page 19: Checking Environmental Conditions And Mounting Space

    2NGA001864 A Mounting Figure 4: REX615 wide Checking environmental conditions and mounting space The mechanical and electrical environmental conditions at the installation site must be within the limits described in the technical manual. • Avoid installation in dusty or damp places. •...

  • Page 20: Detaching And Installing Plug-In Unit

    Mounting 2NGA001864 A It is not allowed to push or touch the screen during the plug-in unit handling. Figure 5: An area that is not allowed to be pushed or touched during the plug-in unit handling Figure 6: Example of hand positions when handling the plug-in unit Detaching and installing plug-in unit REX615 Installation Manual...

  • Page 21: Detaching Plug-In Unit

    2NGA001864 A Mounting 4.3.1 Detaching plug-in unit Before detaching the plug-in unit from the case, the auxiliary voltage must be disconnected. Turn off the power. Open the seal on the front panel by removing the sealing wire and screw the sealing screw all the way in.

  • Page 22: Installing Plug-In Unit

    Mounting 2NGA001864 A 4.3.2 Installing plug-in unit The protection relay is constructed in a way that a plug-in unit with voltage- or current-measuring inputs can only be plugged into a corresponding case. This prevents fitting an unsuitable plug-in unit into a wrong case. Before fitting the plug-in unit into the case, check that the unit and the case have the same serial number.
  • Page 23 2NGA001864 A Mounting Lift the handle 90 degrees and push the plug-in unit into the case. Figure 9: Installing a plug-in unit into the case Let the handle swing down about 45 degrees. At the same time, push the plug-in unit into the case as far as it goes. Plug-in unit stops at about 7 mm (0.28 in) distance from the case.
  • Page 24 Mounting 2NGA001864 A Turn down the handle to push the plug-in unit into its final position in the case. The handle must be locked or sealed to secure the mechanical performance under any conditions caused by vibration, pressure, shock or bump, seismic activity or other equivalent circumstances. REX615 Installation Manual...

  • Page 25: Sealing Handle

    2NGA001864 A Mounting 4.3.3 Sealing handle The front panel of the protection relay has an integrated sealing screw. By default the screw is screwed all the way in and is not used when installing or detaching the plug-in unit. Open the sealing screw about nine turns. Thread a sealing wire through the holes in the sealing screw and the handle.

  • Page 26: Securing Handle

    Mounting 2NGA001864 A 4.3.4 Securing handle The front panel of the protection relay has an integrated sealing screw. By default, the screw is screwed all the way in and not used when installing or detaching the plug-in unit. Instead of sealing the plug-in unit, the sealing screw and the spacer supplied with the protection relay can be used for securing the handle in place.

  • Page 27: Mounting Protection Relay

    2NGA001864 A Mounting Mounting protection relay 4.4.1 Required tools • T25 Torx screwdriver for mounting the case • T20 Torx screwdriver for connecting the protective earthing Only use adjustable torque screwdrivers. 4.4.2 Flush mounting protection relay All the mounting elements are integrated in the protection relay. Requirements for installation: •...
  • Page 28 Mounting 2NGA001864 A Mount the case to the panel cut-out. 165.5 ±1 mm (6.52 inches) M5 fixing screws 161.5 ±1 mm (6.36 inches) Figure 13: Flush mounting a standard case into a panel cut-out REX615 Installation Manual...
  • Page 29 2NGA001864 A Mounting 248 ±1 mm (9.76 inches) 162 ±1 mm (6.38 inches) Figure 14: Flush mounting a wide case into a panel cut-out REX615 Installation Manual...
  • Page 30 Mounting 2NGA001864 A Tighten the M5 (T25) screws. The allowed range for the fixing screws’ tightening torque is 0.7...1 Nm (0.52...0.74 foot-pounds). Figure 15: Flush mounted case, tightening the M5 fixing screws Install the plug-in unit into the case. There is a protective film on the top side of the protection relay. Its purpose is to prevent debris falling inside the unit while installing electrical wiring.
  • Page 31 2NGA001864 A Mounting 177 mm (6.97 inches) 153 mm (6.02 inches) 177 mm (6.97 inches) 48 mm (1.89 inches) 164 mm (6.46 inches) 160 mm (6.30 inches) 201 mm (7.91 inches) Figure 16: Flush mounted standard case and plug-in unit REX615 Installation Manual...

  • Page 32: Semi-Flush Mounting Protection Relay

    Mounting 2NGA001864 A 262 mm (10.31 inches) 153 mm (6.02 inches) 177 mm (6.97 inches) 48 mm (1.89 inches) 246 mm (9.69 inches) 160 mm (6.30 inches) 201 mm (7.91 inches) Figure 17: Flush mounted wide case and plug-in unit 4.4.3 Semi-flush mounting protection relay A mounting kit is needed for semi-flush mounting the protection relay.
  • Page 33 2NGA001864 A Mounting Mount the raising frame into the panel cut-out with four screws. 173.5 ±0.3 mm (6.83 inches) ∅ 5.5 mm (0.22 inches) 165.5 ±1 mm (6.52 inches) Panel 161.5 ±1 mm (6.36 inches) Raising frame 133 ±0.3 mm (5.24 inches) M4 screw Figure 18: Mounting the standard size raising frame 263 ±0.5 mm (10.35 inches)
  • Page 34 Mounting 2NGA001864 A Mount the case to the raising frame. Figure 20: Mounting the case Tighten the M5 screws. The allowed range for the fixing screws’ tightening torque is 0.7...1 Nm (0.52...0.74 foot-pounds). Attach the protective film back on the top side of the case. Install the plug-in unit into the case.
  • Page 35 2NGA001864 A Mounting 280 mm (11.02 inches) 103 mm (4.06 inches) 177 mm (6.97 inches) 98 mm (3.86 inches) 201 mm (7.91 inches) 160 mm (6.30 inches) Figure 22: Semi-flush mounted wide size relay REX615 Installation Manual...

  • Page 36: Semi-Flush Mounting Protection Relay Inclined

    Mounting 2NGA001864 A 4.4.4 Semi-flush mounting protection relay inclined A mounting kit is needed for semi-flush mounting the protection relay inclined. In addition to the detailed mounting instructions, the mounting kit includes: • Angle frame • Gasket • Screws Requirements for installation •...
  • Page 37 2NGA001864 A Mounting Mount the angle frame into the panel cut-out with four M4 screws. 177 ±0.3 mm (6.97 inches) 122 mm ±0.3 mm(4.80 inches) 167 ±1 mm (6.57 inches) 40.5 mm (1.59 inches) 203 ±1 mm (7.99 inches) ø 5.5 mm (0.22 inches) 40.5 mm (1.59 inches) 190 mm (7.48 inches) Figure 23: Mounting the standard size angled frame...
  • Page 38 Mounting 2NGA001864 A 25° 190 mm (7.48 inches) 221 mm (8.70 inches) M4 screws 9 mm (0.35 inches) Gasket 107 mm (4.21 inches) Angled frame 133 mm (5.24 inches) Case 230 mm (9.06 inches) Plug-in unit Figure 25: Standard size relay semi-flush mounted inclined 25 °...

  • Page 39: Rack Mounting Protection Relay

    2NGA001864 A Mounting 4.4.5 Rack mounting protection relay A mounting kit is needed for rack mounting the protection relay. In addition to the detailed mounting instructions, the 19" rack mounting kit includes: • Mounting panel; the type of the mounting panel depends on the number of mounted devices •...
  • Page 40 Mounting 2NGA001864 A Mount the case to the panel cut-out. 482.6 mm (19") 177 mm (6.96 inches) (4U) Figure 27: 19" rack mounting panels for standard size relay REX615 Installation Manual...
  • Page 41 2NGA001864 A Mounting 482.6 mm (19") 177 mm (6.96 inches) (4U) Figure 28: 19" rack mounting panel for wide size relay Tighten the screws. The allowed range for the fixing screws’ tightening torque is 0.7...1 Nm (0.52...0.74 foot-pounds). Install the plug-in unit into the case. Seal or secure the handle.
  • Page 42 Mounting 2NGA001864 A Figure 29: Rack mounted protection relay REX615 Installation Manual...

  • Page 43: Wall Mounting Protection Relay

    2NGA001864 A Mounting 4.4.6 Wall mounting protection relay 4.4.6.1 Wall mounting standard size relay A mounting kit is needed for wall mounting the protection relay. In addition to the detailed mounting instructions, the wall mounting kit includes: • Side parts and rails •...
  • Page 44 Mounting 2NGA001864 A Loosen the four M5 fixing screws in the case to fit the case to the side parts. Tighten the fixing screws. The allowed range for the fixing screws’ tightening torque is 0.7...1 Nm (0.52...0.74 foot-pounds). Mount the case with the side parts between the rails. Install the plug-in unit into the case.
  • Page 45 2NGA001864 A Mounting 214 mm (8.43 inches) 270 mm (10.63 inches) 177 mm (6.97 inches) Figure 32: Wall mounted protection relay Minimum of 50 mm (1.97 inches) space is needed between two kits side by side. When connecting the wires, a wall-mounted protection relay can be pulled out and turned 45°...
  • Page 46 Mounting 2NGA001864 A 455 mm (17.91 inches) Knurled-head screw Mounting frame lock Figure 33: Wall mounted protection relay in rotated position Minimum of 50 mm (1.97 inches) space is needed above and below the frame for rotating. 4.4.6.2 Wall mounting wide size relay A mounting kit is needed for wall mounting the protection relay.
  • Page 47 2NGA001864 A Mounting 293 mm (11.54 inches) Side part (2 pieces) ∅ 7.5 mm (0.30 inches) Hexagon socket head cap screw 66.5 mm (2.62 inches) M5x8 (4 pieces) 133 mm (5.24 inches) Wall mounting screws (not 66.5 mm (2.61 inches) included) Front part Torx screw M5x10 (4 pieces)
  • Page 48 Mounting 2NGA001864 A Detach the plug-in unit from the case and mount the case to the front part by tightening the integrated mounting screws 0.7...1.0 Nm (0.52...0.74 foot-pounds). Figure 35: Mounting the case REX615 Installation Manual...
  • Page 49 2NGA001864 A Mounting The frame can be swung out to access terminals for wiring. Remove the screws as seen to swing out the frame. 57 mm (2.24 inches) Remove the screws before 503 mm (19.80 inches) swinging out the frame Figure 36: Swing mechanism After finished wiring, turn the frame to the wall again and insert all removed screws.

  • Page 50: Rack Mounting Protection Relay And Test Switch Rtxp Into 19" Equipment Frame

    Mounting 2NGA001864 A 259 mm (10.20 inches) 186 mm (7.32 inches) 318 mm (12.52 inches) Figure 37: Wall-mounted protection relay Leave enough slack to wires and cables to allow installation movement. 4.4.7 Rack mounting protection relay and test switch RTXP into 19”...
  • Page 51 2NGA001864 A Mounting Figure 38: Mounting of the metallic frame for an RTXP 18 test switch Figure 39: Protection relay and the test switch RTXP 18 mounted into a 19" equipment panel REX615 Installation Manual...
  • Page 52 Mounting 2NGA001864 A Figure 40: Mounting of the metallic frame for an RTXP 24 test switch Figure 41: Protection relay and the test switch RTXP 24 mounted into a 19" equipment panel REX615 Installation Manual...

  • Page 53: Rack Mounting Protection Relay Into Combiflex 19" Equipment Frame (Type Rhgt 19" 4U Variant C)

    2NGA001864 A Mounting 4.4.8 Rack mounting protection relay into combiflex 19" equipment frame (Type RHGT 19" 4U variant C) A mounting bracket is needed for rack mounting the protection relay into a combiflex 19" equipment frame, a different bracket is in installation with test switch.
  • Page 54 Mounting 2NGA001864 A Install the plug-in unit into the case. RHGT 19" 4U equipment frame, Mounting bracket variant C, with support frame Tapping screw ST3.5x13 Figure 42: Mounting the standard size relay into a 19" combiflex equipment frame REX615 Installation Manual...
  • Page 55 2NGA001864 A Mounting RHGT 19" 4U equipment frame, Washer variant C, with support frame Mounting bracket Screw M4x10 Figure 43: Mounting the wide size relay into a 19" combiflex equipment frame Seal or secure the handle. REX615 Installation Manual...
  • Page 56 Mounting 2NGA001864 A Install the optional RTXP 18 or 24 test switch. RHGT 19" 4U equipment frame, Mounting bracket for mounting variant C, with support frame with test switch RTXP 18 Tapping screw ST3.5x13 Figure 44: Protection relay and the test switch REX615 Installation Manual...
  • Page 57 2NGA001864 A Mounting Test switch RTXP 24 Figure 45: Protection relay and the test switch RTXP 24 REX615 Installation Manual...

  • Page 58: Replacing A Strömberg Sp_J40 Series Relay By A Standard Size Rex615

    Mounting 2NGA001864 A 4.4.9 Replacing a Strömberg SP_J40 series relay by a standard size REX615 Drill new screw holes (∅4.5 mm (0.18 inches)) to the panel according to the dimensional drawing. 442 mm (17.40 inches) 152 mm (5.98 inches) 183 mm (7.20 inches) 194 mm (7.64 inches) 150 mm (5.91 inches) Figure 46: Screw hole and existing panel cut-out dimensions for replacing a...

  • Page 59: Replacing Two Strömberg Sp_J3 Series Relays By A Standard Size Rex615

    2NGA001864 A Mounting 4.4.10 Replacing two Strömberg SP_J3 series relays by a standard size REX615 Make a new panel cut-out to the existing mounting panel according to the dimensional drawing. 155 mm (6.10 inches) Min. 165.5 mm (6.52 inches) 15 mm (0.59 inches) Min.
  • Page 60 Mounting 2NGA001864 A Mount the installation plate to the panel cut-out with M5 thread forming screws. Installation plate Torx head screw M5x10 Figure 49: Installation plate for replacing two SP_J3 relays Tighten the screws. Mount the new IED. Seal or secure the handle. For ordering numbers, see the ordering number table.

  • Page 61: Replacing A Strömberg Sp_J3/J6 Series Relay In 19" Rack By A Standard Size Rex615

    2NGA001864 A Mounting 4.4.11 Replacing a Strömberg SP_J3/J6 series relay in 19" rack by a standard size REX615 Mount the installation plate to the existing panel cut-out with M6 screws and nuts. Use the existing screw holes. 446 mm (17.56 inches) 460 mm (18.11 inches) 196 mm (7.72 inches) 114.5 mm (4.51 inches)

  • Page 62: Replacing A Strömberg Sp_J6 Series Relay By A Standard Size Rex615

    Mounting 2NGA001864 A Available only for standard size REX615. 4.4.12 Replacing a Strömberg SP_J6 series relay by a standard size REX615 Drill new screw holes (ø4.5 mm (0.18 inches)) to the panel according to the dimensional drawing. 186 ± 1 mm (7.32 inches) 196 mm (7.72 inches) 186 ±...
  • Page 63 2NGA001864 A Mounting Mount the installation plate to the existing panel cut-out with M5 thread forming screws. Installation plate Torx head screw M5x10 Figure 53: Installation plate for replacing SP_J6 relay Tighten the screws. Mount the new IED. Seal or secure the handle. For ordering numbers, see the ordering number table.

  • Page 64: Replacing Three Bbc S_ Series Relays By A Standard Size Rex615

    Mounting 2NGA001864 A 4.4.13 Replacing three BBC S_ series relays by a standard size REX615 Make a new panel cut-out to the existing mounting panel according to the dimensional drawing. 92 mm (3.62 inches) 100 mm (3.94 inches) 234 mm (9.21 inches) 250 mm (9.84 inches) Figure 54: Existing panel cut-out and screw hole dimensions for three BBC S_ series relays...
  • Page 65 2NGA001864 A Mounting Mount the installation plate to the panel cut-out with M5 screws, nuts and washers. Use the existing screw holes. Installation plate Hexagon nut M5 Torx head screw M5x16 Spring washer Figure 56: Installation plate for replacing three BBC S_ relays Tighten the screws.

  • Page 66: Replacing A Spa 300 Series Relay By A Standard Size Rex615

    Mounting 2NGA001864 A 4.4.14 Replacing a SPA 300 series relay by a standard size REX615 Make a new panel cut-out to the existing mounting panel according to the dimensional drawing. Min. 186 mm (7.32 inches) 176 mm (6.93 inches) 161.5 ± 1 mm (6.36 inches) 7 mm (0.28 inches) 224 mm (8.82 inches) Figure 57: New panel cut-out and screw hole dimensions for replacing a SPA 300...

  • Page 67: Replacing A Spa 300 Series Relay In 19" Rack By A Standard Size Rex615

    2NGA001864 A Mounting Mount the installation plate to the panel cut-out with M5 thread forming screws. Installation plate Torx head screw M5x10 Figure 58: Installation plate for replacing SPA 300 relay Tighten the screws. Mount the new IED. Use a raising frame if needed. Seal or secure the handle.
  • Page 68 Mounting 2NGA001864 A 4.4.16 Flush mounting the standard size relay with protection cover A mounting kit is needed for flush mounting the protection relay with a protection cover. The mounting kit includes detailed mounting instructions and the protection cover. Installation requirements: •...

  • Page 69: Flush Mounting The Wide Size Relay With Protection Cover

    2NGA001864 A Mounting Install the plug-in unit into the case. There is a protective film on the top side of the protection relay. Its purpose is to prevent debris falling inside the unit while installing electrical wiring. Remove the protective film before energizing the protection relay. 6.97 inches (177 mm) 6.69 inches (170 mm) 6.97 inches (177 mm)
  • Page 70 Mounting 2NGA001864 A 4.4.17 Flush mounting the wide size relay with protection cover A mounting kit is needed for flush mounting the IED with a protection cover. The mounting kit includes detailed mounting instructions and the protection cover. Installation requirements: •...
  • Page 71 2NGA001864 A Mounting Install the plug-in unit into the case. There is a protective film on the top side of the IED. Its purpose is to prevent debris falling inside the unit while installing electrical wiring. Remove the protective film before energizing the IED.

  • Page 72: Connecting

    Connecting 2NGA001864 A Connecting Required tools Only use a screwdriver and insert bits for Phillips (PH 1) cross-recessed head screws (M3.5) when handling CT/ VT terminals of screw-compression type. Max. ø5.5 mm (0.22 inches) Max. ø5 mm (0.20 inches) Figure 63: Screwdriver for CT/VT terminals of screw-compression type Min.

  • Page 73: Connecting Protective Earthing

    2NGA001864 A Connecting Connecting protective earthing The earth lead must be at least 6.0 mm (9 AWG). If the earth lead is long, the cross section of the wire must be increased. Use fine copper wire as the earth lead. Loosen the protective earth screw (T20) to connect a separate earth protection lead.

  • Page 74: Connecting Analog Signals

    Connecting 2NGA001864 A Support the earth lead so that it cannot break or weaken. Be aware of the mechanical, chemical and electrochemical environment. Connecting analog signals A connection diagram is needed to connect the analog signals. When using the ring-lug type for CT/VT terminals, follow these steps. Open or remove the lid that covers the ring-lug fixing screw with the tip of a screwdriver.
  • Page 75 2NGA001864 A Connecting Figure 66: Example of AIM3 card variant (5 U, 2 RTD + 1 mA channel) REX615 Installation Manual...
  • Page 76 Connecting 2NGA001864 A Figure 67: Example of AIM4 card variant (4 I + 3 U with 1/5 A Io channel) REX615 Installation Manual...
  • Page 77 2NGA001864 A Connecting Figure 68: Example of AIM5/15 high-impedance restricted earth-fault card variant (7 I with 1/5 A Io channel) REX615 Installation Manual...
  • Page 78 Connecting 2NGA001864 A Figure 69: Example of AIM5/15 low-impedance restricted earth-fault card variant (7 I with 1/5 A Io channel) REX615 Installation Manual...
  • Page 79 2NGA001864 A Connecting Figure 70: Example of AIM6 card variant (5 U) REX615 Installation Manual...
  • Page 80 Connecting 2NGA001864 A Figure 71: Example of AIM16/17 card variant (4 I with 1/5 A Io channel) REX615 Installation Manual...
  • Page 81 2NGA001864 A Connecting Figure 72: Example of AIM18/19 card variant (4 I + Uo with 1/5 A Io channel) REX615 Installation Manual...

  • Page 82: Connecting Sensors (Non-Conventional Instrument Transformers)

    Connecting 2NGA001864 A 5.4.2 Connecting sensors (non-conventional instrument transformers) Current measurement is based on Rogowski coil and voltage measurement is based on voltage divider. Both current and voltage measurements interface the relay via one RJ45 connector per phase. REX615 has one type of sensor input module (SIM0005) available which supports IEC 61869 standard.

  • Page 83: Connecting Rtd And Ma Inputs

    2NGA001864 A Connecting 5.4.3 Connecting RTD and mA inputs • Connect the wires from the transducers to the correct device according to the connection diagram. Each terminal for RTDs and mA inputs is dimensioned for one 0.5...2.5 mm (20...13 AWG) wire or for two 0.5...1.0 mm (20...17 AWG) wires.
  • Page 84 Connecting 2NGA001864 A Figure 75: Example of RTD2 card variant, (2 RTD + 1 mA + 3 SO + TCS) REX615 Installation Manual...

  • Page 85: Connecting Protection Relay With A Test Switch

    2NGA001864 A Connecting Figure 76: Example of RTD3 card variant, (6 RTD + 2 mA) 5.4.4 Connecting protection relay with a test switch • When the protection relay is used with a test switch, connect the current and voltage transformers directly to the switch. REX615 Installation Manual...

  • Page 86: Shielding Rtd/Ma Instrument Cables

    Connecting 2NGA001864 A 5.4.5 Shielding RTD/mA instrument cables The RTD/mA inputs are connected by screened cables (1 mm /17 AWG), for example, Unitronic 300S (formerly Unitronic 300CY), manufactured by LAPP Group. Other manufacturers' cables with similar technical features can also be used.
  • Page 87 2NGA001864 A Connecting Connect the functional earthing wires (drain wires) to the protection relay's body via a connection flange (2RCA036978A0001) to separate them from the protective earthing conductor. Drain wires Figure 78: Connection of drain wires Cannot be used when the protection relay is mounted with the Combiflex 19" equipment frame (2RCA032826A0001) REX615 Installation Manual...

  • Page 88: Connecting Binary Signals

    Connecting 2NGA001864 A Connecting binary signals • Connect the wires for the binary signals to the correct device according to the connection diagram. Each terminal for binary input and output signal is dimensioned for one 0.5...2.5 mm (20...13 AWG) wire or for two 0.5...1.0 mm (20...17 AWG) wires.
  • Page 89 2NGA001864 A Connecting Figure 80: Example of BIO0006 card variant (6 BI + 3 BO) REX615 Installation Manual...
  • Page 90 Connecting 2NGA001864 A BIO0007 X110 BI 1 BI 2 BI 3 BI 4 BI 5 BI 6 BI 7 BI 8 N.C. N.C. N.C. N.C. HSO1 N.C. N.C. HSO2 N.C. N.C. HSO3 Figure 81: Example of BIO0007 card variant (8 BI + 3 BO) REX615 Installation Manual...

  • Page 91: Connecting Power Supply

    2NGA001864 A Connecting Connecting power supply The permitted auxiliary voltage range of the protection relay is marked on top of the protection relay's LHMI. • Connect the protection relay's auxiliary voltage to terminals X100-1 and X100-2. • Connect the positive lead to terminal X100-1. Figure 82: Connecting auxiliary voltage Connecting communication •...

  • Page 92: Mounting Lens Sensors For An Arc Protection System

    Connecting 2NGA001864 A Mounting lens sensors for an arc protection system Arc protection is used to detect arc situations in air insulated metal-clad switchgear. The arc protection system determines where in the switchgear cubicle the optional lens sensors are installed. Drill a hole (Ø...

  • Page 93: Energizing Protection Relay

    During the start-up, indications and self test procedures are shown in a certain order. Green Ready LED starts to flash. LCD lights up and ABB logo is displayed. LCD test patterns are displayed and all the LEDs are lit for a short period.

  • Page 94: Removing, Repairing And Exchanging

    Protection relay specific options can be found in Retrofit Solutions Database on the www.abb.com Internet by following the links within ABB Service Guide or via ABB Product Guide from the product-specific Service & Support sheet. Checking protection relay information The protection relay information includes detailed information about the device, such as version and serial number.

  • Page 95: Removing Protection Relay

    Figure 86: Loosening the M5 screws Detach the case from the panel cut-out. Sending protection relay for repair • In case of product problems, contact the nearest ABB office or representative for consultation and instructions. Exchanging protection relay • To exchange the protection relay with another identical unit, remove the protection relay and install the new one.
  • Page 96 Removing, repairing and exchanging 2NGA001864 A • To exchange a protection relay to a different unit, change the case and connect the wires. • When replacing only the plug-in unit for maximum system availability, check that the order code of the case and the spare plug-in unit are equal to ensure the type compatibility.

  • Page 97: Technical Data

    2NGA001864 A Technical data Technical data Case and HMI display variants 7.1.1 Front side of the protection relay Figure 87: Standard size LHMI (IEC/ANSI variant) REX615 Installation Manual...
  • Page 98 Technical data 2NGA001864 A Figure 88: Standard size LHMI (CN variant) Overcurrent protection Earth-fault protection Enabled Trigger Voltage protection Frequency protection Trip Lockout Enabled Reset Ph.unbalance or thermal ov. Synchronism OK CB Block Breaker failure protection Enabled Bypass CB condition monitoring Supervision Enabled Disable...
  • Page 99 2NGA001864 A Technical data Figure 90: Wide size LHMI (CN variant) Table 2: Display characters Character size Rows in the view Characters per row Small, mono-spaced (6 × 12 pixels) Large, variable width (13 × 14 pixels) 8 or more Depending on the selected language REX615 Installation Manual...

  • Page 100: Rear Side Of The Protection Relay

    Technical data 2NGA001864 A 7.1.2 Rear side of the protection relay Figure 91: Rear view of a REX615 standard series protection relay with communication module Figure 92: Rear view of REX615 wide with one wide analog input module (X120) REX615 Installation Manual...

  • Page 101: Dimensions

    2NGA001864 A Technical data Figure 93: Rear view of REX615 wide with two wide analog input modules (X120 and X115) Dimensions REX615 Installation Manual...
  • Page 102 Technical data 2NGA001864 A 177 mm (6.97 inches) 153 mm (6.02 inches) 177 mm (6.97 inches), 4U 48 mm (1.89 inches) 164 mm (6.46 inches) 160 mm (6.30 inches) 201 mm (7.91 inches) Figure 94: Standard size relay's main dimensions REX615 Installation Manual...
  • Page 103 2NGA001864 A Technical data 262 mm (10.31 inches) 153 mm (6.02 inches) 177 mm (6.97 inches), 4U 48 mm (1.89 inches) 246 mm (9.69 inches) 160 mm (6.30 inches) 201 mm (7.91 inches) Figure 95: Wide size relay's main dimensions Table 3: Dimensions Description Value...

  • Page 104: Degree Of Protection Of The Protection Relay

    Technical data 2NGA001864 A Degree of protection of the protection relay Table 4: Degree of protection of the protection relay Description Value Front: When flush mounted IP 54 Rear (Connector side): IP 20 (with ring-lug signal connectors IP 00 or IP 10 depending on wiring) Top and bottom: IP 30...

  • Page 105: Accessories And Ordering Data

    2NGA001864 A Accessories and ordering data Accessories and ordering data Table 5: Cables Item Order number Optical sensor for arc protection, cable length 1.5 m (4.9 ft) 1MRS120534-1.5 Optical sensor for arc protection, cable length 3.0 m (9.8 ft) 1MRS120534-3 Optical sensor for arc protection, cable length 5.0 m (16.4 ft) 1MRS120534-5 Optical sensor for arc protection, cable length 7.0 m (23 ft)
  • Page 106 Accessories and ordering data 2NGA001864 A Item Order number 19” rack replacement kit for Strömberg SP_J3/J6 series relays (one cut-out) 2RCA027894A0001 19” rack replacement kit for Strömberg SP_J3/J6 series relays (two cut-outs) 2RCA027897A0001 Replacement kit for a Strömberg SP_J6 series relay 2RCA027881A0001 Replacement kit for three BBC S_ series relays 2RCA027882A0001...

  • Page 107: Glossary

    2NGA001864 A Glossary Glossary Analog input module BI/O Binary input/output Binary input and output Current transformer Electromagnetic compatibility Hardware International Electrotechnical Commission Liquid crystal display Liquid crystal polymer Light-emitting diode LHMI Local human-machine interface Polyamide Polybutylene terephthalate 1. Personal computer 2.
