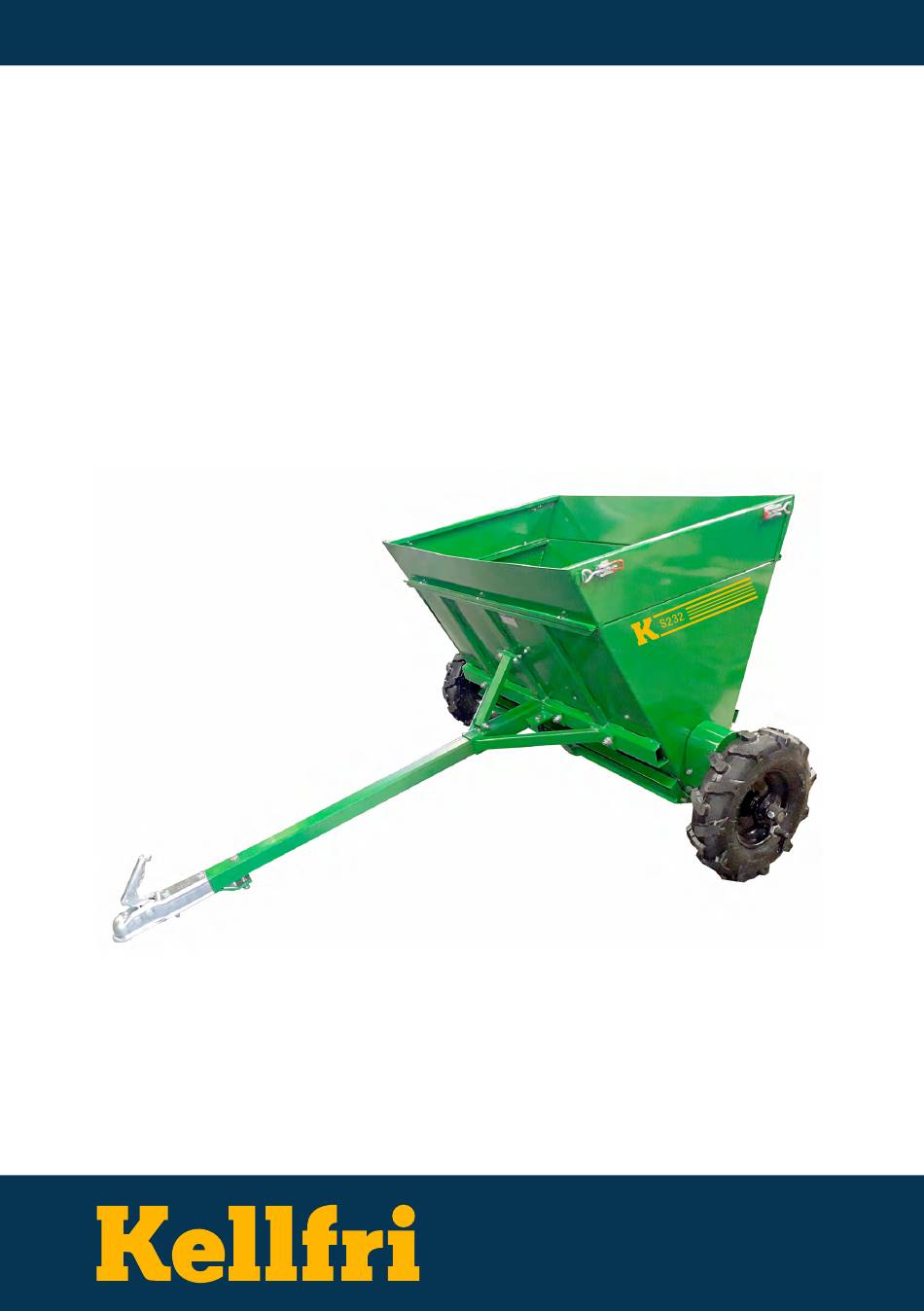

- Page 1 32-S232 GRITTER FOR ATV/QUAD The image shows the gritter with optional side extensions. Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. Please note that the information in this document is general and may not pertain to your particular machine/product. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Complying with the safety information, instruction manual and using common sense will guarantee many years of enjoyment with the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent performance demands. -
Page 4: Safety Instructions
Unauthorised modifications and/or accessories may cause life-threatening injuries or death to users and others. Kellfri is not liable for any modifications, changes or rebuilds carried out by customers. Where the machine is used professionally, employers are responsible for ensuring that users of the machine have theoretical and practical knowledge of the machine and that work is performed in a safe manner. -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Exercise caution when working with equipment with hydraulic hoses, as oil under pressure can penetrate the skin. -
Page 7: Maintenance And Service
USE contd. • The product may only be used in the way described in this operating manual. • Risk of crushing! Never put your hands or feet on the equipment’s spread auger. • Only the operator may be present in the vicinity of the equipment while it is in operation. •... -
Page 8: After Use
Contact your local authority for further information. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 9: Winter Products
WINTER PRODUCTS The winter season Drivers should be aware of the areas being cleared of snow and set out orientation points. Place boundary markings, e.g. at drains, differences in level, steps, manhole covers, poor or damaged asphalt/surface, and remove stones CAUTION! and other loose objects that may be hidden under the snow, etc. -
Page 10: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before starting work. -
Page 11: Parts
PARTS Drawbar eye 2 pcs Note! Left and right Direction of travel, see arrow on tyre Side extensions are available as an option for the gritter. Article no.: 32-S232FL M8x16, lock nut and washer 10 pcs Table of Contents... -
Page 12: Assembly
ASSEMBLY Important! All screws/bolts must be re-tightened after completion of assembly. Fit the wheels. Note: Left and right. See arrow on wheel, indicates direction of travel. Loosen the screw and thread on the wheel. Lock the wheel by re-tightening the screw. The wheel should turn “gently”. - Page 13 Loosen screw/pin. Fit tow bar. Lock securely with screw/pin. Loosen bolts and springs. Fit bracket with tow bar. Table of Contents...
- Page 14 Check that the wheels are fitted correctly. Turn the rig so it stands on the wheels. Re-tighten all bolts and springs. Check tyre pressure before use. Maximum pressure 2.5 bar. Direction of travel (Maximum pressure must not be exceeded.) Side extensions are available as an option for the gritter.
- Page 15 Lock the flaps with the eccentric locks. Bear in mind! Check the locks on both short sides before starting work. Important! All screws/bolts must be re-tightened after completion of assembly. Roller agitation. Table of Contents...
- Page 16 When driving forwards, the roller rotates and gritting starts. When reversing, the roller is disengaged and gritting stops. The image shows the gritter with optional side extensions. During transport, make sure that the locking pin is not touching the rim. Adjustment spring for output quantity.
-
Page 17: Grease Points
GREASE POINTS The image shows the gritter with optional side extensions. Table of Contents... -
Page 18: Exploded Diagrams And Materials List
L = In stock B = Available to order Miscellaneous R32-S232.077 - Spring-loaded lock for infeed R32-S232.078 - Spread quantity adjuster Table of Contents... - Page 19 ITEM NO. SPARE PART NO. DESIGNATION ITEM TYPE QUANTITY R32-S232.076 Hopper R32-S232.002 Chain protection R32-S232.003 Rubber mat, upper R32-S232.004 Rubber mat, lower R32-S232.005 Bolt M8 x 30 R32-S232.006 Washer Ø8 R32-S232.007 Nylock nut M8 R32-S232.008 Bolt M8 x 30 R32-S232.009 Washer Ø10 R32-S232.010 Nylock nut M10...
- Page 20 Miscellaneous R32-S232.001 - Tyre 4.00-8 (Gritters purchased before 09/01/2025) * New wheel model from 19/01/2025 Important! When changing a wheel, both right and left wheels must be changed at the same time. Changing a wheel on an older Gritter model requires an extra wheel change kit.
- Page 21 R32-S232.038 Washer Ø10 R32-S232.039 Nylock nut M10 R32-S232FL.001 Side extension, long side R32-S232FL.002 Side extension, short side R32-S232.042 Hex head bolt M8x16 R32-S232.043 Washer Ø8 R32-S232.044 Hex lock nut M8 R32-S232FL.003 Lock for side extension R32-S232.046 Phillips countersunk screw with countersunk head R32-S232.047 Washer Ø5 R32-S232.048...
-
Page 22: Notes
The image shows the gritter with optional side extensions. NOTES: Table of Contents... -
Page 23: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 24: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
