33-JMATV
SALT & FERTILISER SPREADER
READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT !!!
TRANSLATED FROM THE ORIGINAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33-JMATV and is the answer not in the manual?

Questions and answers

Related Manuals for Kellfri 33-JMATV

Summary of Contents for Kellfri 33-JMATV

  • Page 1 33-JMATV SALT & FERTILISER SPREADER READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT !!! TRANSLATED FROM THE ORIGINAL...

  • Page 2: Product Information

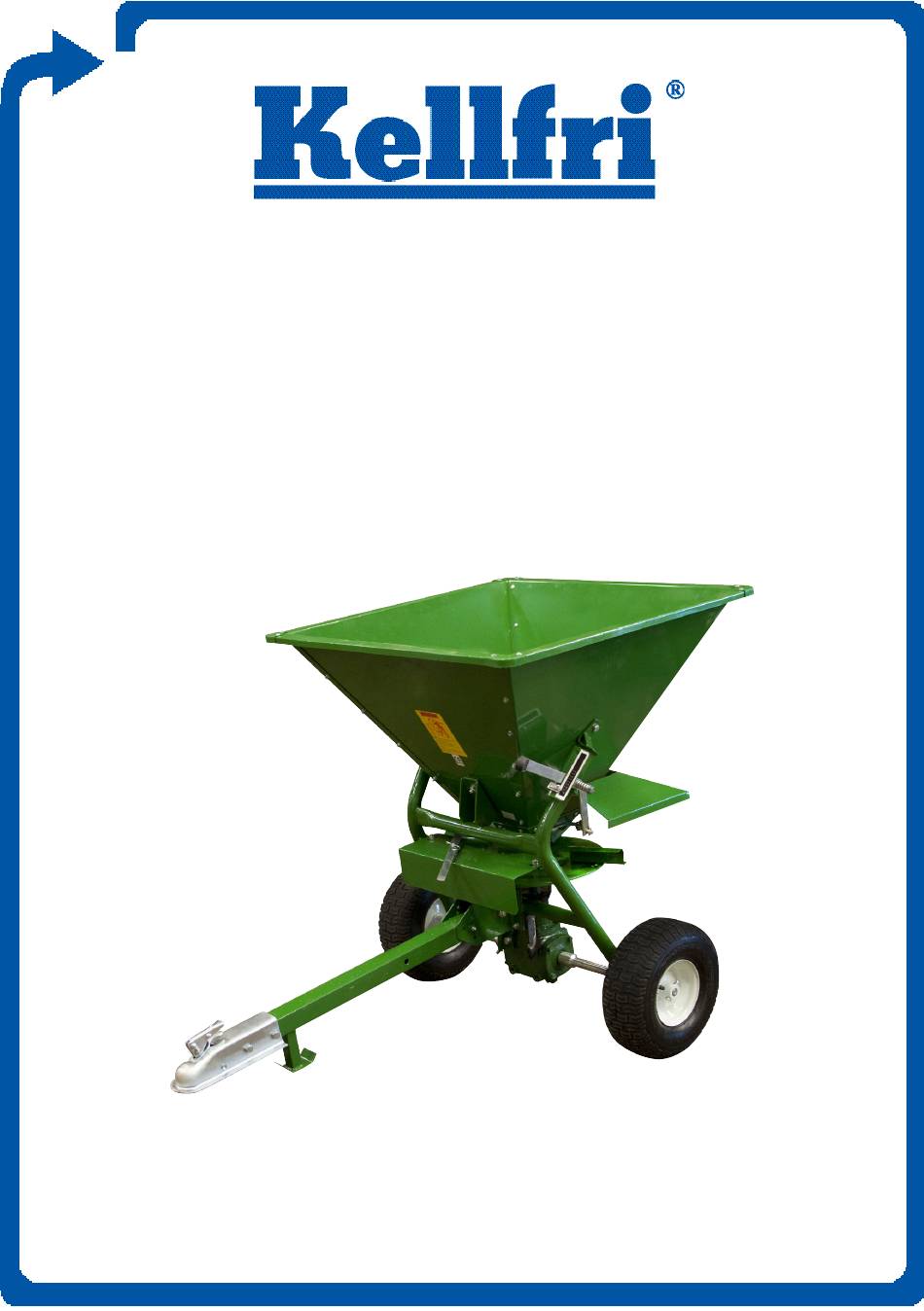

    PRODUCT INFORMATION Kellfri’s salt and fertiliser spreader for ATV or small tractor, friction-driven via the wheels, with accurate adjustment for precise spreading amount. Lateral spreading can be restricted, good for spreading along edges or ditches, accurate adjustment of spreading amount, and with the option of adjusting the four spreader fins.

  • Page 3: Basic Safety Instructions

    CAUTION! or fatal injury to the operator or others. The general safety instruction is also available from Kellfris website: www.kellfri.co.uk Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness.

  • Page 4: Incase Of Emergencies

    INCASE OF EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accessible during all work, maintenance and service. WARNING LABELS Make sure that the warning labels are always visible, clean the warning labels if necessary.

  • Page 5: Before Use

    SURROUNDINGS Make sure the area is clear of people, children and objects before switching on or using the machine. Risk of serious injury. Be especially careful if children are in the area where the equip- ment or product is being used or stored. Check that there are no low- hanging power lines in the working area.

  • Page 6: Spreading Instructions

    When working with equipment that has moving parts, there is always the risk for injury. Al- ways work alone with the equipments that are defined as single porpose equipments. Never overload the trailer. Respect the equipment’s danger zone. Make sure you know the distribution capacity of your machine and the material to be used. Test drive on the field to be sure that the spread will be right aligned.
  • Page 7 Adjustment of distribution mode: Move the lever to the desired position and lock the pin. The spreading quantity and position can be easily adjusted by opening 2 slots in the bottom of the container. The lever (B) under the spreader container adjusts the distribution position, the lever (A) at the side of the spreader container, adjust the distribution rate.
  • Page 8 NOTE! because of the different density of fertilizers, adjustment of spreader blades may be necessary. By moving the blades to the left, you get more distribution to the right and vice versa. The following distribution table  is only general directions of the spread. The values may change due to external factors such as wind, moisture in fertilizers etc.

  • Page 9: After Use

    Spreading The tractor Kg / 4000m² (approximate value) Type of SEEDS width (m) speed (km / h) ** Lever setting is indicated (km/h) Alfalfa & Clover 24’ = 7,3 Grain 26’= 7,9 28,5 33,5 Bermuda grass 17’= 5.2 26,5 Spanish Losta 9,5’= 2.9 Fescue and Ryegrass 17’= 5.2...

  • Page 10: Transport And Storing

    TRANSPORT AND STORING Make sure there are no people, children and foreign objects around the area before transporting the machine. Always take an extra caution during the transport. Ensure that the product is well secured and that transport brackets are mounted. Always place the load as low as possible. Re- spect the danger zone even during transport.
  • Page 11 ASSEMBLY INSTRUCTIONS Assemble the four side panels, secure with nuts and bolts see picture (Figure 1) Then mount the spreader baseplate. Fit the four corner protectors (Corner strip), tighten all nuts and bolts Turn the container sideways during assembly to easily assemble it When the mounting of the container is completed.
  • Page 12 Assemble the frame of the container as shown and tighten the bolts FIGURE 3 Nut M10 Lock Washer Flat washer Hex bolt M10x25 During assembly, the side panels with decals should be facing down. 2. Mount the gearbox at the bottom of the container through the plate.
  • Page 13 FIGURE 5 2. Install the shafts in the gearbox 1. Lift the gearbox parallel to the shafts FIGURE 6 Lock the drive shaft in the gearbox by fitting the safety pin. (Safety pins can be removed when the machine is not in use to reduce the wear on the driveshaft and gearbox) 2.
  • Page 14 Lock nut M8 Flat washerØ8 FIGURE 7 Bolt M8x50 Attach the wheels on the shafts. Secure with bolts and tighten. FIGURE8 Bolt M8x25 Install the adjustment bracket on the frame as illustrated. Tighten the bolts Nut M8 Lock washerØ8...
  • Page 15 FIGURE 9 Nut M12 Locking washer Ø12 Bolt M12x75 Connect ball coupler on the bar as shown in the figure. FIGURE 10 Lock nut M12 Lock nut M8 Flip spreader Bolt M12x75 Bolt M8x70 Mount the tow bar to the bracket, secure with bolts and tighten...
  • Page 16 FIGURE 11 Bolt M10x55 Washer 1. Lift the plate, place the plate sleeve leveled with the center hole on the gearbox pin. Lock with bolt, tighten FIGURE 12 Spreader blade Spreading disc Bolt M8x16 Washer Lock washer Nut M8 Install spreader blade on the plate as shown...
  • Page 17 Adjustable stud bolt Nut M8 FIGURE 13 Lock washer Install guard on the frame as shown, tighten all the bolts Washer Bolt M8x 20 1. Bring the lever through the hole as FIGURE 14 illustrated. Tighten the bolt so that the handle is firmly attached Washer Bolt M10x75...
  • Page 18 Adjustment of the spreader direction is done by changing the position of FIGURE15 the lever Lock pin 1. Remove the lever on the adjusting plate washer Split pin When adjusting the spreading direc- Ø3x25 tion the lever hole is mounted on the bolt and secured with a pin.
  • Page 19 FIGURE17 Bolt M6x16 Protection bar washer Lock Washer Nut M6 Protective cover Tighten all bolts and nuts, even those who have not been applied in the previous step. FIGURE18 NOTE! Decals should face upwards Lock nutM10 Mixer Paste stickers here Washer Bolt M10x50...
  • Page 21 DESCRIPTION QTY. DESCRIPTION QTY. Hex bolt M10x75 Lock nut M8 Washer Ø10 Locking nut Ø10 Spring Bolt M10x55 Adjustable lever Protective cover Washer Wheel Hex Nut M10 Shaft (left) Index Safety Pin Wing nut Bearing bushing Protective cover Gearbox Adjusting handle (sub) Drive shaft Locking pin ø...
  • Page 22 Spreading plate with 4 spreaders Adjustment Lever A Mixer blades.
  • Page 23 Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine.

  • Page 24: Warranty Terms And Conditions

    Other equipment must meet the hardware requirements of the Directive. Tina Baudtler, CEO 2015-09-08 Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
