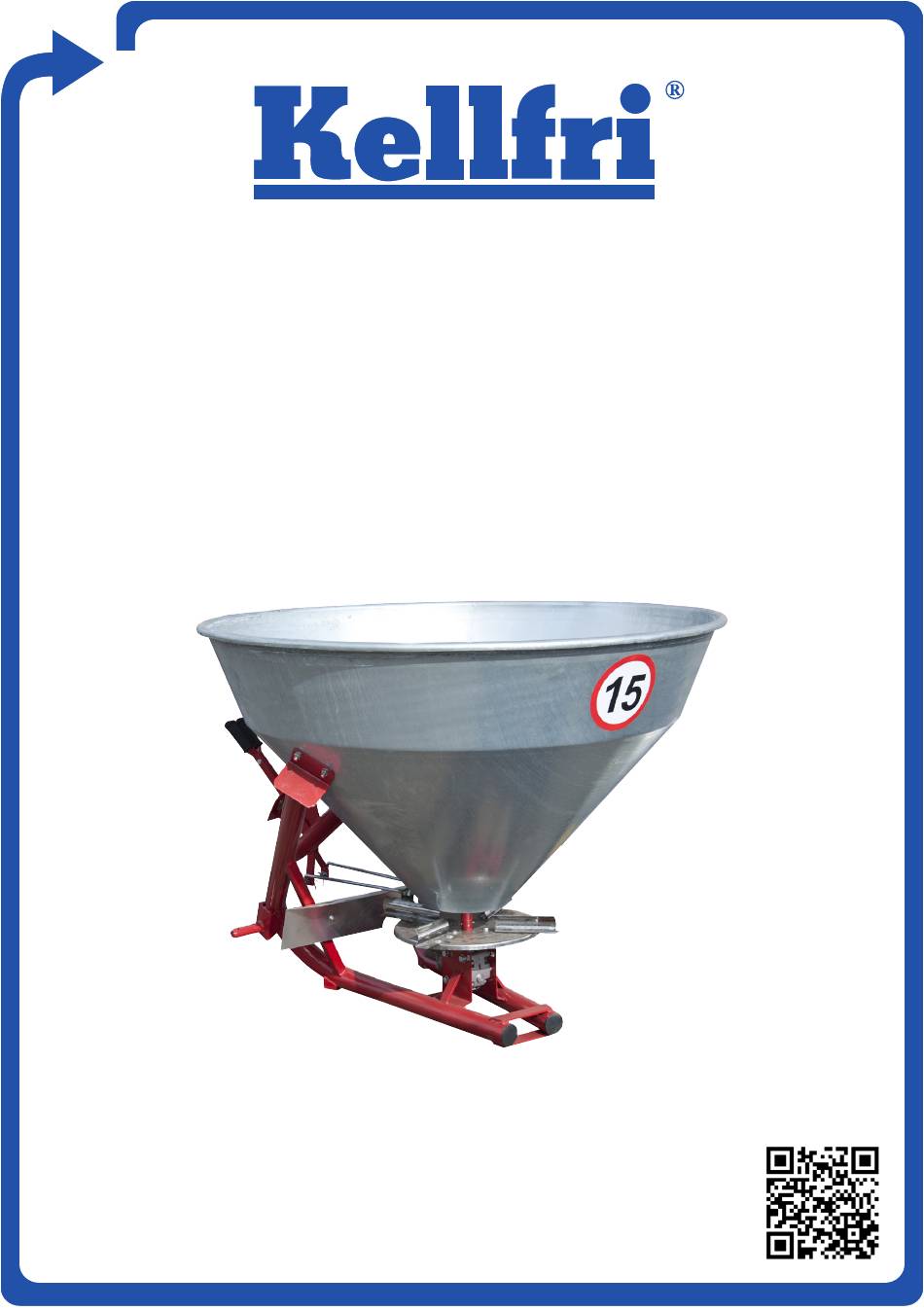

- Page 1 33-JM650 FERTILISER SPREADERS CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT!
-
Page 2: Product Details
PRODUCT DETAILS Kellfri’s JM 650 Fertiliser Spreader has a spreading width of 6 – 14 metres and has a stable frame to ensure maximum possible durability. The fertiliser spreaders are epoxy-coated and the ejectors are made from stainless steel. The fertiliser spreader is equipped with three-point linkage and mounted on the tractor’s hydraulic arms. -
Page 3: Product Safety Instructions
If the instruction manual gets damaged or in any other way cannot be used, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 (0)511-242 50 The general safety instructions can also be downloaded from Kellfri’s website: www.kellfri.se. -
Page 4: Instructions For Emergency Situations
INSTRUCTIONS FOR EMERGENCY SITUATIONS In case of emergency, call 999 or 112. Always have a mobile phone or emergency phone available when working alone. A first-aid kit and fire extinguisher must be kept in an easily accessible location when carrying out any work, maintenance or service. -
Page 5: Personal Protection
PERSONAL PROTECTION Always use suitable protection equipment. Do not wear loose clothing or jewellery while working with the equipment. Long hair should be tied up when working with equipment that has moving parts. Use protective gloves to avoid the risk of burns if hot surfaces such as exhaust pipes are touched, and to avoid oil and petrol getting in contact with the skin. -
Page 6: Connecting The Equipment
CONNECTING THE EQUIPMENT • Connect the equipment to the tractor’s 3-point linkage. • Connect the PTO shaft, secure the chain properly • Ready for use Only those who understand the safety instructions and the operating instructions may use the equipment or product. Exercise caution and care when working with the equipment and only use it in the way described in the operating instructions. - Page 7 ASSEMBLY INSTRUCTIONS: Compliance with the safety instructions Machine parts requires that the product is only used as Frame described in these instructions. It is the user’s responsibility to read through the Hopper instructions and comply with them. Gearbox Warning! Spreader disc (with spreader blade) Bolts Adjustment levers Mixer...
-
Page 8: Pto Shaft
PTO SHAFT Before working on the PTO shaft, ensure that all locking devices are correctly fitted. Modification of PTO shaft for adaptation to tractor. • Before you make any modifications, check the length of the PTO shaft with the machine raised and lowered. -
Page 9: After Use
Spread quantity - kg/ha Type of fertiliser The tractor’s Spread The lever’s setting speed (km/h) width (m) Fertiliser 1042 1137 1278 1400 Granulate Large 12.0 Fertiliser 1037 1149 1254 1325 Granulate Average 12.0 Fertiliser 1080 1179 Granulate Average 12.0 Crystals 1386 1518 1707... -
Page 10: Maintenance And Service
Disconnect the equipment from the towing vehicle while faults are being repaired. • Grease moving parts regularly. • Touch up the paintwork where metal or rust is visible • For spare parts contact: Kellfri service ERROR Cause Measure No fertiliser coming out of the Compacted fertiliser on spreading discs Clean the spreading discs and blades. - Page 11 Item no. Designation Quantity Item no. Designation Quantity Bolt 10x25 Washer 10.5x21 M10 lock nut Bolt 10x30 Lever right Locking pin 8x40 Lever left Locking pin 5x40 Rubber handle Spreading disc Tow bar Spreader blade Hatch lever - right Bolt square head 8x16 Hatch lever - left Nut M8 Locking knob...
-
Page 12: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS The warranty’s validity - Kellfri’s warranty is valid for 12 months from the date of purchase The warranty covers - Reimbursement for parts replaced after verified material or manufacturing defect. The warranty does - Labour costs...
