Kellfri 33-JMATV Manual

Fertiliser spreader
Hide thumbs Also See for 33-JMATV:
Table of Contents

Advertisement

Quick Links

Download this manual

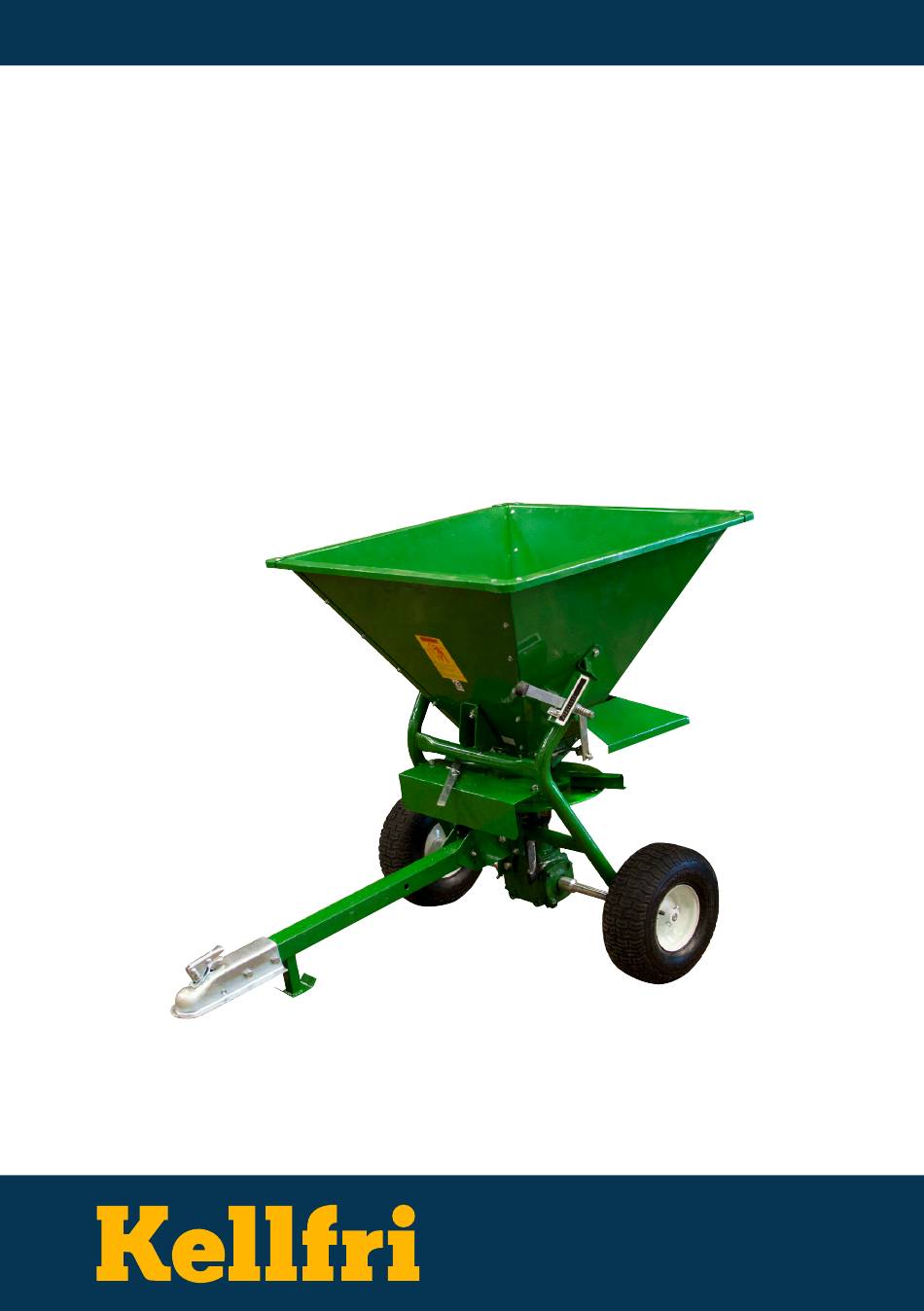

33-JMATV FERTILISER
SPREADER
Carefully read the operating instructions before
using the product!
Operating instructions translated from Swedish

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33-JMATV and is the answer not in the manual?

Questions and answers

Related Manuals for Kellfri 33-JMATV

Summary of Contents for Kellfri 33-JMATV

  • Page 1 33-JMATV FERTILISER SPREADER Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...

  • Page 2: Product Information

    PRODUCT INFORMATION Kellfri’s fertiliser spreader can easily be connected to your ATV. The fertiliser spreader is the perfect solution when there is no PTO shaft. Spreader with a disc and four spreader blades. Adjustable spread quantity. Suitable for seed, manure, sand and salt.

  • Page 3: Product Safety Instructions

    For the safety of both yourself and others, it may be a good idea to read through the safety instructions every now and then. If the safety instructions or the operating manual are dam- aged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Storsvängen 2, 532 38 SKARA, Sweden.

  • Page 4: Warning Decals

    WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work.

  • Page 5: Personal Protection

    PERSONAL PROTECTION Always use suitable protection equipment. Do not wear loose clothing or jewellery while working with the equipment. Long hair should be tied up when working with equipment that has moving parts. Use protective gloves to avoid the risk of burns if hot surfaces such as exhaust pipes are touched, and to avoid oil and petrol getting in contact with the skin.

  • Page 6: Connecting The Equipment

    CONNECTING THE EQUIPMENT • Connect the rotary cultivator ball coupling to the ATV’s tow bar ball coupling. • Reduce speed when working on slopes or uneven ground. • Ready for use Only those who understand the safety instructions and the operating instructions may use the equipment or product.
  • Page 7 Adjustment of spreading position: Move the lever to the desired position and lock with a pin. It is simple to adjust the quantity and position of the fertiliser by opening 2 hatches in the bottom of the hopper. Lever (B) beneath the hopper adjusts spreading position, Lever (A) on the side of the hopper adjusts the spread quantity.
  • Page 8 NOTE: Different fertiliser densities may mean that the spreader blades need to be adjusted. Moving the blades to the left produces a greater spread to the right and vice-versa. The following spreading table comprises general instructions for spreading. The values can change due to external factors such as wind, moisture in fertiliser etc.

  • Page 9: After Use

    Kg/4,000 m² (approximate value) Type of Spreading width The tractor’s Lever setting indicated SEED in feet (=m) speed (km/h) Alfalfa & Clover 24’ = 7.3 Barley 26’= 7.9 28.5 33.5 Bermuda grass 17’= 5.2 26.5 Compact brome 9.5’= 2.9 Fescue grass and Rye 17’= 5.2 grass Clover bush...

  • Page 10: Transportation And Storage

    TRANSPORTATION AND STORAGE Check that the work area is free from bystanders, children and objects before driving off. Always observe additional caution during transport and moving. Ensure that the equipment or product is well anchored and existing transport lashings are fitted. Always position the load as low as possible.
  • Page 11 ASSEMBLY INSTRUCTIONS Assemble the four side panels, secure with bolts and nuts according to the drawing (figure 1) Then fit the spreader’s base plate. Mount the four corner protectors (corner strip), tighten all bolts and nuts. Turn the direction of the hopper during assembly to make it easier to assemble. When the hopper assembly is complete.
  • Page 12 Mount the frame on the hopper as shown and FIGURE 3 tighten bolts Nut M10 Lock washer Flat washer Allen bolt M10x25 When mounting, side panels with decals should be facing downwards 2. Fit the gearbox on the bottom FIGURE 4 of the hopper through the disc.
  • Page 13 FIGURE 5 2. Fit the shafts in the gearbox 1. Lift the gearbox parallel to the shafts FIGURE 6 Lock the drive shaft in the gearbox by fitting the safety pin. (The safety pin can be removed when the machine is not in operation to reduce wear on the drive shaft and the gearbox) 2.
  • Page 14 Lock nut M8 FIGURE 7 Flat washer Ø8 Bolt M8x50 Fit the wheels onto the shafts. Secure with bolts and tighten. FIGURE 8 Bolt M8x25 Fit the adjustment bracket onto the frame as shown. Tighten bolts Nut M8 Lock washer Ø8...
  • Page 15 FIGURE 9 Nut M12 Lock washer Ø12 Bolt M12x75 Connect the ball coupling to the tow bar as shown FIGURE 10 Lock nut M12 Lock nut M8 Rotate the spreader Bolt M12x75 Bolt M8x70 Mount the tow bar on the bracket, secure with bolts and tighten...
  • Page 16 FIGURE 11 Bolt M10x55 Washer 1. Lift the disc, align the sleeve of the disc with the centre hole of the gearbox pin. Lock with bolt, tighten FIGURE 12 Spreader blade Spreading disc Bolt M8x16 Washer Lock washer Nut M8 Mount the spreader blade onto the disc as shown...
  • Page 17 Adjustable stud screw Nut M8 FIGURE 13 Lock washer Fit the guard plate on the frame as shown, tighten all bolts Flat washer Bolt M8x20 1. Insert the lever through the hole as FIGURE 14 shown. Tighten the bolt so that the lever is firmly secured Washer Bolt M10x75...
  • Page 18 Spreader direction is adjusted by FIGURE 15 changing the lever’s position Locking pin 1. Fit the lever onto the adjustment disc Washer Split pin When adjusting the spreader Ø3x25 direction, fit the lever hole on the stud screw and secure with a pin. Washer Stud screw Adjustment disc (lower)
  • Page 19 FIGURE 17 Bolt M6x16 Protective cover Washer Lock washer Nut M6 Protective guard Tighten all bolts and nuts, even those that have not been tightened in the previous step. FIGURE 18 NOTE: Decals must be facing upwards Lock nut M10 Agitator Attach the decal here Washer...
  • Page 21 Item Spare part no. Description Quan- Item Spare part no. Description Quan- tity tity Lock nut M8 Hex bolt M10x75 Lock nut Ø10 Washer Ø10 Bolt M10x55 Spring Protective cover R33-JMATV.017 Adjusting handle (top) R33-JMATV.002 Wheels Washer R33-JMATV.021 Shaft (left) Hex lock nut M10 Safety pin Index...
  • Page 22 Spreading disc with 4 spreader blades. Adjustment lever A Agitator oil refilling check oil level...
  • Page 23 DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied.

  • Page 24: Warranty Terms And Conditions

    You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
