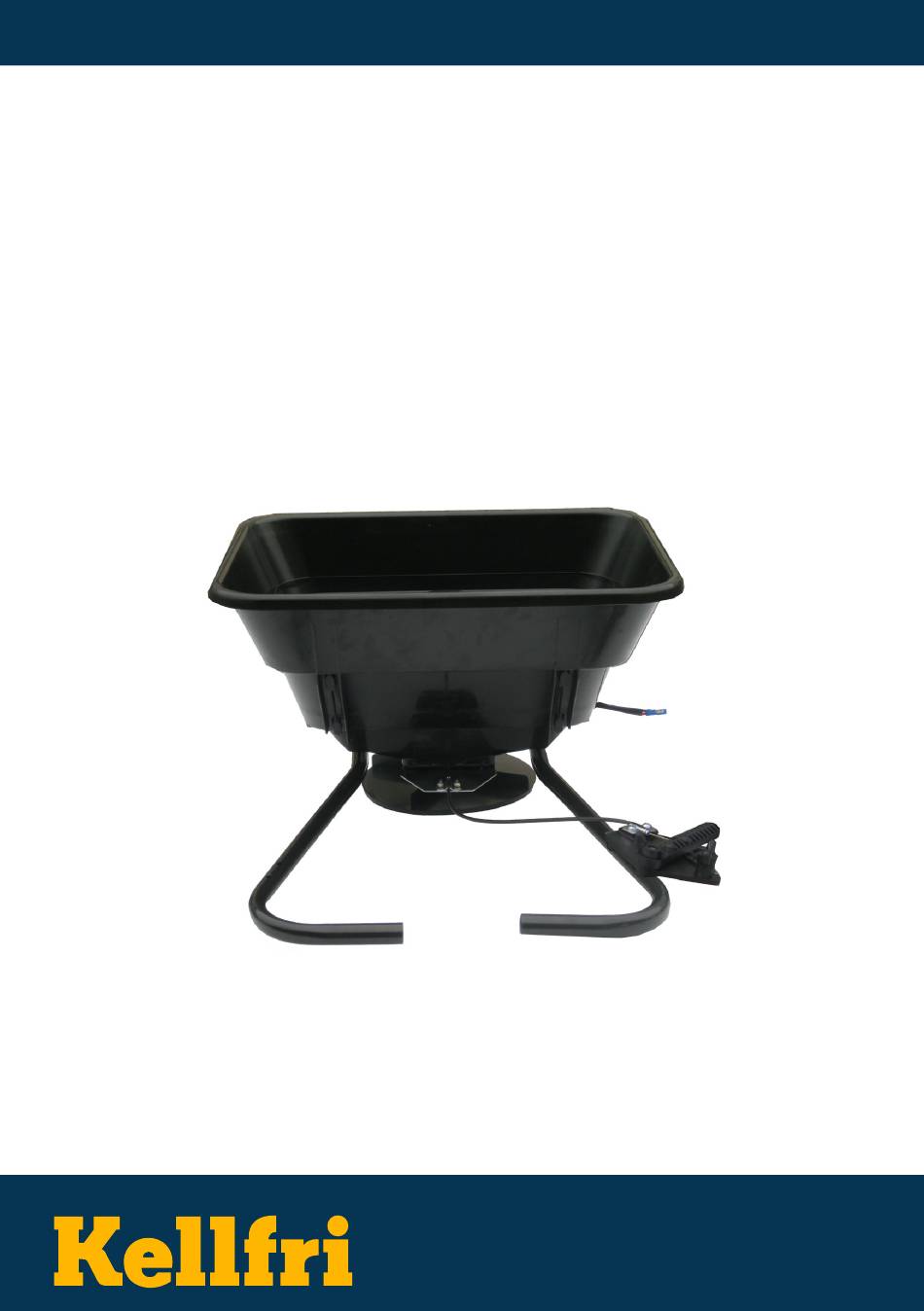

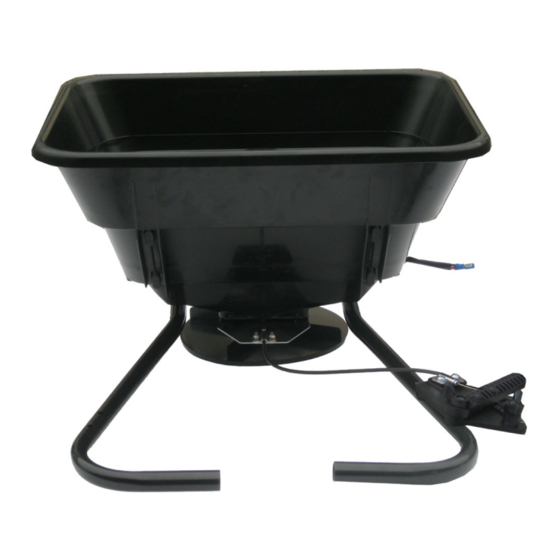

- Page 1 33-JM40 SALT AND FERTILISER SPREADER ATV Read this manual carefully before using the product! Translated from the original...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Product information Safety instructions Product safety instructions Incase of emergencies Surroundings Warning labels Personal protection Steps before use Setting your spreader Transport and storing Maintenance and service Recycling Spreading instruction After use Assembly instruction Installation of the spreader Exploded drawing Parts description Warranty and condition terms... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following general safety information, operating instructions and common sense, you will have many years of enjoyable use of the product. Kellfris equipment and products are aimed to be use by active farmers with high demands on functionality. -
Page 4: Safety Instructions
If the operating instructions gets damaged or in any other way cannot be used, please contact and order a new one from: Your retailer or download from manual.kellfri.co.uk Do not use the equipment or product if you feel ill, tired or are under the influence of alcohol. -
Page 5: Incase Of Emergencies
INCASE OF EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accessible during all work, maintenance and service. SURROUNDINGS Make sure your working area is clear from people, children and objects before connecting and using the machine. -
Page 6: Personal Protection
PERSONAL PROTECTION Always use suitable protection equipment. Do not wear loose cloth- ing or jewellery while working with the equipment. Long hair should be tied up when working with machine that has moving parts. Use protective gloves as there is a risk of burns if any hot surfaces are touched. -
Page 7: Use
Only people who understand the safety information and instructions in this manual may op- erate the equipment. Be alert and careful when working with the machine and only use the equipment or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk for injury. -
Page 8: Transport And Storing
SPREADING INSTRUCTION If speed settings are not available, use the following procedure to calculate the setting. • Determine how much material should be spread per 100m ² • Measure a distance of 15 meters and mark, preferably on a paved surface such as a park- ing space. -
Page 9: Assembly Instruction
ASSEMBLY INSTRUCTION 1. Check that all parts are undamaged, check that all parts needed for installation are included. 2. If any parts are missing, the machine must not be used until they have been replaced. Parts: 1x cover 2x attachement for the ATV 1x container 8x J-bolt 4x metal palte... -
Page 10: Exploded Drawing
EXPLODED DRAWING Table of contents →... -
Page 11: Parts Description
PARTS DESCRIPTION Pos. Description Pos. Description Cover Frame Lid cover - electric motor Setting plate Electric motor Spacers Guard for the motor Wing nut M6 Cable ties Lever Lock nut M6 Lock washer Ø5 Motor bracket Bolt M5x6 Container Wire Washer Ø6 Bolt M6x16 Bolt M6x16... -
Page 12: Warranty And Condition Terms
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
