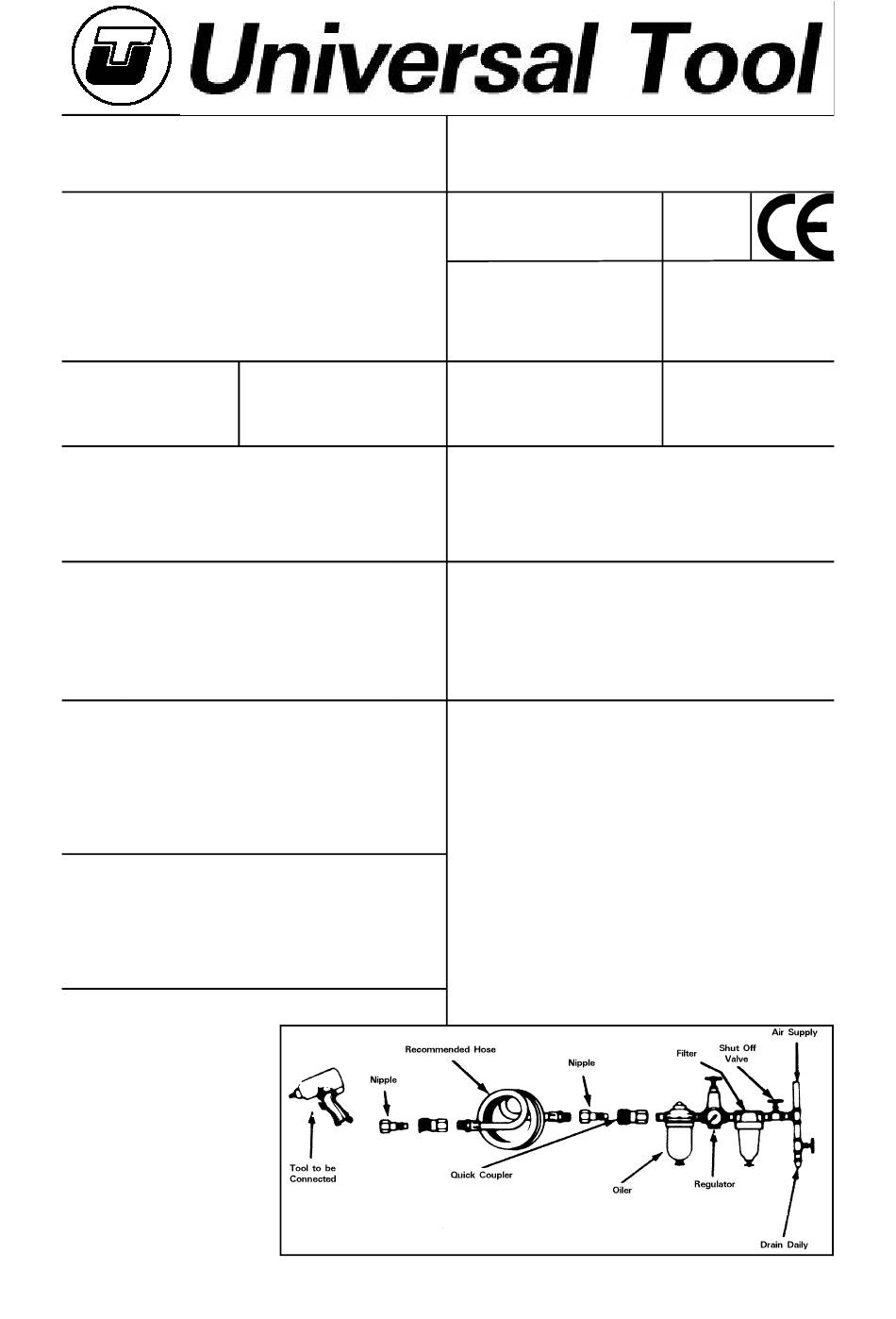

Universal Tool UT8692 Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
5.5 lbs
2.5 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use Of The Tool
This tool is designed for the purpose of sawing materials when
fitted with the saw blades supplied by, or recommended by the
manufacturers. Do not use the tool for any other purpose than
that specified without consulting the manufacturer or the
manufacturers authorised representative. Do not modify the tool
even for intended use as a saw.
Work Stations
The tool should only be used as a handheld hand operated tool.
It is always recommended that the tool is used when standing
on the solid floor. It can be used in other positions but before
any such use, the operator must be in a secure position having
a firm grip and footing.
Putting Into Service
Air Supply
Use a clean lubricated air supply
that will give a measured air pres-
sure at the tool of 90 p.s.i./6.3 bar
when the tool is running with the
trigger fully depressed. Use recom-
mended hose size and length. It is
recommended that the tool is con-
nected to the air supply as shown in
figure 1. Do not connect the tool to
the air line system without incorpo-
rating an easy to reach and operate
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 90
bar PSI
n/a bar n/a PSI
7 bar 100 PSI
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Industrial Air Saw
Model No/Nos
UT8692
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Noise Level Sound Pressure Level 84.5 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standards 8662 Parts 1 & 12
air shut off valve. The air supply should be lubricated. It is
strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equip-
ment is not used then the tool should be lubricated by shutting
off the air supply to the tool, depressurising the line by pressing
the trigger on the tool. Disconnect the air line and pour into the
intake bushing a teaspoonful (5ml) of a suitable pneumatic mo-
tor lubricating oil preferably incorporating a rust inhibitor. Recon-
nect tool to air supply and run tool slowly for a few seconds to
allow air to circulate the oil. If tool is used frequently lubricate on
daily basis and if tool starts to slow or lose power.
It is recommended that the air pressure at the tool whilst the
tool is running is 90 p.s.i./6.3 bar. The tool can run at lower and
higher pressures with the maximum permitted working air
pressure of 100 p.s.i./7.0 bar.
RPM
Cycles Per Min
1,200
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
6.3 Metres / Sec²
