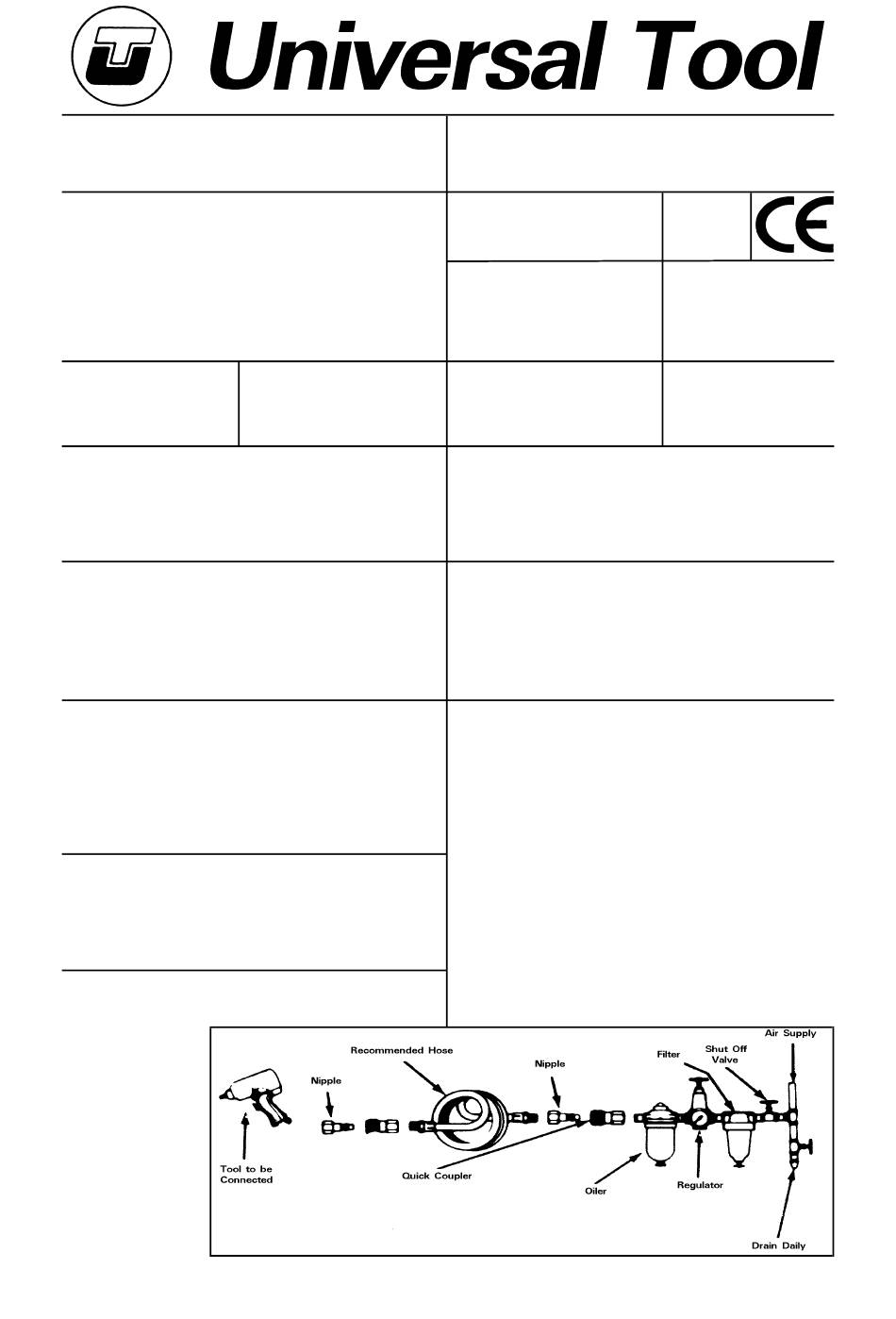

Universal Tool UT8920B Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
1.32 lbs
0.6 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum

Personal Safety Equipment

Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors

Foreseen Use Of The Tool

This tool is designed for the purpose of sawing materials when fitted
with the saw blades supplied by, or recommended by the
manufacturers. Do not use the tool for any other purpose than that
specified without consulting the manufacturer or the manufacturers
authorised representative. Do not modify the tool even for intended
use as a saw.

Work Stations

The tool should only be used as a handheld hand operated tool. It is
always recommended that the tool is used when standing on the solid
floor. It can be used in other positions but before any such use, the
operator must be in a secure position having a firm grip and footing.

Putting Into Service

Air Supply
Use a clean lubricated
air supply that will give
a measured air pres-
sure at the tool of 90
p.s.i./6.3 bar when the
tool is running with the
trigger fully depressed.
Use recommended
hose size and length. It
is recommended that
the tool is connected to
the air supply as shown
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7 bar 100 PSI
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Saw
Model No/Nos
UT8920B
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Noise Level Sound Pressure Level 79.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standards 8662 Parts 1 & 12
in figure 1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve. The air
supply should be lubricated. It is strongly recommended that an air
filter, regulator, lubricator (FRL) is used as shown in Figure 1 as this will
supply clean, lubricated air at the correct pressure to the tool. Details
of such equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by shutting
off the air supply to the tool, depressurising the line by pressing the
trigger on the tool. Disconnect the air line and pour into the intake
bushing a teaspoonful (5ml) of a suitable pneumatic motor lubricating
oil preferably incorporating a rust inhibitor. Reconnect tool to air
supply and run tool slowly for a few seconds to allow air to circulate
the oil. If tool is used frequently lubricate on daily basis and if tool starts
to slow or lose power.
It is recommended that the air pressure at the tool whilst the tool is
running is 90 p.s.i./6.3 bar. The tool can run at lower and higher
pressures with the maximum permitted working air pressure of 100
p.s.i./7.0 bar.
RPM
Cycles Per Min
10,000
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
22.6 Metres / Sec²
