Universal Tool UT5922LV Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
1.21 lbs
0.55 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors

Foreseen Use Of The Tool

This tool is designed for the purpose of sawing materials when fitted
with the saw blades supplied by, or recommended by the
manufacturers. Do not use the tool for any other purpose than that
specified without consulting the manufacturer or the manufacturers
authorised representative. Do not modify the tool even for intended use
as a saw.

Work Stations

The tool should only be used as a handheld hand operated tool. It is
always recommended that the tool is used when standing on the solid
floor. It can be used in other positions but before any such use, the oper-
ator must be in a secure position having a firm grip and footing.
Putting Into
Service
Air Supply
Use a clean lubricated
air supply that will give
a measured air pres-
sure at the tool of 90
p.s.i./6.3 bar when the
tool is running with the
trigger fully depressed.
Use recommended
hose size and length. It
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
bar PSI
7 100
Yes
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type

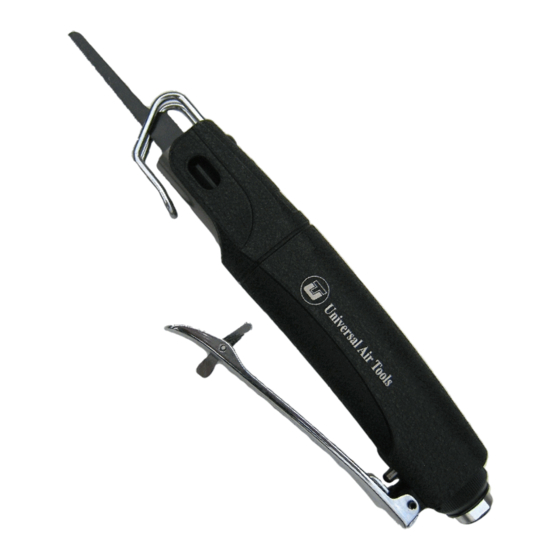

Low Vibration Air Saw
10mm Stroke
Model No/Nos
UT5922LV
Recommended Hose Bore
Size - Minimum
3/8 Ins 10
Noise Level Sound Pressure Level 79.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standards 8662 Parts 1 & 12
is recommended that the tool is connected to the air supply as shown
in figure 1. Do not connect the tool to the air line system without incor-
porating an easy to reach and operate air shut off valve. The air supply
should be lubricated. It is strongly recommended that an air filter, regu-
lator, lubricator (FRL) is used as shown in Figure 1 as this will supply
clean, lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equipment is not
used then the tool should be lubricated by shutting off the air supply to
the tool, depressurising the line by pressing the trigger on the tool. Dis-
connect the air line and pour into the intake bushing a teaspoonful (5ml)
of a suitable pneumatic motor lubricating oil preferably incorporating a
rust inhibitor. Reconnect tool to air supply and run tool slowly for a few
seconds to allow air to circulate the oil. If tool is used frequently lubricate
on daily basis and if tool starts to slow or lose power.
It is recommended that the air pressure at the tool whilst the tool is
running is 90 p.s.i./6.3 bar and this pressure should not be exceeded.
Page No 1
RPM
N/A
Cycles Per Min
10,000
Serial No
Recommended Max.
Hose Length
M/M 30 Ft 10
1.2 Metres / Sec²
M
