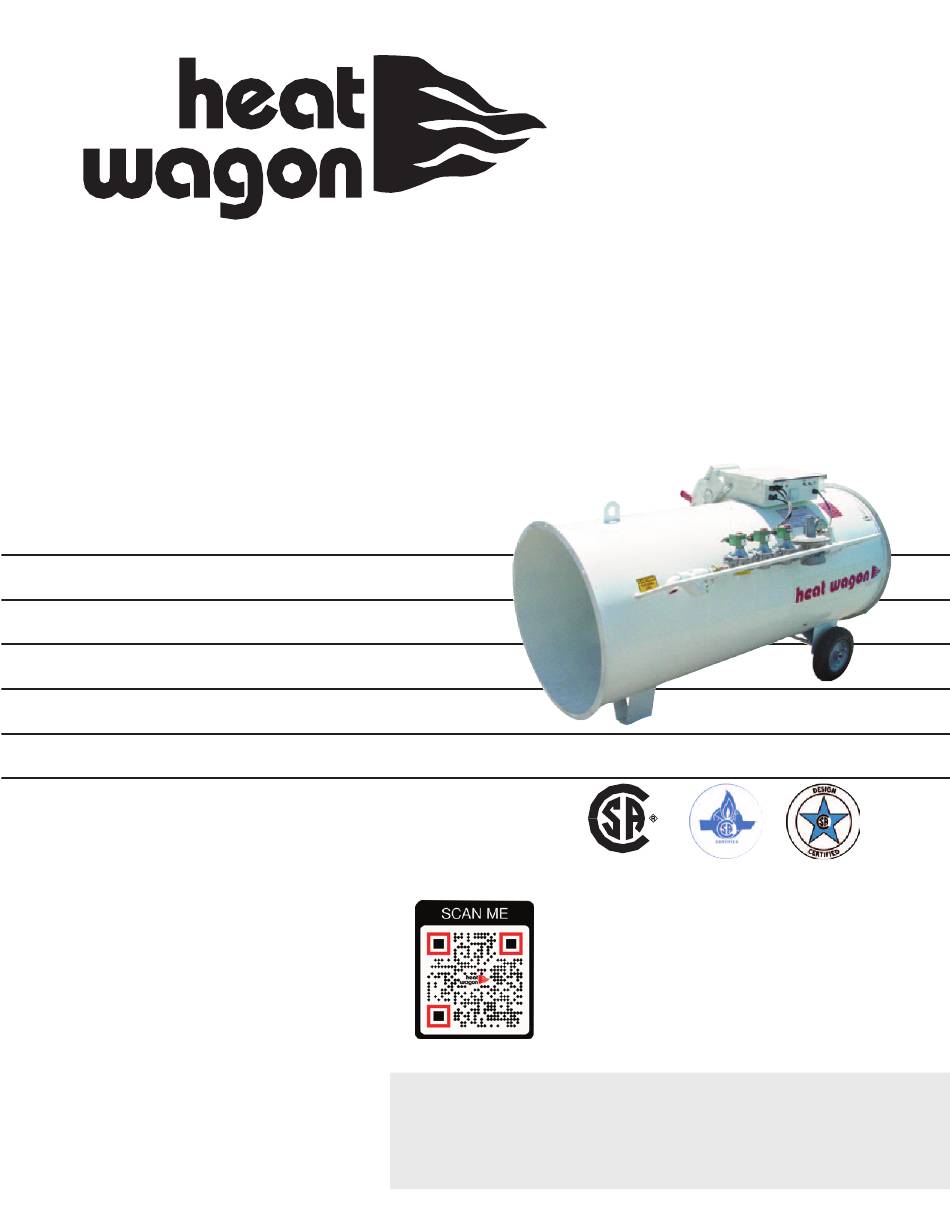

2730C/3050
Construction
Heaters
Revision 1-25
Installation and Maintenance Manual
Please retain this manual for future reference.
For your safety: Do not use this heater in
a space where gasoline or other liquids
having flammable vapors are stored.
342 N. Co. Rd. 400 East
Valparaiso, IN 46383
219-464-8818 • Fax 219-462-7985
www.heatwagon.com
C
US
This QR Code
can be found
under the
control box lid
Advertisement
Table of Contents
Related Manuals for Heat Wagon 2730C
Summary of Contents for Heat Wagon 2730C
- Page 1 342 N. Co. Rd. 400 East Valparaiso, IN 46383 219-464-8818 • Fax 219-462-7985 www.heatwagon.com Installation and Maintenance Manual Please retain this manual for future reference. 2730C/3050 Construction Heaters This QR Code can be found under the control box lid For your safety: Do not use this heater in a space where gasoline or other liquids having flammable vapors are stored.
-
Page 2: For Your Safety
If you need assistance or heater information such as an instruction manual, labels, etc., contact your local Heat Wagon dealer or the manufacturer. Fire, burn, inhalation, and explosion hazard. Keep solid combustibles, such as building materials, paper or cardboard, a safe distance away from the heater as recommended by the instructions. -
Page 3: Table Of Contents
Wiring Diagrams .........16-21 WARRANTY All new Heat Wagon and Sure Flame heaters and fans are guaranteed against defective materials and workmanship for one (1) year from invoice date. -
Page 4: Specifications
• Ensure that the flow of combustion and ventilation air exchange cannot become obstructed. • As the building “tightens up” during the construction phases ventilation may need to be increased. SPECIFICATIONS Designed to ANZI Z83.7-1990 Standard Construction Heater 2730C 3050 Gases: Natural or Propane... -
Page 5: Installation
INSTALLATION The Heat Wagon Model 2730/3050 is a direct fired gas heater intended to be used primarily for the temporary heating of building under construction, alteration, or repair. Since all the products of combustion are released into the area being heated, it is imperative that adequate ventilation is pro- vided. -
Page 6: Proper Set Up
MODEL 2730/3050 (NOTE: The 2730/3050 must be specifically set up for the type of available fuel PRIOR to installa- tion) Model 3050 with built-in vaporizer. The heater will use 44 gallon of L.P. per hour. Use at least one 1000 gal. Liquid withdrawal tank. This will insure 20 hours of continuous operation. - Page 7 Heater can be ducted up to 300 ft of straight 30” for the 3050 and 200 ft of straight 27” for the 2730C duct. For every 90˚ bend cut the total length in half. If the heater is ducted it may be necessary to adjust the air flow switch (located inside control box) by turning adjusting screw CCW until the light on the control box turns on.
-
Page 8: Common Installation And Operational Problems
This provides a slight pressurization and prevents any problems associated with recirculation of products of combustion. OPERATING INSTRUCTIONS Model 2730C / 3050 1. Turn on fuel supply 2. Turn on the manual shut off valve 3. Turn on the fan switches 4. -
Page 9: Amp Circuit Breaker
MODEL 3050 SEQUENCE OF COMPONENT OPERATION POWER SUPPLY 240/480 Volt wire directly into the fused disconnect. FUSE DISCONNECT SWITCH Turned on, it sends power to motor relay and to control voltage transformer. CONTROL VOLTAGE TRANSFORMER Sends power to the 3 amp circuit breaker. 3 AMP CIRCUIT BREAKER Sends power to the fan switch. -
Page 10: Trouble Shooting
TROUBLE SHOOTING NOTE: MUST CHECK COMPONENTS IN SEQUENCE LISTED DIRECTIONS: Find the specific symptom. Refer to Sequence of component Operation Guide. Check the components listed with a voltmeter for proper operation as described. Replace any com- ponents not operating correctly. Fan will not start when fan switch and thermostat are ON. -
Page 11: Preventive Maintenance
MODEL 3050 PREVENTATIVE MAINTENANCE 1) Check - Fused disconnect A) Continuity through fuses. 2) Check - All wiring for tight and correct connections 3) Check - Motor Relay A) If it buzzes, clean contacts or replace. B) Check for voltage drop through L1 & T1 contacts. If it’s more than 2 volts replace. 4) Check - Air Flow Switch A) Clean inlet and negative pressure tubes (Blow out with air) B) Adjust the switch, turn adjusting screw CCW until the light on the control panel stays on. -
Page 12: Parts Breakdown
Model 2730C / 3050 Series ITEM PART# DESCRIPTION HWP HC1069B CONTROL BOX LID HWP HC1069A CONTROL BOX WITH LID COPPER TUBE/AIR SWITCH HWP HP1049 FAN BLADE 2730C HWP HP1049B FAN BLADE 3050 HWP HG1050A FAN GUARD 2730C HWP HG1050B FAN GUARD 3050... - Page 13 Model 2730C / 3050 Series ITEM PART# DESCRIPTION HWP HS1044 MOTOR RELAY HWP HS1046B OVERLOAD RELAY (3PH) HWP HC1017 CONTROL TRANSFORMER HWP HC1004B IGNITER (ASSEMBLY) HWP HC1001C D.S.I. CONTROL BOARD (for current wiring changes see page 16) HWP HC1010 AIR FLOW SWITCH...
- Page 14 2730C / 3050 Liquid Pipe Train (with HI-LO Valve Installed) ITEM PART# DESCRIPTION HWP HV1039 SAFETY RELIEF VALVE HWP HV1042B HOSE ASSEMBLY HWP HV1040 VAPORIZER RING 2730C HWP HV1040B VAPORIZER RING 3050 HWP HV1037 1/2" SOLENOID VALVE L.P. HWP HV1023 1/2"...
- Page 15 2730C / 3050 Natural Gas Pipe ITEM PART# DESCRIPTION HWP HV1029B 3/4" "Y" STRAINER 2730C HWP HV1129B 1" "Y" STRAINER 3050 SFP 2538 3/4" BALL VALVE 2730C HWP HV1035 1" BALL VALVE 3050 HWP HR1082 REGULATOR 2730C ONLY SFP 3455 3/4"...
-
Page 16: Wiring Diagrams
NEW HC1001C WIRING CHANGES The HC1001C Ignition Control (35-705505 Series board) also has a few changes from the old HC1001C. Since the HC1001C is used in so many applications, we will compare the old board to the new board (from left to right): (1) The “N/C”... - Page 17 480 Volt 3 PH...
- Page 18 240 Volt 3 PH...
- Page 19 240 Volt 3 PH...
- Page 20 240 Volt 1 PH...
- Page 21 240 Volt 1 PH...
- Page 24 342 N. Co. Rd. 400 East Valparaiso, IN 46383 219-464-8818 • Fax 219-462-7985 www.heatwagon.com...
