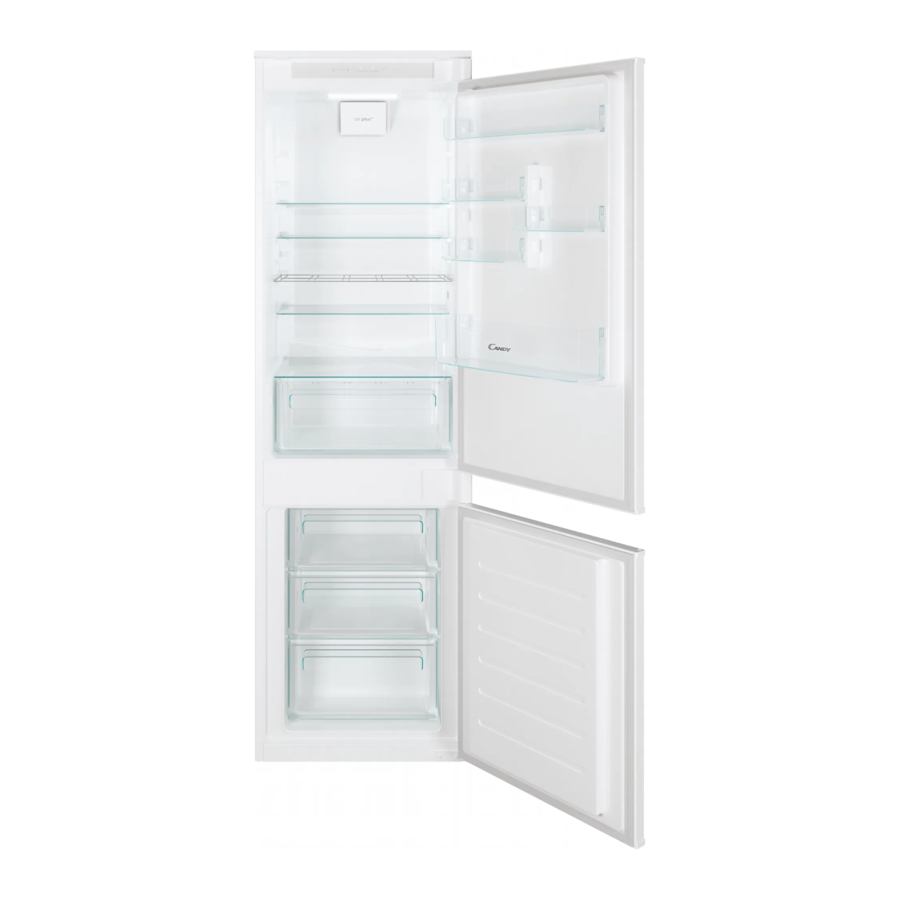

Candy Fresco, CBDIT5518EW, CBL3518EK, CBL3519FWRU, CBL5519EVW, CBT7719FWUA, CCUBT5519EW, CBL351 Manual

WELCOME

This installation manual is designed for kitchen manufacturers who will deal with these products. To ensure safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference. Before proceeding with the installation, take note of the serial number, as you may need it in case of repairs. Check for any damage during transport and consult a technician when in doubt before using. Always keep all packing material away from children.
NOTE: Features, pictures in the manual and product accessories may vary depending on the model purchased.

Fridge dimensions

Dimensions in mm
Frontal axonometric view

Back axonometric view

Side view

Top view

Installation tools

Tools needed

Accessories

Cabinet dimensions

Precautions

• Provide built in cabinet without a back wall;
• For ventilation of the product, follow the instructions in this manual;
• It is recommended that cabinet is fixed to the wall to prevent tipping over.

Dimensions

Dimensions in mm
Frontal axonometric view
with open door

Furniture and ventilation

Installation in column

Installation video step by step

You can view the product installation video by scanning the Qr Code.

or by clicking this link

Changing the opening direction of the doors

Reverse hinges

Note: Follow the instructions only if it is necessary to reverse the opening direction of the doors, otherwise go to the next paragraph.

Gasket rotation

Remove the gaskets from the doors and rotate them 180°.

assist the removal of the gasket with your hands to avoid deformation.

Replace the gaskets in the slot and make sure they adhere perfectly to the door.

an improperly installed gasket can cause product performance problems.

Connection to the mains

Safety warnings

To carry out the electrical connection of the device safely, observe the following warnings:

• Any improperly performed repair, installation and maintenance can seriously harm the user;
• The producer do not assume any liability for direct or indirect damage caused by incorrect installation, maintenance or repair. It is also not liable for damage caused by missing or interrupted grounding pipeline (electric shock);
• Connect the product using only the power cord;
• The product must be connected to a properly made electrical system;
• In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
• For any repairs, contact Customer Service exclusively and request the use of original spare parts;
• Disconnect the product from the power supply before performing any work or maintenance on it.

Warnings

• To avoid the risk of fire or electrical shock, do not damage the plug or power cord;
• Do not connect the appliance to power strips, extension cords, or portable power supplies;
• When the appliance is placed in the chosen location, make sure the power cord is not stuck or damaged and that there are no power strips or portable power supplies in the back of the appliance.

Instructions

Power absorbed
See product data plate.

Differential circuit breaker (life-saving)
The use of a residual current circuit breaker (earth leakage circuit breaker) with trip current complying with current standards is recommended.

The product must be connected to the power supply via an omnipolar disconnection device that ensures a separation between contacts complying with overvoltage category III. Such a device must withstand the maximum loads connected and comply with current standards.

Directions

• Make sure the electrical specifications on the data plate are in conformity with the power supply;
• The appliance operates on 220-240 Vac/50 Hz electric current.
• Abnormal voltage fluctuations may cause the appliance not to start, damage to the temperature control or compressor, or abnormal noises during operation. In such a case, an automatic regulator should be fitted;
• Ensure that the main cable is not caught under the appliance during and after transportation/movement, to prevent the main cable from being cut or damaged. If the power cord of the appliance should be damaged, do not proceed with the installation and contact service;
• Ensure that the power source, plug, and fuses are conform to the data on the data plate;
• Make sure the power plug is grounded and do not use power strips or extension cords.

NOTE (United Kingdom only): The power cord of the appliance is equipped with a 3-prong plug (grounded) suitable for a standard 3-prong outlet (grounded). Never cut or remove the third prong (ground connection). After installing the appliance, the plug must remain accessible

Other advice

The use of any household appliance requires adherence to certain basic rules:

• It is recommended to keep the plug clean: any dirt residue on the plug may cause fire;
• Do not pull the power cord to disconnect the appliance from the power supply while operating;
• Do not touch the appliance with wet or damp hands or feet;
• The use of adapters, power strips or extension cords is discouraged;
• In case of malfunction and/or performance drop, turn off the appliance and do not manipulate/altere it.

Delivery to the user

At the end of installation:

• Inform the user about essential functions;
• Inform the user about all aspects relevant to safe use and handling;
• Deliver accessories and instructions for use and assembly to the user to be kept with care.
  After installation is complete, remove the protective film, tape, and all other packing materials.
• After turning the fridge on, wait at least 2 hours before placing food in the appliance to ensure the correct temperature inside the fridge.

The product requires adequate ventilation for normal operation. Do not obstruct the ventilation openings for any reason.
NOTE: The actual appearance of the oven depends on the model chosen.

Disassembling the product

• Disconnect the product from the power supply;
• Unscrew the fixing screws;
• Lift the product slightly and pull it out completely;
• This product will not damage the cabinet, which can also be used with a new appliance.

Safety warnings for installation

Observe these directions before beginning the installation of the product.

• Your safety is very important to us. Please read this information carefully before using the product;
• Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instructions;
• If the manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the warranty;
• Remove the packing material before starting the appliance;
• After unboxing the appliance, always check for damages, in case of any issue contact the customer service before installing and do not connect to the power supply;
• A damaged product can be the cause of a short circuit, electrical shock, fire start and other hazards;
• Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) remove and store them;
• Before installing the product, ensure the space is well-ventilated to allow circulation of fresh air, which is necessary for proper cooling. Follow the illustrations for minimum opening spaces suggested.
• If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the warranty. The installation instructions for professionally qualified personnel must be followed;
• Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
• Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
• It is recommended to wear protective gloves during installation to avoid injuries;
• Warranty does not cover damage caused by improper installation;
• In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
• After assembly, the power cord must not come into contact with moving parts (such as a drawer) must not be exposed to mechanical stresses;
• This product requires constant ventilation during use. Do not cover the air vents;
• When delivering the product to the end user, the technician must ensure that it has been installed correctly.

Where to install the product

Important warnings

• Do not install the appliance in places where it would be exposed to direct sunlight in order not to affect the performance of the product;
• Install and use this product in a closed, covered, dry and well-ventilated environment;
• Do not install the product in open environments exposed to atmospheric agents;
• Install the product near an electrical outlet;
• Keep the product away from sources of flame;
• Install the appliance along a flat surface in an area suitable for its size and use;
• Clean the appliance with water and a mild detergent and dry it with a soft cloth;
• The appliance is heavy; at least two people are needed to move it;
• After installation, let the refrigerator stand for at least 4 hours before turning it on to allow compressor oil to settle.

This product is intended only for installation in domestic or similar environments, such as:

• The kitchen area intended for the staff of stores, offices and other workplaces;
• In spaces available to staff and customers in hotels, motels and other residential-type settings;
• Beauty farm, Bed & Breakfast (B&B);
• For catering services and similar applications excluding retail.

Install this product in a location where the ambient temperature is not lower or higher than the operating temperature indicated on the product data plate: if this happens, the appliance will not work correctly.

• Extended Temperate (SN): "This appliance is intended for use with ambient temperatures between 10°C and 32°C";
• Temperate (N): "This appliance is intended for use with ambient temperatures between 16°C and 32°C";
• Subtropical (ST): "This appliance is intended for use with ambient temperatures between 16°C and 38°C";
• Tropical (T): "This appliance is intended for use with ambient temperatures between 16°C and 43°C".
