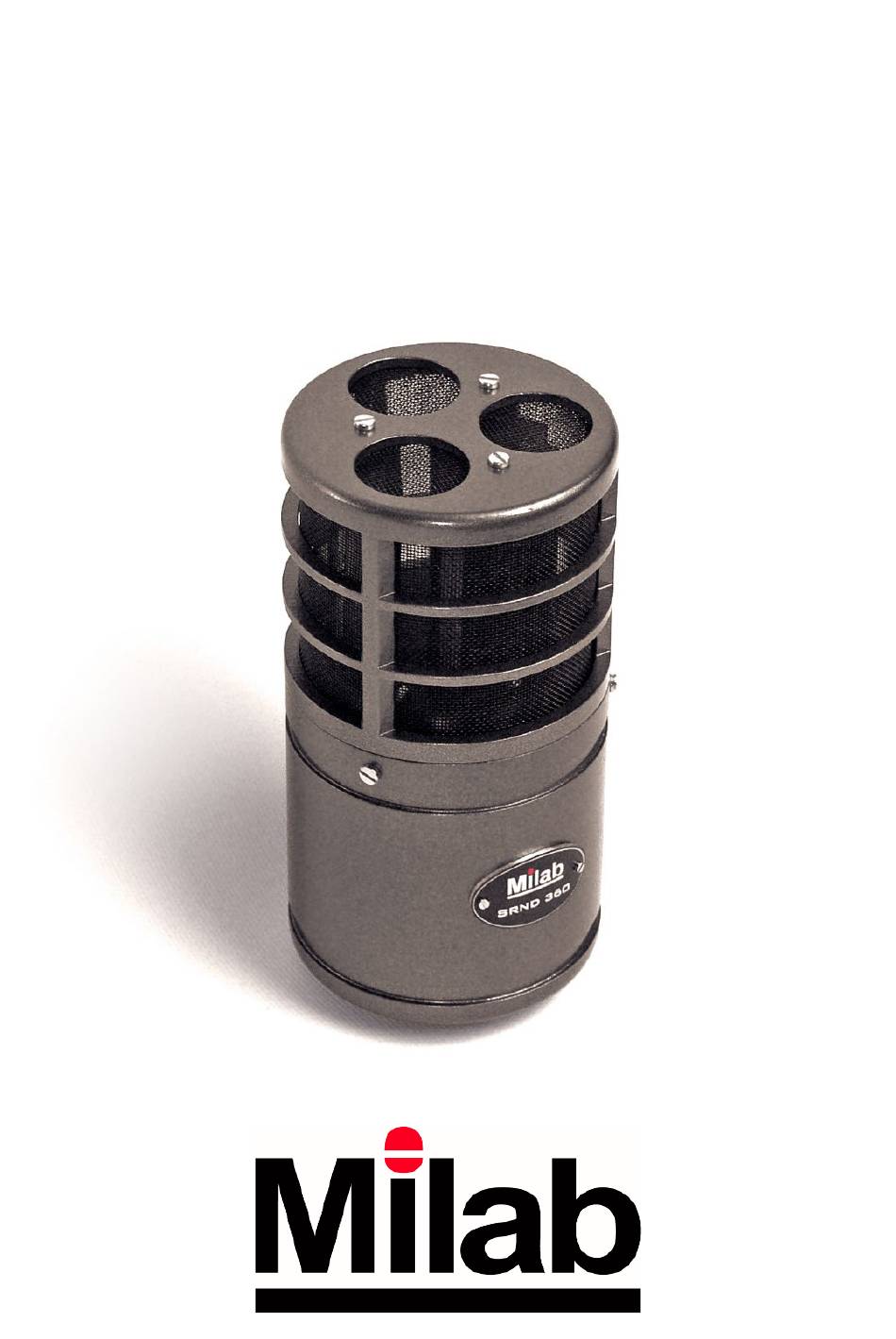

- Page 1 Milab SRND 360 User Manual...
-
Page 2: Table Of Contents
Table of contents Introduction System Components Setup and Connections Power Unit Output Channel Layout Positioning and Orientation Recording Formats Cleaning and Storing Warranty and service Troubleshooting Declaration of Conformity (CE) Specifications Environment Legal Notice/User Agreement Contact Information... -
Page 3: Introduction
These "virtual" channels are created by summing and subtracting signals from adjacent capsules to form new, phase-coherent cardioid patterns. This allows the SRND 360 to deliver a seamless 360° sound field from a single point, ideal for a wide range of stereo and surround applications. - Page 4 4. Connect the other end of the 5-pin XLR cable to the microphone input on the Power Unit. � Important: Only use the supplied SRND 360 Power Unit. Do � � not connect the microphone directly to other equipment. 5. Plug the 24V AC adapter into the ‘24 VAC’ input on the Power Unit.
-
Page 5: Output Channel Layout
5. Output Channel Layout The SRND 360 provides six individual balanced outputs, found on the back panel of the Power Unit (see section 4): Microphone Top View Output Position Capsule Type Left Front Virtual Milab logo Centre Front Physical Right Front... -
Page 6: Recording Formats
Same as above, but include the CR (Centre Rear) output for enhanced rear center imaging. Stereo Recording The SRND 360 offers great flexibility in stereo configurations. Several options are possible, for instance: Standard X/Y Stereo Use two of the real capsules (e.g., CF and LR or CF and RR) for a coincident stereo setup with a 120°... -
Page 7: Cleaning And Storing
Milab directly for further instructions. You can also make a service request directly on our website: www.milabmic.com/service-request/ Please note that all technical service should be carried out by Milab Microphones or by a party that has been approved by Milab. -
Page 8: Troubleshooting
10. Troubleshooting This guide can help you troubleshoot some issues you may encounter. If the problem persists, please contact your local dealer/distributor or Milab Microphones directly. No sound Possible cause Possible solution No power Ensure that all cables are properly connected. -
Page 9: Declaration Of Conformity (Ce)
11. Declaration of Conformity (CE) Milab Microphones AB declares that this device conforms to all applicable EU directives/regulations. The equipment may only be used for audio purposes and in configurations and environments approved by the manufacturer. Please contact Milab Microphones to request further documentation. - Page 10 Frequency response at 1 m (physical capsules): Frequency response at 1 m (virtual capsules): Polar diagram: Physical capsules Virtual capsules...
-
Page 11: Environment
Under no circumstances and under no legal theory, tort, contract, or otherwise, shall Milab Microphones be held liable to you or any other person for any indirect, special, incidental, or consequential damages of...
