GIANTEX HU10975-K Instruction Booklet

Bed frame
Hide thumbs

Advertisement

Quick Links

Download this manual
Bed Frame
Cadre de Lit
HU10975-K
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HU10975-K and is the answer not in the manual?

Questions and answers

Related Manuals for GIANTEX HU10975-K

Summary of Contents for GIANTEX HU10975-K

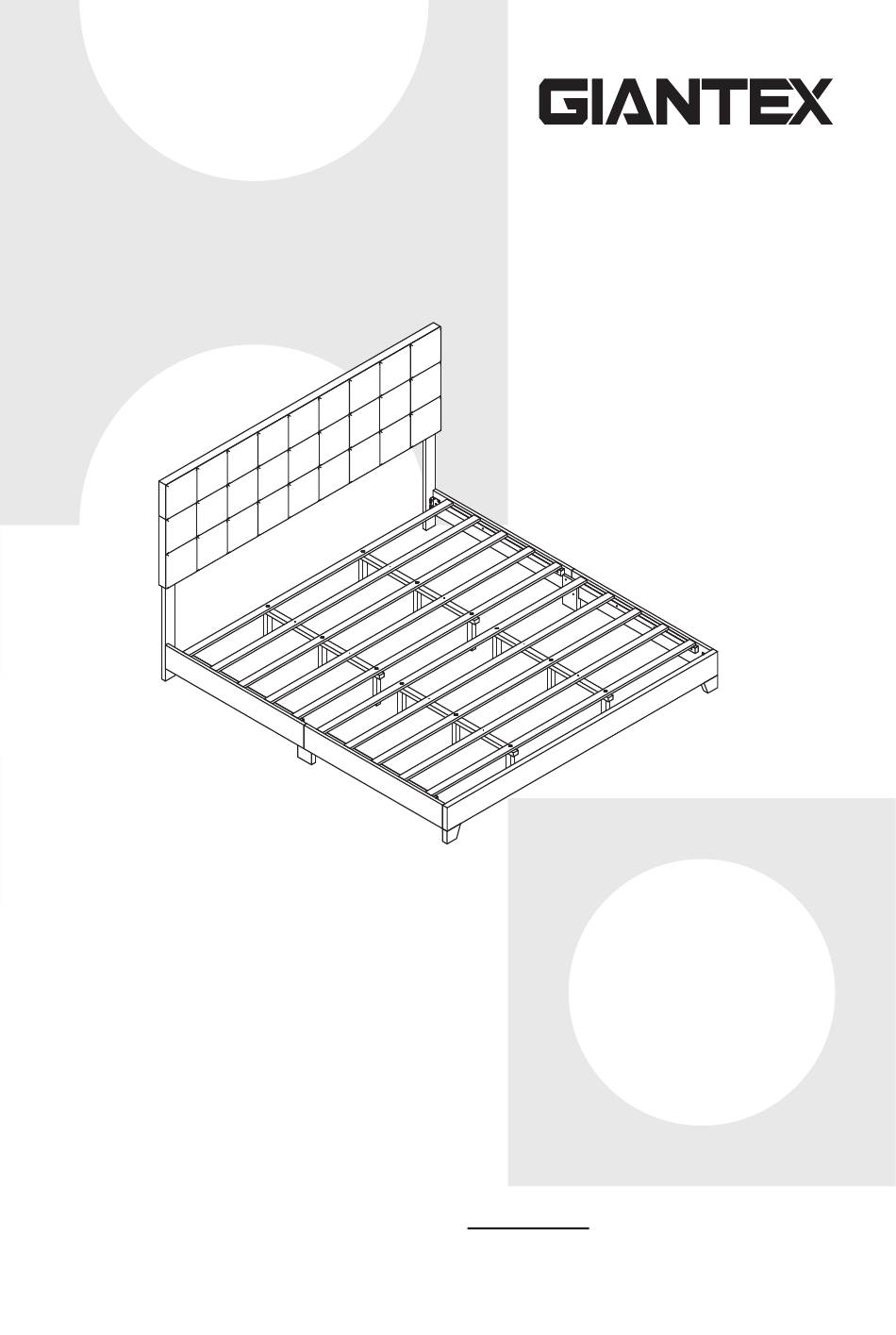

  • Page 1 Bed Frame Cadre de Lit HU10975-K THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Before You Start

    Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
  • Page 3 ASSEMBLY INSTRUCTIONS /INSTRUCTIONS D’ASSEMBLAGE WARNING ● No rough tools or corrosive detergent for cleaning. ● The package contains some heavy parts and sharp-edged parts, please be careful when assembling to avoid any physical injury around you. ● Please strictly observe the steps of the instructions. ●...
  • Page 4 PART LIST /LISTE DES PIÈCES HARDWARE LIST /LISTE DES ACCESSOIRES 5/16" x 25mm 5/16" x 40mm 1/4" x 35mm...
  • Page 5 1/4" x 40mm 1/4" x 110mm 1/4" x 40mm 4 x 35mm FIGURE 01 Install the upper part (A1) for headboard to the under part (A) by using the Allen bolt (P) with flat washer and Allen key (V).See FIGURE 01. /Installez la pièce supérieure (A1) de la tête de lit sur la pièce inférieure (A) à...
  • Page 6 FIGURE 02 Install the leg (B) to the Headboard panel by using the Allen bolt (N) with lock washer, flat washer and Allen key (V).See FIGURE 02. /Installez le pied (B) sur le panneau de tête de lit à l’aide du boulon Allen (N) avec la rondelle de blocage, la rondelle plate et la clé...
  • Page 7 FIGURE 03 Install the leg (I) wood dowel (W) to the Footboard panel (C) by using the Allen bolt (Q) with lock washer, flat washer and Allen key (V).See FIGURE 03. /Installez le pied (I), la cheville en bois (W) sur le panneau du pied de lit (C) à...
  • Page 8 FIGURE 04 10mm Insert set of the bolts (M) with lock washer, flat washer into the fixed nuts on the footboard by manually. NOTE: Do not fully tighten the bolts, leave at least 10mm visible so that you can hanger hook on the bolts.
  • Page 9 10mm FIGURE 05 Insert set of the bolts (M) with lock washer, flat washer into the fixed nuts on the headboard by manually. NOTE: Do not fully tighten the bolts, leave at least 10mm visible so that you can hanger hook on the bolts.
  • Page 10 FIGURE 06 Install the rail support (F) to the side rail (D/D1) by using the Allen bolt (S) and Allen key (V). See FIGURE 06. /Installez le support de rail (F) sur le rail latéral (D/D1) à l’aide du boulon Allen (S) et de la clé Allen (V). Voir FIGURE 06. FIGURE 07 Install the leg support (H) to the side rail by using the Allen bolt (O) with lock washer, flat washer and Allen key (V).See FIGURE 07.
  • Page 11 FIGURE 08 Raise the side rail (D/D1) up , bring the side rail and align the hook on the side rail to the bolts. Once the side rail is set, tighten all bolts by using a Allen key (V) as FIGURE 08. After assembly, re-tighten all bolts for a snug fit.
  • Page 12 FIGURE 09-A FIGURE 09-B Install the center rail (E) to the slat set (G) by using the screw (T) and tighten by the center legs (J) .See FIGURE 09-A/B. /Installez le rail central (E) sur l’ensemble de lattes (G) à l’aide de la vis (T) et serrez par les pieds centraux (J) .
  • Page 13 FIGURE 10 Install the slat set to the bed.See FIGURE 10. /Installez l’ensemble de lattes sur le lit. Voir FIGURE 10.
  • Page 14 ASSEMBLE COMPLETE. /ASSEMBLAGE TERMINÉ...
  • Page 15 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
  • Page 16 USA office: Fontana AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
