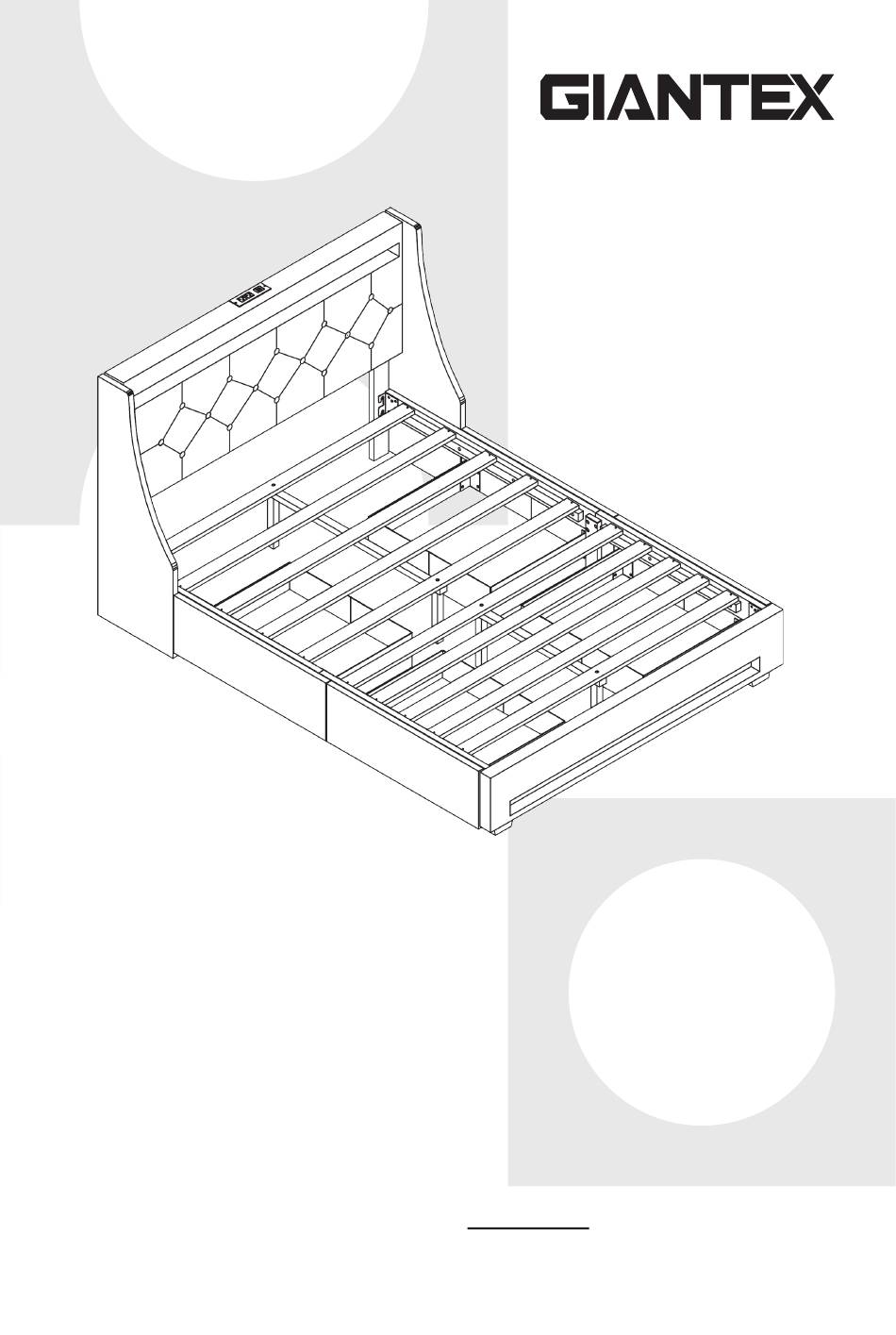

- Page 1 QUEEN / FULL SIZE BED FRAME CADRE DE LIT QUEEN / FULL HU10865-Q / HU10865-F THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 3 Thank you for purchasing this quality product. Be sure to check all packing material carefully for small part that may have come loose inside the carton during shipment /Merci d'avoir acheté ce produit de qualité. Assurez-vous de vérifier soigneusement tout le matériel d'emballage pour détecter les petites pièces qui auraient pu se détacher à...
- Page 4 Side Rail (L/R) /Barre latérale (G/D) Side Rail (L/R) /Barre latérale (G/D) Side Rail Support Legs /Pieds de support de la barre latérale Middle Support Slats /Lamelles de support du milieu Middle Legs /Pieds du milieu Slats /Lattes Slats /Lattes Rectangle Slats Long (use Bolt) /Lamelles rectangulaires...
- Page 5 PART LIST OF DRAWERS /LISTE DES PIÈCES DES TIROIRS Bottom Panel /Panneau du bas Frame Panel /Panneau de cadre Wheel /Roue Upholstered Front Side Panel /Panneau latéral avant rembourré HARDWARE LIST OF BED /LISTE DU MATÉRIEL DU LIT Bolt Ø5/16"x20mmL /Boulon Bolt Ø5/16"x40mmL...
- Page 6 Flat Washer Ø5/16" /Rondelle plate Screw Ø4*35mm /Vis Allen Key /Clé Allen HARDWARE LIST OF DRAWERS /LISTE DU MATÉRIEL DES TIROIRS Screw Ø4*15mm /Vis Iron Pass /Accessoire 90x50x1.5mm en fer Bolt Ø1/4"x15mmL /Boulon Hex nut /Écrou D10x5mm hexagonal (NOT PROVIDED) SCREWDRIVER /(NON FOURNI) /TOURNEVIS...
- Page 7 C1-C2...
- Page 8 Headboard height is Adjustable Select screw holes of the same height on the left and right sides /La hauteur de la tête de lit est réglable Sélectionnez des trous de vis de même hauteur sur les côtés gauche et droit...
- Page 9 Install Headboard During the assembly, please first half-tighten all the screws. After all the screws are set, fully tighten them. /Installer la Tête de Lit Lors du montage, veuillez d'abord serrer à moitié toutes les vis. Une fois toutes les vis fixées, serrez-les complètement. Install Footboard /Installer le Panneau Arrière de Lit...
- Page 10 Install Side Rails /Installer les Rails Latéraux...
- Page 13 Install Slats /Installer les Lattes...
- Page 14 Install Middle Support Slats and Middle Legs /Installer les Lattes de Support Centrales et les Pieds du Milieu...
- Page 16 *Hardware for 1 set Drawer* /*Quincaillerie pour 1 Ensemble de Tiroirs* *Hardware for 1 set Drawer* /*Quincaillerie pour 1 Ensemble de Tiroirs*...
- Page 17 *Hardware for 1 set Drawer* /*Quincaillerie pour 1 Ensemble de Tiroirs*...
- Page 18 *Hardware for 1 set Drawer* /*Quincaillerie pour 1 Ensemble de Tiroirs*...
- Page 21 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
