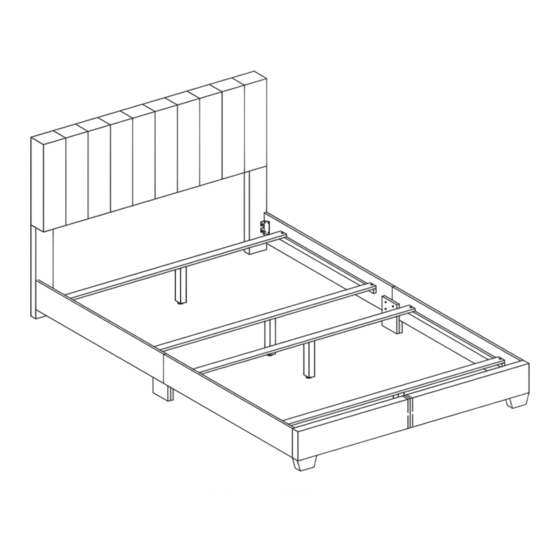

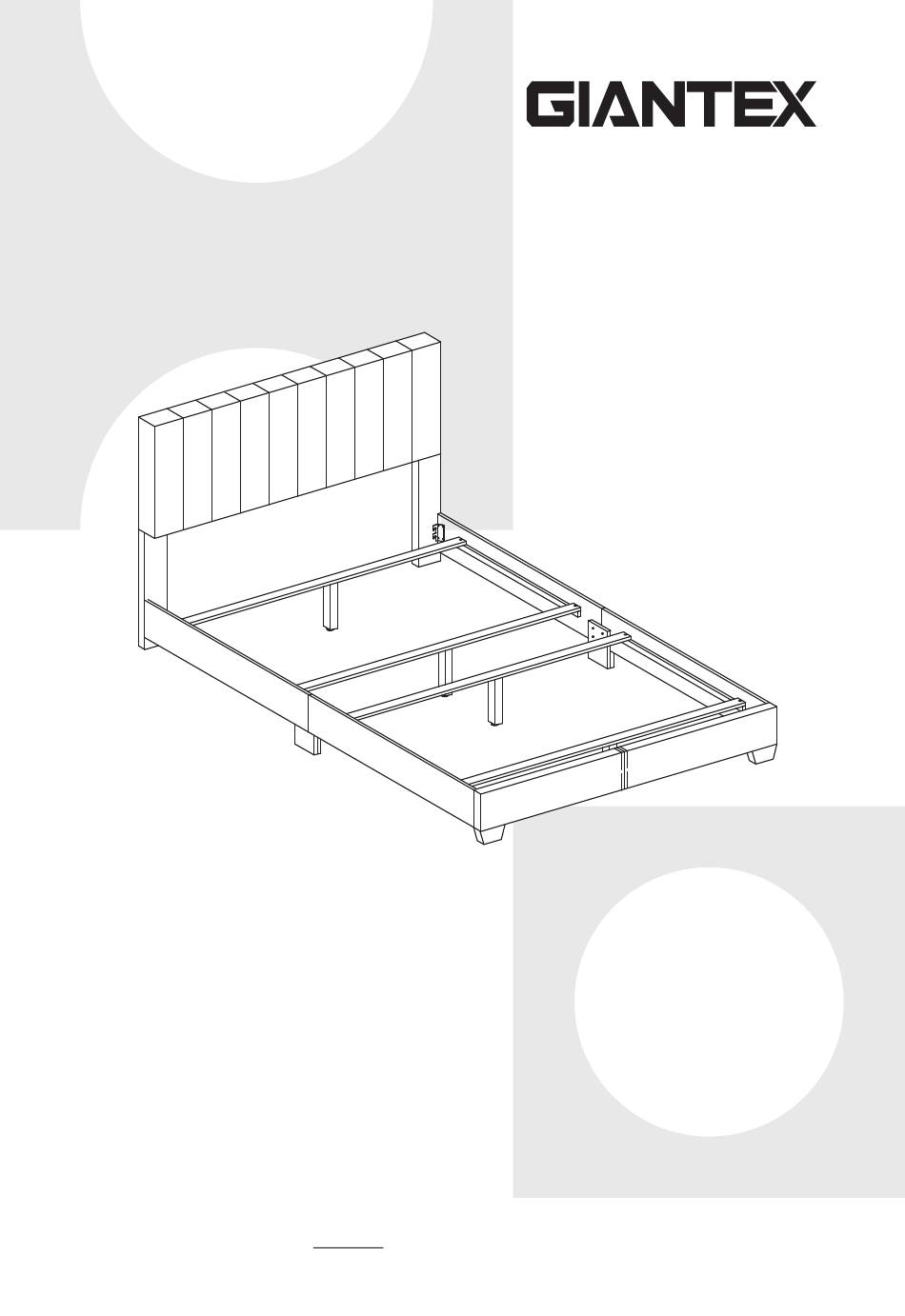

- Page 1 Upholstered Bed Frame Cadre de Lit HU10565-Q THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 3 COMPONENT LIST / LISTE DES PIÈCES 1 x1 2 x1 3 x4 /3-G /3-D Headboard Footboard Side Rail /Tête de lit /Plaque de base /Barre latérale 4 x2 5 x2 6 x2 Headboard Legs Footboard Legs Side Rail Legs /Pieds de tête de lit /Pieds de plaque de base /Pieds de la barre latérale 700 x 80 x 20mm...
- Page 4 HARDWARE LIST / LISTE DES ACCESSOIRES A x8 B x20 C x4 M8x20 M6x30 M6x35 D x8 E x1 F x1 M6x50 Allen Key Allen Key /Clé Allen 100mm /Clé Allen 70mm H x6 I x8 G x8 J x4 Screw Spring Washers Flat Washers...
- Page 5 EN: Unzip the black non-woven fabric on the back of headboard and take out all the parts out. FR: Détachez le tissu non tissé noir à l’arrière de la tête de lit et retirez toutes les pièces. BACK VIEW /VUES ARRIÈRE EN: Attention: Zip the black non-woven fabric after take out the parts!! FR: Attention : Zippez le tissu non tissé...
-
Page 6: Vue Avant
FRONT VIEW /VUE AVANT EN: Attach the JCBB Bolt (A) to the headboard and footboard. FR: Fixez le boulon JCBB (A) à la tête de lit et à la plaque de base. EN: Attach the side rail support wood (7) to the side rail (3). FR: Fixez le support de la barre latérale en bois (7) à... - Page 7 EN: Attach the side rail leg (6) to the side rail (3). FR: Fixez le pied de la barre latérale (6) à la barre latérale (3). EN: Attach side rail (3) to headboard (1) and footboard (2) by pushing the bracket down to fit it. FR: Fixez la barre latérale (3) à...
- Page 8 EN: Attach the support legs (9) to the slats (8). FR: Fixez les pieds de support (9) aux lattes (8). EN: Tighten the 4 Corner with Allen Key (F). Install the bed slats to side rail. Tighten the slats with CSK screw. The distance of the slats should be sufficient to obtain desirable bed stability.
- Page 10 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 11 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com FRA:cs.f r @costway.com...
