GIANTEX HU10905-T Manual

Platform bed
Hide thumbs

Advertisement

Quick Links

Download this manual
Platform Bed
Cadre de Lit
HU10905-T
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HU10905-T and is the answer not in the manual?

Questions and answers

Related Manuals for GIANTEX HU10905-T

Summary of Contents for GIANTEX HU10905-T

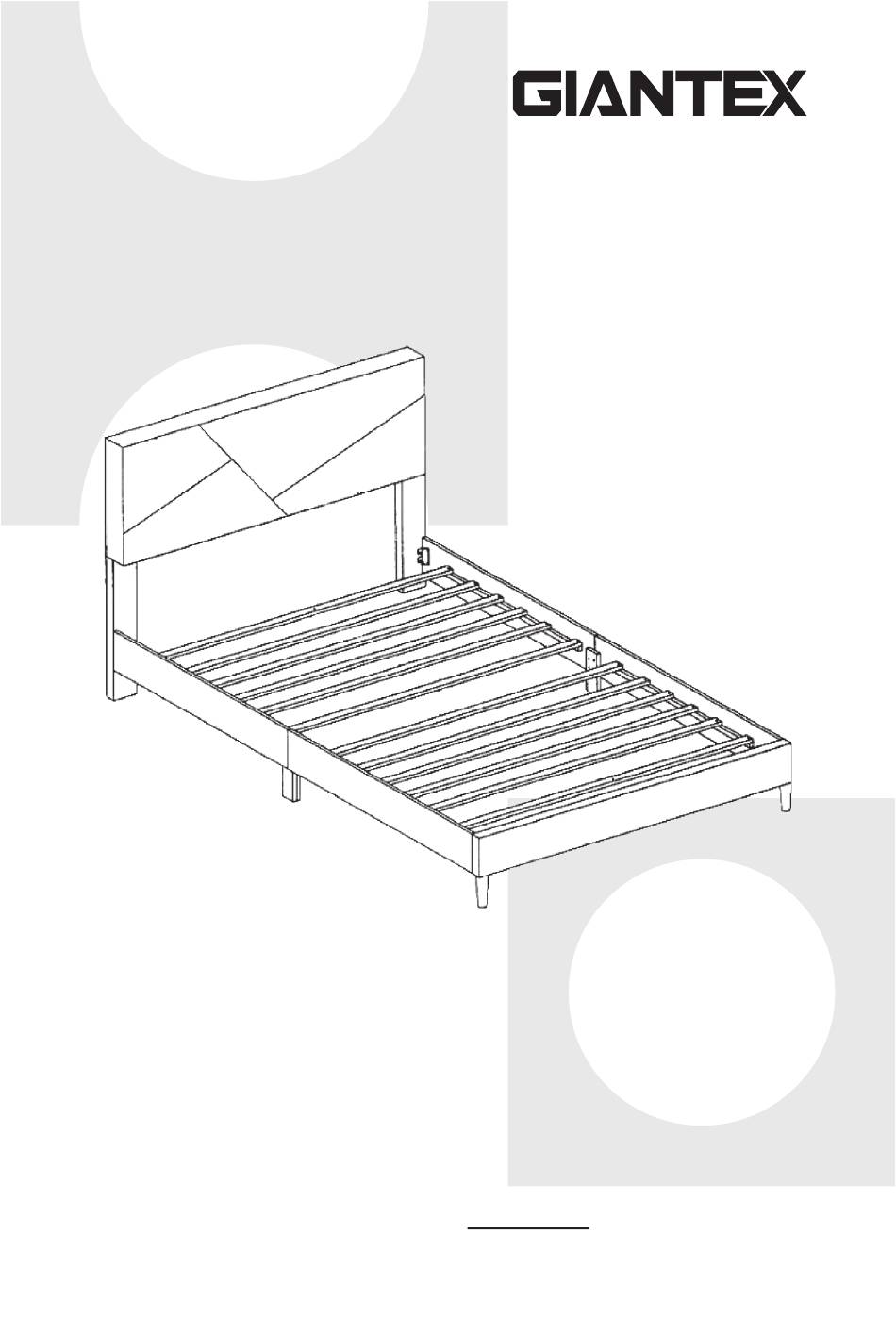

  • Page 1 Platform Bed Cadre de Lit HU10905-T THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Before You Start

    Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.

  • Page 3: Parts List / Liste Des Pièces

    EN: Important Note: TOOLS Carefully remove all the parts from the box. REQUIRED Arrange on a flat surface and verify you have Phillips Screwdriver all of the following parts and hardware. FR: Remarque Importante: OUTILS Retirez soigneusement toutes les pièces de la NÉCESSAIRES boîte.
  • Page 4 Hardware List / Liste du Matériel 3 x8 1 x8 2 x8 20mm Bolt 30mm Bolt 50mm Bolt /Boulon de 20 mm /Boulon de 30 mm /Boulon de 50 mm 4 x1 5 x1 Large Hex Key Small Hex Key /Grande Clé...
  • Page 5 Assembly Instruction / Instructions d'Assemblage EN: Untie the black fabric on the back of the headboard and remove the parts. Zip up the black fabric after parts are removed. FR: Détachez le tissu noir à l'arrière de la tête de lit et retirez les pièces.
  • Page 6 EN: Attach Headboard Legs (Part D) to the Headboard (Part A) using four 50mm Bolts (Part 3) and four Flat Washers (Part 6) per leg. Secure tightly using Small Hex Key (Part 5). FR: Fixez les pieds de la tête de lit (partie D) au panneau de tête de lit (partie A) à...
  • Page 7 EN: Attach the Side Rails (Parts C1 & C2) to Side Rail Leg (Part F) using four 30mm Bolts (Part 2) and four Flat Washers (Part 6). Secure tightly using Small Hex Key (Part 5). Repeat this process for the other Side Rail.
  • Page 8 EN: Attach the Side Rails to the Headboard (Part A) and Footboard (Part B) by sliding the side rail brackets onto the bolts on the Headboard Legs (Part D) and Footboard (Part B). Secure tightly using Large Hex Key (Part 4). FR: Fixez les barres latérales au panneau de tête (partie A) et au panneau de pied (partie B) en faisant glisser les supports de barre latérale sur les boulons des pieds du panneau de tête (partie D) et du...
  • Page 9 EN: Place the Wooden Slats (Part G) into the bed as shown. Secure the Wooden Slats to the Side Rails (Parts C1 & C2) using 24pcs 32mm Screws (Part 7) and a Phillips Head Screwdriver (Not provided). Your bed is now set up and ready for use. FR: Placez les lattes de bois (partie G) dans le lit comme indiqué.
  • Page 11 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
  • Page 12 USA office: Fontana AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited, Unit 4, Blackacre Road, Great Blakenham, Ipswich, Ip6 0FL, United Kingdom USA:cs.us@costway.com AUS:cs.au@costway.com If you're having difficulty, our friendly GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
