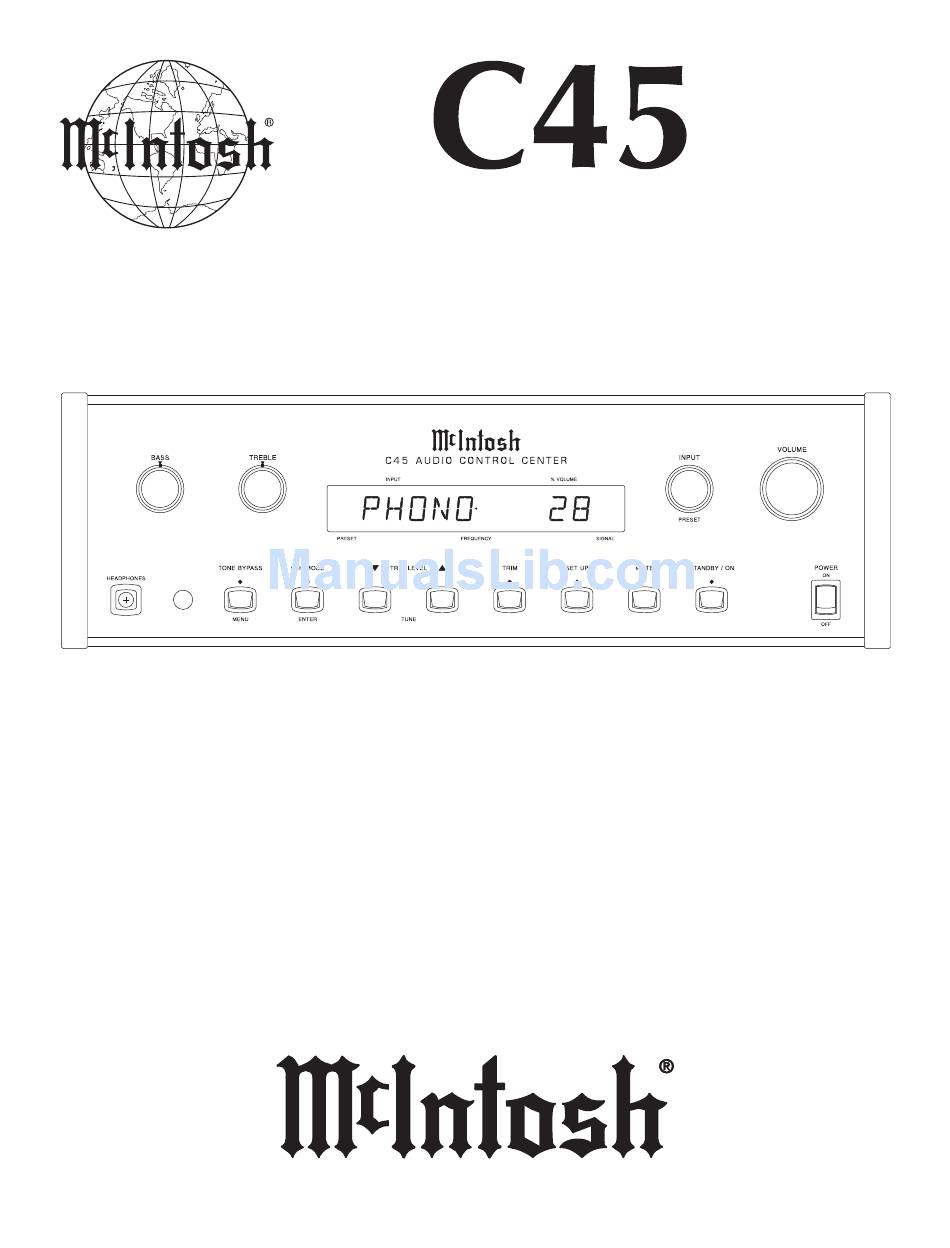

McIntosh C45 Service Manual
McIntosh C45 Service Manual

McIntosh C45 Service Manual

Audio control center serial no. xf1001 and above
Hide thumbs Also See for C45:

Advertisement

SERIAL NO. XF1001 And Above
Performance Specifications ................................... 2 - 3
Block Diagram ...................................................... 5 - 8
Interconnection Diagram .................................... 9 - 10
Main Schematic and PCB .................................. 13 - 26
Display Schematic and PCB ............................... 27 - 32
6 Channel Schematic and PCB .......................... 33 - 36
Tone Schematic and PCB .................................. 37 - 38
CONTROL CENTER
CONTENTS

SERVICE MANUAL

Serial Number XF1001 And Above
AUDIO
Data Schematic and PCB ................................... 39 - 40
Pushbutton Schematic and PCB ........................ 41 - 42
Tuner/RAA1 Schematic and PCB ....................... 43 - 46
Tuner AM/FM Alignment Procedure .................. 47 - 48
Parts List ............................................................ 51 - 60
Exploded View and Parts Lists ........................... 61 - 65
Repacking Instructions ............................................. 67

Advertisement

loading

Summary of Contents for McIntosh C45

  • Page 1: Table Of Contents

    AUDIO CONTROL CENTER SERIAL NO. XF1001 And Above CONTENTS Performance Specifications ........2 - 3 Data Schematic and PCB ........39 - 40 Rear View and Section Location ......... 4 Pushbutton Schematic and PCB ......41 - 42 Block Diagram ............5 - 8 Tuner/RAA1 Schematic and PCB .......
  • Page 2: Performance Specifications

    PERFORMANCE SPECIFICATIONS Frequency Response Overall Dimensions +0, -0.5dB from 20Hz to 20,000Hz 17-1/2 inches (44.45cm) W, 6 inches (15.24cm) H, including feet, 16-1/2 inches (41.91cm) D, including clearance for Total Harmonic Distortion knobs and connectors. 0.002% maximum from 20Hz to 20,000Hz at rated output Weight Signal To Noise Ratio 21 pounds (9.53kg) net, 35 pounds (15.88kg) in shipping car-...
  • Page 3 PERFORMANCE SPECIFICATIONS con’t Stereo Separation Harmonic Distortion 45dB at 100Hz 0.5% maximum at 50% modulation 45dB at 1,000Hz 35dB at 10,000Hz Frequency Response 50Hz to 6kHz NRSC SCA Rejection 65dB Adjacent Channel Selectivity 45dB minimum IHF Image Rejection AM Tuner 65dB minimum from 540Hz to 1,600kHz Sensitivity IF Rejection...
  • Page 4: Rear View

    SECTION LOCATION TOP VIEW WITH COVER REMOVED REAR VIEW...
  • Page 5: Block Diagram

    BLOCK DIAGRAM...
  • Page 6 BLOCK DIAGRAM con’t...
  • Page 7 INTERCONNECT...
  • Page 8 NOTES...
  • Page 9 MAIN 749850 SH 1 OF 5...
  • Page 10 MAIN 749850 SH 2 OF 5...
  • Page 11 MAIN 749850 SH 3 OF 5...
  • Page 12 MAIN 749850 SH 4 OF 5...
  • Page 13 MAIN 749850 SH 5 OF 5 C174 R237 22uF FIL1 J6:23 FIL1 J1:1 J6:22 FIL1 J1:2 FIL2 J6:21 FIL2 J1:3 FIL2 J6:20 -24 REGULATOR J1:4 C173 47uF -38V J6:19 IN OUT -24V J1:5 -24V KEYPAD UPDATE J6:18 J1:6 PLLCE J6:17 -15V REGULATOR PLLCE J1:7...
  • Page 14 MAIN 749850 PCB...
  • Page 15 DISPLAY 749851 SH 1 OF 2...
  • Page 16 DISPLAY 749851 SH 2 OF 2 FIL1 J1:1 J6:23 FIL1 WATCHDOG TIMER / RESET FRONT PANEL FIL1 J1:2 J6:22 ILLUMINATION FIL2 J1:3 J6:21 FIL2 MICROPROCESSOR FIL2 J1:4 CONTROLLER J6:20 J1:5 J6:19 KEYPAD J1:6 UPDATE J6:18 KEYPAD_UPDATE PLLCE J1:7 J6:17 PLLCE J2:8 SCAN STOP J1:8...
  • Page 17 DISPLAY 749851 PCB...
  • Page 18 6 CHANNEL 749852 SCH 10uF - BALANCED AMP 10uF 22uF U1:A -15V 10uF 10uF J1:A 10uF J3:1 J1:18 J1:B J3:2 10uF J1:17 J3:3 J1:16 10uF J3:4 J1:15 - BALANCED AMP 22uF 10uF J1:C 10uF J3:5 U1:B J1:14 CENTER J3:6 J1:D 10uF J1:13 J4:18...
  • Page 19 6 CHANNEL 749852 PCB...
  • Page 20 TONE 749853 SCH and PCB 100pF 47uF 3.32k 40.2k J1:13 L FROM U2:A U1:A J11:6 22uF .033uF .033uF .22uF .22uF J1:14 L FROM J11:5 -15V R6:B R1:B J1:15 100k J11:4 100k J1:16 J11:3 J1:17 L TO J11:2 47uF 3.32k J1:18 L TO J11:1 J1:8...
  • Page 21 DATA 749854 SCH and PCB...
  • Page 22 PUSHBUTTON 749855 SCH and PCB J3:5 J2:8 J3:6 J2:7 J3:8 J2:5 J3:10 J2:3 STANDBY/ON MUTE SET UP TRIM J3:12 J2:1 J3:11 J2:2 J3:1 J2:12 TRIM TRIM TONE BYPASS LEVEL MODE J3:2 LEVEL J2:11 FRONT J3:4 PANEL IR J2:9 FRONT TUNE TUNE PANEL IR ENTER...
  • Page 23 TUNER 049084 SCH...
  • Page 24 TUNER RAA1 SECTION 049084 PCB...
  • Page 25: Tuner Am/Fm Alignment Procedure

    TUNER ALIGNMENT PROCEDURE Note: Refer to Figure 1 while reading the below procedure. C45 Tuner: AM ALIGNMENT PROCEDURE C45 Tuner: FM ALIGNMENT PROCEDURE 1. Connect an FM Signal Generator to Antenna Input. 1. Connect an AM Signal Generator to the RAA1 ”EXT ANT” 8.
  • Page 26 NOTES...
  • Page 27: Parts List

    PARTS LIST Ref. No. Description Part No. CAP ELECT 10UF 16V 066580 CAP ELECT 10UF 16V 066580 INTERCONNECT CAP ELECT 10UF 16V 066580 CAP ELECT 10UF 16V 066580 Ref. No. Description Part No. CAP ELECT 10UF 50V 066445 FUSE .5A SLO-BLO 5X20 089126 CAP ELECT 10UF 50V 066445...
  • Page 28 PARTS LIST Ref. No. Description Part No. Cont’d. C177 CAP ELECT 3300UF 35V 066509 C178 CAP ELECT 3300UF 35V 066509 MAIN PCB 749850 (Cont’d.) C179 CAP ELECT 3300UF 35V 066509 Ref. No. Description Part No. C180 CAP MONO .1UF 50V 20% Z5U 061346 C181 CAP MONO .1UF 50V 20% Z5U...
  • Page 29 PARTS LIST Ref. No. Description Part No. Cont’d. TRANSISTOR N JFET 132319 TRANSISTOR PNP SILICON 132304 MAIN PCB 749850 (Cont’d.) TRANSISTOR PNP SILICON 132304 Ref. No. Description Part No. TRANSISTOR N JFET 132319 TRANSISTOR N JFET 132319 CONN MALE 6 POS FRICTION LOCK 117218 TRANSISTOR PNP SILICON 132304...
  • Page 30 PARTS LIST Ref. No. Description Part No. Cont’d. RES MF 10M 1% 1/4W 144575 RES MF 3.79K .5% 1/4W 144711 RES MF 3.79K .5% 1/4W 144711 MAIN PCB 749850 (Cont’d.) Ref. No. Description Part No. RES MF 200K 1% 1/4W 144531 RES MF 200K 1% 1/4W 144531...
  • Page 31 PARTS LIST Ref. No. Description Part No. Cont’d. R209 RES MF 10M 1% 1/4W 144575 R210 RES MF 10M 1% 1/4W 144575 R211 RES MF 3.79K .5% 1/4W 144711 MAIN PCB 749850 (Cont’d.) Ref. No. Description Part No. R212 RES MF 3.79K .5% 1/4W 144711 R213 RES MF 200K 1% 1/4W...
  • Page 32 PARTS LIST Ref. No. Description Part No. Cont’d. (DS11) LED SPACER .220 LENGTH 163001 CONN 23 PIN FFC 117906 CONN 12 PIN FFC 117907 MAIN PCB 749850 (Cont’d.) RELAY REED FORM 1A 5V 500 OHMS 087050 Ref. No. Description Part No. MTGPAD1 DOUBLE COATED MTG-TAPE 1/16 TK 094409 IC 5V 1.5A REGULATOR LOW DROP 133610...
  • Page 33 PARTS LIST Ref. No. Description Part No. Cont’d. RELAY REED FORM 1A 5V 500 OHMS 087050 RELAY REED FORM 1A 5V 500 OHMS 087050 RELAY REED FORM 1A 5V 500 OHMS 087050 6 CHANNEL PCB 749852 (Cont’d.) RELAY REED FORM 1A 5V 500 OHMS 087050 Ref.
  • Page 34 PARTS LIST DATA PCB 749854 Cont’d. Ref. No. Description Part No. CAP MONO .1UF 50V 20% Z5U 061346 CAP MONO 1000PF 50V 10% NPO 061344 TONE PCB 749853 CAP MONO .1UF 50V 20% Z5U 061346 Ref. No. Description Part No. CAP MONO .1UF 50V 20% Z5U 061346 CAP ELECT 22UF 100V...
  • Page 35 PARTS LIST Ref. No. Description Part No. Cont’d. CAP MONO .0022UF 5% 100V NPO 061335 CAP MONO 0.1UF 20% 50V 061328 DATA PCB 749854 (Cont’d.) CAP MONO 0.1UF 20% 50V 061328 Ref. No. Description Part No. CAP MONO .047UF 10% 50V X7R 061334 CAP MONO 0.1UF 20% 50V 061328...
  • Page 36 PARTS LIST Ref. No. Description Part No. Cont’d. RES MF 100 OHM 1% 1/4W 144568 RES MF 10K 1% 1/4W 144504 RES MF 2.21M 1% 1/4W 144576 TUNER/RAA1 SECTION PCB 049084 (Cont’d.) RES MF 22.1K 1% 1/4W 144564 Ref. No. Description Part No.
  • Page 37 EXPLODED VIEW...
  • Page 38 EXPLODED VIEW con’t...
  • Page 39: Exploded View Parts List

    EXPLODED VIEW PARTS LIST Part Description 016496 GLASS 171026 CABLE ASSY PWR SWITCH 017531 PUSHBUTTON ASSY RED 017517 PUSHBUTTON ASSY BLK 078033 O-RING 017854 BEZEL HEADPHONE 749725 ASSY KNOB 25.5 INDEX METRIC 749724 ASSY KNOB 25.5 NO INDEX METRIC 749726 ASSY KNOB 34 NO INDEX AMERICAN 104017 WASHER FELT BLK 3/4 X 1/4 X 1/16 094360 TAPE FOAM 1/2 X 1/2 004946 BRACKET EXTRUSION...
  • Page 40 NOTES...
  • Page 41: Repacking Instructions

    REPACKING INSTRUCTION...
  • Page 42 SERIAL NO. XF1001 And Above The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without notice. Because of the constant upgrading of McIntosh products’ circuitry and components, the Company cannot insure, and does not warrant, the accuracy of the within schematic material, which is intended for information only.
