MECHANICAL DRAWINGS WITH PINOUTS

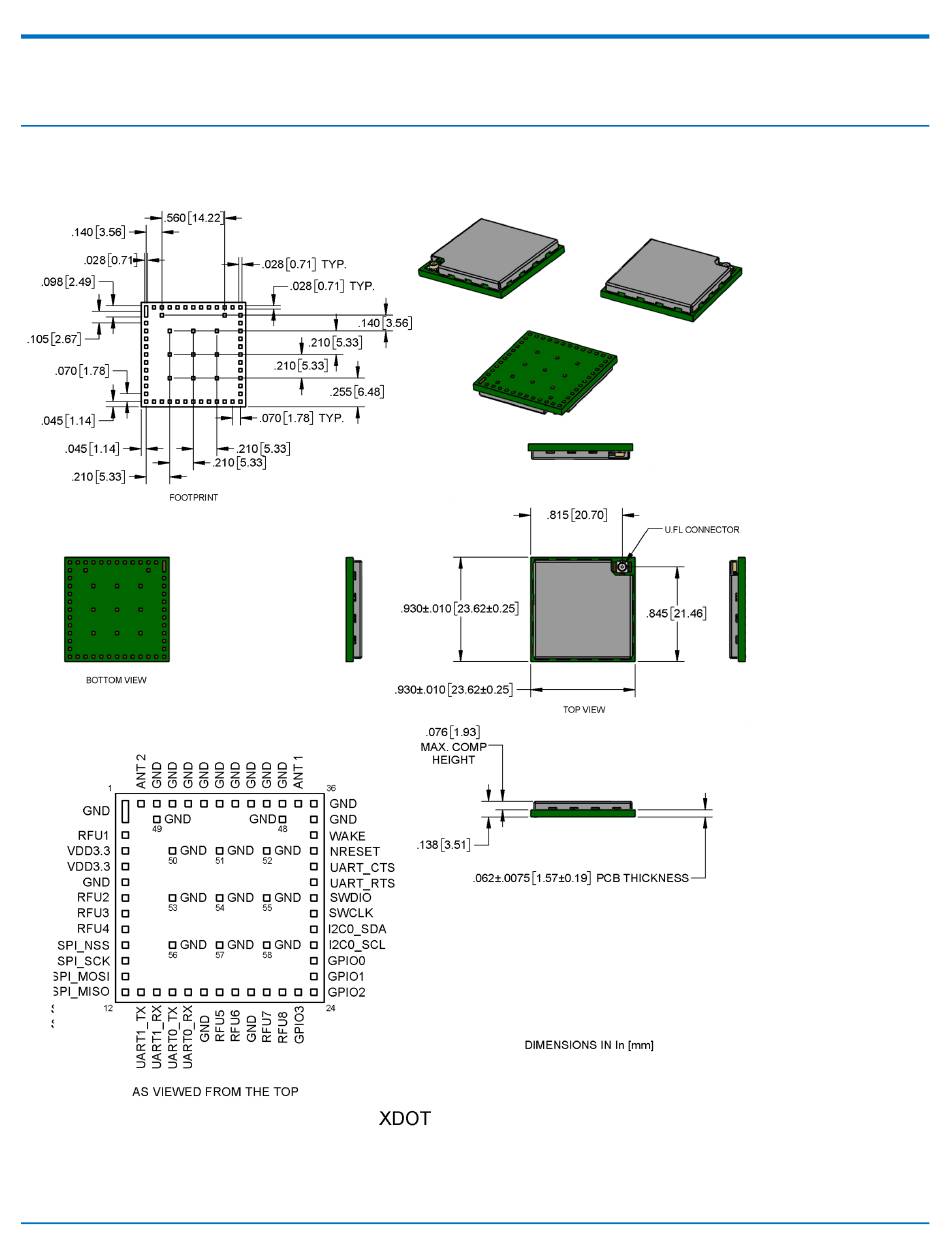

Chapter 4 – Mechanical Drawings with Pinouts

xDot

Note:

The xDot development board uses a land pattern that matches the xDot land pattern in the previous

image. All pads are 0.028 inches square except the large one, which is 0.098 inches x 0.028 inches.

xDot

Developer Guide
