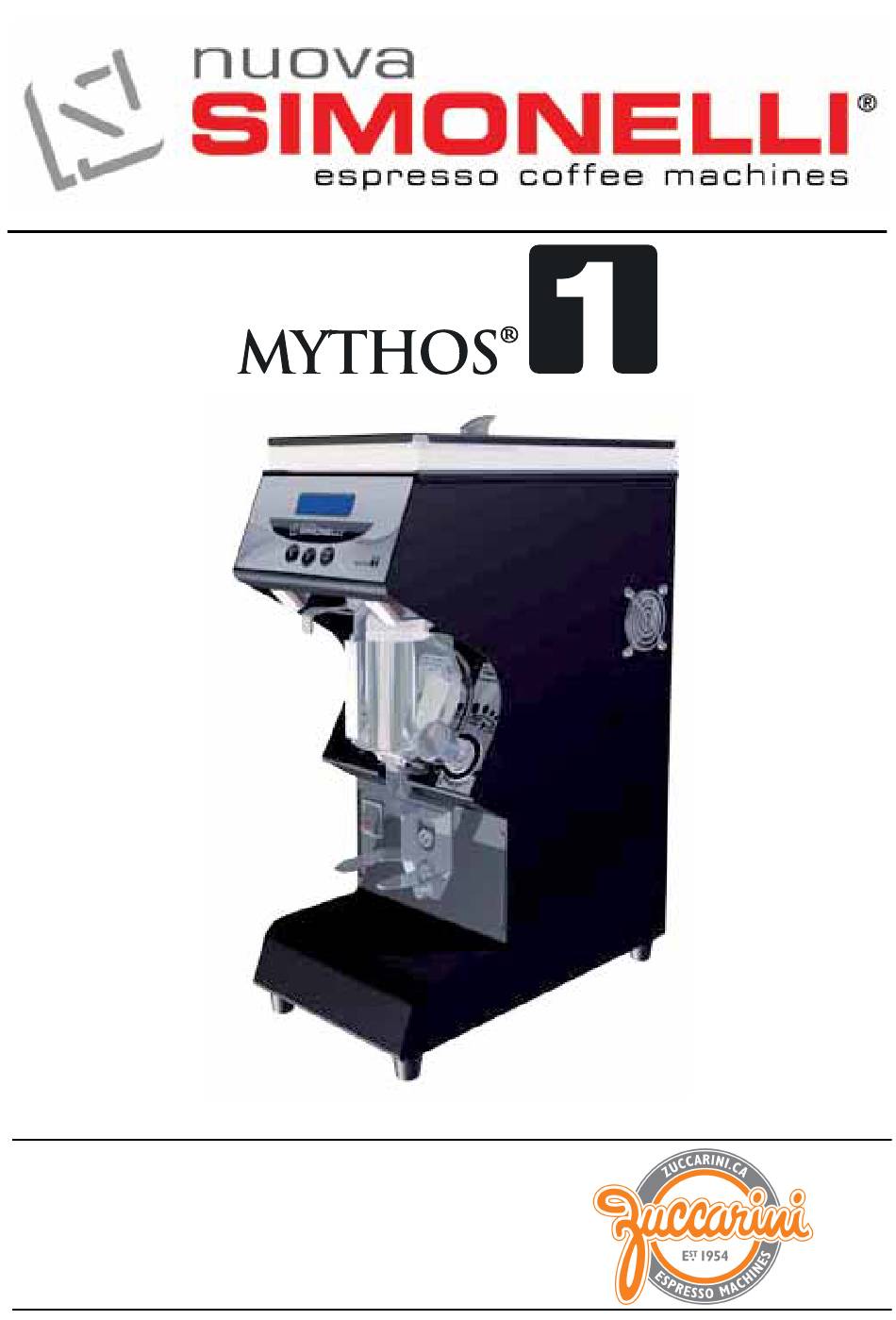

  • Page 1 USER HANDBOOK (Translation of the Original Instructions)

  • Page 2: Table Of Contents

    INDEX GENERAL INFORMATION ............22 APPLIANCE DESCRIPTION ............23 INSTRUCTIONS FOR USE ............24 PREMISE ....................24 REGULATION OF THE BURR ..............25 PROGRAMMING OF THE MACHINE............25 4.3.1 OPERATING MENÙ ................26 4.3.2 SETTINGS MENU ................. 27 4.3.2.1 Doses counter ................27 4.3.2.2 Total count .................

  • Page 3: General Information

    GENERAL INFORMATION MANUFACTURER: NUOVA SIMONELLI - Via M. D’Antegiano, 6 - Belforte del Chienti, Macerata (MC) - Italy MODELS: MYTHOS - Elettronic-instantaneous coffee grinder system TECHNICAL DATA MODEL DESCRIPTION MYTHOS MYTHOS 220/240 Volts (V) Frequency (Hz) Power (W) 1090 Revolution per min. (rpm)

  • Page 4: Appliance Description

    APPLIANCE DESCRIPTION 1 Body machines 9 Open/closer holder tab 10 Grinding adjustment knob 2 Coffee bean holder 3 Holder lid 11 Extractor fan 4 Switch 12 Intake fan 5 Control panel 13 Heating element 6 Start-up micro-switch 14 Filter holder retaining device 7 Fork portafilter 8 Pouring lip...

  • Page 5: Instructions For Use

    INSTRUCTIONS FOR USE PREMISE This machine is capable of producing very precise doses, since it bases itself on the time of the grind. It is however necessary to fine tune the machine before starting to work, above all deciding the blend of coffee (lighter or darker roast) and the grade of grind. You then proceed to programming the time of grind for each dosage, weighing the ground product.

  • Page 6: Regulation Of The Burr

    REGULATION OF THE BURR To adjust grinding fineness, it is necessary to use the knob (10), turning it clockwise for finer grinding or anti-clockwise for a coarser burr. This adjustment does not have any stop points and each turn of the knob corresponds to a movement of 0.4 mm of the burrs.

  • Page 7: Operating Menù

    4.3.1 OPERATING MENÙ For each dose and each item on the menu, the available keys will flash. When the machine is switched on, after the lamp test has been completed, the display will show the control unit software release for a few seconds. After this, the top line of the display will read DOSE X (where X is the number of doses selected and varies from 1 to 3), while the bottom row of the display shows the time (in sec- onds) set for the selected dose.

  • Page 8: Settings Menu

    4.3.2 SETTINGS MENU To access the settings menu from the operating menu, select "CONTINUOUS" mode and then press and hold down the keys together. Press the key to scroll through the menu items: DOSES COUNT; TOTAL COUNT; START NUMBER; CONTINUOUS TIME; GENERAL TIME;...

  • Page 9: Start Number

    4.3.2.3 Start number The third item in the settings menu is "START NUMBER"; the display will show the following screen: Where "N" represents the total number of starts and cannot be reset to zero. 4.3.2.4 Continuous time The fourth item in the settings menu is "CONTINUOUS TIME"; the display will show the fol- lowing screen: It is possible to reset the continuous pour counter to zero by holding down the key for a...

  • Page 10: Stop And Go

    Press the key to open the settings screen for the number of pours; the display will show the following: It is possible to set the number of pours using the down) and up) keys, from a mini- mum of 10000 to a maximum of 100000, with intervals of 1000. Press to save the changes and pass on to the next menu screen.

  • Page 11: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING Unplug the appliance from power supply before carrying out any cleaning and main- tenance intervention and leave the hot parts to cool down (see chapter “WARNINGS AND SAFETY”). WARNING Wait for the cooling of the hot parts before carrying out any cleaning or maintenance. WARNING Do not pull on the electric cable nor the machine itself, to remove the plug from the electrical outlet.

  • Page 12: Maintenance

    MAINTENANCE WARNING Unplug the appliance from power supply before carrying out any cleaning and main- tenance intervention and leave the hot parts to cool down (see chapter “WARNINGS AND SAFETY”). WARNING Maintenance operations must be carried out by specialized personnel authorized by the manufacturer.
  • Page 13 Via M. d’Antegiano, 6 62020 Belforte del Chienti Macerata Italy Tel. +39.0733.9501 Fax +39.0733-950242 www.nuovasimonelli.it E-mail: n.simonelli@nuovasimonelli.it La Nuova Simonelli si riserva di apportare tutte le modifiche ritenute necessarie. Graphics by: “ Type Engineering S.r.l.”...
