Nuova Simonelli Appia Compact User Handbook Manual

Espresso coffee machines
Hide thumbs
Table of Contents

Advertisement

Quick Links

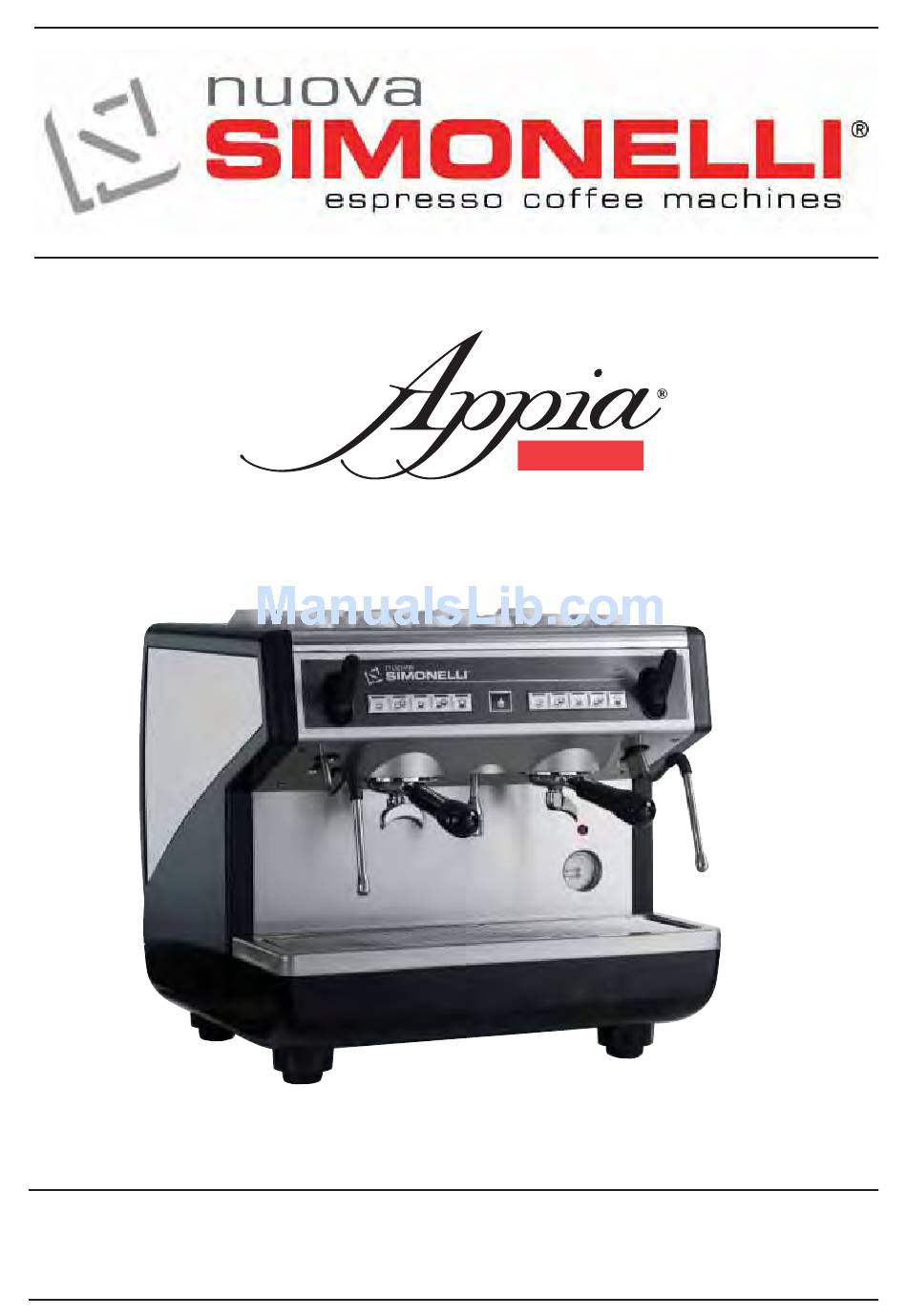

COMPACT
LIBRETTO ISTRUZIONI
USER HANDBOOK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Appia Compact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nuova Simonelli Appia Compact

Summary of Contents for Nuova Simonelli Appia Compact

  • Page 1 COMPACT LIBRETTO ISTRUZIONI USER HANDBOOK...
  • Page 2 EN 60335-2-75:2004 + A1:2005 + A11:2006 in combination with EN 60335-1:2002 + A1:2004 + A11:2004 + A12:2006 + A2:2006 EN 50366:2003 + A1:2006...
  • Page 3 You will see how practical, convenient and efficient working with COMPACT If this is the first time you have bought a Nuova Simonelli coffee machine, welcome to high quality coffee- making; if you are already a customer of ours, we feel flattered by the trust you have shown us.

  • Page 4: Technical Characteristics

    TECHNICAL CHARACTERISTICS 220 V 110 V NET WEIGHT 60 kg 133 lb 60 kg 133 lb GROS WEIGHT 65 kg 143 lb 65 kg 143 lb POWER 2600 W 2600 W 1500/2200 W 1500/2200 W DIMENSIONS 550 mm 21.6 550 mm 21.6 460 mm 460 mm...
  • Page 5 INDEX TECHNICAL CHARACTERISTICS26 CLEANING AND MAINTENANCE CLEANING THE OUTSIDE OF THE MACHINE46 CLEANING THE STAINLESS DESCRIPTION......28 COFFEE-HOLDERS ........46 KEYPAD DESCRIPTION........29 CLEANING THE UNIT WITH ACCESSORIES LIST ........30 THE AID OF THE BLIND FILTER ....46 CLEANING FILTERS AND FILTER-HOLDERS REGENERATING THE WATER SAFETY PRESCRIPTION ....
  • Page 6 DESCRIPTION Fig. 1 Select buttons 11 Hot water nozzle Delivery buttons 12 Rating plate Steam knob 13 Main switch Steam nozzle 14 Cup warmer (optional) Filter holder Single delivery spout Double delivery spout Optical level Pressure gauge 10 Adjustable foot COMPACT...

  • Page 7: Keypad Description

    KEYPAD DESCRIPTION VOLUMETRIC APPIA COMPACT VOLUMETRIC APPIA COMPACT AUTOSTEAM SEMIAUTOMATIC APPIA COMPACT 1 Espresso key 2 Espressos key 1 Coffee key 2 Coffees key Continuous coffee key Hot water key Steam key Autosteam / timed steam key Coffee key COMPACT...

  • Page 8: Accessories List

    ACCESSORIES LIST Fig. 2 CODE DESCRIPTION QUANTITY Filling tube C 3\8, Waste pipe Ø 25 mm - L. 150 cm Filter-holder Double filter Single filter Blind filter Spring Double delivery spout Single delivery spout Coffee presser Plastics grill COMPACT COMPACT...

  • Page 9: Safety Prescription

    SAFETY PRESCRIPTION This book is an integral and essential part of the product and must be given to the user. Read this book carefully. It provides important information concerning safety of installation, use and maintenance. Save it carefully for future reference. Fig.
  • Page 10 At the end of installation, the device is switched on and taken to rated operating conditions, leaving it in a state in which it is “ready for operation”. The device is then switched off and the whole hydraulic circuit is bled of the first lot of water in order to remove any initial impurities.
  • Page 11 To avoid dangerous overheating, make CAUTION sure the supply cord is fully uncoiled. RISK OF BURNS OR SCALDING Do not obstruct the extraction and/or dissipa- We remind you that before carrying out tor grids, especially of the cup warmer. any installation, maintenance, unloading or adjustment operations, the qualified operator must put on work gloves and The user must not replace the appliance...

  • Page 12: Transport And Handling

    During all handling operations, the operator Always quote the machine serial number in all com- must ensure that there are no persons, objects munications to the manufacturer, Nuova Simonelli. or property in the handling area. The pallet must be slowly raised to a height of 30 cm (11,8 in) and moved to the loading area.

  • Page 13: Installation And Preliminary Operations

    INSTALLATION It is advisable to install a softener (1) and then a mesh filter (2) on the external part of the plumbing AND PRELIMINARY system, during preliminaries and after levelling the OPERATIONS machine. In this way impurities like sand, particles of calcium, Before carrying out any installation and adjust- rust etc will not damage the delicate graphite sur- ment operations you must read and fully under-...
  • Page 14 3mm. Nuova Simonelli is not liable for any damage to people or objects due to not observing current security measures. Prior to connecting the machine to the electrical mains, assess that the voltage shown on the machine’s data...

  • Page 15: Adjustments

    CAUTION The adjustments listed here below must ONLY be performed by a Specialist Technical Engineer. Nuova Simonelli cannot be held liable for any damage to persons or property arising from fail- ure to observe the safety instructions supplied in Fig. 15 this manual.

  • Page 16: Setting The Pump Pressure

    • The pressure set for the pump will be shown in • turn the pump registration screw, turning it clock- the bottom section of the pressure gauge when wise to INCREASE and counter clock wise to coffee is being dispensed. DECREASE the pressure.

  • Page 17: Hot Water Economiser Adjustment

    HOT WATER ECONOMISER ADJUSTMENT models are fitted with a hot water mixer that can be used to adjust the delivery tem- perature of the water and therefore, to optimise system performance. To adjust the hot water economiser, it is necessary to remove the top panel of the machine, proceeding as follows: •...

  • Page 18: Use

    MAKING COFFEE Before starting to use the appliance, the operator Unhitch the filter-holder and fill it with one or two must be sure to have read and understood the safety doses of ground coffee depending on the filter used. prescriptions contained in this booklet. SWITCHING THE MACHINE ON •...

  • Page 19: Using Steam

    USING STEAM HOT WATER SELECTION CAUTION CAUTION RISK OF BURNS OR SCALDING RISK OF BURNS OR SCALDING While using the steam nozzle, you must pay While using the hot water nozzle, pay careful attention to not place your hands beneath it or attention not to place your hands beneath it or touch just after it has been used.

  • Page 20: Autosteam Selection

    AUTOSTEAM SELECTION (Version with Autosteam) WARNING DANGER OF BURNS OR SCALDS When using the steam nozzle always take great care never to place your hands underneath it or to touch it immediately after use. This is used to dispense steam for milk-based bever- ages (e.g.

  • Page 21: Setting Timed Steam/Autosteam Function

    PROGRAMMING SETTING THE TIMED STEAM FUNCTION (Version with timed PROGRAMMING DOSES steam nozzle without temperature probe) To access the programming units, proceed as fol- lows: • Follow the standard procedure to enter the pro- gramming function; NOTE: the procedure can be carried out with the •...

  • Page 22: Copiatura Dosi

    PROGRAMMING fitted with economiser). STANDARD DOSES 5. Disenabling the cup warmer 6. Restoring default settings. • It is possible to enter pre-set values for the 4 group doses and water (steam). 1. Enabling the pump during levelling. PTo do this, it is necessary to press the key and hold it down for at least 10 seconds Use the espresso key to set pump enabling...

  • Page 23: Automatic Group Cleaning Cycle

    AUTOMATIC GROUP CLEANING CYCLE To start the automatic cleaning mode, the machine must first be switched off and then back on again while holding down the hot water and one low coffee from group 2 during the initial Lamp-test. At the end of the Flash-test, the keys and the single long coffee key of all groups will...

  • Page 24: Cleaning And Maintenance

    CLEANING AND CLEANING THE STAINLESS COFFEE- MAINTENANCE HOLDERS During maintenance/repairs, the parts used must be The stainless coffee-holders are situated under the able to guarantee compliance with the safety and delivery units, as shown in figure. hygiene requirements envisaged for the device. Original replacement parts can offer this guarantee.

  • Page 25: Cleaning Filters And Filter-Holders

    CLEANING FILTERS AND FILTER-HOLDERS Place two spoonfuls of special cleanser in half a litre of hot water and immerse filter and filter-holder (without its handle) in it leaving them to soak for at least half an hour. Then rinse abundantly with run- ning water.

  • Page 26: Machine Error Messages

    MACHINE ERROR MESSAGES DISPLAY AND KEY INDICATIONS EFFECT SOLUTION CAUSE NOTES DOSAGE ERROR Interrupt deliv- If the doser doesn’t If the delivery isn’t Continuous key flash- ery. send out its set manually halted, ing and dispensing key commands within the maximum time lit without flashing.
  • Page 27 COMPACT...
  • Page 28 COMPACT...
  • Page 29 COMPACT...
  • Page 30 COMPACT...
  • Page 31 COMPACT...
  • Page 32 LLC 6940Salashan PKWY BLDG A 98248 Ferdale, WA Tel. +1.360.3662226 Macerata Italy Fax +1.3603664015 Tel. +39.0733.9501 videoconf.+1.360.3188595 Fax +39.0733-950242 www.nuovasimonelli.it www.nuovasimonelli.it info@nuovasimonelli.com E-mail: n.simonelli@nuovasimonelli.it La Nuova Simonelli si riserva di apportare tutte le modifiche ritenute necessarie. Graphics and printing by: X TYPE ENGINEERING S.r.l...
