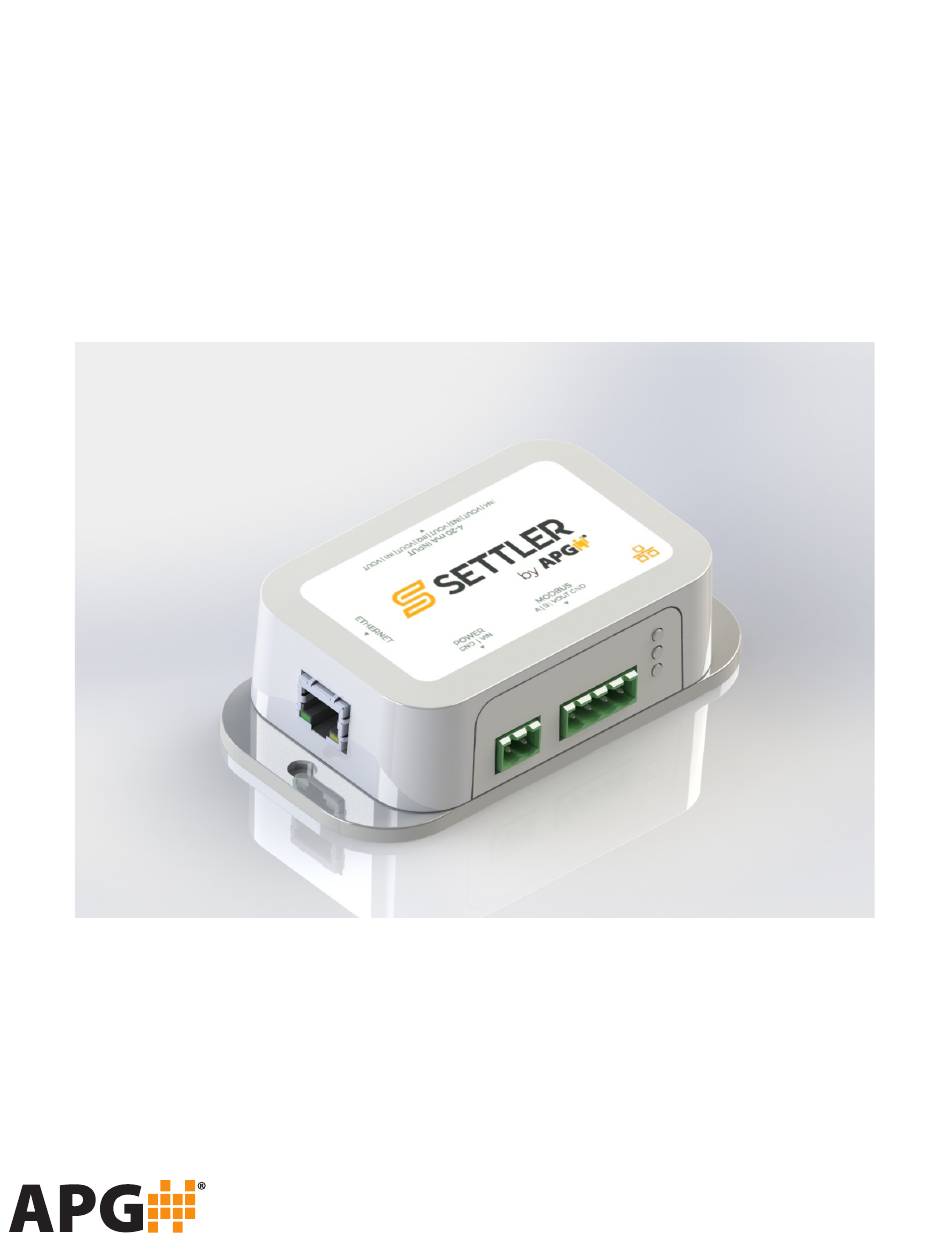

- Page 1 Settler Remote Monitoring Device User Manual Doc # 9006887 Part # 201180 Rev A , 03/2025...
-
Page 2: Table Of Contents
CHAPTER 1: DIMENSIONS AND WIRING Dimensions Wiring CHAPTER 2: INSTALLATION Physical Installation Notes In the Box Tools & Materials Required Mounting Settler LED Indicators Connect Sensors CHAPTER 3: SETUP SENSORS IN EXPLORER Sign In To Explorer Set Up New Sensors CHAPTER 4: TROUBLESHOOTING NOTE: Find product specifications, accessories, and more in the Data Sheet. -
Page 3: Introduction
Reading your label The Settler label indicates the power, 4-20 mA, and Modbus connector pinouts. The manufacturing label contains the part number and the serial number, which is used to identify your Settler in APG’s cloud-based monitoring platform Explorer. -
Page 4: Warranty And Warranty Restrictions
Return Material Authorization before shipping your product back. Repair and Returns Should your Settler require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. You can also find the form on our website by clicking “RMA”... -
Page 5: Chapter 1: Dimensions And Wiring
CHAPTER 1: DIMENSIONS AND WIRING Dimensions 2.65" 67.3mm #10 BOLT HOLE WITH COUNTERBORE 1.38" 35.1mm 4.89" 124.2mm Settler Wiring Supply Voltage • 5 to 32 VDC • 10 mA at 24V Wiring Pinout Modbus Pinout GND VCC 1 2 3 4 4-20mA Pinout... -
Page 6: Wiring
Connect Ethernet: • Use a CAT5, CAT5e, or CAT6 Ethernet cable. • Settler operates in DHCP-only mode. Ensure your network has an active DHCP server to assign an IP address. • When the device connects successfully, it will establish a secure link with explorer.apgsensors.com... -
Page 7: Led Indicators
Successfully connected to explorer.apgsensors.com Solid Error detected — check connections and settings Once the Yellow LED is solid, Settler is fully operational and is sending data to explorer.apgsensors.com. Connect Sensors For 4-20mA inputs: • Each Settler unit supports up to four 4-20mA sensors. -
Page 8: Chapter 3: Setup Sensors In Explorer
2. Click “My View” at the top of Explorer webpage. 3. Click the Group card. 4. Click your Gateway card. Check the label on the side of Settler to identify its unique Gateway ID number (serial number). 5. On the Sensors page, click the “Configure Gateway” button on the right. -
Page 9: Chapter 4: Troubleshooting
Explorer • Check network status and firewall settings (port 1223 needs to be open) • Restart Settler and see if the issue persists If additional support is needed, contact APG via: • Phone: 888-525-7300 • Email: sales@apgsensors.com • Online chat: www.apgsensors.com... - Page 10 Automation Products Group, Inc. Tel: 1 (888) 525-7300 or 1 (435) 753-7300 e-mail: sales@apgsensors.com www.apgsensors.com Automation Products Group, Inc. 1025 W. 1700 N. Logan, UT 84321...
