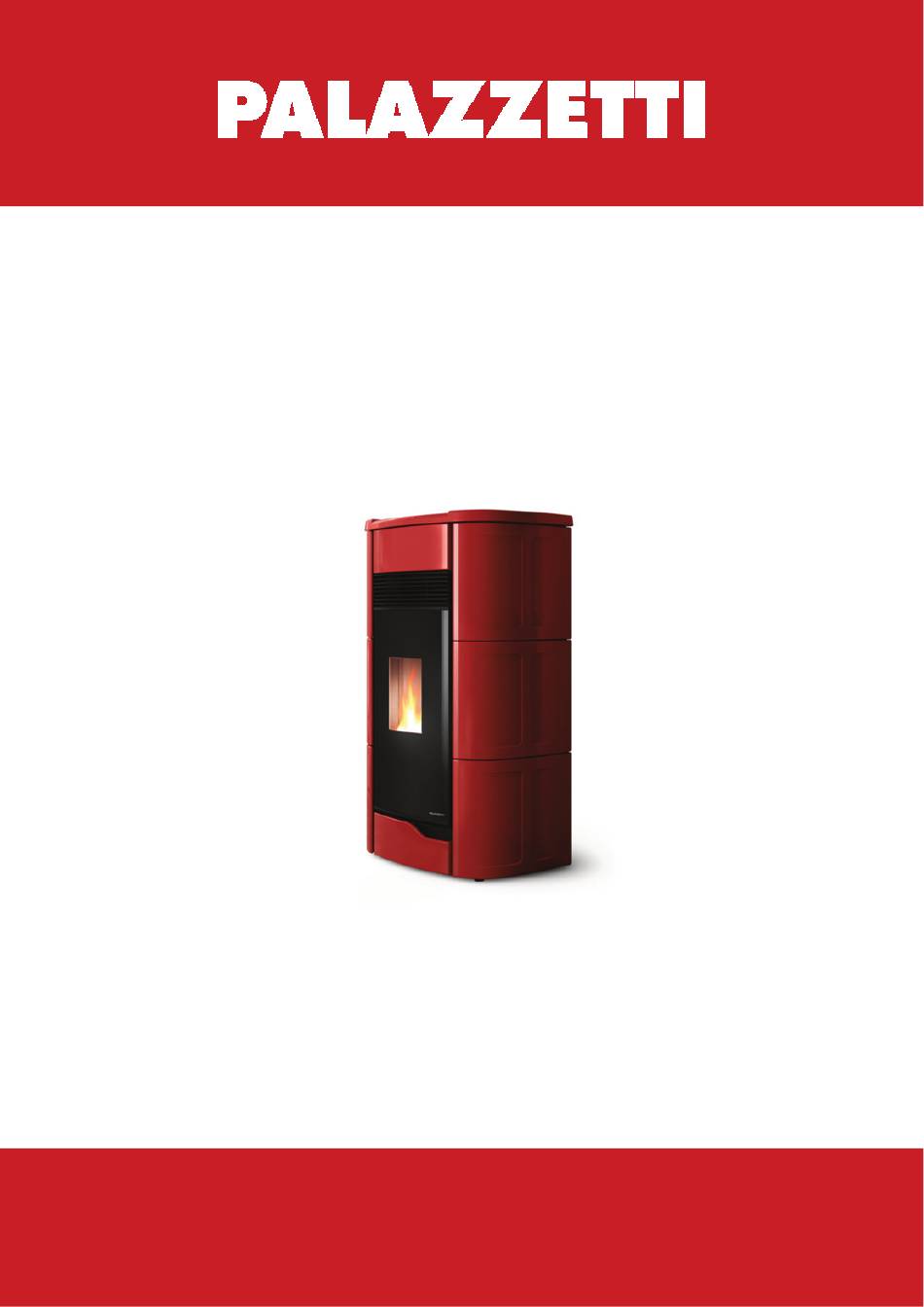

- Page 1 AUSTRALIA ANNA USER DISPLAY MANUAL Palazzetti Australia Unit 1, 57-59 Cameron St, Cranbourne, VIC, 3977 Phone: (03) 5995 000 - Email: enquiries@palazzetti.com.au - Web: palazzetti.com.au...
- Page 2 INDEX INITIAL CONFIGURATION CONNECTION TO AN EXTERNAL TIMER THERMOSTAT CONTROL PANEL DESCRIPTION USING THE CONTROL PANEL OPERATING PARAMETERS PRELIMINARY OPERATIONS LOADING THE PELLETS POWER SUPPLY INITIAL SETTINGS STOVE OPERATION STARTING THE STOVE MODIFYING THE PARAMETERS SWITCHING OFF OPERATION WITH ROOM THERMOSTAT OPERATION WITH ROOM PROBE ON THE STOVE FUNCTIONS AVAILABLE TIMER...
-
Page 3: Initial Configuration
1 INITIAL CONFIGURATION Depending on the type of installation, the best configuration needs to be selected for the stove operation. Before proceeding, power up the stove using the safety switch on the rear. a) Use the arrow buttons to go to the setup menu and then press b) Use the button to select the password “7”... -
Page 4: Control Panel
2 CONTROL PANEL Before reading the manual, review the description of the stove given in the enclosed manual. 2.1 DESCRIPTION The control panel consists of: A) a top part with status LEDs and backlit icons that identify each function; B) LED display; C) ON button D) “Cancel”... - Page 5 2.1.2 Description of the menus ICON FUNCTION DESCRIPTION VALUES Power Stove output setting 1..5 It allows you to set the fan speed. OFF*,1..5; Auto; Hi *(where featured) Displays the room temperature reading and is used to set the desired Temperature 6°C ..
-
Page 6: Setting The Room Temperature
2.3 OPERATING PARAMETERS Stove operation is determined by the Power level, Fan and Temperature parameters set by the user. 2.3.1 setting the power level The power level defines the amount of heat produced by the stove and consequently directly affects fuel consumption. -
Page 7: Preliminary Operations
3 PRELIMINARY OPERATIONS 3.1 LOADING THE PELLETS The first operation to be performed before starting the appliance is to fill the hopper with fuel (pellets). The pellets are loaded into in the hopper using a scoop. Do not empty the sack directly into the hopper so as to avoid loading sawdust or other foreign bodies that may affect proper stove operation and avoid spilling pellets outside of the hopper. -
Page 8: Setting The Display Brightness
3.3.2 Setting the display brightness Display brightness when in standby mode can be set. a) Use the arrow buttons to go to the setup menu and then press b) Use the button to select the password “7” and then press to confirm;... -
Page 9: Stove Operation
4 STOVE OPERATION 4.1 STARTING THE STOVE Before every ignition, be sure that burning pot is completely empty and properly positioned in its seat. To start the stove hold the button for several seconds. The flame icon will start flashing during the ignition stage until remaining on steady when the stove has started. Automatic stove ignition: the stove comes with an automatic device that starts the pellet stove without using other traditional fire lighters. -
Page 10: Functions Available
5 FUNCTIONS AVAILABLE 5.1 TIMER It’s possible to set, enable and assign to the various days of the week, customised programs for automatically switching the stove on and off. Up to six customised programs can be set. For each program, the following can be set: on time, off time and desired temperature. Up to three programs can be assigned for each day of the week. - Page 11 5.2 “ECO MODE” SAVING FUNCTION Enabling this function means that the stove switches off when reaching the desired room temperature. If this function is not enabled, the stove modulates operation so as to maintain the desired temperature while consuming the least amount of fuel possible. The “Eco Mode” function is only available in configuration 1. To enable/disable the function: a) Use the arrow buttons to go to the setup menu...
- Page 12 5.7 MANUAL ACTIVATION OF THE LOAD SYSTEM In case of first use (pellet tank initially empty) or to test operation of the load unit, manual activation of loading is possible. On the control panel of the stove: a) Using the arrow keys navigate to the set-up menu and press the key b) Select password "7"...
-
Page 13: Alarm Management
6 ALARM MANAGEMENT If a malfunction occurs, the following procedure is activated: 1) audible alarm (beep); 2) one of the following system LEDs come on: 3) if the problem concerns an error, the stove will switch off. Pressing and holding the “cancel” button shows the error code on the display: ERROR/ DESCRIPTION...
