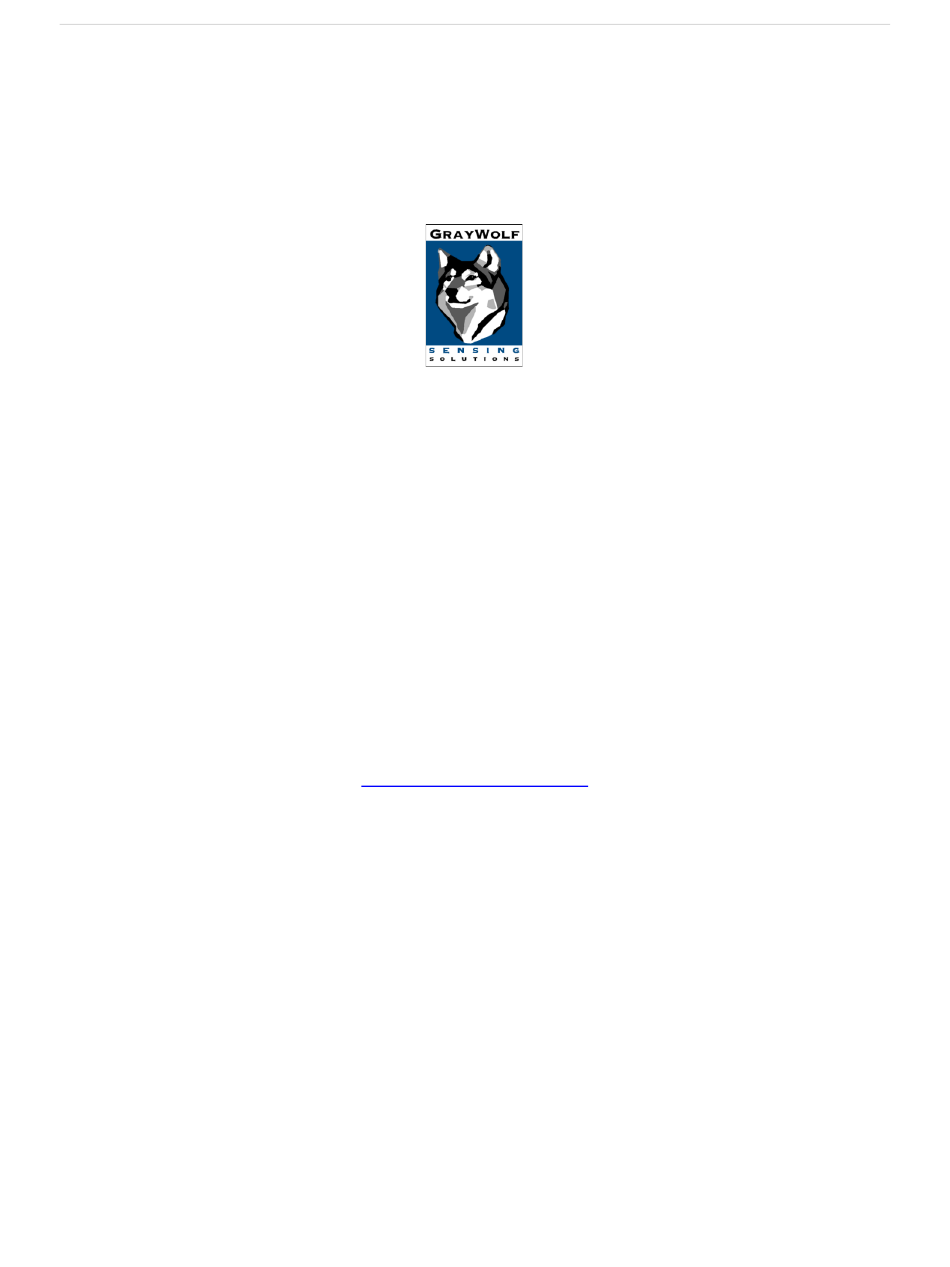

- Page 1 P a g e GrayWolf Sensing Solutions DirectSense II Version 2.2 Manual GrayWolf Sensing Solutions, LLC www.GrayWolfSensing.com 6 Research Dr. Shelton, CT 06484 GrayWolf Sensing Solutions, LTD Annacotty Industrial Park, Unit 1C Annacotty, County Limerick Ireland...
- Page 2 P a g e...
- Page 3 Determining the suitability for use of any equipment described in this manual remains SOLELY THE RESPONSIBILITY OF THE END USER. PRODUCT WARNING: GrayWolf Sensing Solutions' DirectSense II probes, AdvancedSense Pro and AdvancedSense BE kits are NOT suitable for use in flammable or potentially explosive environments. They are NOT certified intrinsically safe.
-
Page 4: Table Of Contents
P a g e Contents Introduction .............................. 5 Probe Models ............................6 Kit Models ..............................7 Accessories ..............................9 Specifications ............................14 Probe Views ............................15 Sensor Placement ........................... 16 Smart Sensors ............................18 Smart Sensor Warm Up .......................... 21 Calibration Hood ............................. -
Page 5: Introduction
Thank you for purchasing GrayWolf’s DirectSense II probe. GrayWolf is the market leading manufacturer of portable Indoor Air Quality (IAQ) instrumentation with over 20 years on the market. The DirectSense II probe takes current sensor technology to a whole new level, with the ability for: •... -
Page 6: Probe Models
Probe Models Picture Model Description The DirectSense II-8 probe comes with a SEN-SMT- TRH3 combo °C/°F and %RH sensor and has 6 sensor sockets available for additional smart (plug & play) sensors. One socket accommodates NDIR CO2, PID (TVOC) or A series electrochemical (EC) specific gas sensors. -
Page 7: Kit Models
P a g e Kit Models DSII-8-KIT The DirectSense II-8 KIT comes with a DSII-8 probe, SEN-SMT-TRH3 combo °C/°F and %RH sensor and has 6 sensor sockets available for additional (plug & play) smart sensors. One socket accommodates NDIR CO2, PID (TVOC) or A series electrochemical (EC) specific gas sensors. - Page 8 P a g e DSII-3-KIT The DirectSense II-3 KIT comes with a DSII-3 probe,SEN-SMT-TRH3 combo °C/°F and %RH smart sensor and has 1 socket available for a smart (plug & play) NDIR CO2, PID (TVOC) or electrochemical (EC) specific gas sensor. A 10 pin rugged push-pull cable...
-
Page 9: Accessories
B1 series smart sensors (DSII). For targeted sensor calibration (recommended for "sticky" gases). Includes 30cm tubing and 2m tubing. ACC-PWR-DSII- Charging Cradle for DirectSense II CRDL probes. Includes integral wall- mount bracket and probe locking screw. ACC-PWR-WM12V 110/240VAC power adapter (with US, EU, UK and AU plugs) sold separately. - Page 10 0ppm hydrocarbon gas and 95ppm CO reference gases CA-XXX-XX 105-liter calibration gas cylinders. GrayWolf offers a broad range of calibration gases to be used for field calibration/verification of the many gas sensors that we offer. Inquire about the reference values available (and model numbers) for specific gases.
- Page 11 0.5 lpm standard regulator for calibration gas cylinders. PCC-20A Single removable plug and ACC- DSII-PCCHOLD to expose sensors from 1 x DirectSense II probe. Room to store meter, probe, cradle, and other accessories. Also holds AS-201/202A airspeed probe and spare smart sensors. Includes Master combination lock.
- Page 12 Probes. Also fits charging cradles and other accessories. PCC-22DSII-U Hard-shell case for AdvancedSense, MN-10 tablet or MN-10RT, 10 inch rugged tablet. Also fits DirectSense II probe and AS201/202A airspeed probe and other accessories. PCC-25A Dual removable plugs and ACC- DSII-PCCHOLD’s to expose sensors from 2 x DirectSense II probes.
- Page 13 RUGGED Tablet PC and sensor exposure for two DirectSense II probes. Dual removable plugs and ACC-DSII-PCCHOLDs to expose sensors from 2 x DirectSense II probes. Cutouts hold MN-10RT 10" Rugged Tablets. Room to store tablet, probes, cradles and other accessories. Also holds AS- 201/202A airspeed probe and spare smart sensors.
-
Page 14: Specifications
14 | P a g e Specifications General Dimensions Probe: 83mm (3.3in.) w. x 295mm (11.6in.) h. x 55mm (2.2in.) d. Cradle: 93mm (3.7in.) w. x 80mm (3.2in.) h. x 93mm (3.7in.) d. Construction Probe: Rugged polycarbonate plastic with rubberized handle grip. Cradle: Rugged polycarbonate plastic Weight Probe: not including sensors which are ~10 grams each;... -
Page 15: Probe Views
User Calibration. On the back of the probe locate the hex screw near the top. Using the GrayWolf supplied hex key (ACC-SS1) unscrew counter clockwise to release. To tighten, screw the GrayWolf supplied hex key clockwise. -
Page 16: Sensor Placement
16 | P a g e Sensor Placement Slot Sensor Type(s) Allowed A Series EC, PID A Series EC, PID A Series EC, PID, NDIR A Series EC, PID A Series EC, PID, HCHO Sensor, B Series EC A Series EC, PID Temperature and Relative Humidity EC=Electrochemical... - Page 17 17 | P a g e Example of tab orientation while placed in sensor slot.
-
Page 18: Smart Sensors
GrayWolf supplied “Smart Sensors” (an assembly comprised of specific sensor plus a permanently attached “Smart Board”) may be used in any DirectSense II probe and in any sensor slot (with the exceptions of NDIR which must be used in Sensor Slot 3, or the larger B series electrochemical sensors which must be used in slot 5). - Page 19 For optimum accuracy, it is advised to perform more frequent User calibrations of zero and/or span (dependent on application). GrayWolf makes the User calibration procedure simple and reliable. The software walks users through the calibration process. Calibration kits and appropriate reference gasses are available for shipment to most locations.
- Page 20 Over the “IAQ critical range” (350ppm to 2000ppm), based on GrayWolf data and long-term experience. Accuracy of +/-50ppm, +/-3% of reading. While GrayWolf recommends <2 week User cal intervals, years of customer feedback has indicated that User calibrations at 4 to 8 week intervals is satisfactory for most IAQ applications.
-
Page 21: Smart Sensor Warm Up
Smart Sensor Warm Up Each Smart Sensor keeps track of the DirectSense II probe it is installed in, the last time it was stabilized and the duration it has been powered off. Using this information, sensor stabilization time is adjusted accordingly. -
Page 22: Calibration Hood
One end of the tubing is connected to the inlet and the other end is connected to the regulator and gas. The DirectSense II probe must be connected to WolfSense for a User Calibration to be performed. Instructions for User Calibrations in WolfSense can be found in the DirectSense/WolfPack/AdvancedSense manuals. -
Page 23: Charging Cradle
In order to charge the probe, it must be placed on the charging cradle. To choose powering options for the probe while connected to AdvancedSense/WolfPack/Tablet/PC in WolfSense go to Probe>Probe Options. Here there is the ability to Always Power, Never Power, or Power on Low. Charging Cradle DirectSense II Probe in Charging Cradle... - Page 24 24 | P a g e The charging cradle can be used to lock the probe into place for security. Remove the wall mounting bracket from the back of the probe. The wall mount can be released by pulling on the tab and pulling the bracket down.
-
Page 25: Power Button Operation
25 | P a g e DSII probe in Wall Mounted Cradle Power Button Operation Depress the power button momentarily to turn on the probe. When the probe first boots up, the LED will cycle Red, Green, Blue to indicate start up. While the probe is operating the LED will flash color sequences to indicate status. -
Page 26: Initiate Log From Probe
26 | P a g e The probe can be powered with its internal battery or alternatively through an AdvancedSense/WolfPack/Tablet/PC. When powered through AdvancedSense/WolfPack/Tablet/PC, the probe will not be charged. In order to charge the probe, it must be placed on the charging cradle. To choose powering options for the probe while connected to AdvancedSense/WolfPack/Tablet/PC in WolfSense go to Probe>Probe Options. -
Page 27: Connecting To Advancedsense Pro/Be/Standard With Cable
Using the AD-DSIIL8-1M cable, connect the male 10 pin Plug (with blue strain) relief side to either the base of the DirectSense II probe or the right side of the cradle. The male 8 pin rugged (black strain relief) connector will be attached to one of the ports in the AdvancedSense Pro/BE/Standard. -
Page 28: Connecting To Tablet/Pc With Cable
Using the AD-DSIIUSBM-1M (full size USB) or AD-DSIIUSB-1M (micro size USB) connect the male 10 pin side to either the base of the DirectSense II probe or the right side of the cradle. The full size USB or micro USB will be attached to the tablet/PC. -
Page 29: Bluetooth Connection
29 | P a g e Bluetooth Connection Specific directions for configuring your Tablet or AdvancedSense PRO to support Bluetooth connection can be found in the Pairing with Windows or Pairing with WolfSense OS sections. To use your DSII probe via Bluetooth, you must manually turn the probe on by momentarily pressing the power button. - Page 30 Go to Add Bluetooth or other device and select Bluetooth to connect a probe Next you will see all the available devices that you can connect to. Your DirectSense II Probe will be identified by the serial number labeled on the back/bottom of the probe. For probes with WolfRadio Bluetooth connections the serial number will show up as DSII-09-XXXX-SPP*.
- Page 31 The Pin is Proceed to opening WolfSense LAP and allow the software to search for probes to connect to the DirectSense II probe. Once the initial pairing process is performed it should not have to be performed again on subsequent connections.
-
Page 32: Attaching Tripod And Belt Clip
Attaching Tripod and Belt Clip Tripods and the belt clip can be attached in the same upper ¼“ - 20 tpi brass insert on the back of the DirectSense II. Attaching Flange Slide the probe through the ACC-DSII-PCCHOLD or ACC-DSII-... -
Page 33: Warranty
This warranty applies to the original purchaser only and shall commence to run from the date of shipment and shall continue for a period of twelve (12) months. In any event, GrayWolf's liability for any such defects of material and workmanship shall not exceed the cost of replacement of defective parts upon timely notification of such defect in writing delivered to GrayWolf's North American home office. -
Page 34: Technical Support
34 | P a g e Technical Support For Drivers, Updates, TechNotes visit: http://graywolfsensing.com/support/ Software e-mail: support@graywolfsensing.com Phone: 1-203-402-0477 (in Europe 353-61 358044 ) GrayWolf on the Web: http://graywolfsensing.com/ For videos on Probe Calibration, changing sensors, etc. visit: http://graywolfsensing.com/graywolf-videos/... -
Page 35: Appendix
The following documents have been appended to provide additional support for specific uses and applications of the DirectSense II probe. • DSII BLE QuickStart • DSII Wi-Fi QuickStart • User Calibrations with DirectSense II Configuration Tool or WolfSense LAP • PID TVOC Sensor Guide... - Page 36 Make sure probes are selected and press OK. The readings may take up to 30 seconds to first appear. If you have a GrayWolf Live account, you may also view live readings of any probe registered to your account. In the SELECT DEVICES menu, log in to your GrayWolf Live account and select Cloud devices you would like to display and press OK.
- Page 37 Your DirectSense II Probe should be pre-configured for Bluetooth LE (BLE) by default. You can change the Bluetooth and Wi-Fi settings by using the DirectSense II Configuration Tool. Connect your DirectSense II Probe using the supplied USB cable and run the configuration tool on a Windows PC/Laptop from: https://graywolfsensing.com/downloads/dsii/dsii.exe...
- Page 38 GrayWolf Sensing Solutions DirectSense II Wi-Fi + GrayWolfLive QuickStart Guide October 2022 v1.1 GrayWolf Sensing Solutions, LLC www.GrayWolfSensing.com 6 Research Dr. Shelton, CT 06484 GrayWolf Sensing Solutions, LTD Annacotty Industrial Park, Unit 1C Annacotty, County Limerick Ireland DirectSense II Wi-Fi +...
- Page 39 DSII Wi-Fi Connection Status .............................. 7 Fixed and Long term Monitoring ............................8 WolfSenseMobile App ................................ 8 Using GrayWolfLive ................................9 Saving and Reviewing Data Recorded in GrayWolfLive ....................11 DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 2 GrayWolfLive QuickStart Guide www.GrayWolfSensing.com...
-
Page 40: Overview
On the right side of the cradle there are two inputs (see figure above). The input on the left is a female 10-pin Lemo for connection to an AdvancedSense/WolfPack/Tablet/PC with the appropriate GrayWolf interface cable. The input on the right is for AC power. Only the GrayWolf-supplied power adapter should be used for the charging cradle. Charger LED Status... -
Page 41: Configure Dsii Wi-Fi
GrayWolfLive interface. Wi-Fi On must be checked for the probe to connect to a network. Use the Wi-Fi Settings link to open the Wi-Fi Settings box. DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 4 GrayWolfLive QuickStart Guide www.GrayWolfSensing.com... - Page 42 Port is 80. Press OK to commit the data to the DSII probe. The probe will need to be re-booted for the changes to take effect. DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 5 GrayWolfLive QuickStart Guide...
-
Page 43: Wolfradio Technical Information
You may need to consult with your IT department to see if white-listing the device’s MAC address will bypass the captive portal. Alternatively, a secondary network or hotspot could be utilized. GrayWolf Sales can assist with hotspot selection. DirectSense II Wi-Fi +... -
Page 44: Dsii Wi-Fi Connection Status
10 minutes initially. Once a successful connection is made, should it be subsequently lost, the DSII will attempt to re-establish connection indefinitely on AC power or on battery (until the DSII probe battery level is insufficient to continue). DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 7 GrayWolfLive QuickStart Guide www.GrayWolfSensing.com... -
Page 45: Fixed And Long Term Monitoring
12 seconds. WolfSenseMobile App GrayWolf offers a FREE app for reviewing and logging live readings collected by your Wi-Fi-equipped DSII probe (as well as Bluetooth connected devices). The app may be downloaded from GOOGLE PLAY and APPLE APP STORE by searching “WolfSense Mobile”... -
Page 46: Using Graywolflive
EXPORT or STORE using one of the methods described in Saving and Reviewing Data Recorded in GrayWolfLive below. Changing Units Displayed by your DSII Probe DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 9 GrayWolfLive QuickStart Guide... - Page 47 UPDATE. The new name will be shown on Live Readings, Gauges, Graphs and Logged Data. You may also mark devices as ACTIVE/ INACTIVE. INACTIVE devices will not be shown in your LIVE READINGS view. DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 10 GrayWolfLive QuickStart Guide...
-
Page 48: Saving And Reviewing Data Recorded In Graywolflive
From the Period column, select the link for the time period you would like to download. The data download will start automatically and provide a .csv file containing all the logged parameters for the selected DirectSense II Wi-Fi + GrayWolf Sensing Solutions... - Page 49 GrayWolfLive or be accessed from within WolfSense PC (version 4.0 or higher) by clicking the GWL button. Once data is opened in WolfSense PC, it may be used in Advanced Report Generator reports. DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 12 GrayWolfLive QuickStart Guide www.GrayWolfSensing.com...
- Page 50 Use the STORE DATA button to save the data in GrayWolfLive as described in method #2 so it may be opened in WolfSense PC, included in an ARG (Advanced Report Generator) Report or emailed to a customer directly from the GrayWolfLive website. DirectSense II Wi-Fi + GrayWolf Sensing Solutions Page | 13 GrayWolfLive QuickStart Guide www.GrayWolfSensing.com...
- Page 51 With the appropriate calibration kit / equipment, a User Calibration can be performed on most gas sensors. Standard GrayWolf calibration kits include a regulator, calibration hood with tubing & reference gas to calibrate VOC's, CO2, CO and other gases. Interim User calibrations can help to maintain accuracy and reliability following a Factory calibration.
-
Page 52: Calibration Procedure
Performed with WolfSense LAP or DSII Configuration Tool September 2022 Calibration Procedure: Prior to attempting calibration, the DirectSense II probe should be powered on for a minimum of 30 minutes to fully stabilize for optimum results. 1. Select the parameter you wish to calibrate from the list of available sensors. - Page 53 Performed with WolfSense LAP or DSII Configuration Tool September 2022 5. Open the sensor hatch on the DirectSense II probe to expose the individual sensors. This is done by using a 2.5mm Hex driver to unscrew the screw on the top-back of the probe.
- Page 54 Note: User Calibrations will be immediately reflected in the readings of the DirectSense II probe when connected via cable or Bluetooth classic. The probe must be rebooted for the changes to take effect on readings sent over BLE (to the WolfSense Mobile app), Wi-Fi or OEM mode.
- Page 55 DirectSense II User Calibration Performed with WolfSense LAP or DSII Configuration Tool September 2022 After the calibration is complete, you can view the current settings in WolfSense LAP by selecting Probe Menu / Advanced Calibration / Display Active Cal. In the DSII Configuration Tool, select the VIEW CURRENT CALIBRATION button.
-
Page 56: Restoring Factory Default Settings
When using the DSII Configuration Tool, select the CALIBRATE button, then the parameter to rest and press the FACTORY button. Typical Calibration Set Points and Gas Ranges To properly calibrate your DirectSense II probe, Gray Wolf recommends that the following gas and concentrations be used: Range Typical Set Point 0.5 ppm... - Page 57 In order for a molecule to be ionized by the UV lamp, the ionization potential (IP) must be lower than the energy of the UV lamp. GrayWolf utilizes a 10.6 electron volt (eV) lamp, so anything that has a higher ionization potential will not be detected. Major components of air such as nitrogen, oxygen, methane and carbon dioxide have a higher ionization potential then the UV lamp so they are not detected by a PID sensor, as can be seen in table below.
- Page 58 PID (TVOC) Sensor Guide Getting Accurate Readings with your GrayWolf VOC Probe The PID sensor is a very sensitive device. Proper care, storage, use and calibration of the PID sensor is required to yield optimal results for this product; whether your application is for low range applications, such as IAQ testing, or for high range toxic exposure screening.
- Page 59 (e.g. 110L) cylinders, generally have an uncertainty up to 100 ppb, although check with the specific manufacturer for clarification. Due to the uncertainty in the gas, GrayWolf recommends a positive set point of 100 ppb to account for the uncertainty of the gas. It should be noted that larger gas cylinders (e.g.
- Page 60 You can perform a bump-test of the sensor to verify its calibration by exposing the sensor to a known concentration of test gas. Using the regulator and hood supplied with the GrayWolf Calibration Kit, attach a cylinder of gas and start gas flow. After 5-10 minutes, the readings should stabilize.
- Page 61 If the target gas is the only compound present then there are two ways that you can measure for that compound: -The PID must have a known correction factor for the gas of interest. GrayWolf meters have a list of some VOCs with their correction factors listed onboard under Sensor Tips. In the cases of a known correction factor the compound can be displayed on the device.
- Page 62 Tablet PC or LapTop PC that is running WolfSense software. Power the device display device via its AC adapter. Note: Excessive contamination may required longer burn-in times (up to 48 hours), or lamp replacement. If you suspect your sensor is significantly contaminated, contact GrayWolf for additional assistance. Gray Wolf Sensing Solutions...
-
Page 63: Troubleshooting
® calibration edit point to 50-100ppb. The specification for the Scott HC Free Air supplied by GrayWolf guarantees less than 100ppb THC, and may not be precisely at zero. If the ambient conditions have very low TVOC concentrations, then it is possible that the ambient conditions are lower than the HC Free Air which will force a negative value, causing WolfSense to display zero. - Page 64 PID (TVOC) Sensor Guide Symptom: Solution: Readings will not stabilize. Be patient, especially with the PID sensor which is a very sensitive sensor. Try to avoid sudden temperature or %RH changes which will result in longer stabilization time. Each time the sensor is powered on, tiny amounts of contamination, which accumulate on the lens and lamp while the probe is powered down, are burned off.
-
Page 65: Sensor Response Test
PID (TVOC) Sensor Guide Sensor Response Test You can use readily available retail/commercial products to perform a simple response test of the PID sensor. This will verify the basic operation of the sensor but will not verify that it is properly calibrated. - Page 66 All GrayWolf total volatile organic compounds (TVOC) sensors are calibrated to isobutylene in the factory, so all readings must be compared against isobutylene. The GrayWolf PID utilizes a 10.6 eV lamp which means that it will illicit a response from any compound with an ionization potential (IP) below 10.6 eV.
