GrayWolf DirectSense II Quick Start Manual

DirectSense II Quick Start Guide
All AdvancedSense/tablets/PCs that are used with the DirectSense II must have at minimum WolfSense 2018.50
installed.

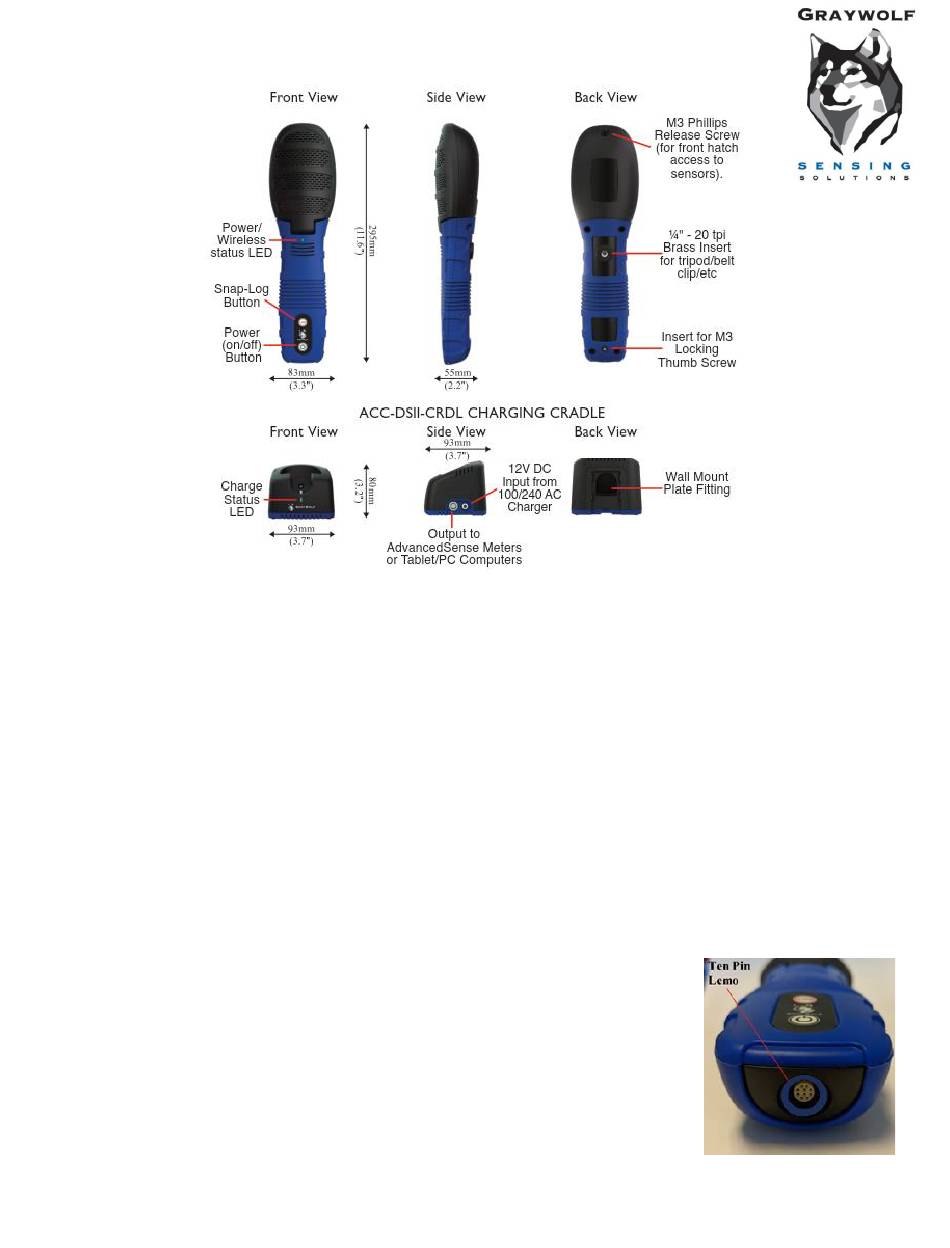

Powering Probe
Depress the power button momentarily to turn on the probe. When the probe first boots up, the LED will cycle Red,
Green, Blue to indicate start up. While the probe is operating the LED will flash color sequences to indicate status.
To turn the probe OFF, depress the power button for >3 seconds. The LED will turn solid Red for 2 seconds and then will
power down indicating an orderly shutdown has occurred. If the probe is not responding, holding the power button
down for >12 seconds will force the probe to power off immediately.
Charging Probe
Place the probe in the charging cradle to charge. The LED on the charging cradle will pulse Green intermittently until the
probe is fully charged, and then will become solid Green. Flashing Red indicates a fault and solid Blue indicates the
cradle is powered but the probe is not inserted.
Probe Connections
Using the AD-DSIIL8-1M cable, connect the male 10 pin Lemo (with blue cable strain
relief) side to either the base of the DirectSense II probe or the right side of the cradle.
The male 8 pin Lemo connector will be attached to one of the ports in the
AdvancedSense Pro/BE/Standard. Using the AD-DSIIUSBM-1M (full size USB) or AD-
DSIIUSB-1M (micro size USB) connect the male 10 pin Lemo (with blue cable strain relief)
side to either the base of the DirectSense II probe or the right side of the cradle. The full-
size USB or micro USB will be attached to the tablet/PC.
For the AdvancedSense Pro/Standard the male 8 pin Lemo end of the cable can be
attached to either one of the two female 8 pin Lemo connectors on the bottom right:
