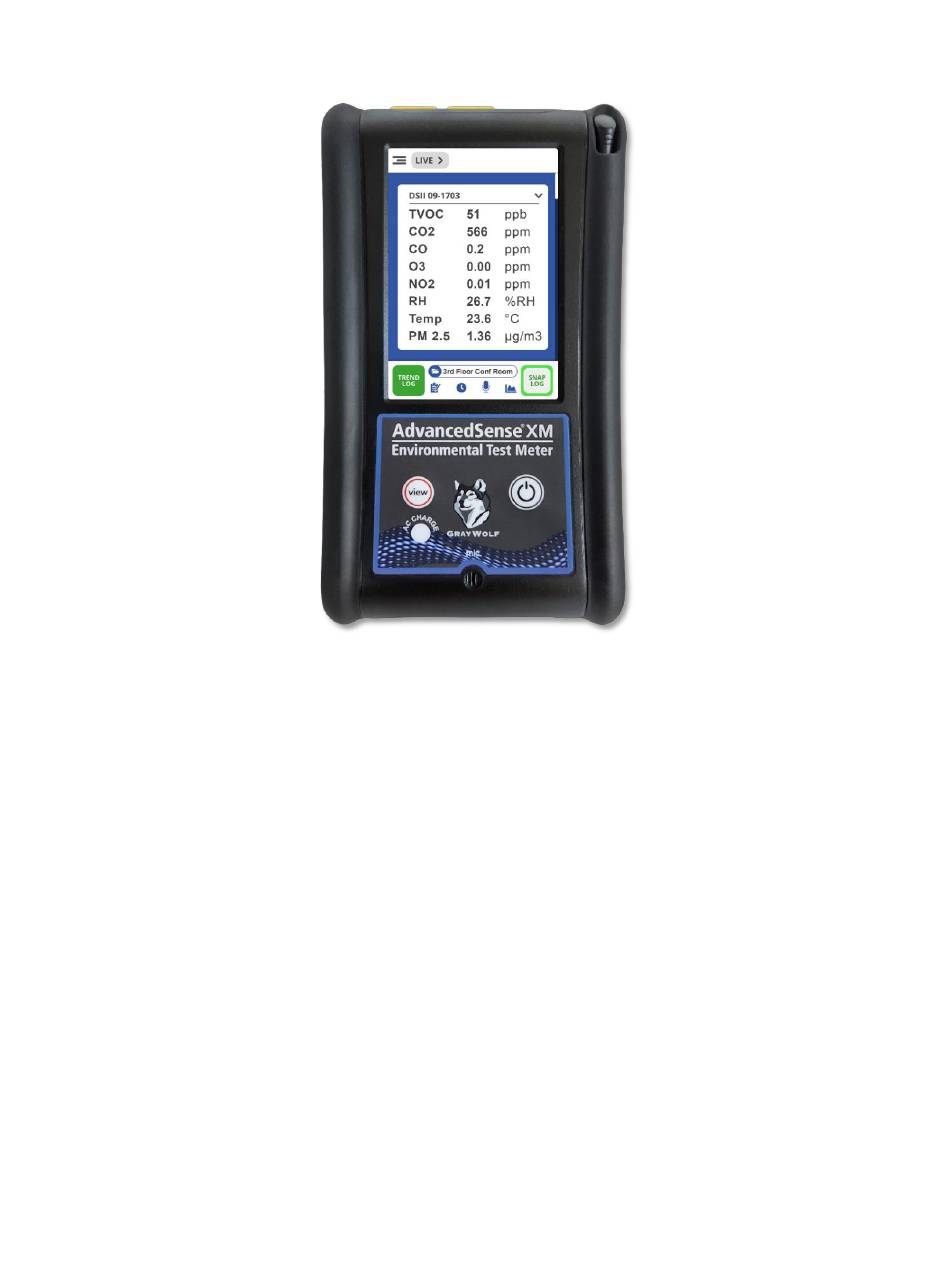

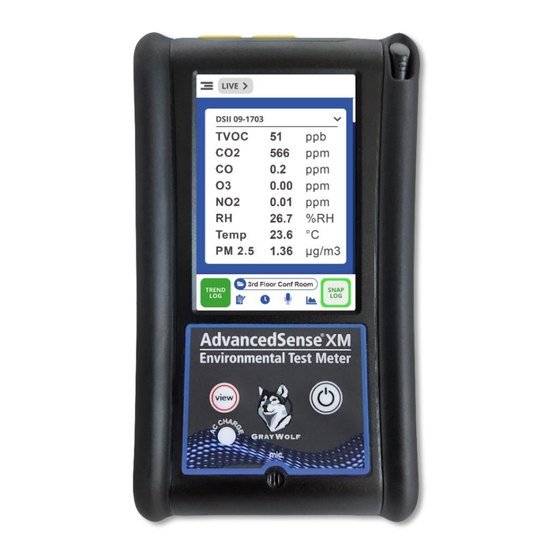

- Page 1 GrayWolf Sensing Solutions AdvancedSense XM User Manual November 2023 v1.0 GrayWolf Sensing Solutions, LLC 6 Research Drive Shelton, CT 06484 GrayWolf Sensing Solutions, LTD Annacotty Industrial Park, Unit 1C Annacotty, Co. Limerick V94 PR2Y Ireland...
- Page 2 Determining the suitability for use of any equipment described in this manual remains SOLELY THE RESPONSIBILITY OF THE END USER. PRODUCT WARNING: GrayWolf Sensing Solutions' probes, AdvancedSense XM kits are NOT suitable for use in flammable or potentially explosive environments. They are NOT certified intrinsically safe. They are also NOT intended for use in confined spaces where operator safety might be at risk due to exposure levels, such as reduced oxygen, during the course of the instrument survey.
-
Page 3: Table Of Contents
Logging ................................13 Creating Sites & Locations ..........................13 Creating Trend Logs ............................14 Creating Snap Shot Logs ..........................15 Reviewing Data on AdvancedSense XM......................16 Exporting Trend Log Data........................... 17 Warranty ................................18 AdvancedSense XM User Manual GrayWolf Sensing Solutions Page | 3 GrayWolfSensing.com... -
Page 4: Introduction
Simultaneously connect 1, 2, or even 3 GrayWolf DirectSense II probes with up to 8 sensors per probe plus a multi-channel, exceptionally reliable particulate meter (PM1, PM2.5, PM10, TPM and more). Available DSII sensors: TVOC, CO2, CO, O3, NH3, HCHO, H2S, NO, NO2, SO2, Cl2, O2, EtO, HCN, H2, HF, HCl, F2, AsH3, SiH4, ClO2, B2H6, COCl2, PH3, %RH, ºC/ºF (plus derived dewpoint, wet-bulb temperature, specific humidity, absolute... -
Page 5: Specifications
Specifications AdvancedSenseXM Views AdvancedSense XM User Manual GrayWolf Sensing Solutions Page | 5 GrayWolfSensing.com... -
Page 6: Advancedsense Xm Specifications
±1%rdg ±4Pa >250Pa (±1% of rdg ±0.001 inH2O to 1.000 inH2O, ±1%rdg ±0.015 inH2O>1.000 inH2O) (For additional sensor/probe specifications refer to GrayWolf’s DirectSense II, IAQ, TOX, TVOC, AIR, and pitot tube brochures graywolfsensing.com/product-literature/) AdvancedSense XM User Manual GrayWolf Sensing Solutions Page | 6 GrayWolfSensing.com... -
Page 7: Powering
Powering The AdvancedSense XM is powered on by pressing the power button on the front the unit. The unit features instant on/off capability because of brand-new internal hardware and efficient WolfOS™ operating software. To power off, navigate to the Quick Access Tiles by pressing the Quick Access Dropdown at the top of the screen. -
Page 8: Navigation
Note: This button will be labeled differently depending on the current view on screen. System Battery is Low (icon appears when battery has 35% life remaining); if not plugged in, the system will shut down. Probes will not be powered while the AdvancedSense XM is at low battery. -
Page 9: Navigating In Wolfos
Rename Site or Location button. Navigating in WolfOS WolfOS provides a fast and user-friendly way to access features on AdvancedSense XM. The device boots into the Live screen and immediately begins searching for probes. The Live screen acts as the home screen in WolfOS and key features are accessed here, such as probe readings and trend logging. -
Page 10: Probe Connection
WIRELESSLY VIA BLE To connect a DSII probe to the AdvancedSense XM, first power on the probe and then the meter. Once on, the AdvancedSense XM will automatically search and discover any BLE-enabled GrayWolf devices. -
Page 11: Particle Meter Connection
To connect a particulate meter to the AdvancedSense XM via BLE, start by mounting your WolfRadio-XM module to your particulate meter and powering both devices on. Next, power on your AdvancedSense XM and it will automatically search for the WolfRadio-XM module over BLE. Connection should be made in less than 1 minute. -
Page 12: Live Readings
Live Readings The Live view is the main screen of WolfOS™ and what the AdvancedSense XM boots into. The Status bar at the top of the screen is where the menu Quick Access Tiles are accessed. On the right of the Status bar, the time and key status symbols such as probe connection and stabilization are displayed. -
Page 13: Logging
Logging Creating Sites & Locations The AdvancedSense XM has built-in trend logging functionality for recording readings from all connected devices at once and saving to a single data file. These data files, called Locations, can be organized on the device with the use of folders, called Sites. -
Page 14: Creating Trend Logs
The built-in logger in the AdvancedSense XM can be accessed directly from the Live view by pressing the Trend Log button, or by going through the Menu, then Log, then Start Log. -
Page 15: Creating Snap Shot Logs
Feature Coming later. Alternatively, if you have enabled the DSII LOG button, Settings (See next section), you can initiate the log from the DSII probe by pressing the LOG button on the probe. AdvancedSense XM User Manual GrayWolf Sensing Solutions Page | 15... -
Page 16: Reviewing Data On Advancedsense Xm
Reviewing Data on AdvancedSense XM Logged data can be reviewed in either tabular or graphical formats on the AdvancedSense XM. For tabular data review, tap the Quick Access Dropdown icon at the top of the screen, and then press the Tabular icon . -
Page 17: Exporting Trend Log Data
USB-C end to the top of the meter and the USB-A end to a Windows computer. NOTE: The AdvancedSense XM connects as a USB drive to your computer. If prompted, do not format the drive, or risk losing all data on the unit. It is okay to scan and repair the drive if prompted, but first safely eject the AdvancedSense XM, power cycle and attempt connection again. -
Page 18: Warranty
GrayWolf shall not be liable for delays, deprivation of use, or any other damages, direct or indirect, which may result to th e purchaser because of defects in the product or because of the purchaser's inability to operate it or use it to purchaser's satisfaction. GrayWolf will not be liable to anyone for special or consequential damages of any kind.
