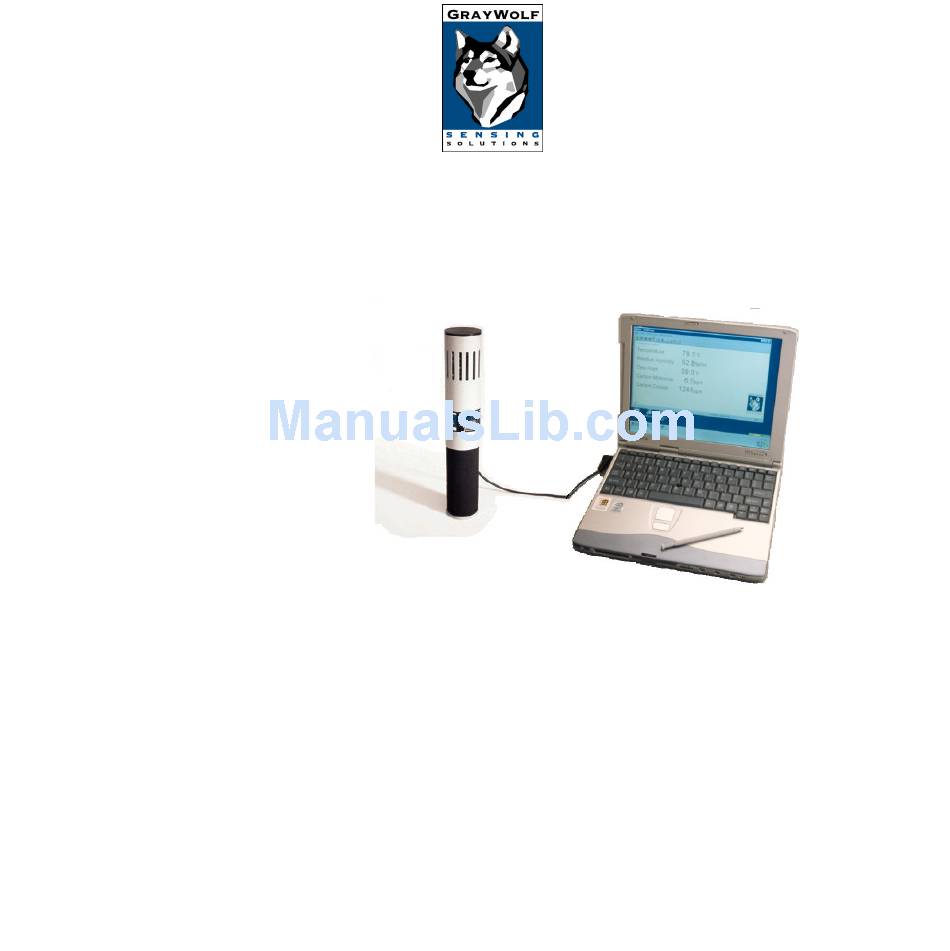

  • Page 1 GrayWolf Sensing Solutions WolfSense™ IAQ LAP User Manual...
  • Page 2 This manual is published solely for instructional purposes related to the operation of GrayWolf's DirectSense™ and VentCal™ products. Some of the details contained in this manual are derived from information proprietary to GrayWolf Sensing Solutions,...
  • Page 3 GrayWolf Sensing Solutions WolfSense™ IAQ LAP DirectSense™ User Manual GrayWolf Sensing Solutions 12 Cambridge Drive Trumbull, CT 06611 www.wolfsense.com...
  • Page 4 This page intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents INTRODUCTION ......................1 UNPACKING YOUR GRAYWOLF MONITOR..............1 POWERING ........................2 SETTING UP THE HARDWARE AND SOFTWARE............3 NAVIGATING IN WOLFSENSE IAQ LAP..............4 LIVE MODE........................5 Readings........................5 Details ........................6 Statistics ........................6 Graph........................7 DATA ORGANIZATION: SITES AND LOCATIONS ............7 Creating, Selecting and Deleting Site Folders and Location Files ......8 TYPES OF LOGS ......................9...
  • Page 6 This page intentionally left blank.

  • Page 7: Introduction

    Later, you may use WolfSense™ PC software on the Lap PC to open files of logged readings for printing, graphing or exporting to a word processor or spreadsheet. In the DirectSense™ 100 kit, the probe (model IQ-410) has four sensors which provide five measurements: Temperature (°F/°C), Relative Humidity (%RH), Dew Point, Carbon Monoxide (CO), and Carbon Dioxide (CO ).

  • Page 8: Powering

    Like the Lap PC, the probe runs on batteries or with an AC adapter. The probe uses only alkaline batteries. The GrayWolf kit provides two D cells and a 110VAC adapter (240VAC in Europe) for the probe. WolfSense IAQ LAP software will warn you if the probe’s battery voltage is low.

  • Page 9: Setting Up The Hardware And Software

    Setting up the Hardware and Software The serial port on the Lap PC (as in Figure 2) is used to connect to the probe while taking readings. Before attaching the probe, be sure the COM port is clear and that the COM indicator appears in the lower right-hand side of the screen.

  • Page 10: Navigating In Wolfsense Iaq Lap

    Navigating in WolfSense IAQ LAP From the main screen, you will perform all the functions available with WolfSense LAP. The pull-down menus and toolbar buttons are described briefly below. Pull-Down Menus File - to manage files: O in WolfSense PC, N to access Text Notes, Drawing Notes OCATION OTEBOOK...

  • Page 11: Live Mode

    Fahrenheit, Celsius or Kelvin (absolute). To remove a parameter from the display, Figure 5 - Live Mode - Readings (DirectSense 100) click on or tap Disable Display. To restore all parameters, click on or tap the ALL toolbar button or View, View All, or type Ctrl-A.

  • Page 12: Details

    View, Details. The table displays columns based on parameters chosen for display in View, Readings. Figure 7 - Live Mode - Details (DirectSense 100) Statistics The Statistics window displays the minimum, maximum and average readings for a single parameter in a separate window that may be minimized and kept on the screen.

  • Page 13: Graph

    Graph Graph allows you to plot readings for a selected measurement parameter in real time from Live Mode, Readings. To see current values from the probe, click on or tap View, Readings. To choose the parameter you want to graph, click on or tap the desired parameter.

  • Page 14: Creating, Selecting And Deleting Site Folders And Location Files

    Creating, Selecting and Deleting Site Folders and Location Files First, create or select the site folder you need. Then, create or select a location file in that site folder. The next time a log begins, readings will collect in the location file you just selected. This location file collects readings until you select a different location file for logging.

  • Page 15: Types Of Logs

    on or tap an existing location to highlight it. Click on or tap Select. The dialog box will close and the location file will be ready for logging. To delete a location file or entire site folder, click on or tap File, Open or View, View Location.

  • Page 16: Snapshot Log

    Snapshot Log The Snapshot Log lets you log values from the probe manually—even supplemental values if you are running a Standard Timed or Auto Start/Stop log. Click on or tap the Snapshot toolbar button or Log, Snapshot Log. The dialog box confirms the name of the location file to which values are being logged.

  • Page 17: Auto Start/Stop Log

    Auto Start/Stop Log The Auto Start/Stop Log allows you to specify a starting date and time, an ending date and time, and an interval. Because it will start and stop automatically, this log mode is particularly useful for unattended logging and/or for pre-programming the system for delivery to a measurement location in the PCC-15 deluxe hardshell security case.

  • Page 18: The Logging Process

    Log icon, at the lower left side. To find out what log program is active, click on or tap Log, Log Info or the Log icon. Figure 21 - View, Details while Logging (DirectSense 100) The L dialog box shows the kind of log, the specified ROGRAM interval, and the location file to which readings are being logged.

  • Page 19: Stored Readings

    You may create one report from each of the report templates. You may also add or delete your own customized report templates for the “Report” selection in the \ProgramFiles\GrayWolf\WolfSense\Templates directory. The Sound Note uses your system’s sound recording software and a microphone to record an audio note.

  • Page 20: Text Notes

    Text Notes Once you have selected a file as described in the previous section, you may create a text note using Windows Notepad or your system’s default text editor. For a text note, click on or tap Text. Click on or tap Create. The Edit button will be available only if a note already exists for the location.

  • Page 21: Reports

    Update each report as often as needed. Reports are stored with their associated location file in the same site folder: \My Documents\WolfSense. Add your own report templates to the \Program Files\GrayWolf\WolfSense\Templates directory: create templates in using a word processor and save them as Rich Text Format (.rtf) files.

  • Page 22: Sound

    Sound If your Lap PC is equipped with sound recording software and a microphone, you may record notes as sound. Click on or tap Sound in the N dialog box (Figure 27). Click on or tap Create. Speak into the OTEBOOK microphone to record your note.
  • Page 23 This page intentionally left blank.
  • Page 24 This page intentionally left blank.

  • Page 25: Probe Information

    Probe Information To display the status of the probe from the WolfSense IAQ LAP main screen, click on or tap Probe, Information. Probe Battery - how much battery time is left. Battery life calculations are based on standard alkaline batteries used at 70ºF (21ºC). Battery life will vary depending on the battery manufacturer and the ambient temperature at which the probe is used.

  • Page 26: Probe Calibration

    Probe Calibration The probe may be calibrated in one of three ways:  at the factory, according to GrayWolf standards;  at the factory (or an outside calibration laboratory) using NIST-certified traceable standards;  by the user (described in this section).
  • Page 27 Optional: Click on or tap Default to force all calibrations to revert to the factory defaults for calibration points and stabilization times initially supplied by GrayWolf. Optional: Click on or tap Clear to remove the current calibration. If a user calibration is cleared, the probe will use a NIST calibration (if available) or the factory calibration.

  • Page 28: Probe Setup

    A countdown screen shows the additional stabilization time allowed and remaining for this measurement. Once the stabilization time has elapsed, the software will automatically record the current value of the measurement. You may then continue with the other calibration point or other measurement parameters.

  • Page 29: Using Additional External Probes

    Changing Serial Ports Click on or tap in the field next to Serial Port. Type the number of the COM port available for use. (The system defaults to 1 the first time.) Click on or tap OK. Figure 43 – P dialog box ROBE ETUP...

  • Page 30: Navigating In Wolfsense Pc

    Navigating in WolfSense PC From the main screen, you will perform all the functions available with WolfSense PC. The pull-down menus and toolbar buttons are described briefly below. Pull-Down Menus File - to manage files: O , list of recently used files, EPORT OTEBOOK RINT...

  • Page 31: Graphing Data Files In Wolfsense Pc

    Figure 47 – Location File Open in WolfSense PC After logging is complete, open a location file from WolfSense IAQ LAP, or click on or tap Start, Programs, GrayWolf, WolfSense PC. Click on or tap Open to see location files stored on your Lap PC.

  • Page 32: Printing Location Files, Notes, Reports & Calibration Data From Wolfsense Pc

    Printing Location Files, Notes, Reports & Calibration Data from WolfSense PC A location file may only be printed from WolfSense PC. If you open a location file from WolfSense IAQ LAP, the file actually opens in WolfSense PC. Once a text note, drawing note, template report or custom note has been created for a location file, you may print it from WolfSense PC.

  • Page 33: Maintenance, Cleaning, Service

    “Probe Calibration” on page 20. The temperature sensor is calibrated at the factory. It is recommended that you return your probe to GrayWolf for an annual factory recalibration and check-up.

  • Page 34: Summary Of Cautions

    If the outside of the probe becomes dirty, you may clean it using a slightly damp cloth. It is not recommended that you clean inside the probe. If the inside does get dirty or dusty, the probe should be returned to GrayWolf for servicing. Summary of Cautions Avoid operation in direct sunlight as %RH measurements may become erratic.

  • Page 35: Troubleshooting

    Troubleshooting Symptom – The WolfSense software has locked up Press CTRL-ALT-DEL. In the dialog box, click on or tap WolfSense IAQ LAP (or WolfSense PC). Click on or tap END TASK. Restart the WolfSense software from the LAP PC desktop. If the system does not respond, from the Windows Start Menu, click on or tap Shut Down.

  • Page 36: Specifications

    Specifications LAP PC 32MB RAM minimum 20MB minimum available hard disk space Microsoft Windows 98, NT Recommended model Fujitsu Lifebook Computer B-2130 is equipped with: 400MHz Intel® Celeron processor 64MB RAM 6GB hard drive 56.6K modem external 3.5" floppy drive Microsoft Windows 98 PROBES Parameter...

  • Page 37: Probes & Accessories

    Probes & Accessories PROBES IQ-410 CO, CO , %RH and Temperature Probe CD-201 , Temperature and Ventilation Probe AS-201 Telescoping Hotwire Air Velocity Probe PM-201 MIE Particulate Monitor ACC-SCPM Serial Card Adapter with software for PM-201 TG-201 Toxic Gas Probe (up to 5 sensors) ACCESSORIES HH-02 NEC Mobilepro 780 Handheld Computer...
  • Page 38 Fumehood Face Velocity Calibration software SOFT-THERM Thermal Comfort Calibration software WolfSense Air Air Velocity Probe software WolfSense IAQ Palm Palmheld PC software for DirectSense 100 applications WolfSense IAQ Lap Laptop PC software for DirectSense 100 applications SOFT-HW1 Handwriting Recognition Software SPARES...
  • Page 39 PRODUCT WARNING: GrayWolf Sensing Solutions' DirectSense probes and DirectSense kits are NOT suitable for use in flammable or potentially explosive environments. They are NOT certified intrinsically safe. They are also NOT intended for use in confined spaces where operator safety might be at risk due to exposure levels, such as reduced...
  • Page 40 90-day warranty from the date of return shipment. (d) GrayWolf shall not be liable for delays, deprivation of use, or any other damages, direct or indirect, which may result to the purchaser because of defects in the product or because of the purchaser's inability to operate it or use it to his satisfaction.
  • Page 41 WolfSense Technical Support http://www.wolfsense.com/tech.html Software e-mail: softsupport@wolfsense.com Hardware e-mail: techsupport@wolfsense.com Phone: 203-849-8509 WolfSense on the Web: http://www.wolfsense.com Feedback We appreciate your input. Please e-mail any comments or suggestions you may have about this manual to manuals@wolfsense.com.
