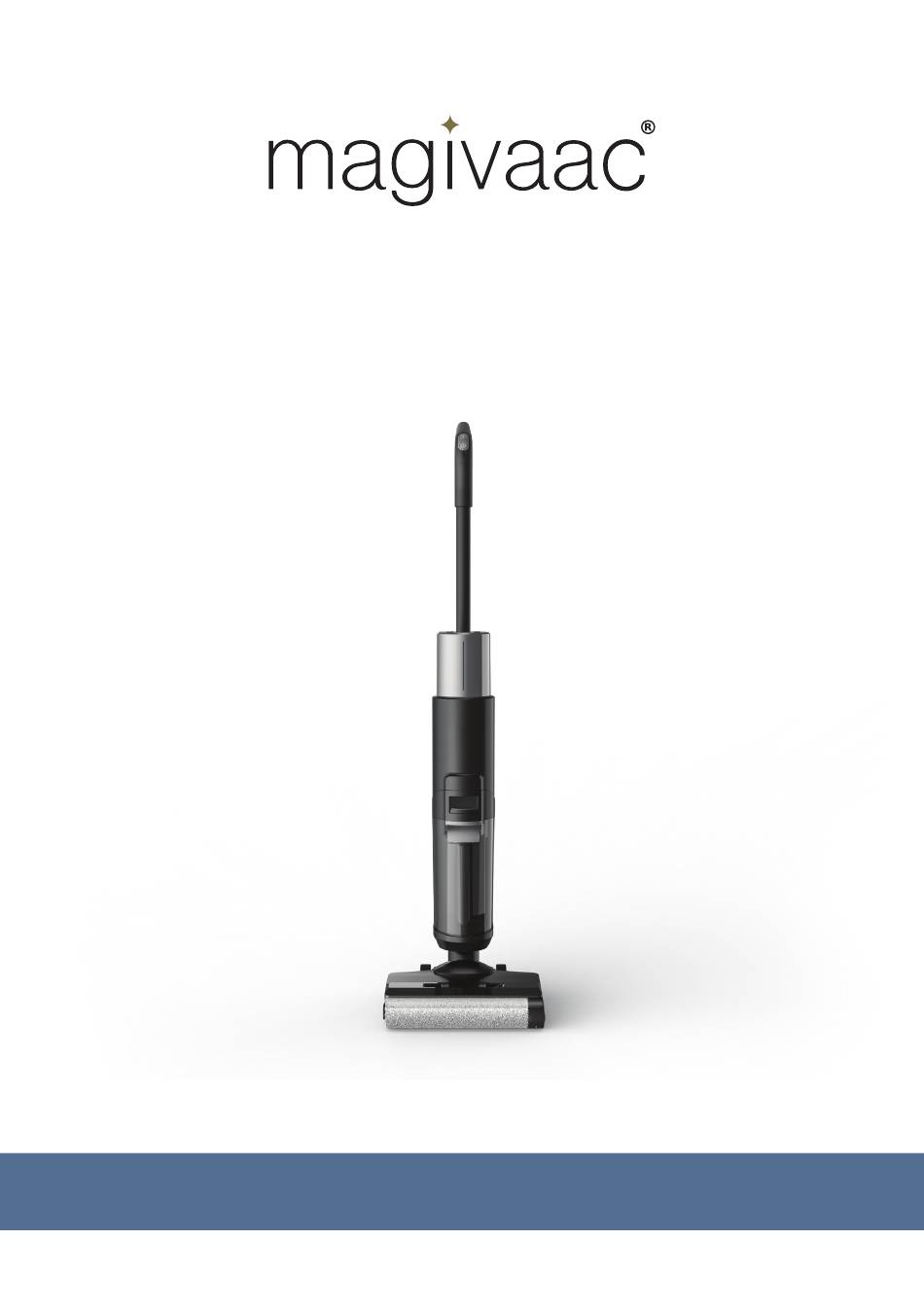

- Page 1 Auto Wet & Dry Cordless Vacuum with self-cleaning roller brush Model: VW231 | Batch: PR5025 Carefully read all instructions before use and save for future reference.
-
Page 2: Important Safeguards
6. Do not use the appliance with a damaged cord or plug. If it has been dropped, damaged, submerged in water, or is malfunctioning, contact Lenoxx customer service. 7. Do not handle the charger, including the charger plug, with wet hands. - Page 3 12. Refrain from picking up burning or smoking items like cigarettes, matches, or hot ashes. 13. Always use the appliance with a filter installed. 14. Turn off the appliance before carrying it, making any adjustments, accessory changes, or storage to prevent accidental activation. 15.
-
Page 4: Product Overview
PRODUCT OVERVIEW Mode Switch Button Power On/Off Handle Control Panel Clean Water Tank Dirty Water Tank Latch Dirty Water Tank Handle Dirty Water Tank Roller Brush Cover Latches Roller Brush Cover Roller Brush Model VW231 Rated Power 200W Size 280 x 270 x 1135 mm... - Page 5 ACCESSORIES Charging Base HEPA Filter Holder Roller Brush Holder Power Adapter HEPA Filter Cleaning Brush Roller Brush...
-
Page 6: Handle Installation
HANDLE INSTALLATION Insert the handle vertically into the To disassemble this product, press a main body until you hear a click hard object into the hole at the back sound. Ensure it’s securely in place. of the machine, while pulling the handle of the machine upwards. - Page 7 DIRTY WATER TANK ASSEMBLY To remove the dirty water tank, hold To install the dirty water tank, start the device body with one hand and by placing the bottom of the tank press the button on the dirty water into the opening support position tank with your other hand.
-
Page 8: Operation
OPERATION Preparation/Power on 1. Power on: After fully charging the battery, press and hold the power on/off button for 3 seconds to turn on the device. Press the button again to turn it off. 2. Auto/Vacuuming Mode Switch: The device starts in Auto mode by default. Touch the Mode Switch Button to switch to Vacuuming Mode;... - Page 9 Digital Display & Functions Voice Switch Button Press to turn the voice prompts on or off. Display Shows battery info, electrolysis progress, Electrolysis Button and error codes. When the device is powered on, press this button to activate Self-Cleaning Button electrolysis mode and Max Mode Button sanitise the water in...
- Page 10 Upright Switch When the device is placed upright, it will stop running and enter standby mode. If there is no operation within 5 minutes in standby mode, the machine will shut down. After completing cleaning with this device, it is recommended to place it vertically on the provided charging dock.
-
Page 11: Filling The Clean Water Tank
Filling the clean water tank 1. Press the release button of the clean water tank to remove it. 2. Open the top cover of the clean water tank and fill it with clean water below 60°C up to the water level mark. Close the top cover tightly to ensure it’s not loose. - Page 12 Smart Sensor Indicator Light The smart sensor indicator is designed to show the level of dirtiness. Red for dirty, blue for clean. The blue part of the indicator increases as the floor is cleaned, showing that the floor is becoming cleaner. Smart Sensor Indicator Light Charging Place the machine on the charging dock.
-
Page 13: Cleaning And Maintenance
CLEANING & MAINTENANCE Cleaning the main unit To ensure optimal performance of the device, regular maintenance of its parts is recommended. After using the device for cleaning, it is advised to place it upright on the charging dock. Avoid placing it in direct sunlight or humid areas. -
Page 14: Cleaning The Hepa Filter
Cleaning the top cover of the dirty water tank 1. If you find that the dirty water tank is blocked, remove the top cover of the dirty water tank. 2. Rinse the top cover with clean water after removing it. Once it is fully cleaned, put it back onto the dirty water tank. -
Page 15: Self-Cleaning
Self-Cleaning • Empty the dirty water tank before starting and after completing the self-cleaning function. • If any residual stains appear on the charging dock, please clean them promptly. 1. Place the device back into the charging dock after use. 2. -
Page 16: Cleaning The Roller Brush
Cleaning the roller brush It is recommended to clean and dry the roller brush after using the device to keep it clean and tidy. Tips: If you find any residual stains on the tip of the suction nozzle, wipe it with a damp fabric instead of washing it with water. -
Page 18: Troubleshooting
Replace the brush roller if cleaning effectiveness is compromised. Faulty battery pack Fully charge and discharge the battery of the product in 3 cycles. If the problem persists or if you encounter other issues, please contact Lenoxx customer service for further assistance. - Page 19 Error Code Meaning Dirty water tank if full Dirty water tank is not installed Roller brush is entangled or not installed Not enough water in the clean water tank for self-cleaning or water electrolysis...
- Page 20 1300 666 848 LenoxxElectronics LenoxxElectronics...
