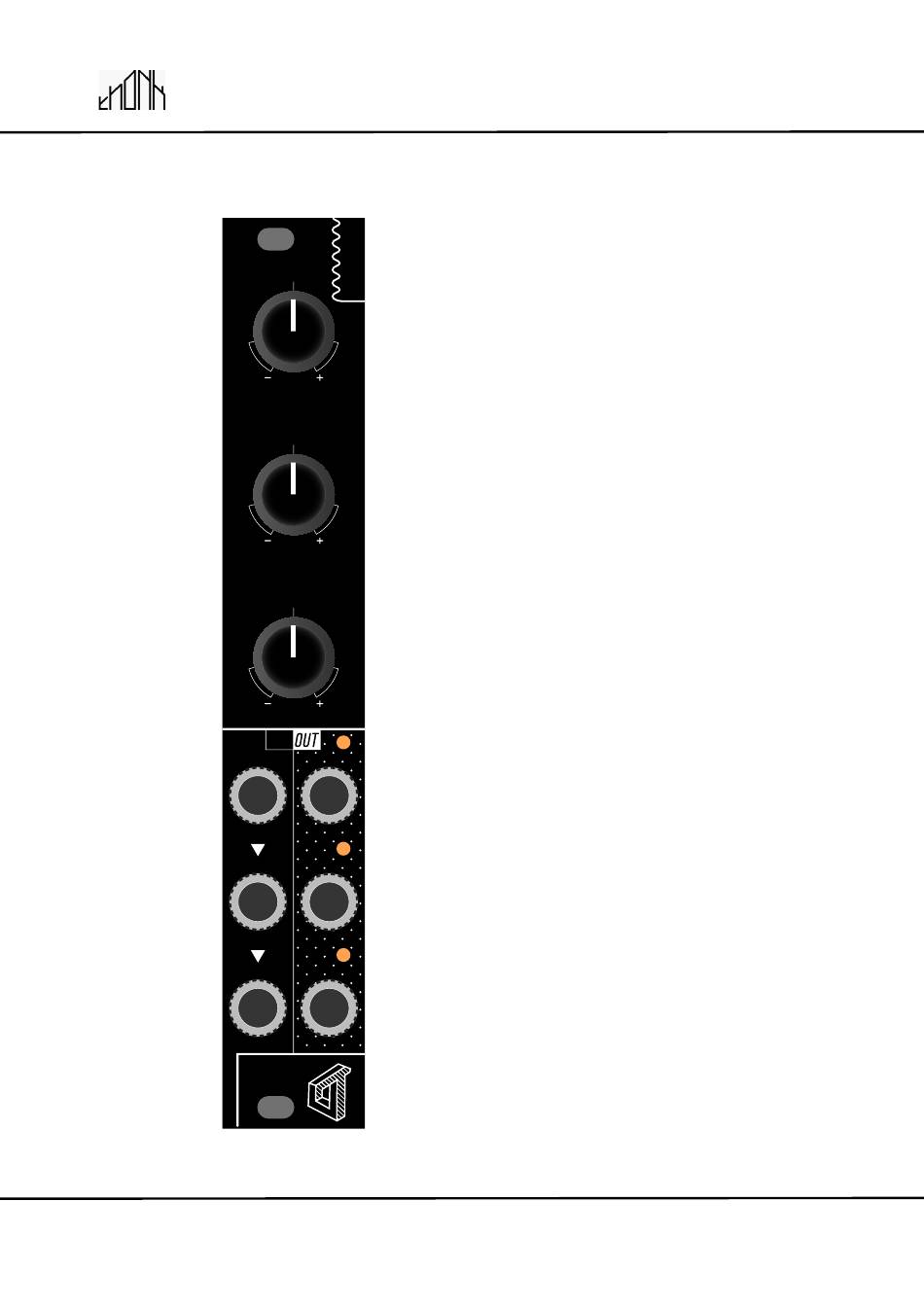

- Page 1 THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions MIX A MIX B THONK SYNTH CASCADING UTILITY MIX C MIXER Eurorack DIY Kit Build Instructions Feb 2025 www.thonk.co.uk...
-
Page 2: Tools Required
For the most recent version of this document please visit https://www.thonk.co.uk/shop/thonk-synth-t04-cas-kit/ This document should be used in conjunction with the relevant user manual. All Thonk kits are sold under our standard Terms and Conditions - http://www.thonk.co.uk/faq/ DIY INSTRUCTIONS This document gives detailed instructions that assume you have purchased a complete kit from www.thonk.co.uk. -
Page 3: Solder Joints
THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions SOLDER JOINTS Your solder joints should look like those shown as ‘OK’ below, they should have that neat conical shape on BOTH sides of the PCB. If they don’t look the same on both sides then stop! Work out why from the soldering guides linked and don’t continue until you are getting those results. -
Page 4: Build Instructions
THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions BUILD INSTRUCTIONS First take the PCB and solder the 2x5 power header to the rear of the board (the side with the SMD components that are already pre soldered to the PCB). - Page 5 THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions Next flip the PCB over. Find the following parts and place onto the board as pictured. 3x B100k Pots 6x Thonkiconn Jacks DON’T SOLDER YET Place three of the provided silver washers onto each of the green pots.
- Page 6 THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions Place the three LED’s into the Clear bi- positions marked D4, D5, D6 above colour LED each row of jacks. (D4, D5, D6) CHECK ORIENTATION – these components are polarized and must...
- Page 7 THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions Use masking tape or similar placed over the LED holes to keep them flush against panel whilst soldering. DON’T SOLDER YET Solder all 39 joints on the pots, jacks and LED’s.
- Page 8 THONK SYNTH Eurorack DIY Kit Version 1.0 04 CAS Instructions For the next step find the knobs and knob caps which come as separate pieces. First place each knob onto the pot, with turned fully counterclockwise. This is your ‘zero’ point for the knob.
- Page 9 CAS, and for information on using the supplied jumper block to change between the two different modes. Find the manual and other product info on the Thonk website. https://www.thonk.co.uk/shop/thon k-synth-t04-cas-kit/ Feb 2025 www.thonk.co.uk...
