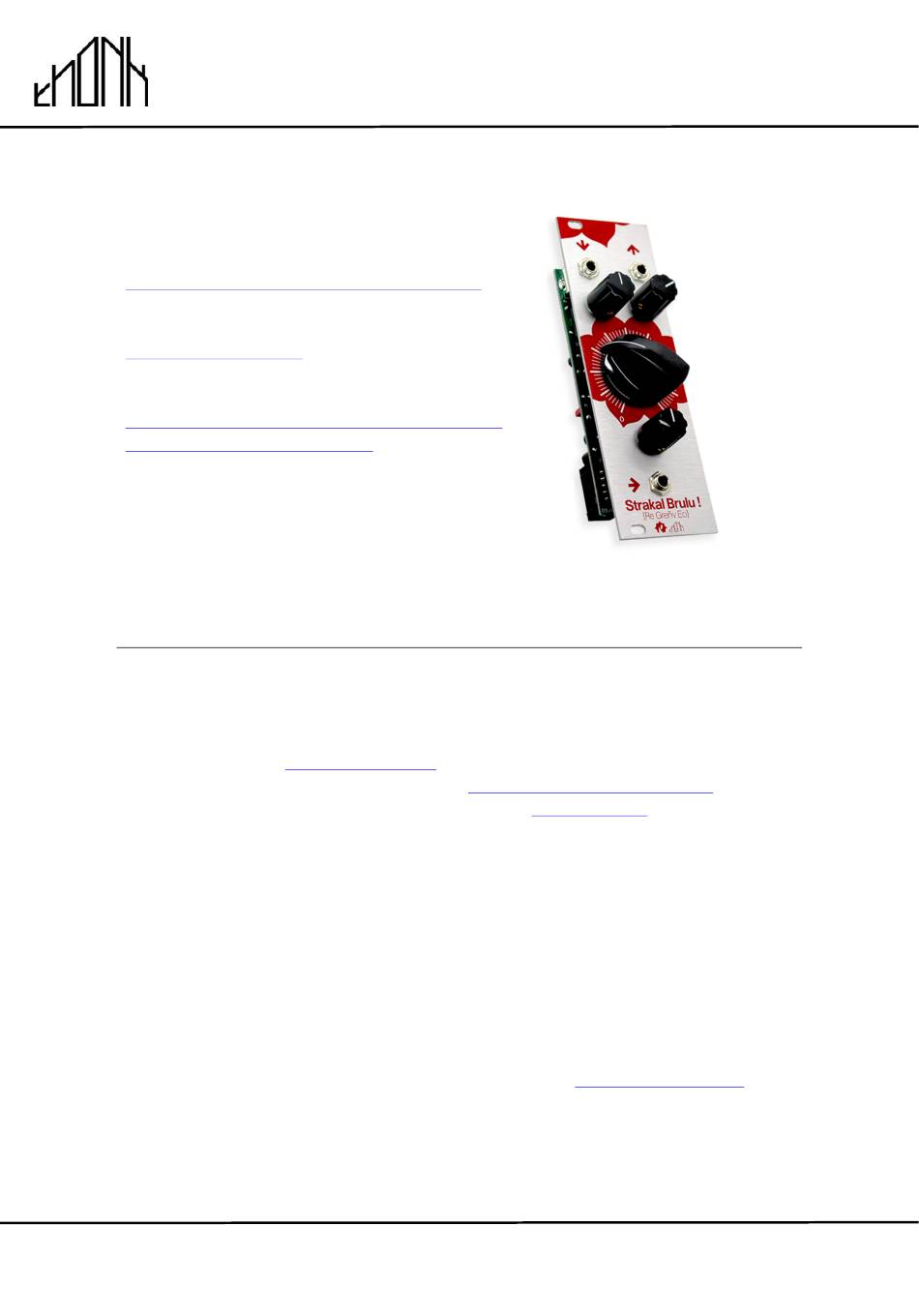

TouellSkouarn
Strakal Brulu Module
!
!
OVERVIEW
For the most recent version of this
document please visit
http://www.thonk.co.uk/documents/strakal
For all technical support please visit
http://bit.ly/1h4aVPk
The Strakal Brulu manual is here
http://www.thonk.co.uk/documents/strakal/
StrakalBrulu_ReGrenvEo.pdf
IF YOUR KIT IS DATED 2016
CLOSE THIS DOCUMENT AND
DOWNLOAD THE V1.3.1 MANUAL
INSTEAD:
All
Thonk kits are sold under our standard Terms and Conditions -
http://www.thonk.co.uk/faq/
thonk.co.uk/documents/strakal/
DIY INSTRUCTIONS
This document gives detailed instructions that assume you have purchased a
complete kit from www.thonk.co.uk. It also assumes no previous knowledge
of electronics. To learn to solder try
Adafruit guide to excellent soldering –
Watch and understand that whole YouTube video! If you're not achieving the
results shown in the video then you need to buy new tools or seek advice.
You will not end up with a working module otherwise.
TOOLS REQUIRED
Soldering iron, snipe nose pliers, wire strippers, small flat head screwdriver
and diagonal cutters AKA snips AKA side-cutters. A Digital Multimeter is
necessary for calibrating this module accurately but you can do it by ear to
taste. Thonk sell a range of inexpensive tools here -
October 25
on Muffwiggler.
th
2013
www.thonk.co.uk
Eurorack DIY Kit
Instructions
http://youtu.be/I_NU2ruzyc4
http://bit.ly/1l77tF4!
http://bit.ly/1jxqF3n
Version 1.0
and the
1
Advertisement
Related Manuals for Thonk TouellSkouarn Strakal Brulu
Summary of Contents for Thonk TouellSkouarn Strakal Brulu
- Page 1 IF YOUR KIT IS DATED 2016 CLOSE THIS DOCUMENT AND DOWNLOAD THE V1.3.1 MANUAL INSTEAD: Thonk kits are sold under our standard Terms and Conditions - http://www.thonk.co.uk/faq/ thonk.co.uk/documents/strakal/ DIY INSTRUCTIONS This document gives detailed instructions that assume you have purchased a complete kit from www.thonk.co.uk.
-
Page 2: Solder Joints
This isn’t just OCD talking, you are very likely to end up with a destroyed, damaged or defective unit if you’re not hitting that standard. This photo is from the Adafruit guide to excellent soldering - http://bit.ly/1jxqF3n and is reproduced under an Attribution-Sharealike creative commons license - http://creativecommons.org/licenses/by-sa/3.0/ October 25 2013 www.thonk.co.uk... - Page 3 The first job is to solder all the resistors. Start by soldering the single 1K resistors in position R18. Solder the two 100R resistors in positions L1 and L2. Solder the two 100K resistors in positions R4 and R13. October 25 2013 www.thonk.co.uk...
- Page 4 Solder the single 220R resistor in position R9. Solder the single 390R resistor in position R17. Solder the single 470R resistor in position R1. Solder the single 12K resistor in position R16. Solder the single 15K resistor in position R15. October 25 2013 www.thonk.co.uk...
- Page 5 Vactrol body. Note also that on one side of the Vactrol the leads are further apart, this end of the vactrol is positioned closer to the edge of the PCB. NOTE! – The orientation is vital. October 25 2013 www.thonk.co.uk...
- Page 6 C8, CD1, CD2. The orientation of these components does not matter. This capacitor has the marking ‘u1J63’ Solder the single 1uF film capacitor into position C4. The orientation of this component does not matter. This capacitor has the marking ‘1uJ63’. October 25 2013 www.thonk.co.uk...
- Page 7 + NOTE! – Ignore this pad marked on do not use NOTE! – On all these electrolytics there are two holes provided for the negative or shorter lead, you can use either. October 25 2013 www.thonk.co.uk...
- Page 8 Next you need to snip off the two smaller feet on all the pots. You can repeatedly bend them to snap them off, but you must be careful to not completely break off the metal plate underneath. October 25 2013 www.thonk.co.uk...
- Page 9 Mount your finalised panel with the graphics the right way up. Solder all the pots and jacks. Note that unlike some builds only the main three pins pots need soldering. October 25 2013 www.thonk.co.uk...
- Page 10 Strakal Brulu Module Instructions Remove the panel again. NOTE! – The transistor orientation is vital and is not intuitive. Ignore the Next you will solder the smaller PCB silkscreen and follow the image Germanium Transistor. below. October 25 2013 www.thonk.co.uk...
- Page 11 NOTE! – Later on you might need to put a probe on the C pin of this transistor, so mount it high off the board as shown to give you more options for access. October 25 2013 www.thonk.co.uk...
- Page 12 It is advisable to only use the cable provided. You should maybe make a mark on the PCB to indicate where the red stripe should go if this is a concern to you. October 25 2013 www.thonk.co.uk...
- Page 13 Not trimming the module will not damage it, but these values are a good starting point for use, the trimmer can alter the sound quite radically in interesting ways though so exploration is encouraged. If it sounds good, it’s good ! October 25 2013 www.thonk.co.uk...
- Page 14 Strakal Brulu Module Instructions Suggested test points if you need to meter from the front of the board: Note! If you left the C leg on Q2 long then don’t forget to finally trim it down after! October 25 2013 www.thonk.co.uk...
