RAB LFX Instructions

INSTRUCTIONS
LFX™
FIELD-ADJUSTABLE LANDSCAPE FLOODLIGHT INSTALLA
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fi xture. No user serviceable parts inside.
Use silicone sealant or Tefl on® tape around the thread of the arm.
WALL MOUNTING
Mount to a weatherproof Junction Box (by others) and Cover
Plate (by others) as shown in Fig. 1. To ensure weatherproof seal
apply weatherproof silicone sealant around the edge of the wall
Cover Plate or surface box. This is especially important with an
uneven wall surface.
1. Seal Arm threads using Tefl on® tape or silicone sealant.
2. Thread fi xture into Cover Plate (by others).
3. Connect wires as shown in wiring diagram (Fig. 6).
appropriate wire connections per NEC.
4. Attach Cover Plate to Junction Box (by others)
5. Aim Fixture in the desired direction and tighten Locknut and
Arm Screw to secure.
6

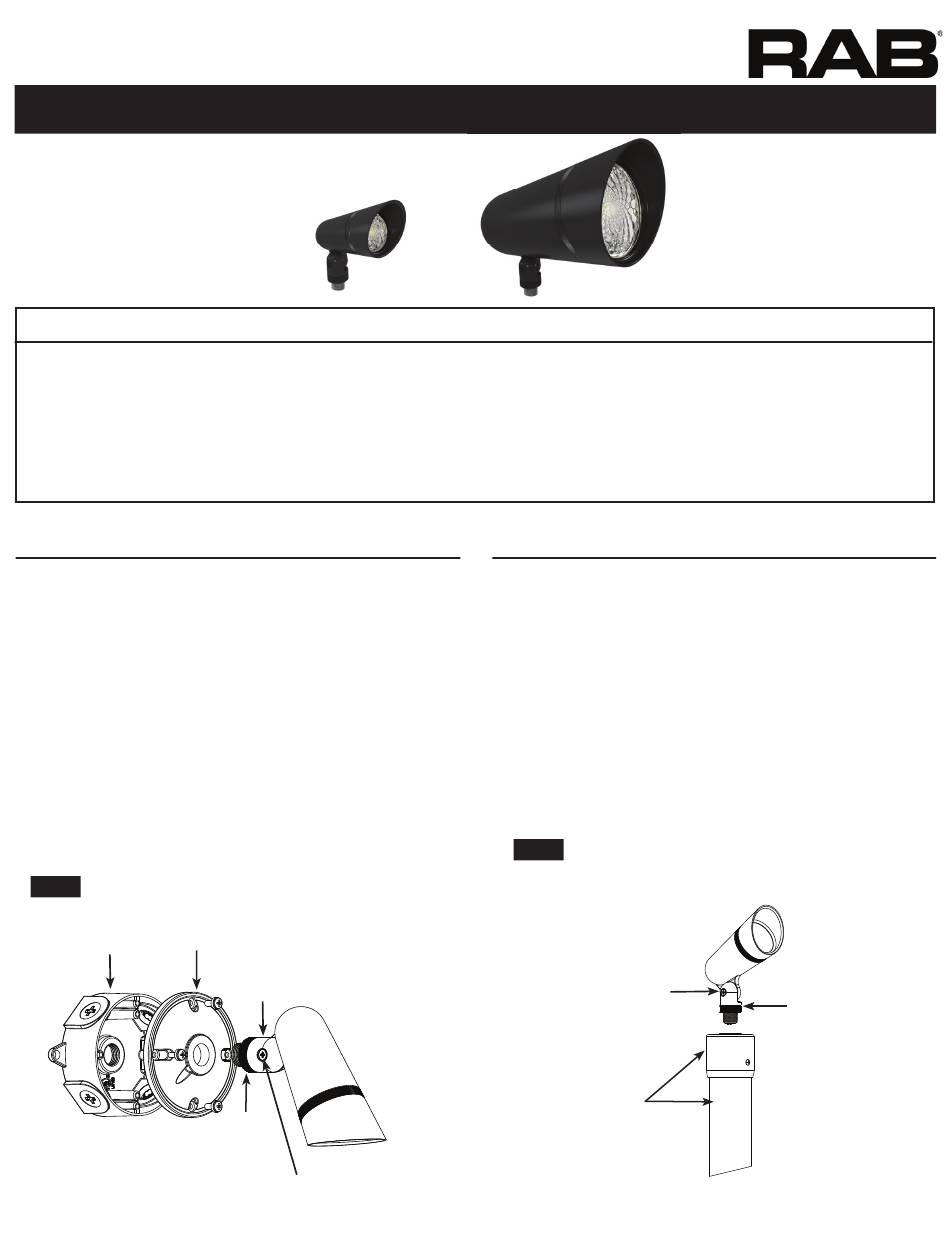

FIG. 1
Cover Plate
Junction Box
(by others)
(by others)
LFXS
Make
Arm
Locknut
Arm Screw
TION
LFXL
GROUND MOUNTING
Mount to a Mighty Post (ordered separately, RAB CAT# MP19) or
similar as shown in Fig. 2.
1. Remove Mighty Post Cap and thread Fixture into Cap. Use
silicone sealant or Tefl on® tape around the thread of the Arm
Fig. 1).
2. Connect wires as shown in the wiring section (Fig. 6).
appropriate wire connections per NEC.
the Mighty Post.
3. Place Mighty Post Cap on the Mighty Post and secure. Aim
Fixture in the desired direction by loosening the Arm Screw,
tighten Locknut and Arm Screw to secure.
6
FIG. 2
Arm Screw
Mighty Post & Cap
(ordered separately)
Make
Push all wires inside
Locknut
