RAB AL Installation Instructions

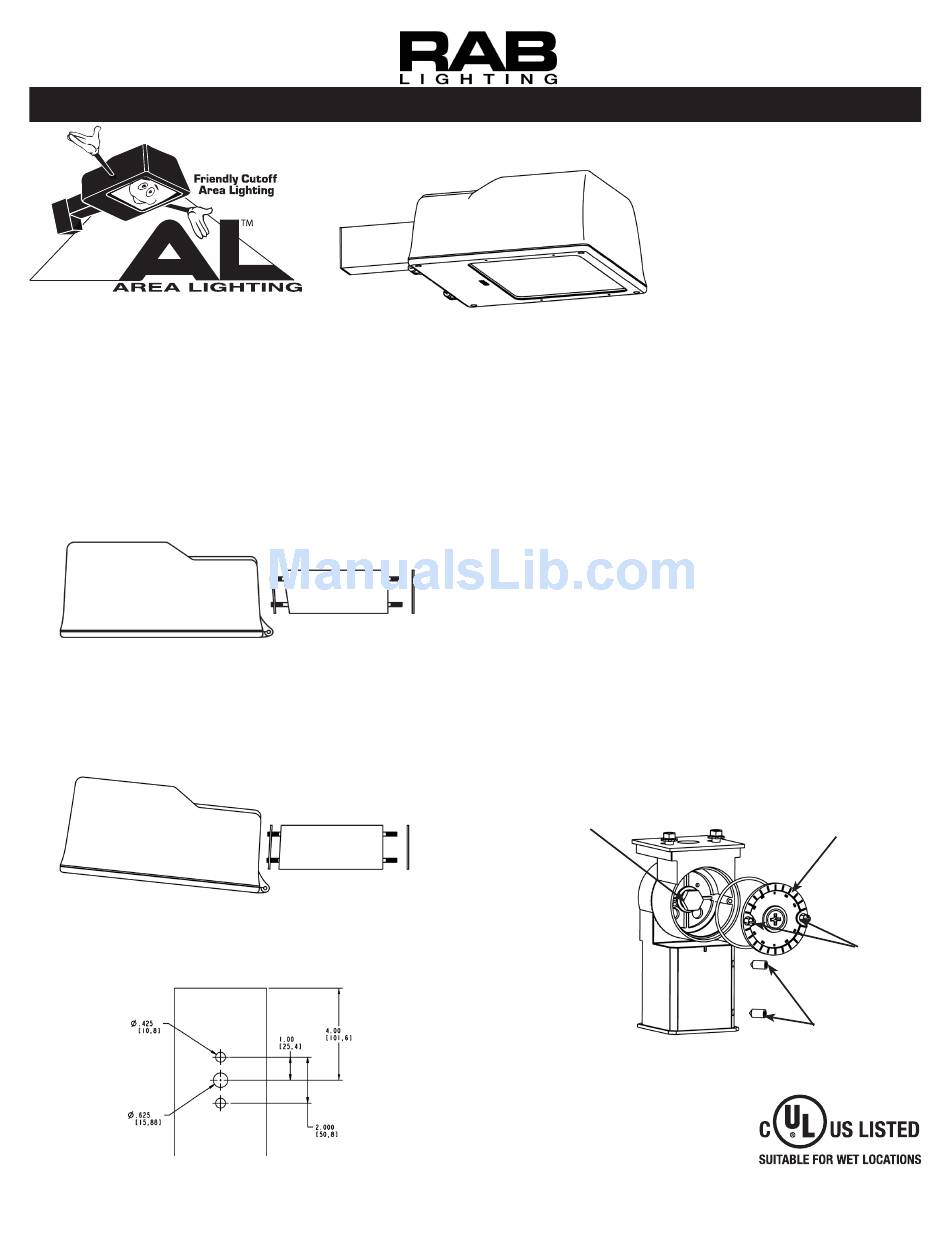

AL AREA LIGHT INSTALLATION INSTRUCTIONS
TM
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. This product must be installed in accordance with the applicable installation code by a
person familiar with the construction and operation of the product and the hazards involved.
Make certain power is OFF before installing or maintaining fixture.
WARNING:
fIXED ARM
For full cutoff, mount arm oriented as shown below.
UP TILT fIXED ARM
For 6 degree up tilt, mount arm oriented as shown below.
POLE DRILLING DETAIL
For mounting to a pole not drilled at RAB.
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
®
MOUNTING wITH SLIPfITTER
1. The slipfitter fits a 2 3/8" O.D. tenon. Place the
slipfitter over the tenon and secure with the (2) Set
Screws on the side of the slipfitter.
2. To adjust the angle of the fixture:
a. Remove (2) Cover Plate Screws and the
Round Cover Plate.
b. Hold the top of fixture, loosen the Locking Bolt
and swivel the fixture.
c. Tighten the Locking Bolt and re-attach the
Round Cover Plate.
Locking
Bolt
RAB fixture designs are protected under
U.S. and International Intellectual Property laws.
Patent pending.
Page
Thank you for buying RAB lighting
fixtures. Our aim is to design the
best quality products to get the job
done right. We'd like to hear your
comments. Call the Marketing
Department at 888-RAB-1000, or
email: marketing@rabweb.com
.
Round Cover
Plate
Cover Plate
Screws
Set Screws
