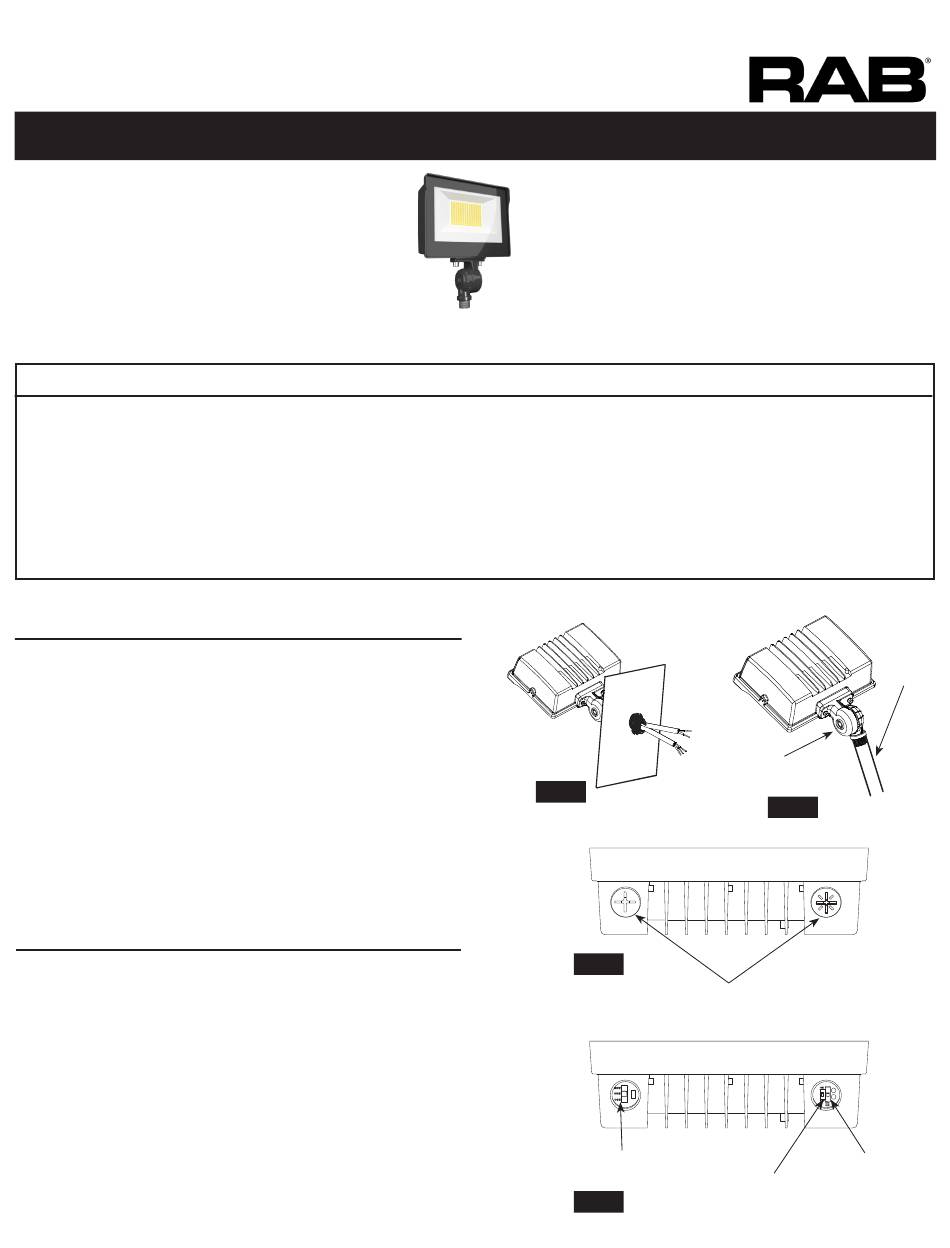

RAB X17 XFU Instructions Manual

INSTRUCTIONS
X17™ XFU 3-WAY FIELD-ADJUSTABLE FLOODLIGHT
SELECTABLE PHOTOCELL INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
WARNING: Do not use an electric generator to test LED fixtures.
WARNING: Min 75°C SUPPLY CONDUCTORS.
KNUCKLE MOUNT
To ensure weatherproof seal, apply weatherproof silicone sealant
around the edge of the junction box (not supplied). This is especially
important with an uneven wall surface.
1. Secure the fixture to a 1/2" NPS hole in the junction box or
landscape post as shown in Fig. 1. Seal arm thread using
Teflon® tape or silicone sealant.
2. Make appropriate wire connections per NEC in an approved
enclosure (not included) see Fig. 5.
3. The Knuckle Arm allows 180° of vertical aiming adjustment
depending on the mounting position as shown in Fig. 2.
FIELD ADJUSTMENT
Follow instructions below to change fixture Power (W) or Color
Temperature (CCT) from the factory settings and Photocell On/Off
option.
Factory Settings: 4000K and 35W
1. Remove Selector Switch Caps by turning counterclockwise
using a flat head screwdriver (Fig. 3).
2. Locate the Selector Switches on the fixture (Fig. 4).
3. Select Power (W) and Color Temperature (CCT) by sliding the
respective switch to the desired value.
4. Select Photocell On/Off option by sliding respective switch
to the desired value.
X17 XFU 35/25/15W Knuckle
Fig: 1
Knuckle Arm
Fig: 3
Selector Switch Caps
CCT Selector Switch
Photocell Selector Switch
Fig: 4
Pole
Fig: 2
POWER (W) Selector Switch
