Summary of Contents for Novita The GLACIER W55

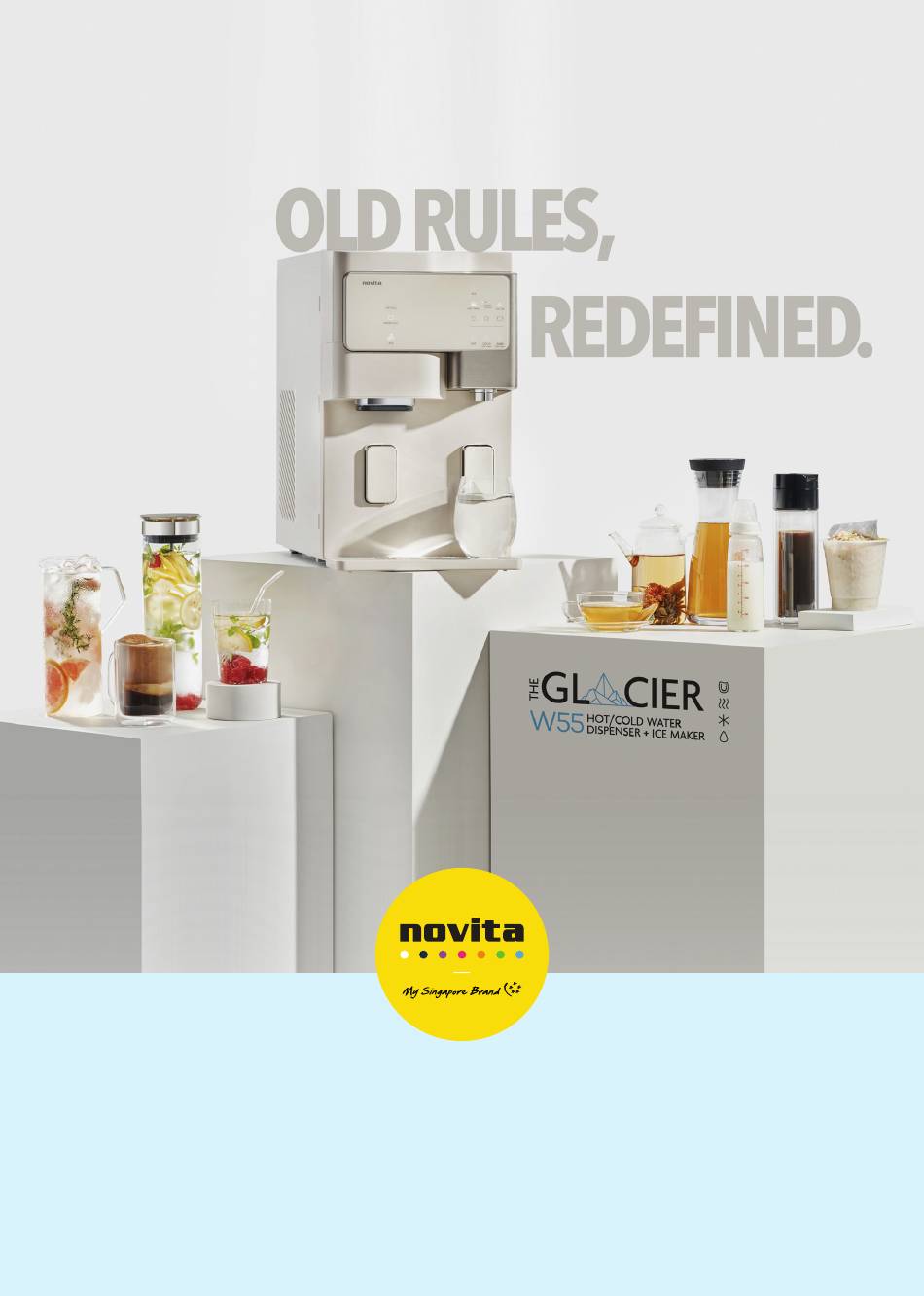

- Page 1 한 국 산 ICE. HOT. COLD. ROOM AT A SINGLE TOUCH OPERATING INSTRUCTIONS E-WARRANTY APPLICATION Please Read Instructions Before Using The Water Dispenser...
-
Page 2: Table Of Contents
Water Storage Tank 07 Sanitary Maintenance 08 Filter Functions and Replacement Cycle 09 How To Replace Filter 10 Specifications 11 Please check before requesting maintenance service novita Customer Service Guarantee e-Warranty Application 27~28 Limited Warranty Limited Warranty Extension Return and Refund Policy... -
Page 3: Product Features
Product Features 4 features (ice/cold water/ambient water/hot water) in one product Convenience has been enhanced so that ice, cold water, ambient water, and hot water can be produced and supplied by one product. Transparent and Tulip-shaped crystal-clear ice We have created a water purifier and ice maker that makes transparent and clean ice in the shape of a tulip. Water purification system providing an integrated ice making function W55 is an innovative hybrid of a reverse osmosis water purification system with an ice maker which is utilizing the freezing point depression method. -
Page 4: Safety Precautions 04~08
Safety Precautions • Please use the product safely and correctly to prevent accidents and dangers. • Precautions are classified into two categories, "Warnings" and "Cautions”, depending on the degree of risk and the amount of damages that may occur when the label is violated. Violation of the label may In case of violation of the result in... -
Page 5: Installation
Safety Precautions Installation Do not install the product in a humid place, near ammable materials, or in places exposed to rain or snow. Do not place candles, cigarettes, etc. on the appliance or place the appliance near heat sources. There is a risk of re. Be careful not to damage the refrigerant pipe when moving or installing the product. - Page 6 Safety Precautions When disposing, do not damage the pipe. When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance The following are not malfunctions. 1.
-
Page 7: Installation And Use
Safety Precautions Installation When dispensing ice, hold the container close to the ice dispensing outlet to prevent the ice and Use from bouncing out. Be careful not to hold containers such as cups too close to the inside of the ice dispensing outlet. Do not use glass cups for dispensing ice, and do not dispense ice with drinks or coffee in the cups. - Page 8 Safety Precautions Installation Never move the product while it is in operation. and Use It may cause malfunction. Be careful not to touch the heat sink plane on the back of pthreo duct as it can become hot during operation. Do not use chemicals (volatile materials, organic solvents, e.)tc on the product and keep them away from the product.
-
Page 9: Installation Precautions
Installation Precautions Do not install the product in the following places. Near res Near in ammables In humid places In front of air conditioners/heaters Places exposed to snow or rain Outdoors or direct sunlight Near chemicals (volatile materials, organic solvents, etc.) Near bathrooms Places below 0 or a place above 40... -
Page 10: How To Install
How to install Only qualified engineers are allowed to install the unit. Please maker sure that the unit is properly installed by an engineer. The installation process may differ depending on your installation conditions. We DO NOT bear any responsibility with respect to breakdowns, damages, or other problems caused by installation by non-qualified personnel. -
Page 11: How To Use 11~16
How to use Display and Control Panel ICE FULL LED Turns on when the ice storage is full. WATER FULL LED Turns on when the water storage tank is full. ACS Setting Touch to set the time for ACS smart cleaning function. Button ACS Setting LED Blinks when the ACS smart cleaning function operates. - Page 12 How to use Display and Control Panel Ice Dispense Press to dispense ice. Button Dispense Press to dispense water. Button Press the switch up or down to set/cancel the Drain Switch drain function.
-
Page 13: Function Setting And Releasing 13~15
How to use Function setting and releasing Plug the power plug into the outlet before operating the product. Lightly touch the “icon” to operate the buttons. Ice Function Setting Touch the “Ice On” setting button for 3 seconds. The ice making function turns on with sound effect. (Ice LED turns on) Canceling Touch the “Ice On”... -
Page 14: Sound Effect
How to use Fixed Dispense Setting Touch the "Fixed Dispense Selection" button to set the desired dispense quantity. After selecting cold/ambient water, press the Dispense button to get the set amount of cold/ambient water. Level Level 1 Level 2 Level 3 Quantity (approx.) (approx.) -
Page 15: Ice And Water Dispensing Method 15~16
How to use Ice and water dispensing method Dispensing Ice Touch the button until the desired amount is dispensed or press the lower Ice Dispense button to open the ice storage door and dispense ice from the outlet. Dispensing Cold Water After touching the “Cold Water Selection”... -
Page 16: How To Install Water Tray
How to use Ice and water dispensing method Dispensing Hot Water via Hot Tank Energy Saving Mode Touch and hold the Hot Water Tank Button for 3 seconds and toggle to select On Mode. When the Hot Tank Energy Saving Mode is ready, the Hot Water Button illuminates permanently in red with a sound alert. -
Page 17: Cleaning 17~19
Cleaning Ice Dispensing Outlet Push back the ice dispensing outlet and pull it downw ard to remove it. Separate and wash the ice dispensing outlet and the ice dispensing outlet’s cap. Ice Storage Tank Push the ice dispensing outlet’s front cover down to remove it, and then gently press the handle of the ice dispensing cover to remove it. -
Page 18: Water Dispensing Outlet
Cleaning Water Dispensing Outlet Turn the water dispensing outlet in the left direction to pull it out. Wipe the inside of the dispensing outlet with a cotton swab. Do not use cleaning detergent, thinner, benzene, wax, etc. This may cause product damage such as discoloration or peeling of the product, and may cause health problems. - Page 19 Cleaning Clean the ambient water tank and the tank cover with a soft cloth or dry cleaner, and then assemble the cover in the reverse order of the removal. Push the ice dispensing outlet’s front cover down to remove it, and then gently press the handle of the ice dispensing cover to remove it.
-
Page 20: Sanitary Maintenance
Sanitary Maintenance Category Description - The product can be installed within recommended water quality range. (1.7~7kgf/ ) Pl ace < Restricted Areas > Installation - Outdoors or in direct sunlight Environment - Near bathrooms - In front of air conditioners/heaters - Take care not to splash coffee, tea, drinks, or food (instant noodle soup) on the dispensing outlet, and when it does occur, wipe off immediately. -
Page 21: Filter Functions And Replacement Cycle
Filter Functions and Replacement Cycle Filter Function Stage 1/2: Pre-carbon Filter It is a carbon block filter molded through high temperature compression that removes suspended solids, rust, and particulate contaminants, etc. in raw water, as well as absorbing and removing chlorine, trihalomethane (THMs), and organic chemicals dissolved in raw water. -
Page 22: How To Replace Filter
Filter Replacement Turn OFF the raw water supply valve. Touch the “Ambient water selection” button, then press the Dispense button to dispense out all ambient water. Loosen the screw on the right cover of the product with a screwdriver, to remove the cover. -
Page 23: Specifications
Specifications Product Name Water Purifier SANITA Model Name GWI-60C9600M Product Weight 18.9 kg Maximum 1,600 W Hot Water 1,500 W Power Consumption Cold Water 0.6 A Defrost 400 W Ambient Water Hot Water 0.57 Storage Tank Cold Water 0.5 kg Rated Voltage 220-240 V~/50 Hz 290 W X 534 D X 474 H (mm) -
Page 24: Please Check Before Requesting Maintenance Service
Please check before requesting maintenance service It takes 30 minutes for each storage tank to become full. (Based on water temperature 25 , water pressure 2.8 kgf/ or more) It takes about 40~50 minutes to generate cold water. It takes about 130 minutes after the cold water is created to fill the ice storage tank. Symptom Check If the front display... -
Page 25: Novita Customer Service Guarantee
Minimum Downtime Understanding that time is of the essence, for each servicing or repair, novita guarantees that we will only take up to 7 working days to get your product up and ready for collection. -
Page 26: 13 E-Warranty Application
By submitting your e-warranty application, you have agreed to all the terms and conditions stated for this warranty. We hope you drink better with novita Hot/Cold Water Dispenser + Ice Maker W55... -
Page 27: Limited Warranty 27~28
6 & 7. 9. novita assumes no liability of the use of the product with a water source otherwise stated in the operation instruction booklet. It is beyond the company to determine the proper equipment necessary to meet purchaser/user requirements, and do not authorizes others to assume such obligations, explicitly and implicitly, for the company as the quality of water and water usage rate may vary from time to time. - Page 28 Products assume the remaining original limited warranty. 17. In the event that the Product is out of stock, obsolete or beyond repair, novita reserves all rights to replace the Product with another similar value as deem appropriate, subject to availability. In no event shall any recovery against novita exceed the actual price paid for the purchase of the Product.
-
Page 29: Limited Warranty Extension
• Extended limited warranty is available for purchase within the 1-year standard limited warranty period at estore.novita.com.sg/np-services. • An order con rmation email will be sent to your registered email address within 7 working days after receiving th extended limited warranty purchase order and payment and the system will be updated within 14 working days. -
Page 30: Return And Refund Policy
• For any refund of purchase after delivery and installation of novita Hot/Cold Water Dispenser + Ice Maker, a cancellation fee of S$300 for consumable filter and S$120 standard installation cost will be incurred, payable in CASH/CHEQUE to 9 Koi Marketing Pte Ltd. -
Page 31: Memo
MEMO... - Page 32 COPYRIGHT © 2025 NOVITA SG DM/M/W55/V2/032025...
