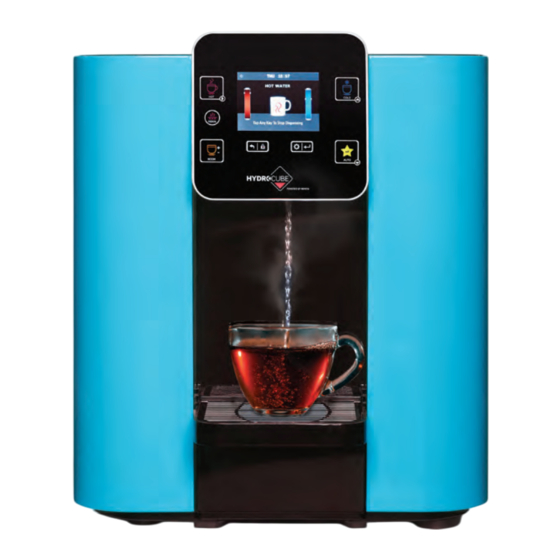

Novita W29 Operating Instructions Manual

Hot/cold water dispenser

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

™

HydroPlus

HydroPure

Filter

Auto

Rapid

Dispensing

Boiling

Option

System

STEP

Hi-Performance

6-Step

Carbon Fibre

Comprehensive

Block

Filtration System

Child

Filter/UV Lamp

Protection

Replacement

Lock

OPERATING INSTRUCTIONS

E-WARRANTY APPLICATION

Please Read Instructions Before Using The Water Dispenser

Advanced

Electrostatic

UV Germicidal

Composite

Lamp

Membrane

DIY Filter/

UV Lamp

Indicator

Replacement

W29

HOT/COLD

WATER DISPENSER

Hot/Cold/Room

Smart System

Temperature

Diagnosis

Water

°C

Flexible

Energy

Temperature

Saving

Setting

Timer

Table of Contents

Need help?

Do you have a question about the W29 and is the answer not in the manual?

Questions and answers

Summary of Contents for Novita W29

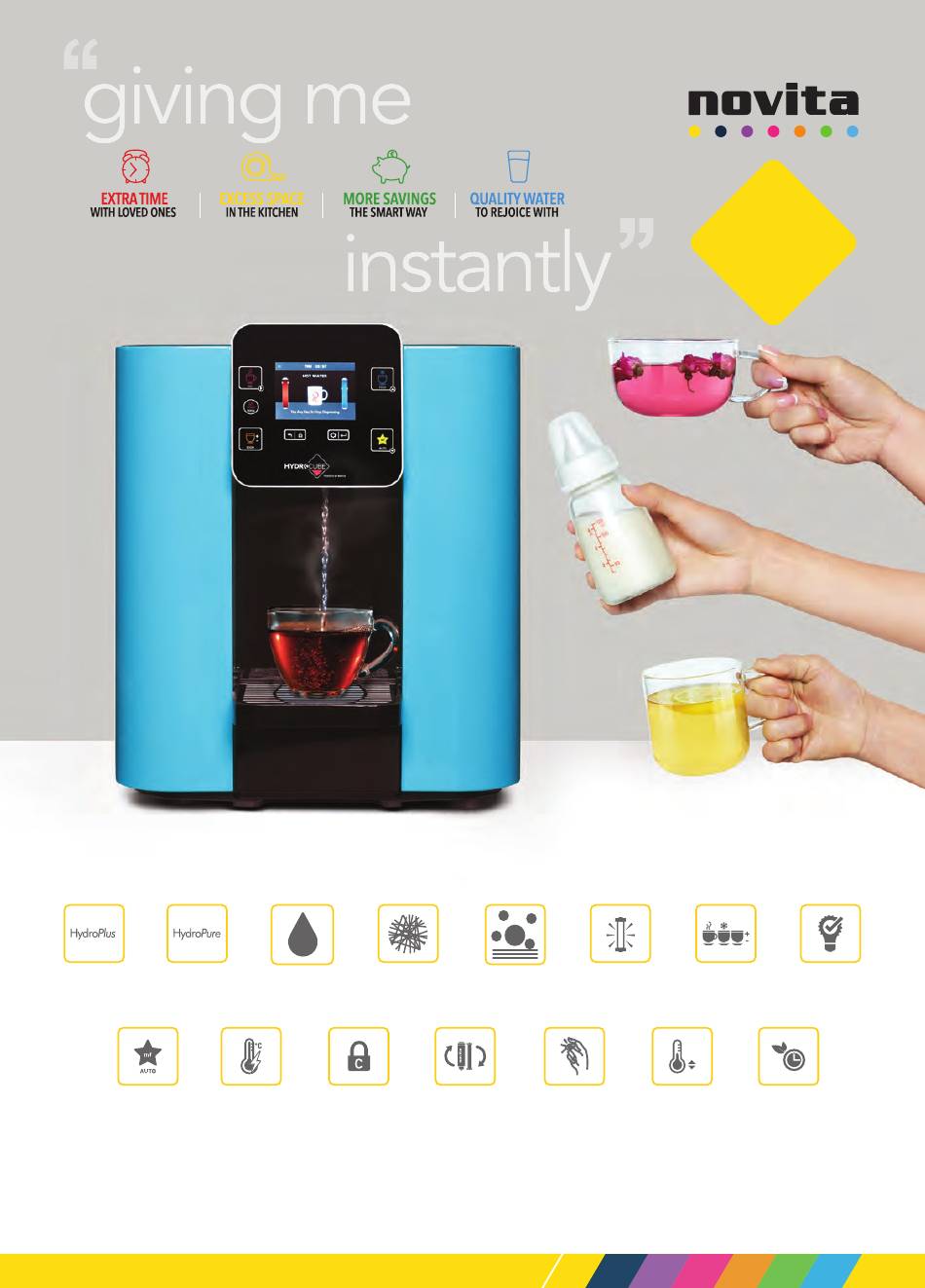

Page 1 HOT/COLD WATER DISPENSER ™ ® STEP Hi-Performance HydroPlus HydroPure Advanced Hot/Cold/Room Smart System ® 6-Step Electrostatic Carbon Fibre Filter Filter UV Germicidal Temperature Diagnosis Comprehensive Composite Block Lamp Water Filtration System Membrane °C Auto Rapid Child Filter/UV Lamp DIY Filter/ Flexible Energy Dispensing...
Page 2: Table Of Contents
RETURN & REFUND POLICY This product includes: • novita HydroCube Hot / Cold Water Dispenser W29 • Operating Instructions & E-Warranty Application (e-Copy) • Starter Guide • 12 Months Filter Pack (Filter Pack Replacement Guide, 2 Units of Hi-Performance Composite Filter, 1 Unit of Advanced Ultraviolet Germicidal Lamp, 1 Unit of Filter Spanner &...
Page 3: Features
FEATURES HydroPlus Filter ® HydroPlus filter gives you alkaline antioxidant water. ® Brimming with 4 beneficial HydroPlus properties: ® alkaline water, hydrogen water, hydrating water and oxygenizing water. HydroPure Filter HydroPure™ filter gives you purified energy water. Effective dechlorination, inhibits and eliminates any form of microbial activities while give you hydrating and oxygenizing water all at the same time! 6-step Comprehensive Electrostatic Composite...
Page 4 Designed not only to work hard but also to Replacement of the filter and UV lamp is so work smart, W29 runs on a smart system easy that you can do it all by yourself. Simply diagnosis which prompts user in the event of twist and remove the exhausted filter or UV technical faults.
Page 5: Product Description
PRODUCT DESCRIPTION EXTERIOR FRONT VIEW BACK VIEW INTERIOR INTERNAL VIEW Touch Panel LCD Display Dispensing Faucet Foldable Cup Holder Removable Drain Tray Base Stand Top Lid Refrigeration Condenser Heater ON / OFF Switch Power ON / OFF switch Fuse Water Inlet Port Power Plug HydroPlus / HydroPure...
Page 6: Control Panel & Lcd Display Description
CONTROL PANEL & LCD DISPLAY DESCRIPTION 01. Day 09. Time • Indicates day • Indicates time either in 12 hours or 24 hours format 02. Child Protection Lock Indicator 10. Operating Timer Indicator • Indicates Child Protection Lock is activated •...
Page 7: Hydroplus ® / Hydropure Tm Hi-Performance Composite Filter
• For best HydroPlus properties, ® consume the water within 6 • For best HydroPure hours of dispensing. novita properties, consume the water HydroPlus Alkaline Antioxidant ® within 6 hours of dispensing. Water is not recommended for pregnant women &...
Page 8: Installation
• Setting up of power point & water piping is not included in standard installation package (worth $80). • Service maintenance package is also offered by novita. • For more information on novita installation & service maintenance packages, please WhatsApp us at 8303 0034 or email us at custcare1@novita.com.sg. INSTALLATION PROCEDURE Place the unit on a stable and level surface with proximity to a power supply.
Page 9: Tm Hot / Cold Water Dispenser
This is normal and is due to the trapped air bubbles in the piping. SETTING UP Ensure installation is conducted by qualified service technician / installer appointed by novita. Ensure unit is properly installed with a filter and UV Lamp (packed separately).
Page 10 Unit will automatically conduct a quick assessment on the cold water tank. Place a cup on the foldable cup holder. Proceed to tap to fill up the cold water tank. Water will be dispensed from the faucet once the water tank is fully filled up. Unit will automatically conduct a quick assessment on the Advanced Ultraviolet Germicidal Lamp.
Page 11 Water will be dispensed from the faucet once there is sufficient water in the hot water tank. Tap any key to stop dispensing. • Heating will not begins in event of insufficient water inside the hot water tank. DISPENSING HOT WATER once to unlock the Hot Water Protection Lock.
Page 12 C by default. To adjust temperature setting, please refer to Page 12 of Operating Instructions Manual for instructions. • In event when UV Lamp Faulty screen prompts, please replace UV Lamp. If condition persists, please contact novita Customer Care Centre. DISPENSING ROOM TEMPERATURE WATER once to dispense a preset Room Temperature Water.
Page 13 AUTO HOT / COLD DISPENSING once followed by either to auto dispense a preset volume of hot or cold water respectively. • During cold water dispensing, flickers for 3 minutes to indicate Advanced Ultraviolet Germicidal Lamp is activated. • Unit is programmed at a preset setting of 10 seconds (approx.220 ml) hot or cold water dispensing by default. To adjust preset volume setting, please refer to Page 13 of Operating Instructions Manual for instructions.
Page 14 to increase or decrease the temperature settings in accordance to your preference. Description Icon Temperature Range Default Temperature Increase / Decrease Temperature by Re-boil C to 98 Hot Water C to 96 Cold Water C to 16 Room C to 60 Temperature Water once to confirm the temperature settings.
Page 15 HOT / COLD WATER Place a cup on the foldable cup holder. once for water to dispense for a duration from 1 to 30 seconds. Hot Water Cold Water • Water dispensing flow rate may vary subjected to the nature of the water pressure system. at any point of the time when you like to preset your desired volume of water.
Page 16 once to confirm the preset volume settings. “Saved” will be shown on the LCD screen to indicate settings are saved. consecutively to return to home screen. DATE & TIME once to enter setting options. two times followed by to enter settings.
Page 17 consecutively to select hour or minute. Tap to increase or decrease the setting. 2020 2020 Hour Minute to select time format settings. Tap to increase or decrease the setting. 2020 2020 12 Hours Format 24 Hours Format once to confirm the Time & Date settings. “Saved” will be shown on the LCD screen to indicate settings are saved. consecutively to return to home screen.
Page 18 SLEEP MODE once to enter Sleep Mode settings. Tap either to switch ON or OFF Sleep Mode option. When Sleep Mode option is switched on, Tap once followed by either to select between 1 to 4 hours of unit’s inactivity before activating Sleep Mode automatically. 1 Hour 2 Hours 3 Hours...
Page 19 to confirm the Sleep Mode settings. “Saved” will be shown on the LCD screen to indicate settings are saved. consecutively to return to home screen. will be shown on the home screen to indicate Sleep Mode option is switched on. When unit is at Sleep Mode, tap any key on the touch panel once to wake the unit up.
Page 20 followed by to switch ON or OFF the Operating Timer. Next, Key in timer to program unit to operate within the selected durations. Unit goes into Standby mode when selected duration expires. • Operating Timer will be deactivated when OFF is selected. Timer input sequence should always be programmed from the earliest to the latest timings.
Page 21 When unit is at standby mode, tap any key on the control panel followed by to override Operating Timer settings. • At standby mode, when unit is being interrupted, its preceding timer setting will be override. • Both heating and cooling process are deactivated when unit is at standby. •...
Page 22 consecutively to return to home screen. will be shown on the home screen to indicate Child Protection Lock option is switched on. to unlock then tap and hold for 2 seconds to dispense Hot Water when Child Protection Lock is activated . FILTER / UV LAMP RESET once to enter setting options.
Page 23 to reset Filter Lifespan. “Saved” will be shown on the LCD screen to indicate setting is saved. consecutively to return to home screen. UV LAMP RESET Please refer to Step 01 - 02 on Page 21 to enter Filter / UV Lamp Reset Settings. once followed by to enter UV Lamp Reset setting.
Page 24 LANGUAGE once to enter setting options. six times followed by to enter settings. consecutively to select your preferred language. once to confirm the Language settings. “Saved” will be shown on the LCD screen to indicate setting is saved. • For Singapore market, only English language is available. consecutively to return to home screen.
Page 25 SOUND ALERT once to enter setting options. seven times followed by to enter setting. to switch ON or OFF the touch panel sound alert option. once to confirm the Sound Alert setting. “Saved” will be shown on the LCD screen to indicate setting is saved. consecutively to return to home screen.
Page 26 MASTER RESET once to enter setting options. eight times followed by to enter setting. to toggle between YES or NO to master reset settings. once to confirm the Master Reset settings. “Saved” will be shown on the LCD screen to indicate the setting is saved. consecutively to return to home screen.
Page 27: 180 Days - About 1,800 Litres* Filter Replacement
NOTE: For best HydroPlus ® properties, consume the water within 6 hours of dispensing. novita NOTE: For best HydroPlus ® properties, consume the water within 6 hours of dispensing. novita HydroPlus ®...
Page 28: 360 Days Advanced Ultraviolet Germicidal Lamp Replacement
360 DAYS ADVANCED ULTRAVIOLET GERMICIDAL LAMP REPLACEMENT • UV Lamp replacement countdown reminder will start to prompt on the home screen when UV Lamp’s lifespan is left with 9 days. UV Lamp replacement notification prompts on the LCD screen when UV Lamp is due for replacement after every 360 days of usage. Please replace the UV Lamp to ensure optimum disinfecting performance.
Page 29: Cleaning & Maintenance
CLEANING AND MAINTENANCE For external maintenance, regularly use a damp cloth to wipe the surface to prevent accumulation of dust. DO NOT use chemicals or aggressive solvent as these substances may discolour the unit & results in permanent stains. REMOVABLE DRAIN TRAY Empty the removable drain tray periodically to prevent overflow.
Page 30: Safety Precautions
& the water might hence be unfit for consumption. DO NOT use any detergents, solvents or aggressive agents when cleaning the filter or any part of the novita HydroCube Hot / Cold Water Dispenser unless specified.
Page 31: Troubleshooting
• Contact novita customer care centre • Cooling system failure • Replace with a new UV Lamp • UV Lamp faulty • If condition persists, contact novita customer care centre Water cannot be dispensed • Power plug not connected properly or loose •...
Page 32: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions (W x D x H) 300 mm X 400 mm X 355 mm Net Weight Approx. 16 Kg Applicable Water Inflow Pressure Range 1.5 Kgf/cm to 6.0 Kgf/cm Rated Power Consumption 1,700 Watts Heating Power Consumption 1,500 Watts Cooling Power Consumption 138 Watts UV Lamp Power Consumption...
Page 33: Novita Customer Service Guarantee
Minimum Downtime Understanding that time is of the essence, for each servicing or repair, novita guarantees that we will only take up to 7 working days to get your product up and ready for collection.
Page 34: Limited Warranty Terms And Conditions
Transportation, delivery and incidental cost incurred in fulfilment of this limited warranty. The purchaser/user shall be fully responsible for the due delivery of the Product for any repair work to novita and for the subsequent collection. Any Product to be repaired must be sent to the service centre directly.
Page 35: Limited Warranty Extension - Extended Onsite Warranty
Products and/or spare parts or for the purposes of complying with applicable policies, rules, regulations and law, without prior notice.
