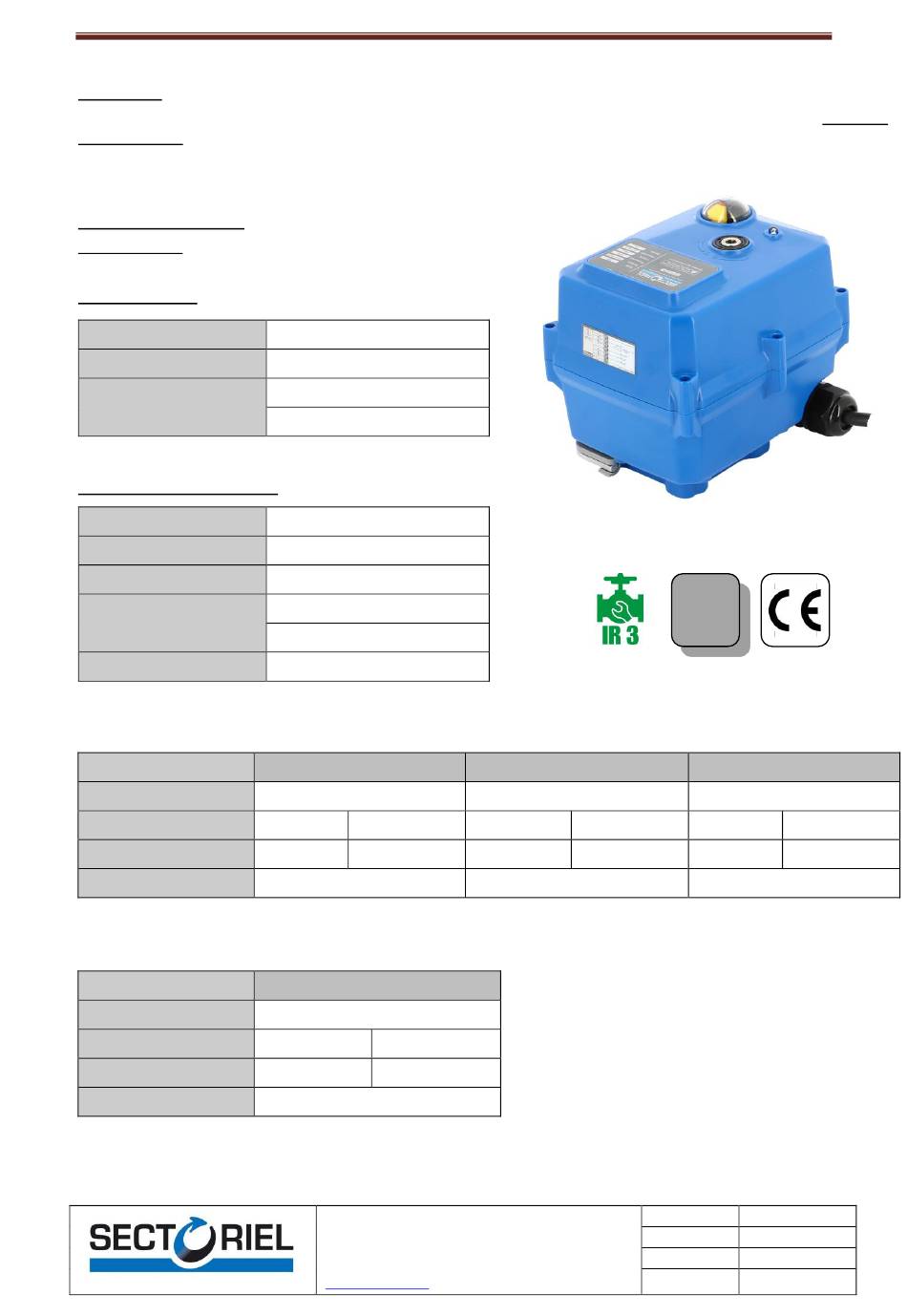

Sectoriel TCR-N-KT Series Instruction Manual

TCR-N-KT CAPACITOR RETURN ELECTRICAL ACTUATOR
FEATURES
The TCR-N-KT electric actuators are intended for motorising ¼ turn valves with a torque of 15, 50, 90 or 200 Nm. Capacitor
return function: the closing manoeuvre is provided by a capacitor. With a compact construction and plastic housing, they
are especially well suited for motorising small size ball valves. IP67 leak-tightness: to be used indoors and, possibly,
outdoors under a shelter. Possible installation in parallel. Manual control with a key.
AVAILABLE MODELS
Supply voltages: 230V AC, 24V AC/DC.
LIMITS OF USE
IP Code
Ambient temperature
Service factor
MECHANICAL FEATURES
Gear box
Torques
Angle of rotation
Declutching
Override control
Actuator
Torques (Nm)
Voltage
Manoeuvring time (s)
ISO 5211:
Actuator
Torques (Nm)
Voltage
Manoeuvring time (s)
ISO 5211:
Information given as an indication only, and subject to possible modifications
IP 67
- 20°C / +60°C
S4 - 50% (TCR 02N-05N-11N)
S3 - 85% (TCR 20N)
treated steel pinions
15 - 45 - 95 - 110 Nm
90° +/- 2°
Without (TCR 02N-05N-11N)
With (TCR 20N)
By key
TCR 02N-KT32
15
24V AC - DC 95-265V AC-DC
10 10
F03/F05 - star 11
TCR 20N-KT32
200
24V AC - DC 95-265V AC-DC
25 25
F07/F10 - étoile de 22
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRANCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.com / Email : sectoriel@sectoriel.fr
TCR 05N-KT32
50
24V AC - DC 95-265V AC-DC
12 12
F05/F07 - star 14
Pages
Ref.
Rev.
Date
IP
67
TCR 11N-KT32
90
24V AC - DC 95-265V AC-DC
10 10
F05/F07 - star 17
1/8
TDS2412
08
12/2024
