+ RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT
FEATURES

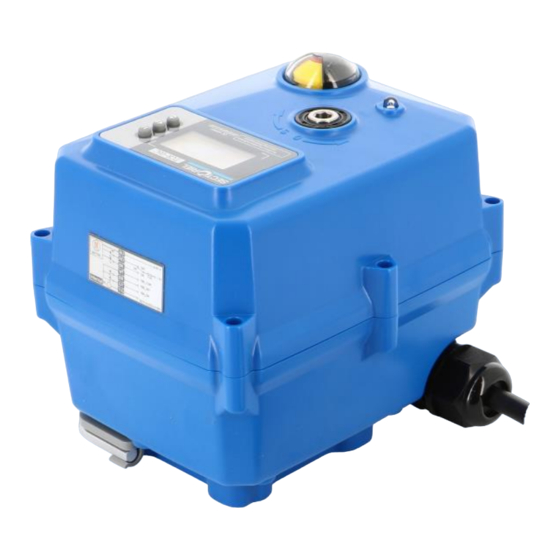

TCR-T-KT electrical actuators are intended for motorising ¼ turn valves with a torque of 50 or 80 Nm.
Double proportional control function 4-20mA + closing manoeuvre provided by a super-capacitor. With a compact
construction and plastic housing, they are especially well suited for motorising small size ball valves. The actuator has
many advanced control functions which can be set from the screen. IP67 leak-tightness: to be used indoors and, possibly,
outdoors under a shelter. Manual control with a key.
AVAILABLE MODELS
Supply voltages: 230V AC, 24V AC/DC.
Control: 4-20 mA, 0-20 mA, 2-10V, 0-10V.
LIMITS OF USE
IP Code
Ambient temperature
Service factor
MECHANICAL FEATURES
Gear box
Torques
Angle of rotation
Declutching
Override control
Actuator
Torques (Nm)
Voltage
Adjustment signal
Feedback signal
Manoeuvring time (s)
ISO 5211:
ELECTRICAL FEATURES
Actuator
Motor protection
Anti-condensation
Electrical connection
Actuator
Voltage
Power (W)
Current (A)
Fuse protection (A)
Information given as an indication only, and subject to possible modifications
REGULATING ELECTRICAL ACTUATOR
IP 67
- 20°C / +60°C
S4-50%
treated steel pinions
50 - 110 Nm
90° +/- 2°
without
By key
TCR 05T-KT32
50
24V AC - DC
95-265V AC-DC
4-20 mA, 0-20 mA, 2-10V, 0-10V
4-20 mA, 0-20 mA, 2-10V, 0-10V
12
F05/F07 - star 14
TCR 05T-KT32
PE M20 + 1.5m cable
TCR 05T-KT32
24V AC - DC
95-265V AC-DC
40
1,8
0,18
10
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRANCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.fr
/ Email : sectoriel@sectoriel.fr
TCR 11T-KT32
24V AC - DC
12
10
F05/F07 - star 17
TCR 11T-KT32
Thermal switch
integrated
2 x PE M14
TCR 11T-KT32
24V AC - DC
40
100
2,5
2
5
IP
ISO
9001
67
80
95-265V AC-DC
10
95-265V AC-DC
100
0,3 - 0,6
2
Pages
Ref.
FT2419B ENG
Rev.
Date
02/2020
1/9
01

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCR-05-11-T-KT and is the answer not in the manual?

Questions and answers

Related Manuals for Sectoriel TCR-05-11-T-KT

Summary of Contents for Sectoriel TCR-05-11-T-KT

  • Page 1 REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT FEATURES TCR-T-KT electrical actuators are intended for motorising ¼ turn valves with a torque of 50 or 80 Nm. Double proportional control function 4-20mA + closing manoeuvre provided by a super-capacitor. With a compact construction and plastic housing, they are especially well suited for motorising small size ball valves.

  • Page 2: Dimensions (Mm)

    REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT CONSTRUCTION (TCR-05T-KT32) TCR-05T-KT32 Name Material Name Material Casing + lid Plastic (ABS) 1.3” LCD display OLED Position indicator Polycarbonate plastic Rating plate Screw x 6 Ansi 304 Packing gland Nylon Backup control stem...
  • Page 3 REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT CONSTRUCTION (TCR-11T-KT32) TCR-11T-KT32 Name Material Name Material Casing + lid Plastic (ABS) 1.3” LCD display OLED Position indicator Polycarbonate plastic Rating plate Screw x 6 Ansi 304 Key support Plastic (ABS) Backup control stem...

  • Page 4: Wiring Diagram

    REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT WIRING DIAGRAM BU Neutral (Blue) RD Closing control (Red) Y/G Earth (Yellow / Green) Alarm return information (Black) GR Alarm return information (Green) 0-10V and 2-10V control signal (Purple) GY 4-20mA and 0-20mA control signal (Grey)
  • Page 5 REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT CONTROL IN LOCAL MODE Press the K3 button for 5 seconds, until “K3” flashes at the top right of the screen. Enter the password “111” Press the K2 button to manoeuvre clockwise. The screen displays the % of opening. Release when the desired position is reached.
  • Page 6 REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT Direct 4mA = valve closed / 20 mA = valve open Inverted 4 mA = valve closed / 20 mA = valve open Choosing the direction of rotation of the actuator In the absence of a control signal, the valve can take 3 positions: ON,...
  • Page 7 REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT This function is used for slowing down the motor. Range: 20-100% - Value by default = 100% Manual adjustment of the speed of rotation This setting affects the available torque. Without a special need, do not change it.
  • Page 8 REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT If a deviation is found on the 4mA output signal, this function is used to adjust it. If the number is increased, the current is higher. If the number is decreased, the current is lower.

  • Page 9: Troubleshooting

    REGULATING ELECTRICAL ACTUATOR + RETURN BY SUPER-CAPACITOR TCR-05-11-T-KT This parameter is used to set the % of charge on the super-capacitor from which on the actuator switches to the automatic mode. Setting range: 60-99% Value by default: 95% Do not set below 80%, the charge will be insufficient and would set off...
